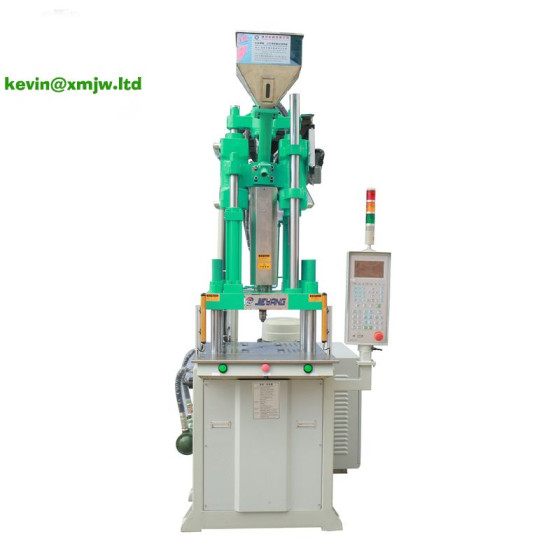

PVC Double Side Key Chain Making Machine Injection Molding Machine
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230813150333
- Availability: 500
Factory sale small injection molding machine sign board LED lighting injection machine manufacture
Factory sale small injection molding machine sign board LED lighting injection machine manufacture
Specification
| Model | Unit | JY-350ST-D | JY-450ST-D | ||||
| Screw Barrel Diameter | mm | 26 | 28 | 30 | 30 | 32 | 34 |
| Injection Pressure | kg/cm2 | 2319 | 2000 | 1742 | 1742 | 1531 | 1356 |
| Max. Shot Weight | gram | 66.3 | 72.6 | 83.4 | 98.9 | 112.5 | 127 |
| Max. Shot Weight | cm3/sec | 53 | 60.5 | 72 | 53 | 60.3 | 72 |
| Screw Barrel Route | mm | 140 | 200 | ||||
| Screw Barrel Rotary Speed | rpm | 190 | 0-200 | ||||
| Clamping Force | tons | 35 | 45 | ||||
| Slide Platen Size | mm | 350*350 | 390*420 | ||||
| Distance Between Tie Bere | mm | 525*325 | 635*425 | ||||
| Min. Mold Height | mm | 80/180 | 120/220 | ||||
| Opening Stroke | mm | 200 | 200 | ||||
| Max. Opening Mold Distance | mm | 280/380 | 350/420 | ||||
| Ejetor Force | tons | 1.5 | 1.5 | ||||
| Ejetor Stoke | mm | 85 | 85 | ||||
| Max. Hydraulic Pressure | kg/cm2 | 140 | 140 | ||||
| Pump Output | L/min | 47 | 56 | ||||
| Oil Resservoir Capacity | Liter | 80 | 120 | ||||
| Cooling Water Consumption | L/hr | 800-1000 | 1000-1200 | ||||
| Pump Motor Power | kw/hp | 4/5.5HP | 5.5/7.5HP | ||||
| Barrel Heating Power | kw | 2.4 | 3.4 | ||||
| Total Power | kw | 6 | 9 | ||||
| Machine Weight | tons | 1.55 | 1.8 | ||||
| Machine Dimension(LxWxH) | meter | 1.04*1.6*2.97 | 1.72*1.1*2.26 | ||||
| Shipping Weight | tons | 5.4 | 6.7 | ||||
| Shipping Measurements(LxWxH) | meter | 2.2*1.9*2.7 | 2.5*2.1*2.9 | ||||
The features of JY-STD series injection molding machine are as follows:
1.Vertical four-column clamping, vertical injection, easy to pick and place inserts and finished products
2.Single slide design, increase production efficiency, easy operation and high safety
3.Four-column single-slide machine (1 upper die, 1 lower die)
| After-sales Service Provided | Engineers available to service machinery overseas |
| Applicable Industries | Building Material Shops;Silicone products;medical industry;plastic industry |
| Brand Name | JIE YANG |
| Condition | New |
| Core Components | Motor |
| Distance Between Tie Bere | 370*205mm |
| Ejector Force | 1.5Tons |
| Ejector Force(kN) | 14.7 kN |
| Ejector Number | 1 |
| Ejector Stoke | 85mm |
| Ejector Stroke(mm) | 85 mm |
| Injection Rate (g/s) | 72 g/s |
| Injection Weight (g) | 83.4 g |
| Key Selling Points | High Productivity |
| Machine Dimensions(LxWxH) | 2.33*1.4*2.97m |
| Machine Type | plastic injection machine;Vertical silicone injection molding machine |
| Machine weight | 1.5Tons |
| Machinery Test Report | Provided |
| Max.Open daylight420/27 | 280/380mm |
| Min.Mold Height | 80/180mm |
| Mold Height(mm) | 80 - 180 mm |
| Open Stroke(mm) | 200 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid;Bakelite |
| Power (kW) | 6 kW |
| Screw diameter | 30mm |
| Screw diameter (mm) | 30 mm |
| Screw Speed (rpm) | 0 - 190 rpm |
| Showroom Location | Viet Nam |
| Slide Plate Size | 350*350mm |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 88.3 cm³ |
| Type | Tube Head Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 1550 kg |
