Type：QXCT-20030T-30SSP4
Static Capacity(pF)(±10%)：3200
Resonance Impedance(Ω)：10-20Ω
Length(mm)：43mm
Frequency(KHz)：200K
Input Power(W)：30W
Piezoceramics size：30*15*5(pzt4)
Radiating Diameter：31mm
Weight：150g/pcs
Ultrasound Piezoelectric Transducer 200K 35W - Ultrasonic Converter Transducer
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230812985638
- Availability: 500
Products Description
Ultrasonic transducer is to convert electrical energy into sound energy which also is called ultrasonic.it is composed of outer shell,matching tier,ring piezoelectric ceramic,backing material,outgoing cable and cymbal. The characteristics of transducers depend on material selection and manufacturing process. The performance and service life of transducers of the same size and shape are very different.
Main Features:
1: High mechanical Q value.
2: High transfer efficiency.
3: High quality piezoelectric ceramic material with good heat resistence.
4: Large range of working temperature.
5: Lower resonant Impedance.
6: Large amplitude,high vibration speed.
7: Clean and tidy appearance,without corrosion,deformation and scratch.
8: Frequency and static capacitance keep more consistency.
9: High output power.
10: ight with bolt ,be easy to install,reliable .
2: High transfer efficiency.
3: High quality piezoelectric ceramic material with good heat resistence.
4: Large range of working temperature.
5: Lower resonant Impedance.
6: Large amplitude,high vibration speed.
7: Clean and tidy appearance,without corrosion,deformation and scratch.
8: Frequency and static capacitance keep more consistency.
9: High output power.
10: ight with bolt ,be easy to install,reliable .
Application:
•Strong cavitations,powerful and effective, quick detergence.
•Automotive and aerospace industry,mechanical industry,plating industry etc.
•Automotive and aerospace industry,mechanical industry,plating industry etc.
Product Picture

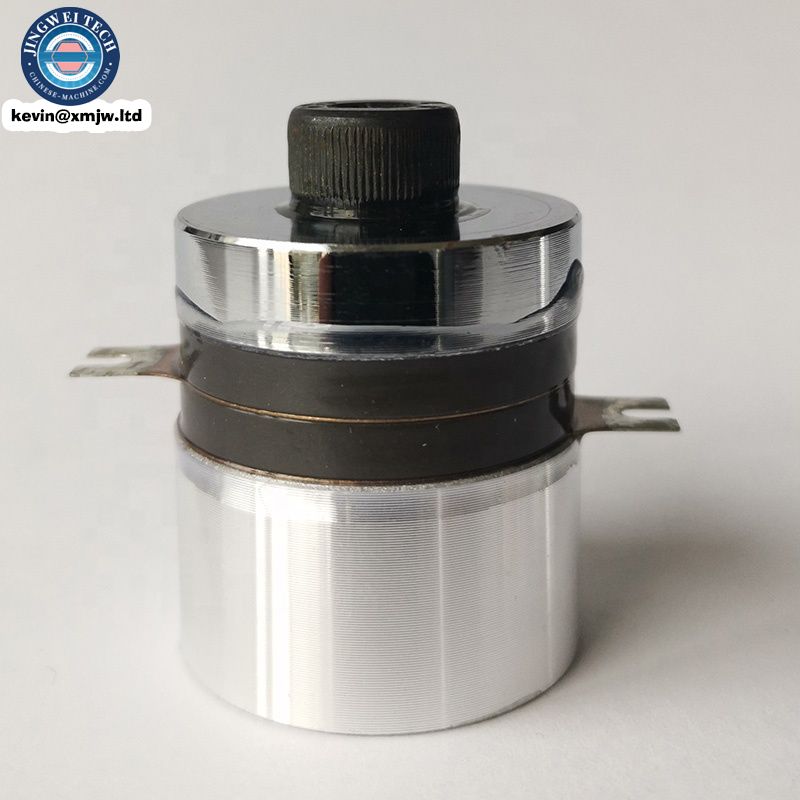

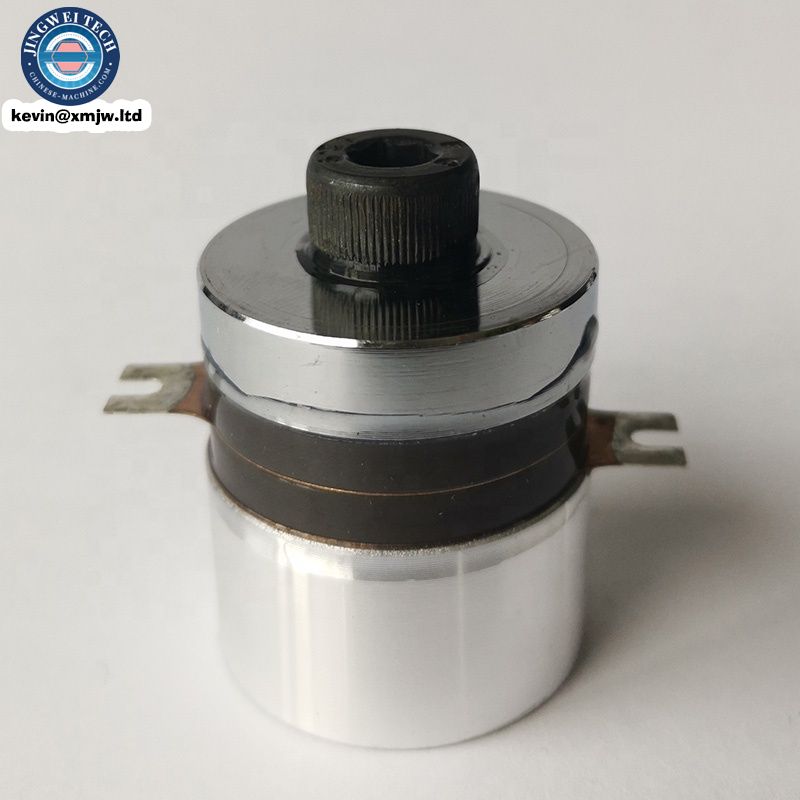

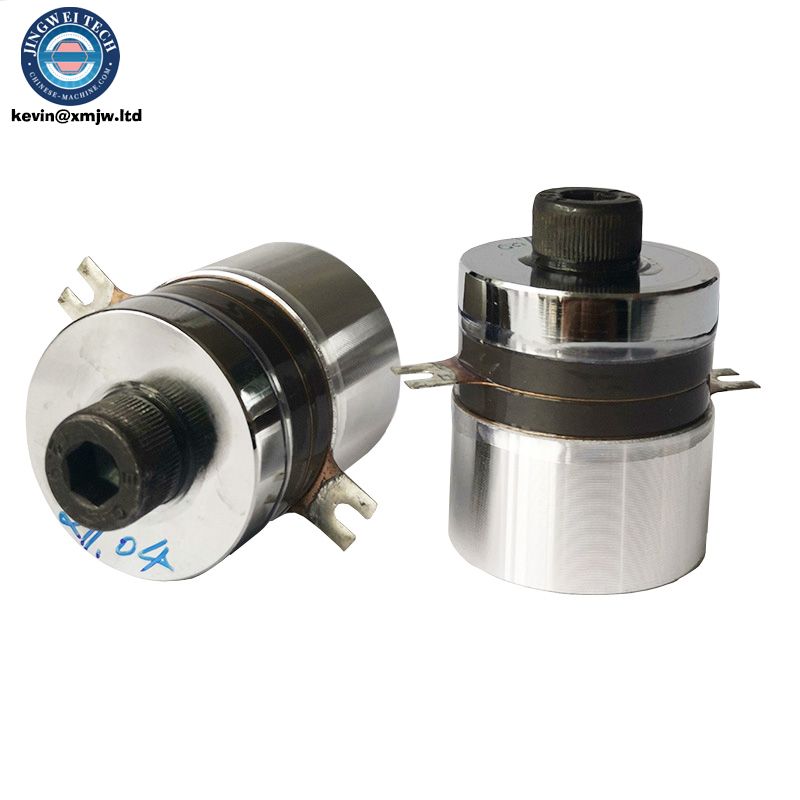

200K-30W P4 Ultrasonic Transducer
Product Paramenters
& If you are interested in our product,
& Pls just feel free to send us your inquiry.
& We wil try our best to quote the competitive price for you!----- Contact Us Now
& Pls just feel free to send us your inquiry.
& We wil try our best to quote the competitive price for you!----- Contact Us Now
| Applicable Industries | Hotels;Garment Shops;Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Food & Beverage Factory;Farms;Restaurant;Home Use;Retail;Food Shop;Printing Shops;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company |
| Application | Washing |
| Brand Name | QX ULTRASONIC |
| Condition | New |
| Frequency | 200KHz |
| Machinery Test Report | Provided |
| Material | aluminum |
| Place of Origin | Beijing;China |
| Product name | 200khz Ultrasonic Transducer |
| Showroom Location | Viet Nam;Indonesia;India;Russia |
| Spray angle | 360 |
| Thread size | M10*1 |
| Type | Ultrasonic Transducer;QXCT-20030T-30SSP4 |
| Ultrasonic Power | 30w |
| Usage | Vibration Sensor |
| Video outgoing-inspection | Provided |
| Warranty | 3 months |
| Weight (KG) | 0.4 |
