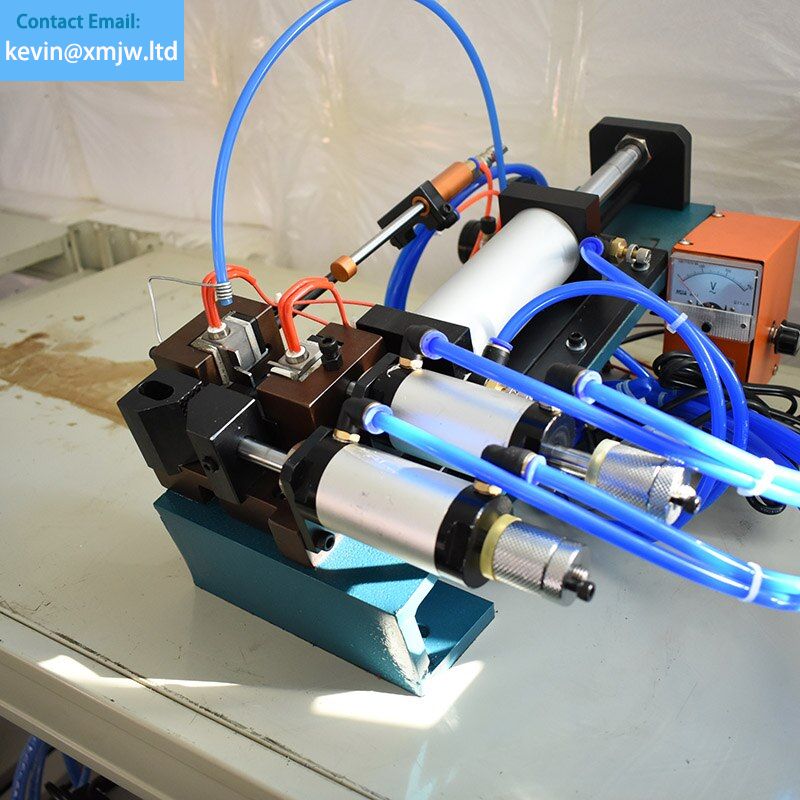

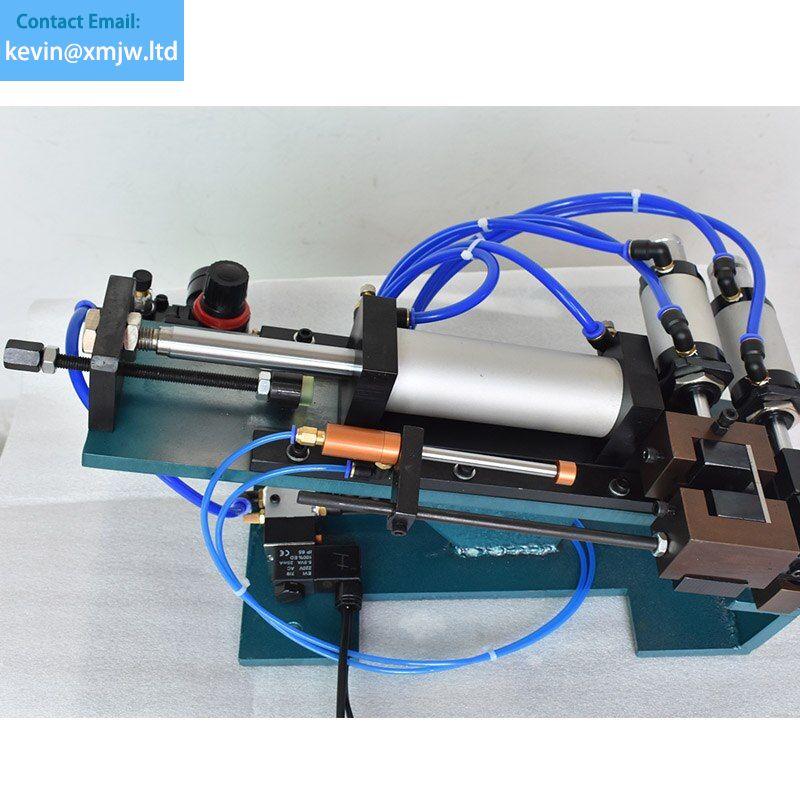

Horizontal 3-10mm Glass Fiber Cable Stripping Machine - Pneumatic High Temp
- Auxiliary cylinder
- Master cylinder The length of the core wire is controlled by the nut behind the cylinder and the left and right screw nut to control the length of the core wire
- Machine This machine is mainly used for Hot stripping(cutting)the tails of multi-core computer cables,telephone cablesparallel cables and power cables, Braid...
- It is easy to operate and has a wide range of uses.
- Model Number
- 305R/310R
- Certification
- CE
- Application
- electronic
- Origin
- Mainland China
Reply within 24 hours · 12-month warranty

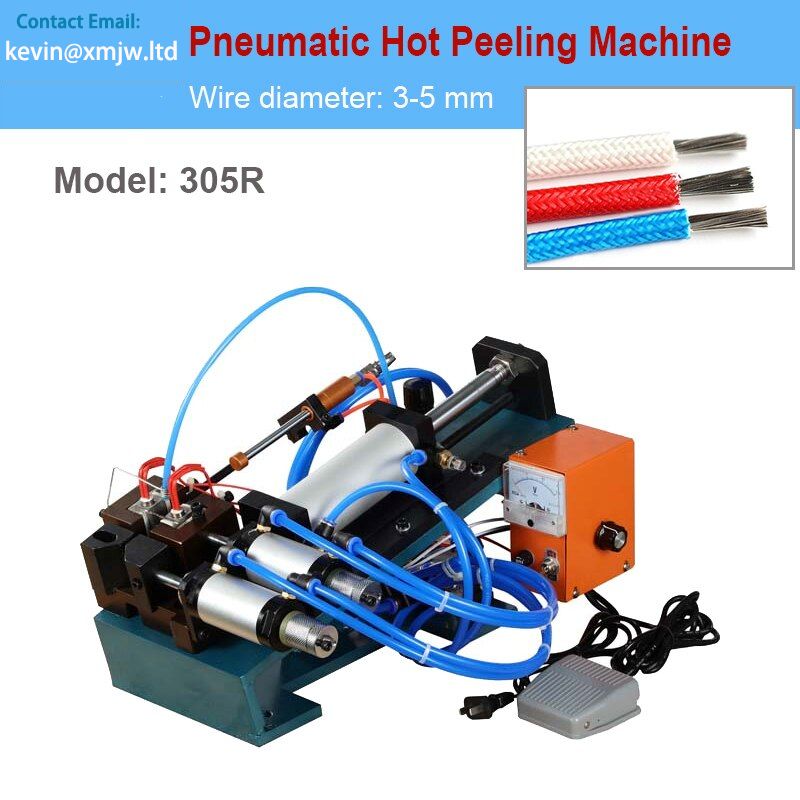

Horizontal Hot Stripping Machine Pneumatic Braided Wire Peeling Machine
This machine is mainly used for Hot stripping(cutting)the tails of multi-core computer cables,telephone cablesparallel cables and power cables, Braided wire. It is easy to operate and has a wide range of uses.
Features:
*Premium blade
Using high-quality wear-resistant bladesdurable and long-lasting sharpness
*Auxiliary cylinder
The length of the stripping wire is controlled by the valve on the cylinder and the left and right twisting regulating vaive to control whether the stripping wire is available Wound core wire
*Master cylinder The length of the core wire is controlled by the nut behind the cylinder and the left and right screw nut to control the length of the core wire
Product Description
| Model | 305R |
|---|---|
| Power supply | AC220V50/60HZ, 150W |
| Wire range | 3- 5mm |
| Strip length | 50mm |
| Temperature | 300 C |
| Air pressure | 3-7KG |
| Weight | 16KG |
| Volume | L410*W310*H250mm |
| Application | electronic |
|---|---|
| Certification | CE |
| is_customized | Yes |
| Model Number | 305R/310R |
| Origin | Mainland China |
