Intelligent Infrared Laser Welding Desoldering Machine - 4K CCD BGA Repair
- Tin, flying wire and other work, small size, light weight, long life, no consumables.
- V Power：100W Laser power:55W heating temperature：100-450℃ microscope：4KCCD pixel：4800万（4800million) Machine size：290*290*340mm Wooden box size：425*355*325mm ...
- Laser power:55W
- heating temperature：100-450℃
- Model
- Intelligent Thermal Infrared Laser Welding Machine
- Model Number
- Intelligent Thermal Infrared Laser Welding Machine
- Laser power:
- 55W
- Net weight
- 6.2KG
- Machine size
- 290*290*340mm
- Certification
- CE
Reply within 24 hours · 12-month warranty

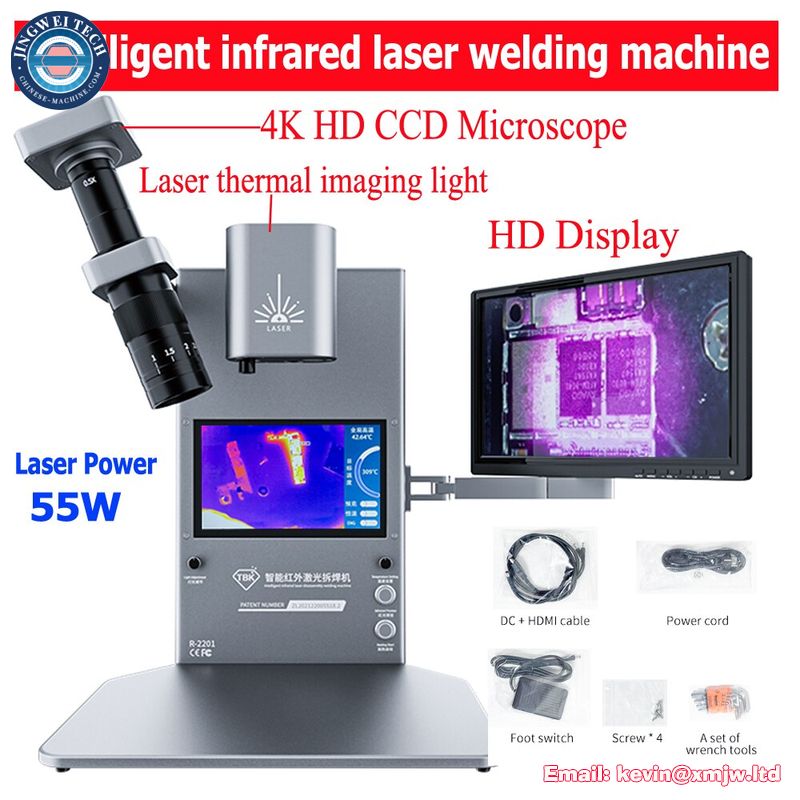

Intelligent Thermal Infrared Laser Welding Machine BGA Mobile Repairing Reballing Rework Station 100W 4KCCD Chip Repair

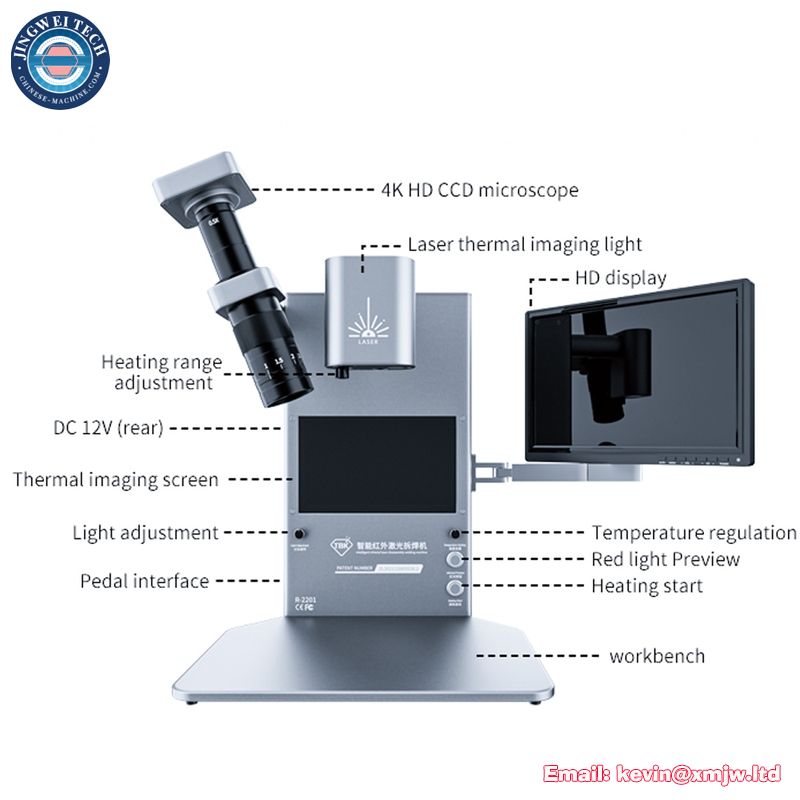

TBK-R2201 intelligent infrared laser desoldering machine is equipped with 256 high-definition thermal imager, 4K high-definition electron
microscope, 55W laser machine, intelligent constant temperature control system, the temperature can be set to a constant temperature
of 100-450 degrees, and can be used for desoldering, chip, glue removal, planting Tin, flying wire and other work, small size, light
weight, long life, no consumables.
Specification
Voltage：110V-220V
Power：100W
Laser power:55W
heating temperature：100-450℃

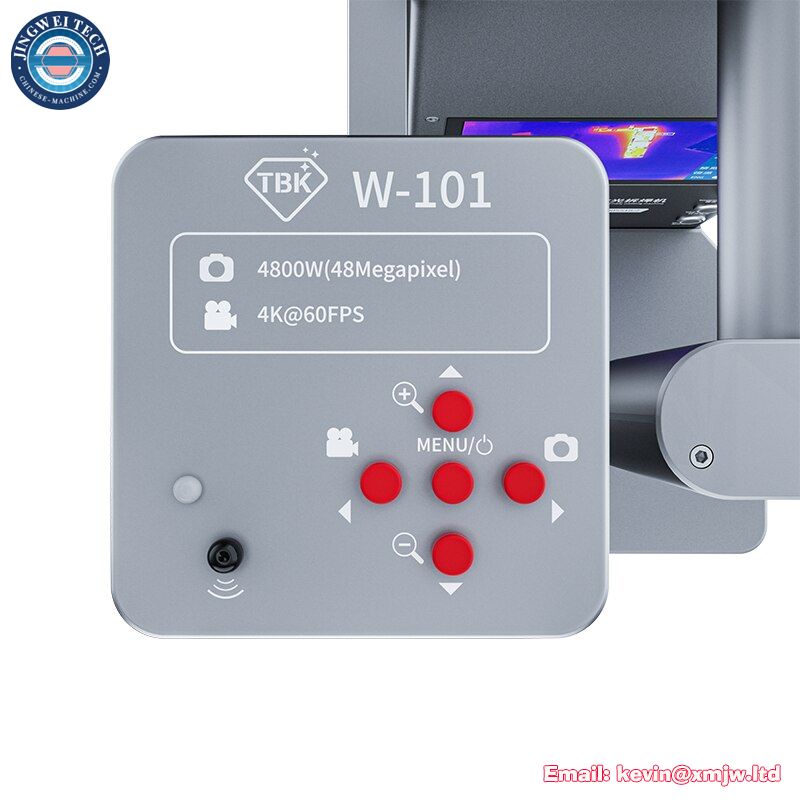

microscope：4KCCD
pixel：4800万（4800million)
Machine size：290*290*340mm
Wooden box size：425*355*325mm
net weight：6.2KG
Gross weight：8.4KG
| Brand Name | TBK |
|---|---|
| Certification | CE |
| Heating temperature | 100-450℃ |
| is_customized | Yes |
| Laser power: | 55W |
| Machine size | 290*290*340mm |
| microscope | 4KCCD |
| Model | Intelligent Thermal Infrared Laser Welding Machine |
| Model Number | Intelligent Thermal Infrared Laser Welding Machine |
| Net weight | 6.2KG |
| Origin | Mainland China |
| pixel | 4800million |
