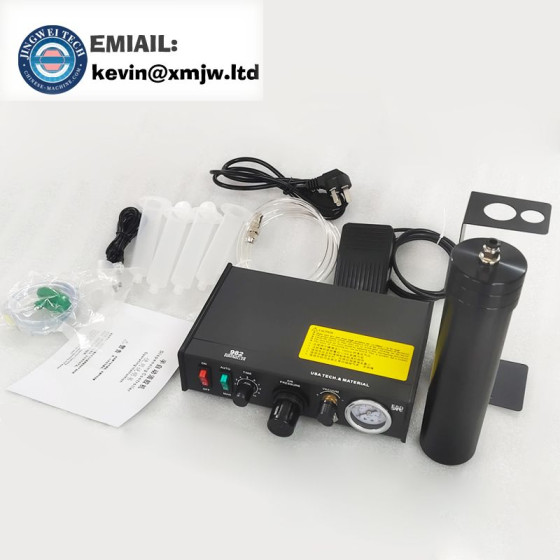

300CC Automatic Silicon Tube Dispenser - Pneumatic 330ml Glue
- S--30S, adjustable DIP switches into combination, a variety of available time mode; Air Source:Maximum 0.
- MPa (clean dry air without lubrication); Spit pressure adjustment range:0.
- MPa; Repeatability and spit Frequency:Accuracy: ± 0.
- Frequency: 600 beats / min; Function Mode:Manual mode / semi-automatic mode; Minimum discharge rate:0.
- Model Number
- 300CC
- Origin
- Mainland China
- DIY Supplies
- Metalworking
- Type
- Silicone Sealant
Reply within 24 hours · 12-month warranty
Features
Spit time adjustment range:0.01S--30S, adjustable DIP switches into combination, a variety of available time mode;
Air Source:Maximum 0.99MPa (clean dry air without lubrication);
Spit pressure adjustment range:0.05MPa-0.99MPa;
Repeatability and spit Frequency:Accuracy: ± 0.05% and Frequency: 600 beats / min;
Function Mode:Manual mode / semi-automatic mode;
Minimum discharge rate:0.01mL;
Vacuum features: Adjustable to 600 mm Hg negative pressure control;
Input voltage:220V±10% 50Hz/110V±10% 60HZ;
Consumed power:<8W ;
External dimensions: 235mmx225mmx60mm;

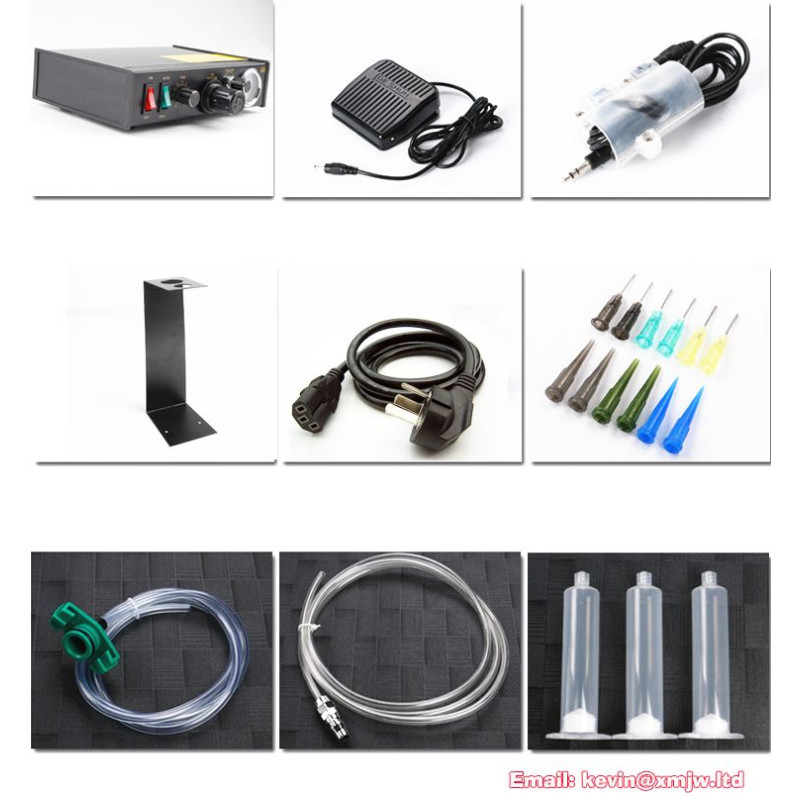

Package include
Package
| Certification | NONE |
|---|---|
| DIY Supplies | Metalworking |
| Model Number | 300CC |
| Origin | Mainland China |
| Type | Silicone Sealant |
