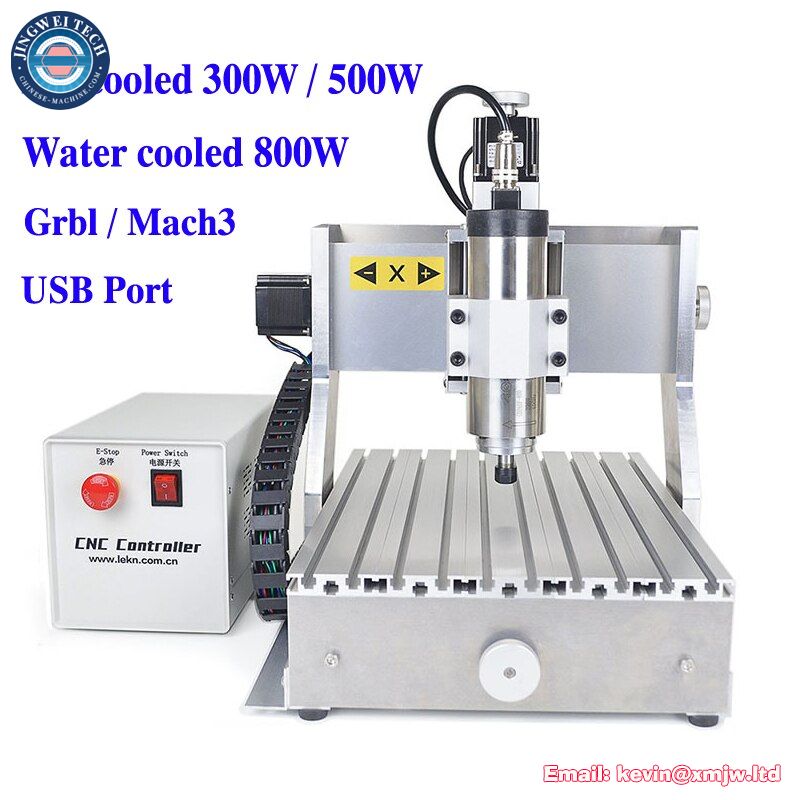

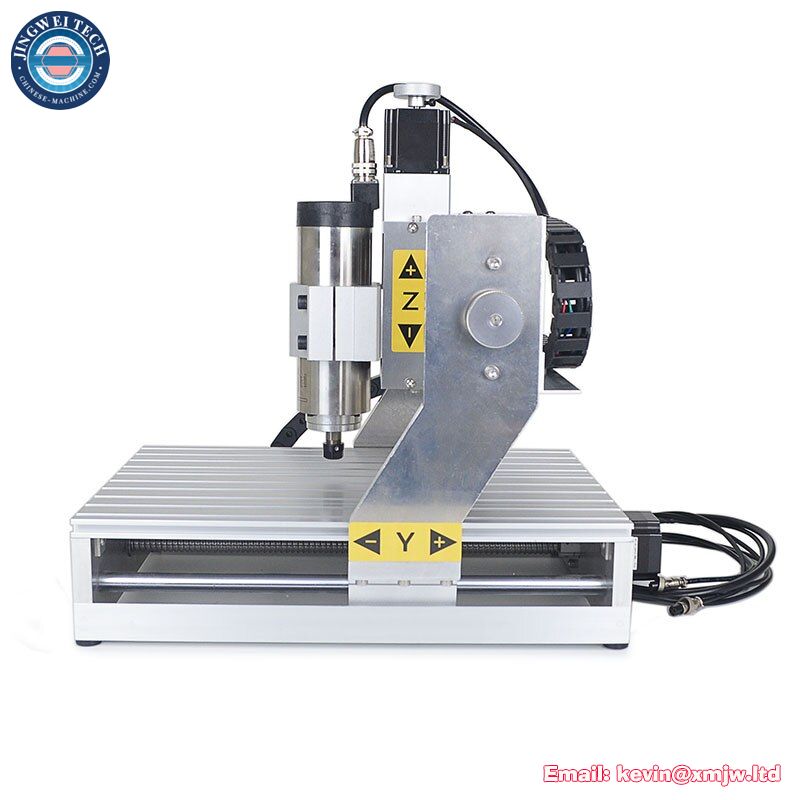

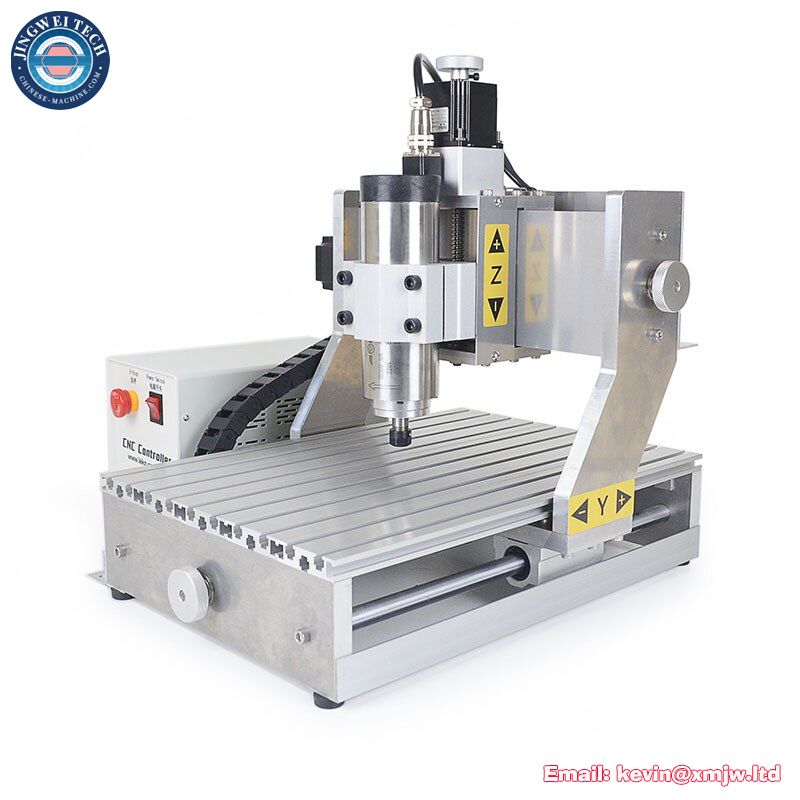

3020 CNC Router GRBL/Mach3 - 800W Metal Body Wood Engraver DIY
- Model
- CNC Router
- Model Number
- CNC Router
- 300W 500W Speed:
- 0~12000rpm/min
- 800W Speed
- 0-24000rpm/min
- Dimensions
- 510*450*460mm
- Worktable size
- 300*440mm
Reply within 24 hours · 12-month warranty
3020 CNC Router GRBL Mach3 Control with 800W 300W 500W Spindle PCB Engraving Milling Machine, Metal Body,Diy Wood Router
| Machine Parameter | |||
| Model | CNC 3020 | ||
| Effect stroke | 200*300*60mm（X/Y/Z） | ||
| Machine size | 510*450*460mm | ||
| Acceptable material thickness | Max 80mm | ||
| Table size | 300*440mm | ||
| Rack material | 6061-T6 aluminum alloy（15mm） | ||

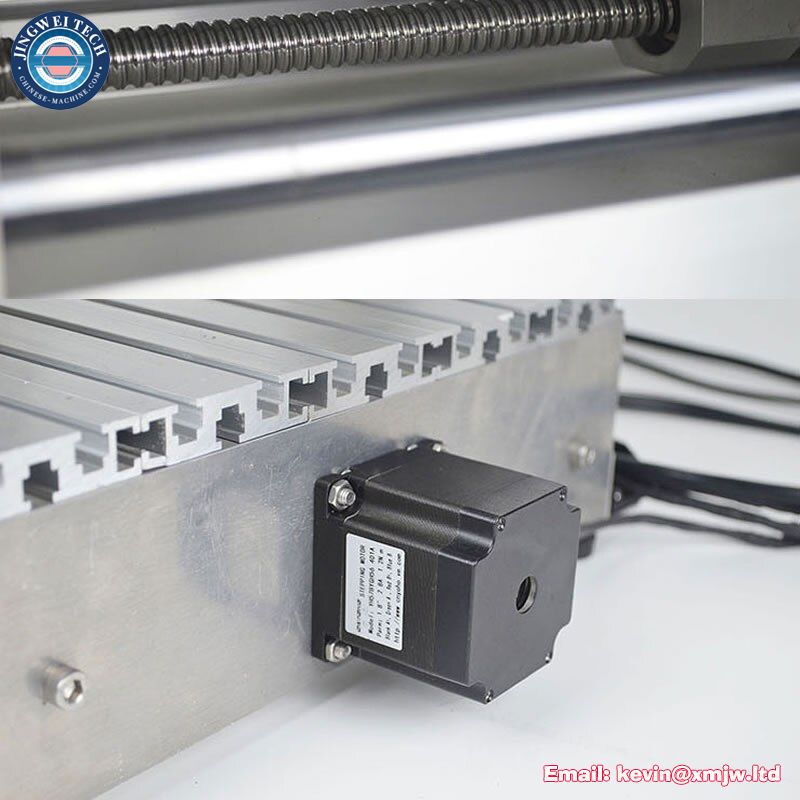

| Transmission | 1605 Ball screw | ||
| Guide liner rail type | Round rod（X:16/Y16/Z12） | ||
| Electronic control parameters | |||
| Model | 300W | 500W | 800W |
| Spindle power | DC 300W | DC 500W | DC 800W |
| Spindle driver | DC governor | DC governor | DC governor |
| Spindle speed | 0~12000rpm/min | 0~12000rpm/min | 0~24000rpm/min |
| Cooling way | Air cooling | Air cooling | Water cooling |
| Collet type | ER-3.175/4 | ER-3.175/4 | ER-3.175/4 |
| Stepper motor | 57BYGH56 | 57BYGH56 | 57BYGH56 |
| Stepper driver | 16 segments -4A | 16 segments -4A | 16 segments -4A |
| Repeat positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Precision | ±0.05mm | ±0.05mm | ±0.05mm |
| Software | GRBL/MACH3 | GRBL/MACH3 | GRBL/MACH3 |

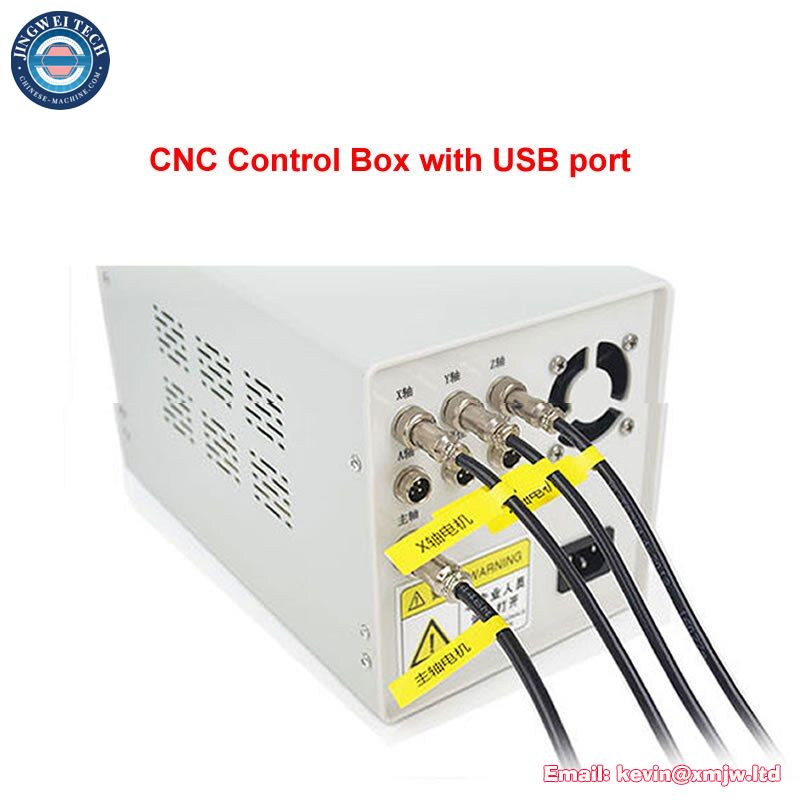

| Communication interface | USB port | USB port | USB port |
| Input voltage | AC220V/AC110V | AC220V/AC110V | AC220V/AC110V |
| Command code | G-code（.nc,gcode,.tap） | G-code（.nc,gcode,.tap） | G-code（.nc,gcode,.tap） |
| Software Copatability | AutoCAD,CDR,UG,ArtCAM,PowerMill | AutoCAD,CDR,UG,ArtCAM,PowerMill | AutoCAD,CDR,UG,ArtCAM,PowerMill |
| 300W 500W Cooling way | Air cooling |
|---|---|
| 300W 500W Speed: | 0~12000rpm/min |
| 800W Cooling way | Water cooling |
| 800W Speed | 0-24000rpm/min |
| Certification | CE |
| CNC or Not | CNC |
| Communication interface | USB port |
| Condition | New |
| Dimensions | 510*450*460mm |
| Effective stroke | 200*300*60mm (X/Y/Z) |
| Frame material | 6061-T6 aluminum alloy (15mm) |
| Is Smart Device | YES |
| Maximum workpiece thickness | ≤80mm |
| Model | CNC Router |
| Model Number | CNC Router |
| Origin | Mainland China |
| Software | GRBL/MACH3 |
| Worktable size | 300*440mm |
