331 Single Screwdriver Machine Automatic Screw Tightening Machine Screw Assembly Machine

  • Inquiry Email: sales@cablecutting.net
  • Product Code: CN230810308174
  • Availability: 500






Product Description

The company's automatic screw machine can be customized non-standard. For more detailed parameters, please contact customer service.

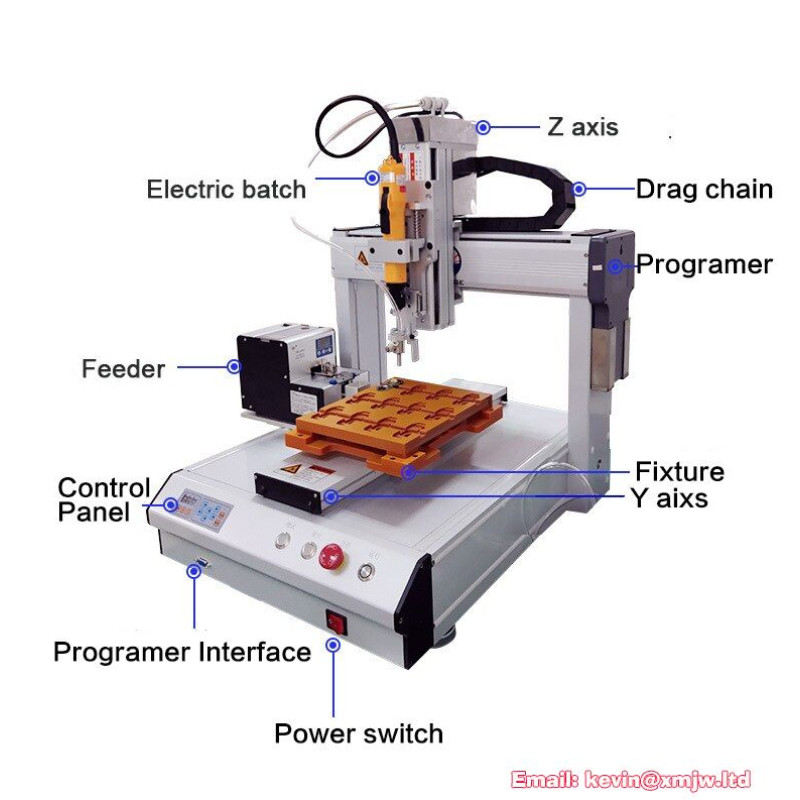

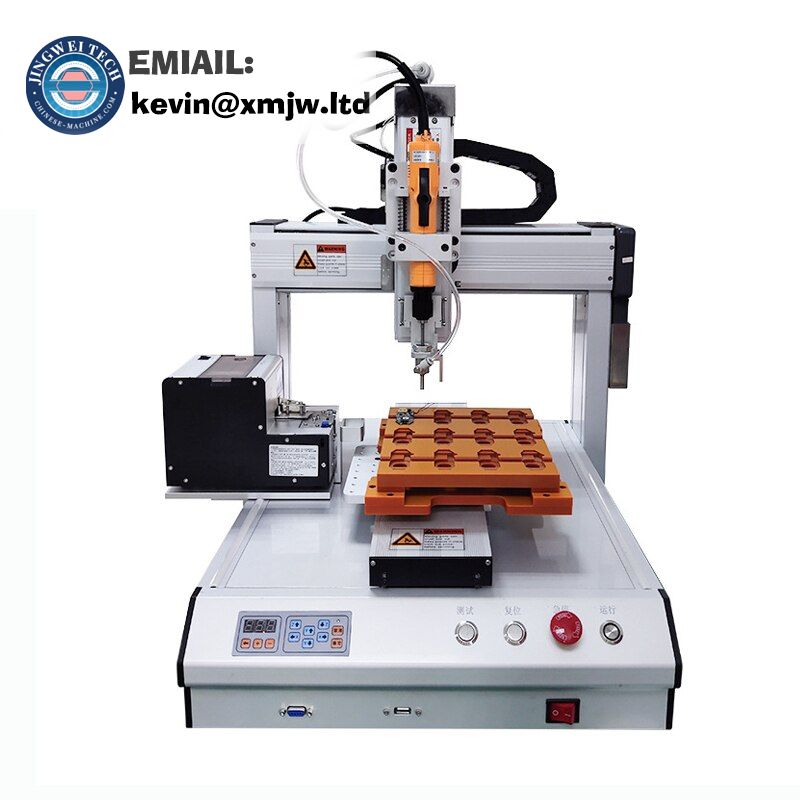

The automatic screw machine is an automated equipment that can replace manual screw locking.

As the production cost of enterprises is getting higher and higher, labor costs are rising, and automatic screw machines will replace most of the screw locking stations, which are simple to operate, convenient to use, and efficient.



Model

YK-L331

Axis

3 Axis (X,Y,Z) X 300*Y 300*Z 100mm

Driving mode

Precision Stepping Motor+Synchronous belt

Maximum Speed

X,Y 500mm/S, Z 500mm/S

Repeated precision

±0.05mm

Teaching Method

Remote Teaching/Manual Data Input/Optional: LCD Touch Screen

Motor system

precision stepper motor

Transmission mode

Synchronous belt +guide rail

Torque Range

0.5~15kgf.cm (can be adjusted )

Tighten efficiency

About 60pcs/min(according to the screw type)

Voltage

AC 110V/220V,50Hz/60Hz

Power Source

Electricity + Pneumatic

Air pressure requirement

0.4 to 0.6MPa (4 to 6kg/cm2) as dry air

Our factory










Brand Name NoEnName_Null
Certification CE
is_customized Yes
Max. Torque 10
Model Number YK-L331
Origin Mainland China
Power Source AC
Type Other
Usage Commercial Manufacture
Weight 80
