CNC Dividing Head BS-1/BS-2 - 4-6" Indexing Rotary Axis, 3 Jaw Chuck
- It able to complete gear, face and flute processing without need of accessories.

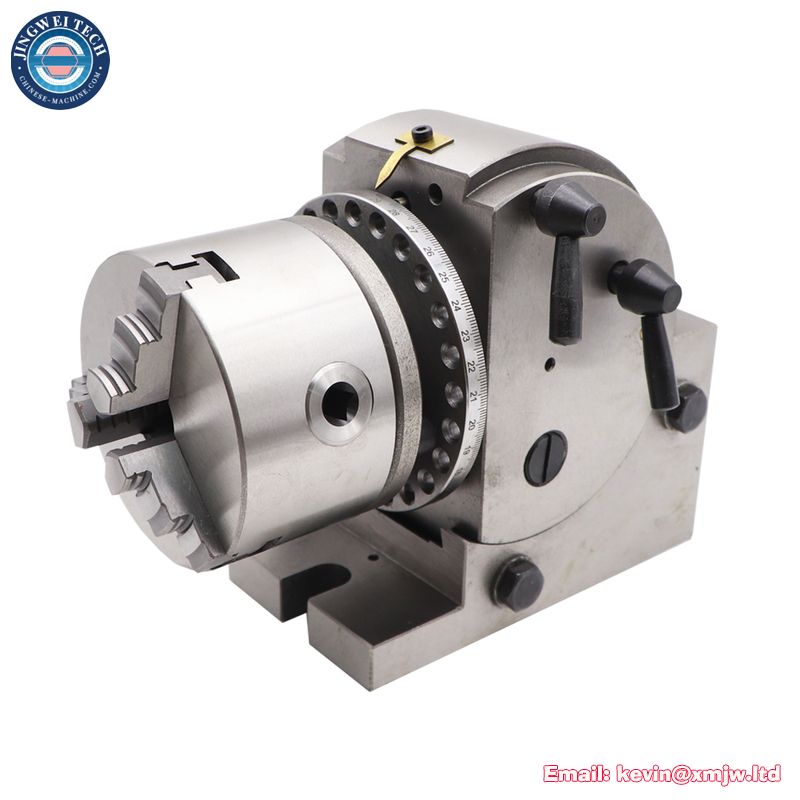

- The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing.
- Adjustable tilt angle 0-90 degrees
- Reduction ratio 1 ： 40
- •User-Friendly Machine
- •Direct and Indirect Dividing
- Model
- Universal CNC Dividing Head BS-0
- Model Number
- Universal CNC Dividing Head BS-0
- Power
- Manual
- Certification
- CE
- Origin
- Mainland China
- Number of Jaws
- 3
Reply within 24 hours · 12-month warranty
CNC Dividing Head BS-1 BS-2 4" 5" 6" Indexing CNC Rotary Axis 3 Jaw 160mm 200mm Chuck Tailstock for CNC Router Rotary Table
Description:
This is our semi-universal dividing head by using dividing scale ring, vernier, locating pin, index plate and change gear, workpieces placed can be divided into equal partitions according to your demand. It able to complete gear, face and flute processing without need of accessories. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. 3 dividing plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.
Features
Made with high strength FC30 cast iron

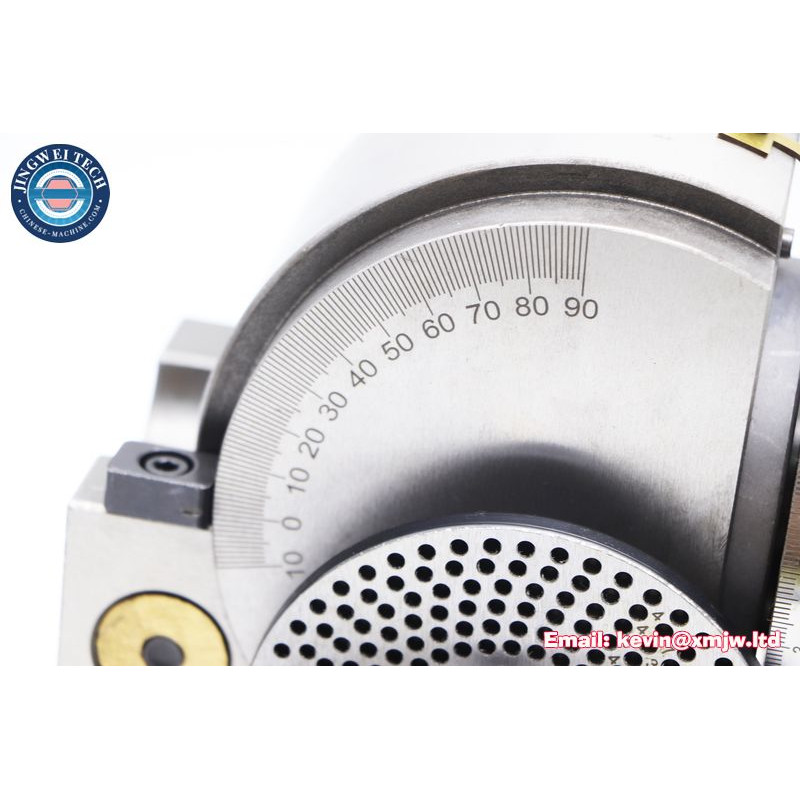

Adjustable tilt angle 0-90 degrees
Reduction ratio 1 ： 40
•User-Friendly Machine
•Direct and Indirect Dividing
•Professional Precise Division
•Semi-Universal Dividing Head
•100% Brand New with Good Quality

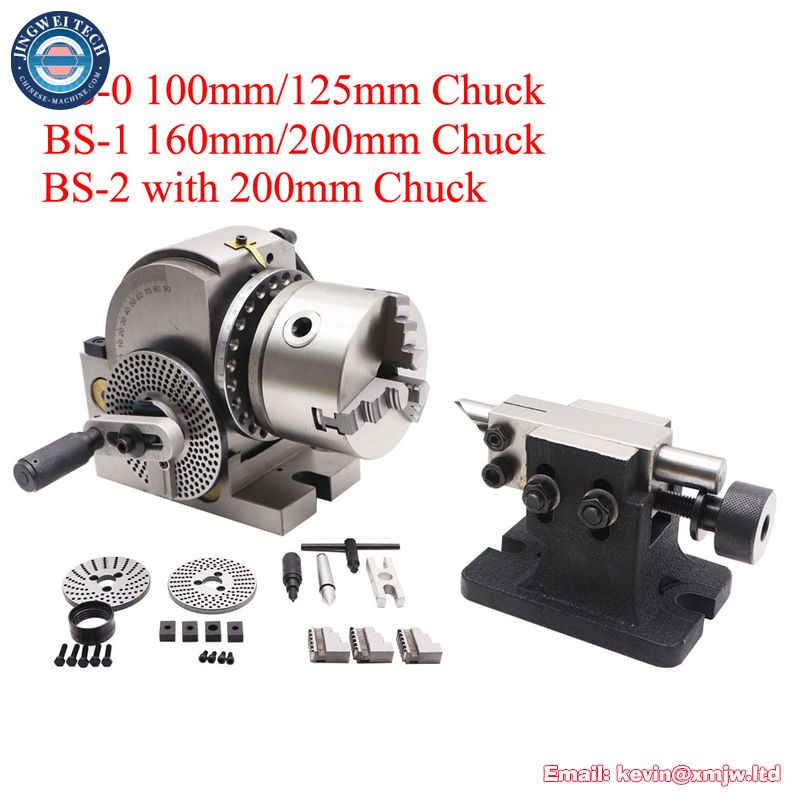

| Model | BS-0 100mm Chuck | BS-0 125mm Chuck | BS-1 160mm Chuck | BS-1 200mm Chuck | BS-2 200mm Chuck |
| Chuck Size: | 100mm | 125mm | 160mm | 200mm | 200mm |
| Center Height: | 100mm | 100mm | 128mm | 128mm | 138mm |
| Bracing range | 30-90mm | 38-125mm | 50-160mm | 65-200mm | 65-200mm |
| Vertical height | 240mm | 250mm | 320mm | 340mm | 340mm |
| Through hole size | 13mm | 13mm | 18mm | 18mm | 20mm |

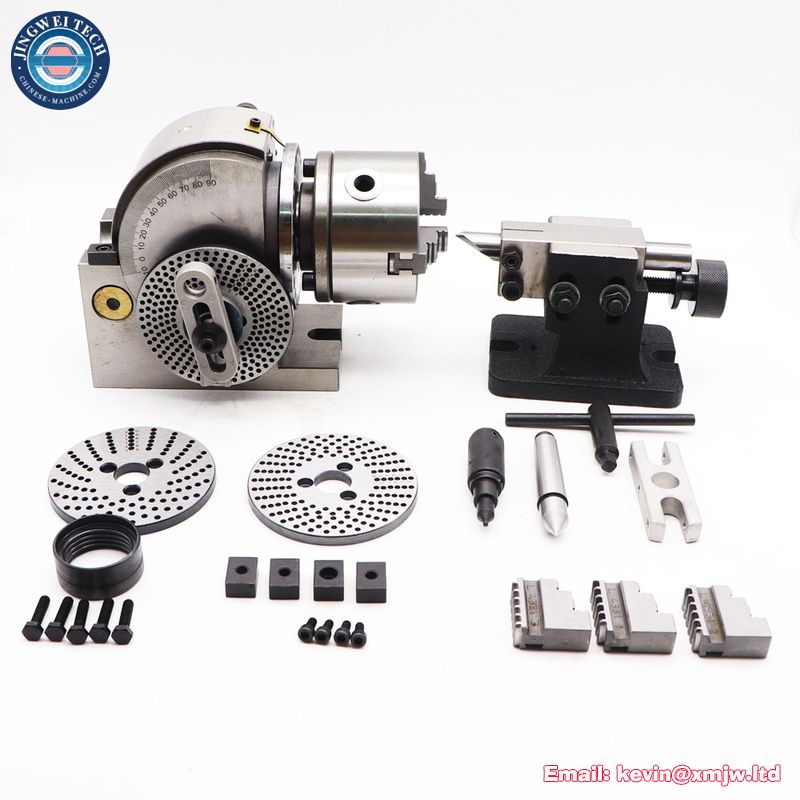

Package Included :
1 x Head Stock
1 x Tail Stock
1 x Dividing Plates A
1 x Dividing Plates B
1 x Dividing Plates C
1 x 3 Jaw Chuck (4 Inch or 5 Inch or 6 Inch)
| Certification | CE |
|---|---|
| Model | Universal CNC Dividing Head BS-0 |
| Model Number | Universal CNC Dividing Head BS-0 |
| Number of Jaws | 3 |
| Origin | Mainland China |
| Power | Manual |
