4th A Rotary Axis 80/100mm - 4 Jaw Chuck, Stepper Motor for CNC Router
- Machine 3020 3040 6040 6090 Model: K5M-6-80BChuck model: K12-80 4 Jaws 80mm Chuck Center height: 65MM Output shaft diameter: 30MM Shaft hollow diameter: 16MM...
- MM*width 168MM*115MM Weight: 6KG Model: K5M-6-100B Chuck: K12-100 4 Jaws 100mm Chuck Center height: 65MM Output shaft diameter: 30MM Shaft hollow diameter: 2...
- Stepping motor: two-phase 57 stepping motor Accessories: a pair of total anti-claw and wrench Dimensions: length 210MM*width 168MM*115MM Weight: 7.
- Model
- 4th A Rotary Axis
- Model Number
- 4th A Rotary Axis
- Certification
- CE
- Origin
- Mainland China
Reply within 24 hours · 12-month warranty

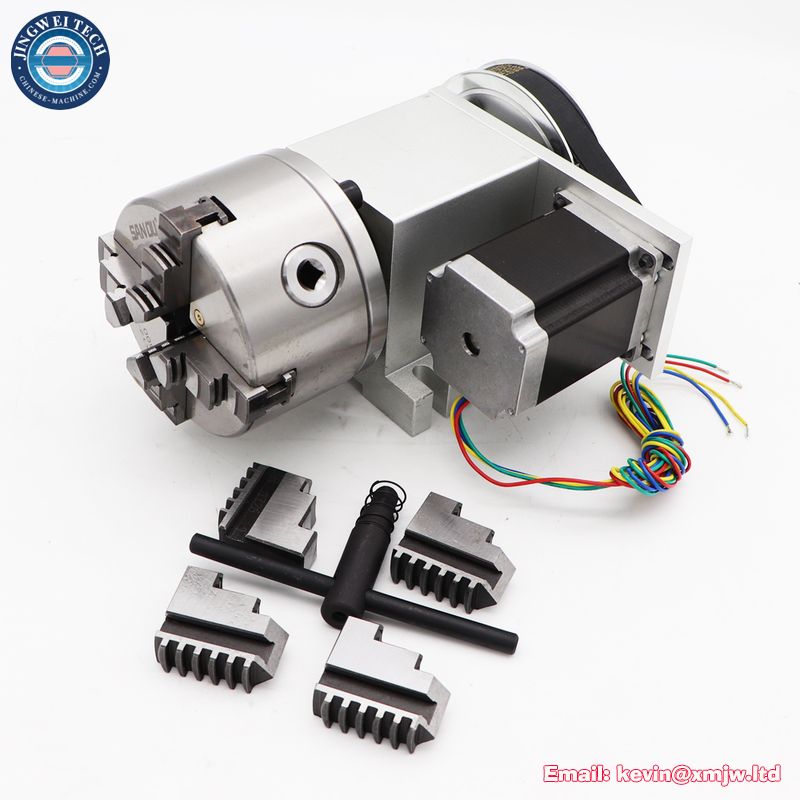

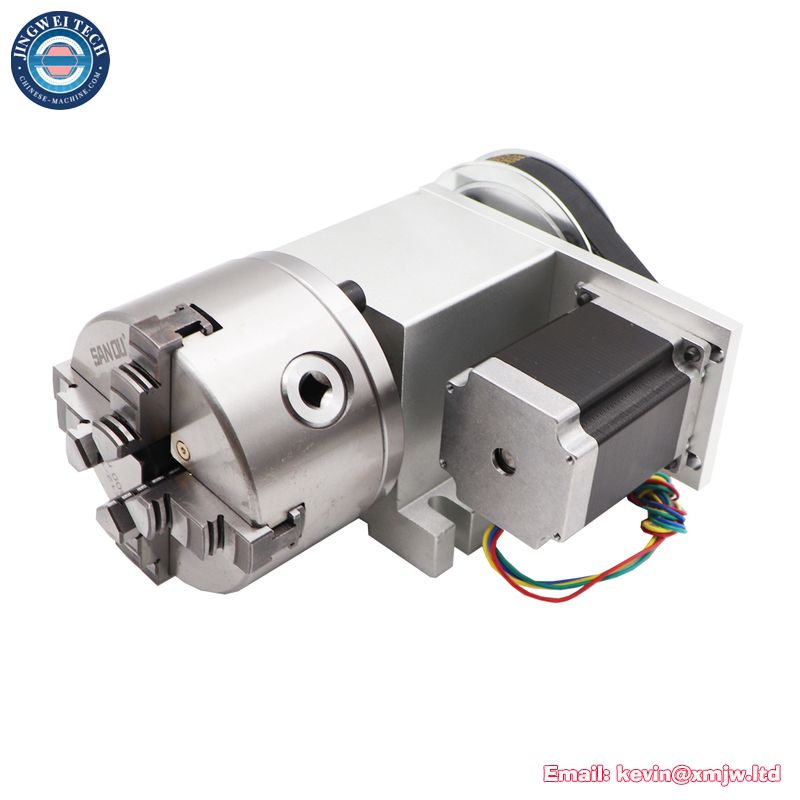

4th A Rotary Axis 80mm 100mm 4 Jaw Chuck with Stepper Motor Rotation for Cnc Router Engraving Machine 3020 3040 6040 6090

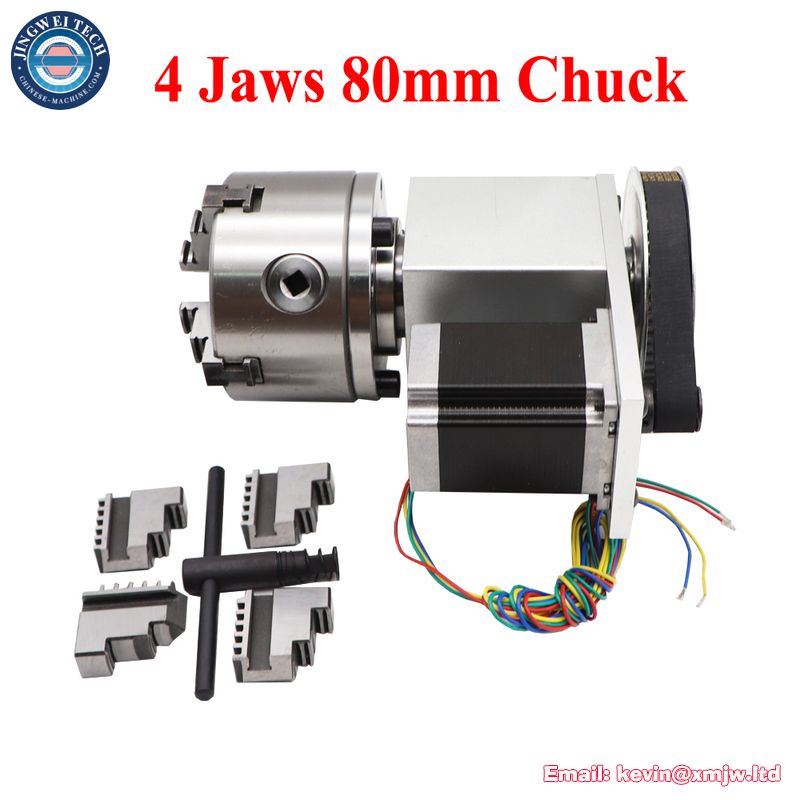

Model: K5M-6-80BChuck model: K12-80 4 Jaws 80mm Chuck
Center height: 65MM
Output shaft diameter: 30MM
Shaft hollow diameter: 16MM
Angle: 0.3 degrees/step (after deceleration)
Deceleration ratio: 6:1 (synchronous belt deceleration mode)
Stepping motor: Two-phase 57 stepping motor
Accessories: a pair of total anti-claw and wrench
Dimensions: length 210MM*width 168MM*115MM
Weight: 6KG
Model: K5M-6-100B
Chuck: K12-100 4 Jaws 100mm Chuck
Center height: 65MM
Output shaft diameter: 30MM
Shaft hollow diameter: 22MM
Angle: 0.3 degrees/step
Deceleration ratio: 6:1 (synchronous belt deceleration mode)
Stepping motor: two-phase 57 stepping motor
Accessories: a pair of total anti-claw and wrench
Dimensions: length 210MM*width 168MM*115MM
Weight: 7.9KG (three-jaw chuck)
| Certification | CE |
|---|---|
| Model | 4th A Rotary Axis |
| Model Number | 4th A Rotary Axis |
| Origin | Mainland China |
