Automatic rotation type 3d cnc steel wire bending machine sale
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230808298124
- Availability: 500

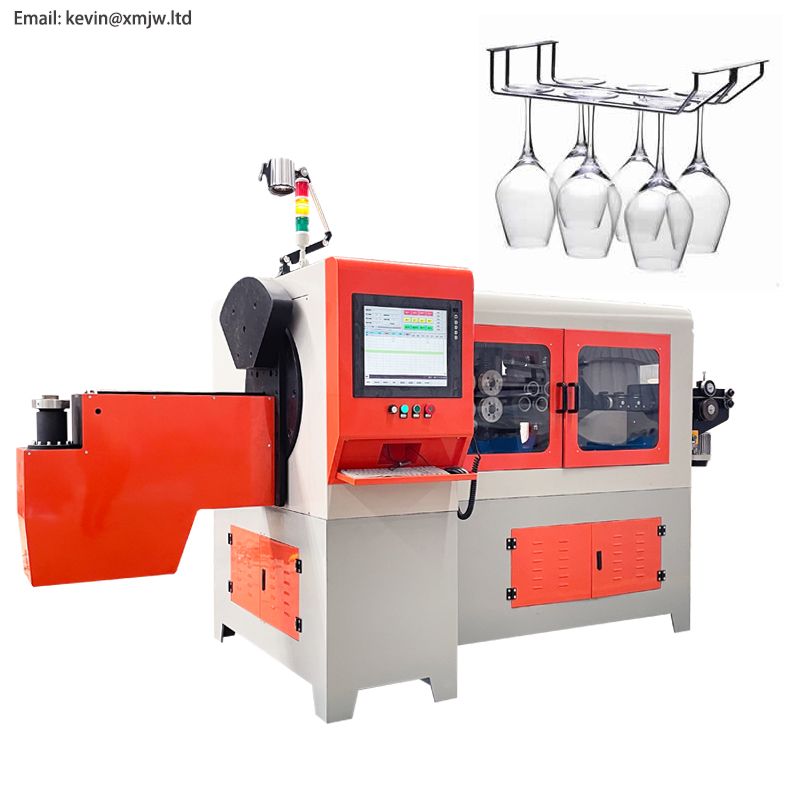

Automatic rotation type 3d cnc steel wire bending machine factory direct sale
Production Information
Products Description
Technical Parameter
Model | ZD-3D-5012 wire bending machine |
Number of shaft | 4 |
Diameter of the steel wire(mm) | 5-12mm |
Number of wire feeder | 4 suits |
Maximum wire feed speed | 1m/s |
Feeding servo motor power | 7.5KW |
Bending servo motor power | 7.5KW |
Swing arm motor | 3.1KW |
Cutting servo motor power | 3.8KW |
Servo motor total power | 21.9KW |
Feeding accuracy | ±0.1mm |
Internal mold angle rotation | ±180° |
Input power | 380V， 50HZ/60HZ |
Machine weight | 2700KG |
Machine size | 3200*1500*1800mm |
| After-sales Service Provided | Vide Technical Support |
| Applicable Industries | Building Material Shops;Food & Beverage Factory;Restaurant;Home Use;Construction works;Food & Beverage Shops;Other |
| Automation | Automatic |
| Brand | Zhongde Machinery |
| Brand Name | Zhongde Machinery |
| Certification | CE Certificate |
| Condition | New |
| Control system | CNC Control |
| Core Components | PLC;Engine;Motor;Gear |
| Dimension | 3200*1500*1800 mm |
| Extra Services | feeding;straightening;bending;cutting |
| Feature | High Precision |
| Function | Auto Feeding+bending+slotting |
| Key Selling Points | Automatic |
| Machine Type | wire bending machine |
| Machinery Test Report | Provided |
| Marketing Type | New Product |
| Material / Metal Processed | Stainless steel;iron |
| Packing | Wooden Package |
| Place of Origin | Hebei;China |
| Power | CNC |
| Product name | 3D wire bending machine |
| Raw Material | coiled material |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Warranty | 2 years |
| Warranty of core components | 1 Year |
| Weight (KG) | 2700 |
| Wire diameter | 5-12 mm |
