Automatic Wire Stripping & Crimping Machine: Five-wire Tinning
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230821443945
- Availability: 500
Product Description
|
Product Name
|

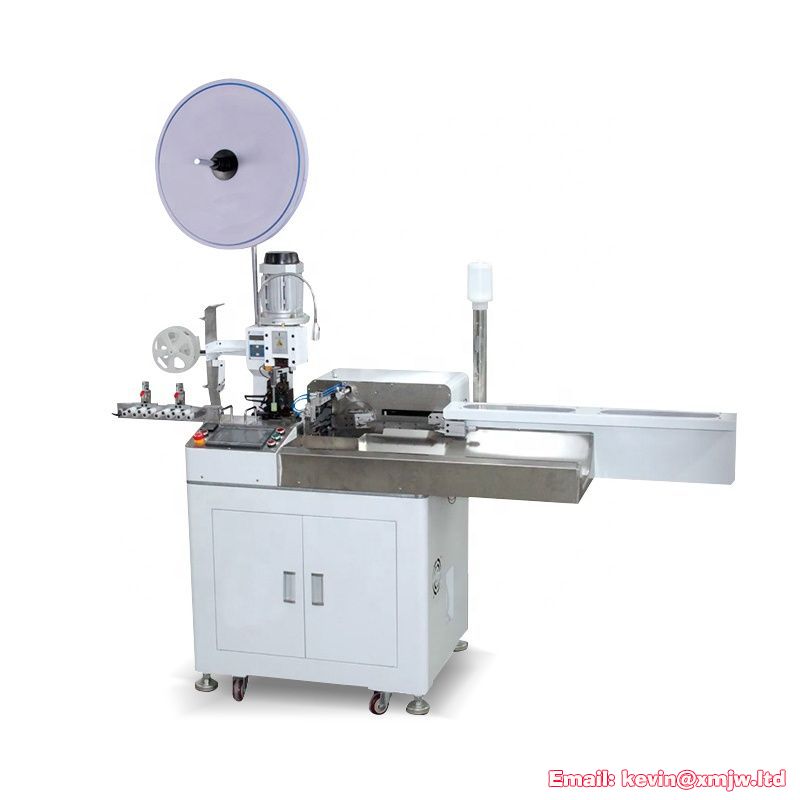

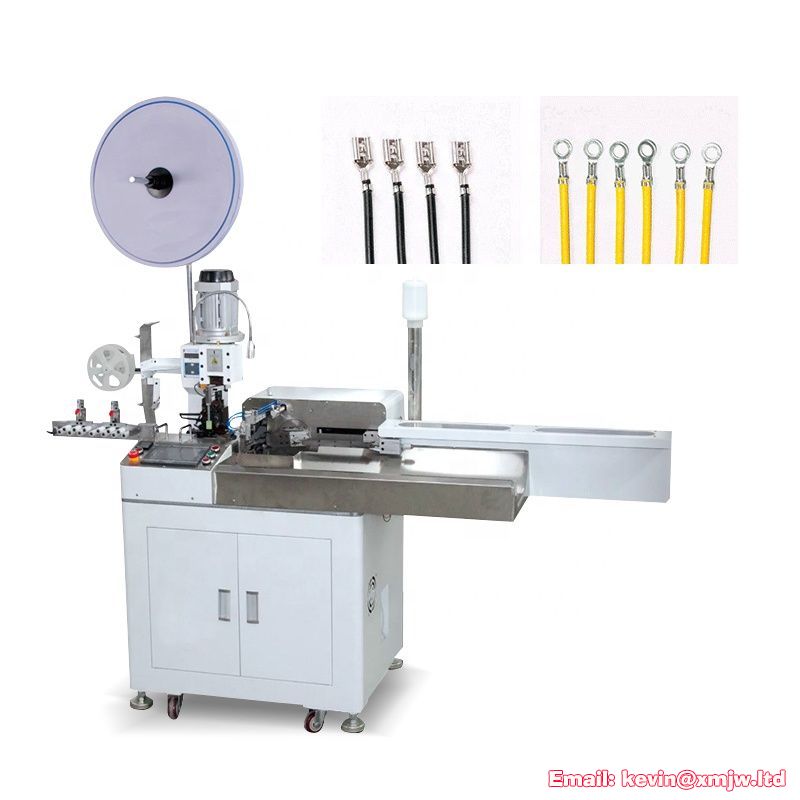

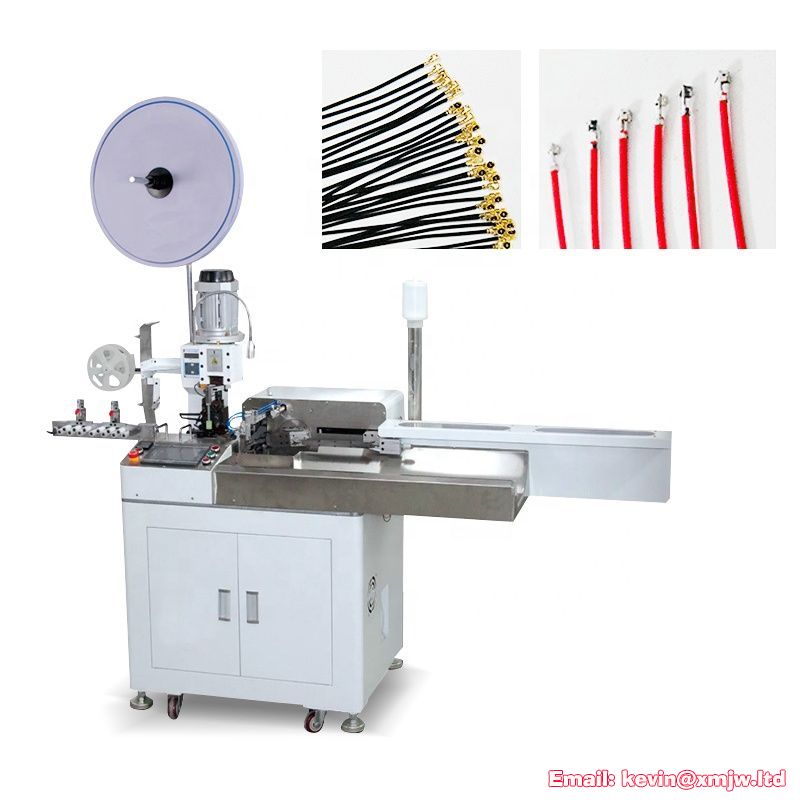

TR-DD02 Terminal Crimping Machine
|
|
Stripping length
|
1-10mm
|
|
Cut precision
|
±(0.5+0.002*L) mm
|
|
Cutting length
|
30mm-1000mm (can be lengthened)
|
|
Applicable wire range
|
AWG16-AWG32
|
|
Crimping force
|
2.0T
|
|
Speed
|
5500pcs/hour
|
|
Air pressure
|
0.5-0.7MPA
|
|
Cutting accuracy
|
0.2±0.02*L
|
|
Power
|
220V/50HZ
|
|
Power cord plug
|
European, USA, Chinese plug
|
|
Display language
|
Chinese/English
|
|
Weight
|
450Kg
|
|
Dimension
|
1210*770*1370（mm）
|
Turing crimping machine uses branded components ( Taiwan on the silver slide rail, Taiwan ADELEY your cylinder solenoid valve, Raisai closed-loop + servo motor, Taiwan on the silver HIVIN slide rail, Japan bearings), supports multiple functions, and supports customization
| Brand Name | Turing |
| Cutting length | 30-1000mm |
| Dipping Tin Length | 3-7mm |
| Efficiency | 5500pcs/hour |
| Machine size | 1210*770*1370mm |
| Model Number | TR-DD02 fully automatic terminal crimping machine |
| Place of Origin | Guangdong;China |
| Power/Voltage | AC 220V 50HZ / 15A |
| Pressure capacity | 2 Ton |
| Product name | TR-DD02 Automatic five-wire end dip tin machine |
| Stripping length | 1.0-10mm |
| Type of wire | AWG16-AWG32 |
| Usage | Multifunctional |
| Weight | 450kgs |
