CNC Air Cooled 0.2KW Spindle Motor Kit - 200W ER11, 52mm Clamp, 24V DC
- Spindle motor: New high-speed DC motor spindle 10000 RPM with fan Working voltage: 12-24VDC Power: 200W Speed: 5000-10000r/min (12V-5000 rpm, 24V-10000 rpm,)...
- Insulation dielectric strength: 400V Motor outer diameter: 52MM Spindle radial runout: within 0.
- If the motor needs to work for a long time, you only need to add a cooling fan, forced air cooling, electric The machine is too hot or too long 2.
- Input: AC220V±10% 50/60Hz Output: DC 24V Adapter power: 200W This power regulator can adjust 110/220v according to customer needs 3.
- Applicable to: 200w spindle motor Model: 52mm spindle motor mounting bracket Diameter: 52mm Material: Aluminum 4.
- Model
- 200W Spindle Motor Kit
- Model Number
- 200W CNC Spindle Motor Kit
- Operating Speed
- 5000-10000r/min
- Certification
- CE
- Application
- Milling
- Origin
- Mainland China
Reply within 24 hours · 12-month warranty

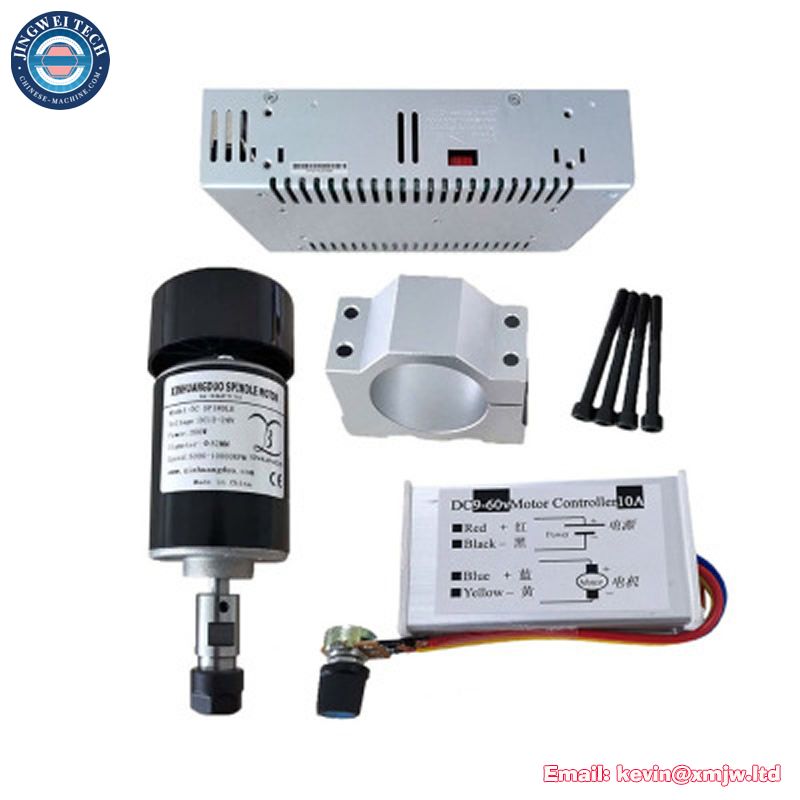

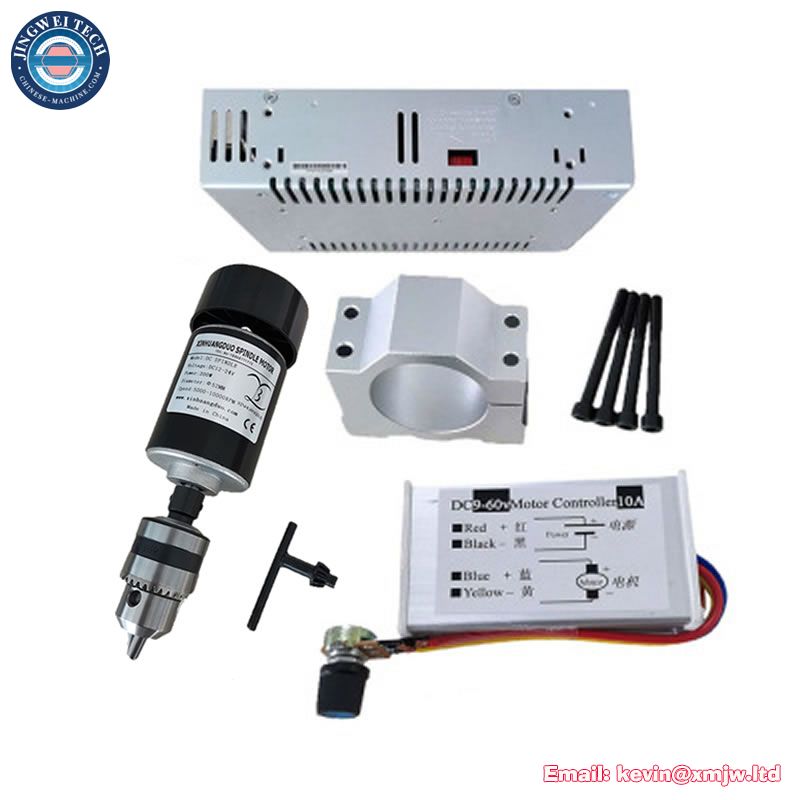

CNC Air Cooled 0.2KW Spindle Motor Kit 200W ER11 52mm Clamp Speed Governor Power Supply DIY CNC Machine 24V DC 10000RPM

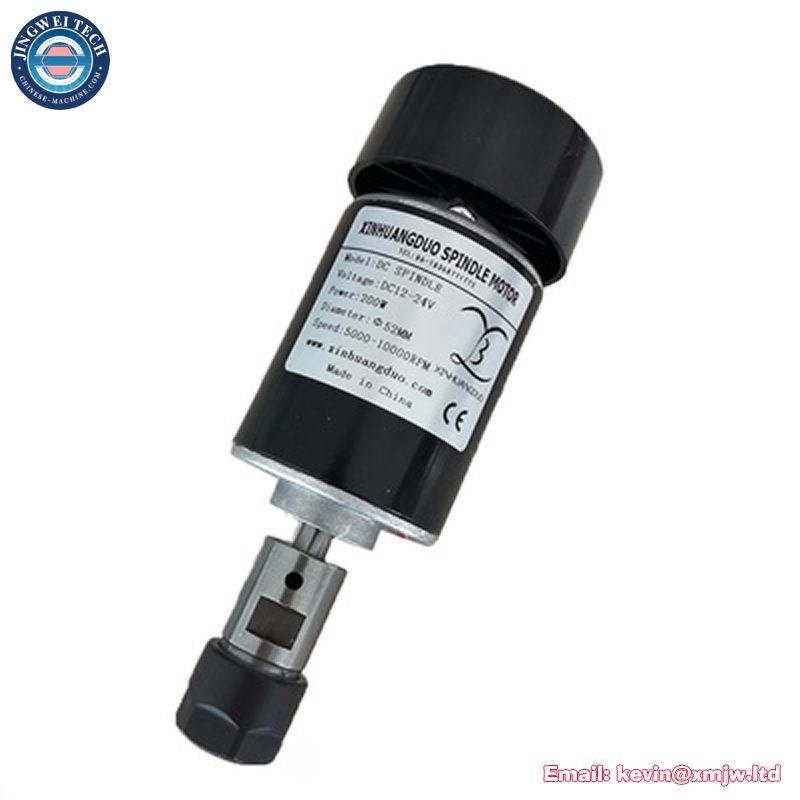

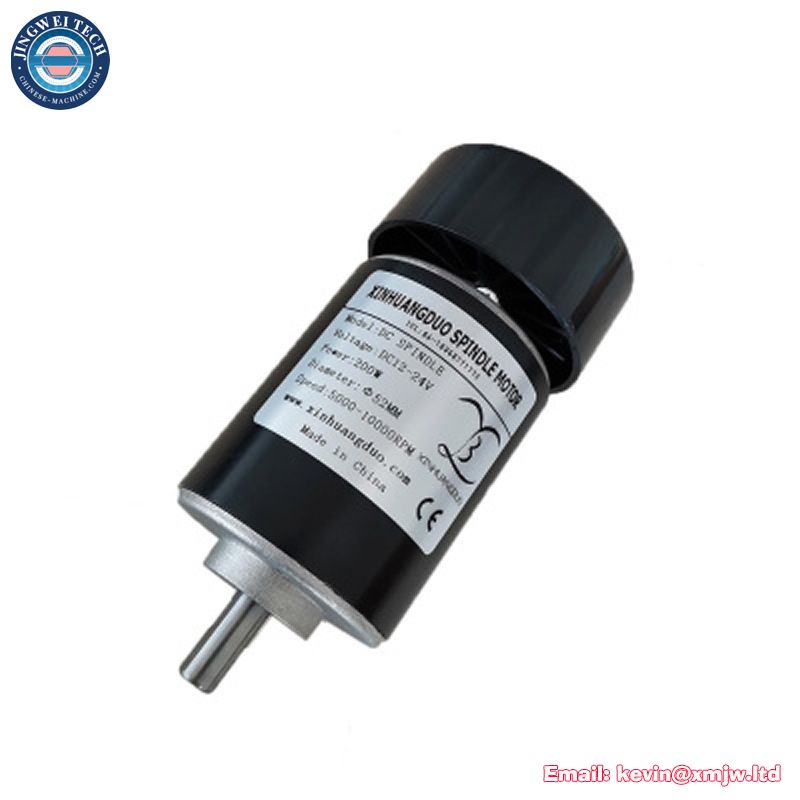

1. Spindle motor:

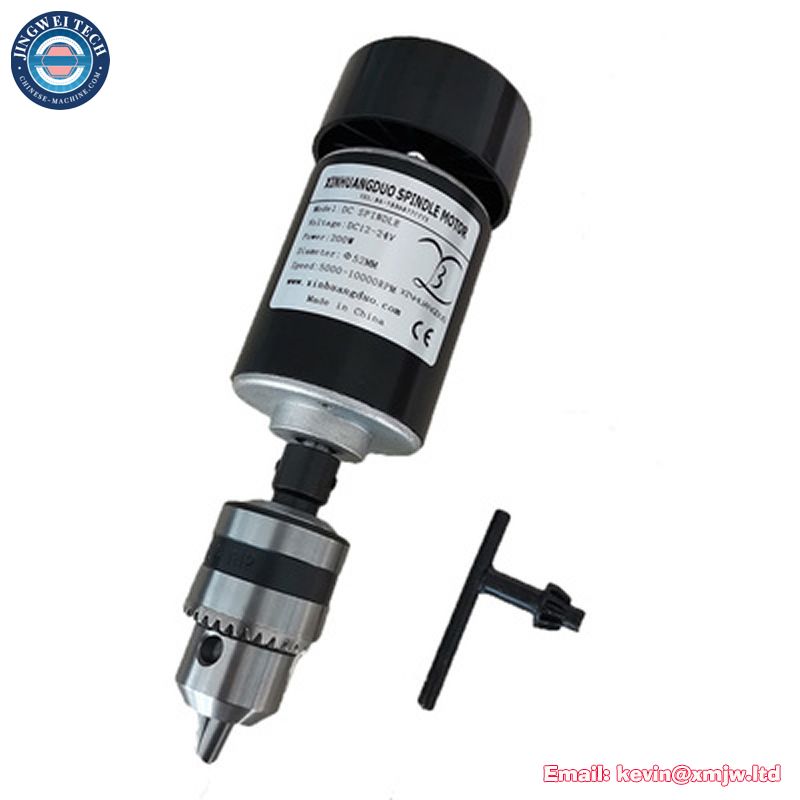

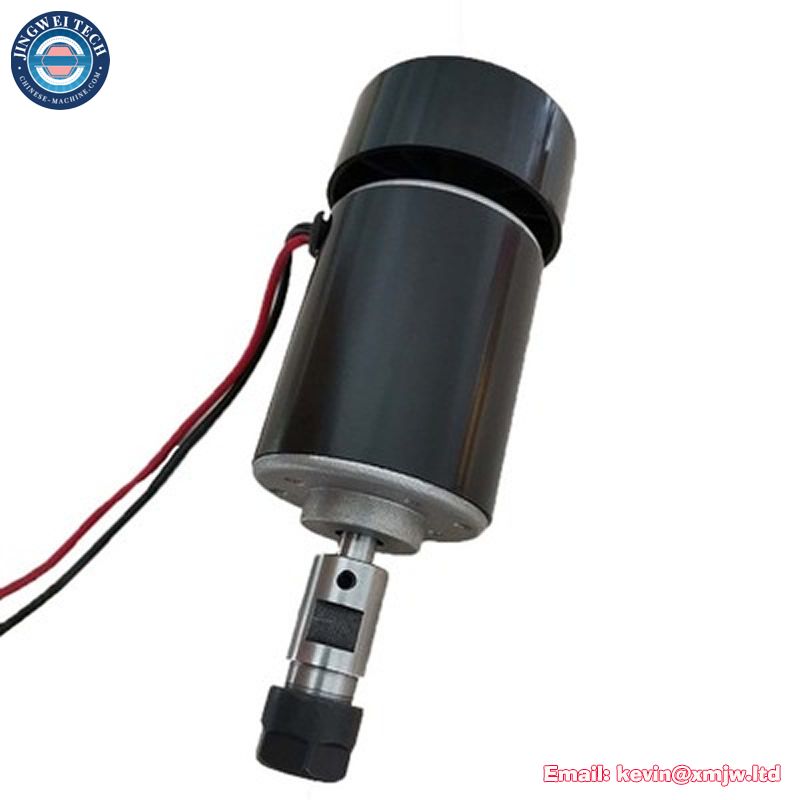

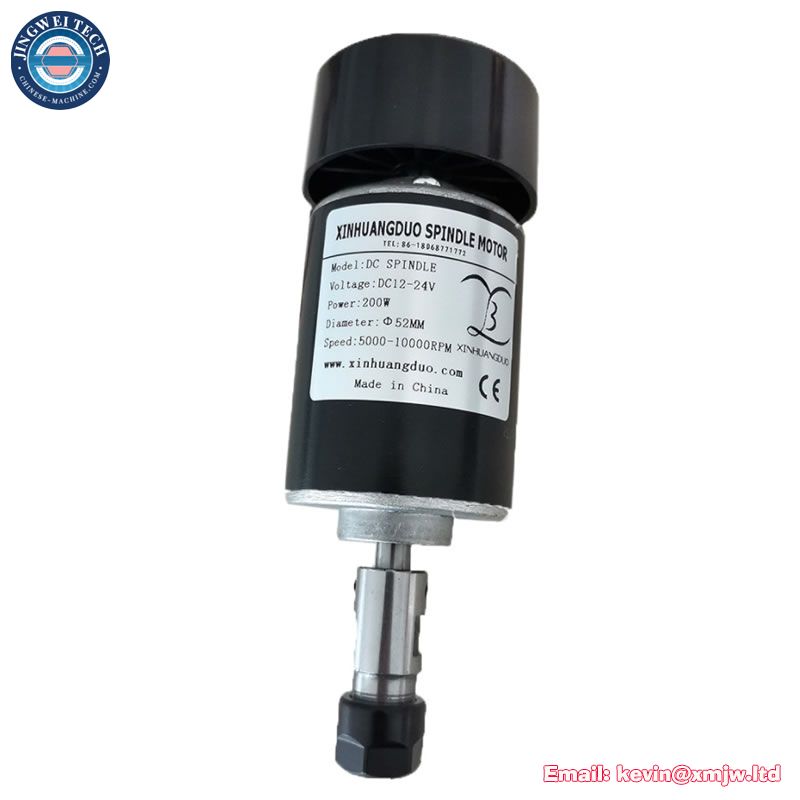

Spindle motor: New high-speed DC motor spindle 10000 RPM with fan
Working voltage: 12-24VDC
Power: 200W
Speed: 5000-10000r/min (12V-5000 rpm, 24V-10000 rpm,)
Torque: 280mN.m
Insulation dielectric strength: 400V
Motor outer diameter: 52MM
The default is equipped with 1 ER11 3.175mm or ER16-8mm (for other sizes, please contact customer service)
Spindle radial runout: within 0.05mm
Maximum speed: 10000RPM
Total length of motor: 150mm
If the motor needs to work for a long time, you only need to add a cooling fan, forced air cooling, electric
The machine is too hot or too long

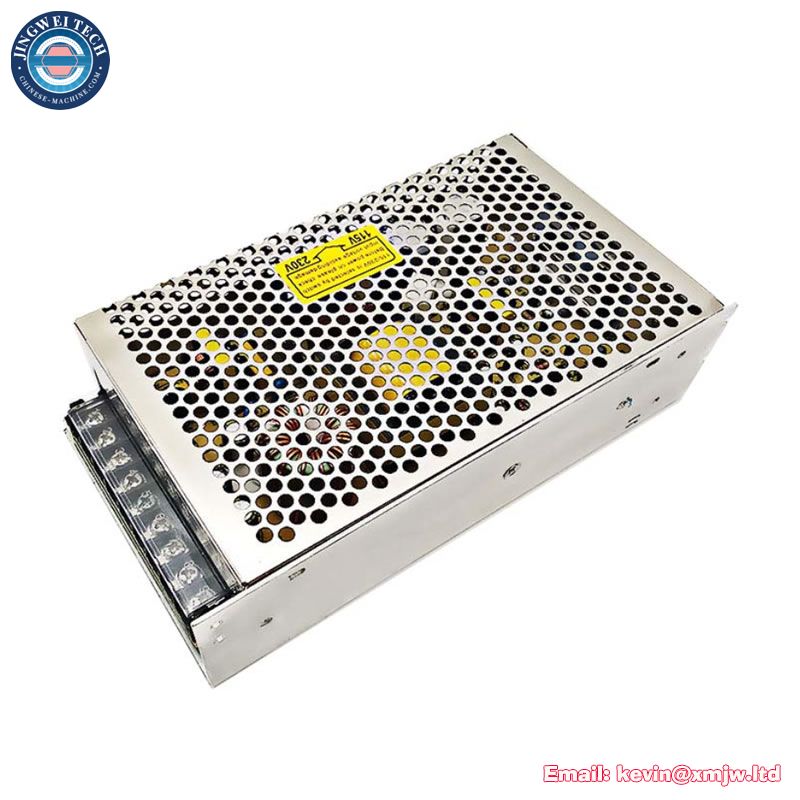

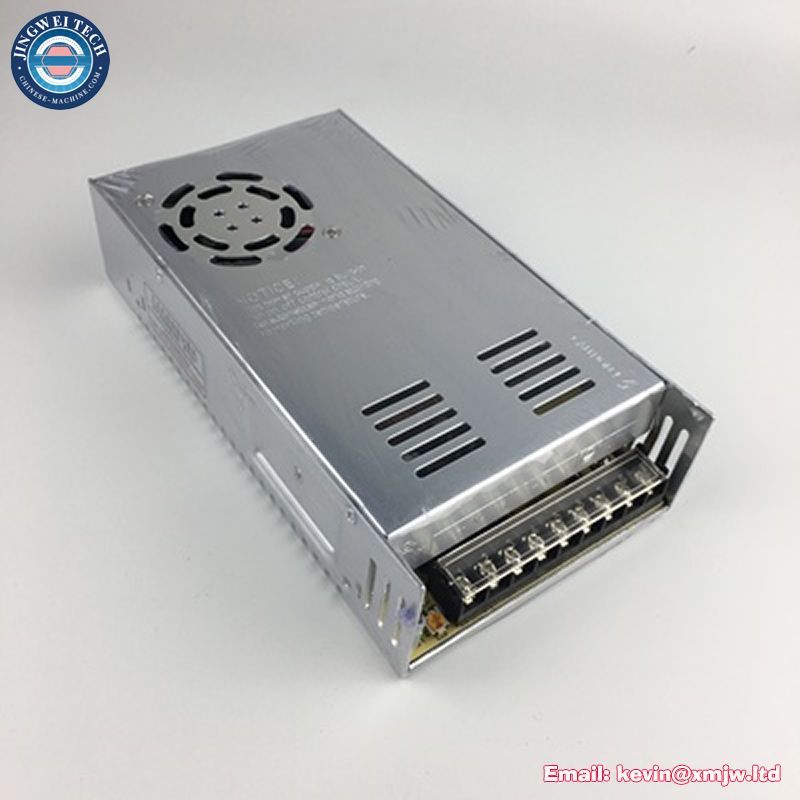

2. Power supply:
High-quality voltage converter switching power supply for mechanical motors
Input: AC220V±10% 50/60Hz
Output: DC 24V
Adapter power: 200W
This power regulator can adjust 110/220v according to customer needs

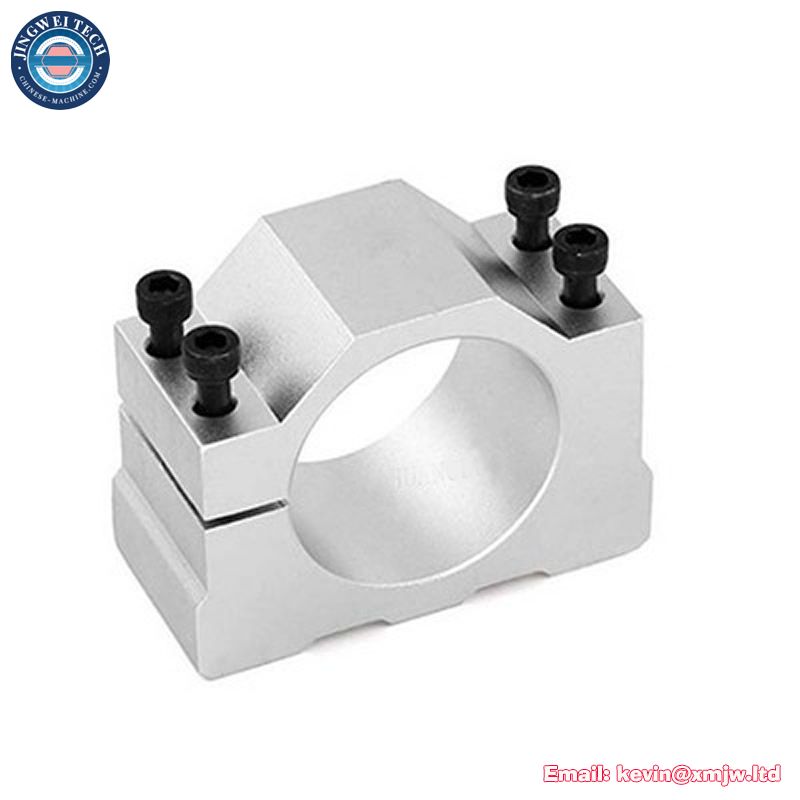

3. 52mm spindle clamp seat:
52mm mounting bracket + 4 screws
Applicable to: 200w spindle motor
Model: 52mm spindle motor mounting bracket
Diameter: 52mm
Material: Aluminum

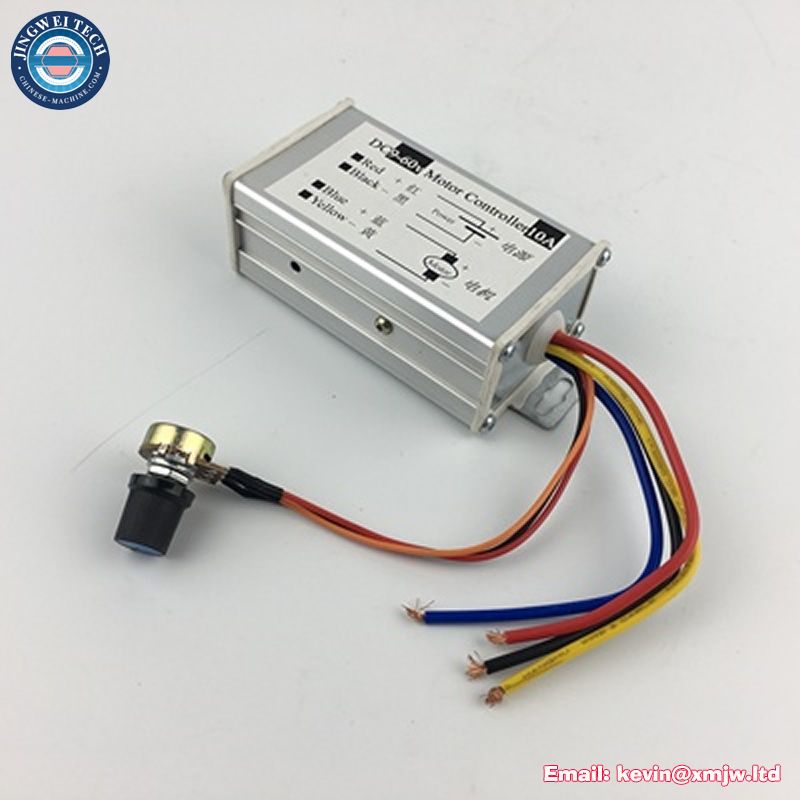

4. 9V-60V 10A DC motor governor pulse width modulator PWM control switch governor
| Application | Milling |
|---|---|
| Certification | CE |
| Drive | Motor |
| Maximum Torque | 280mN.m |
| Model | 200W Spindle Motor Kit |
| Model Number | 200W CNC Spindle Motor Kit |
| Operating Speed | 5000-10000r/min |
| Origin | Mainland China |
