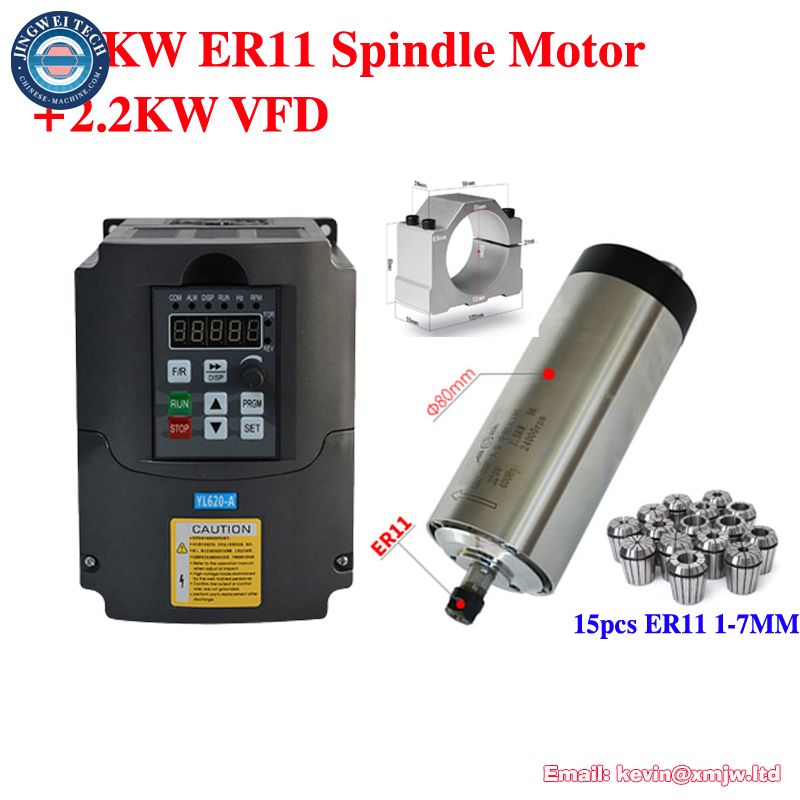

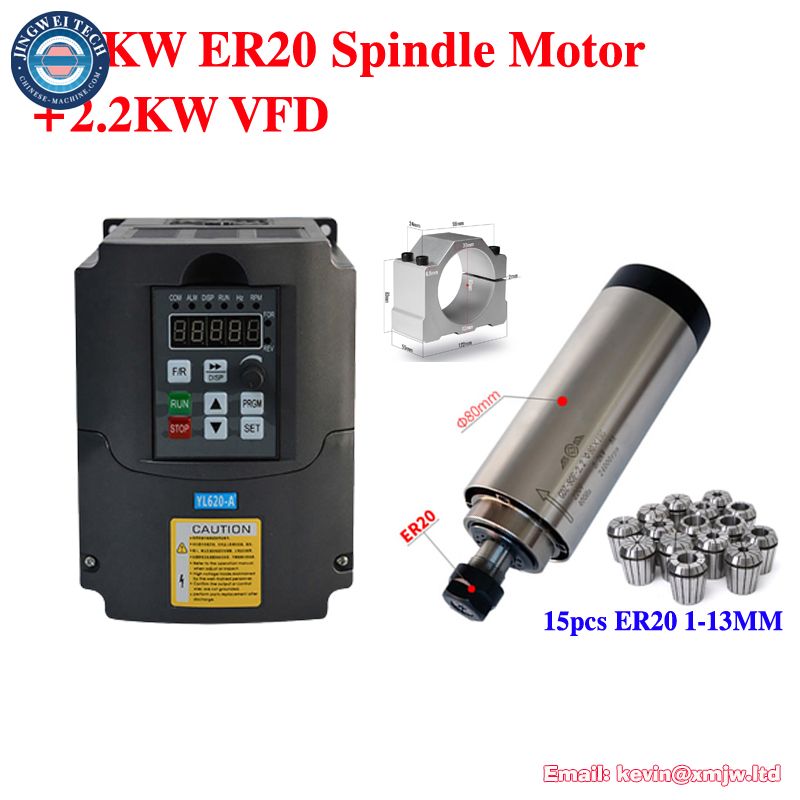

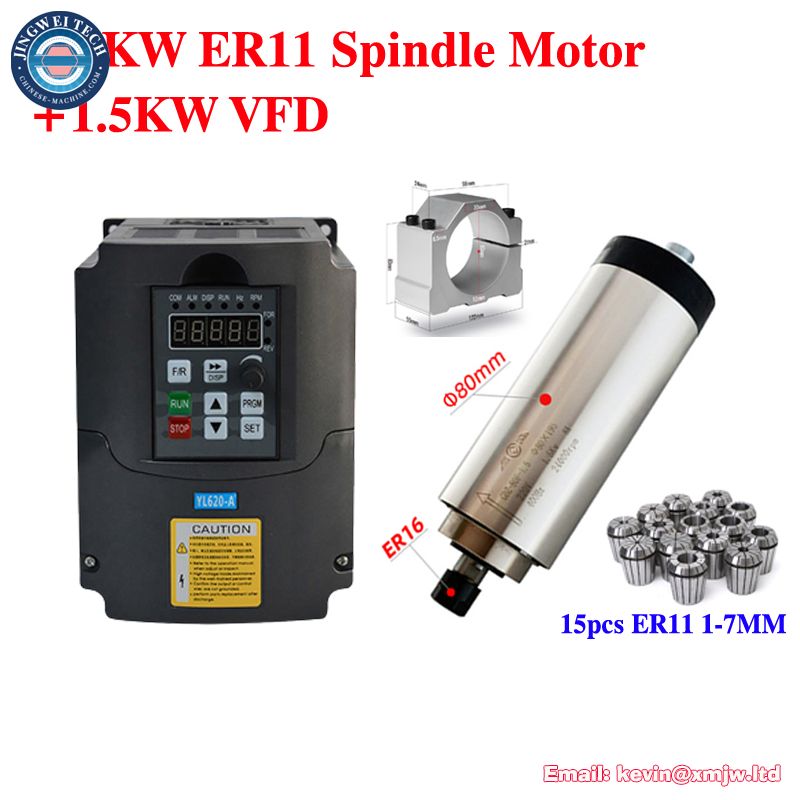

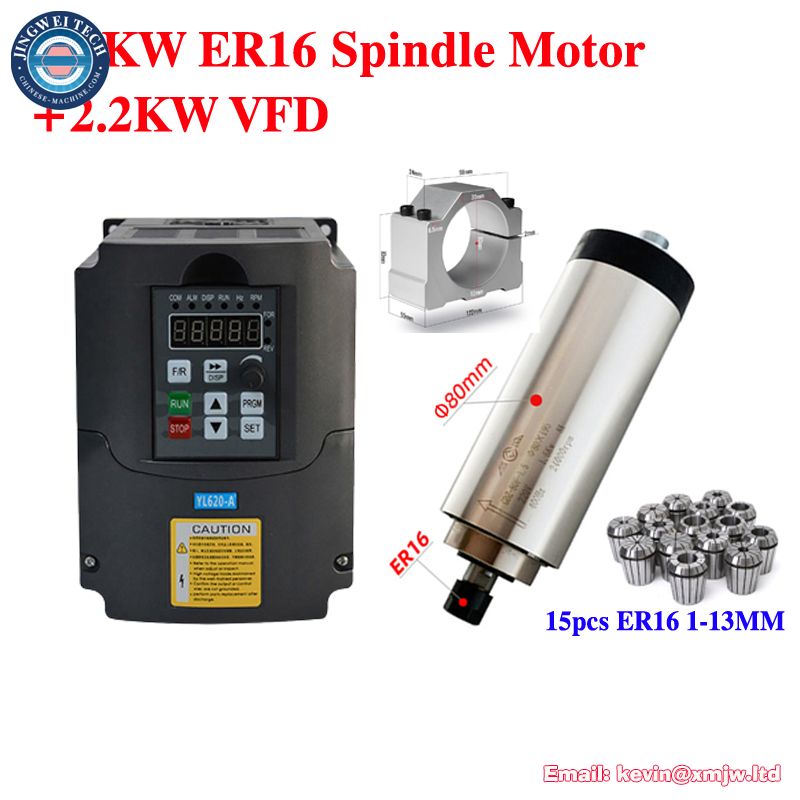

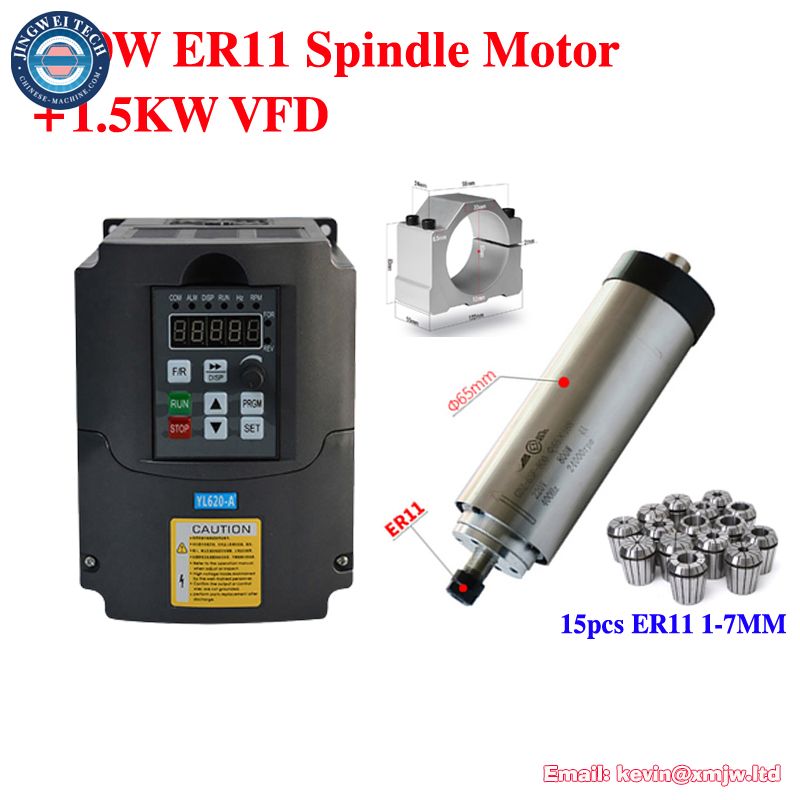

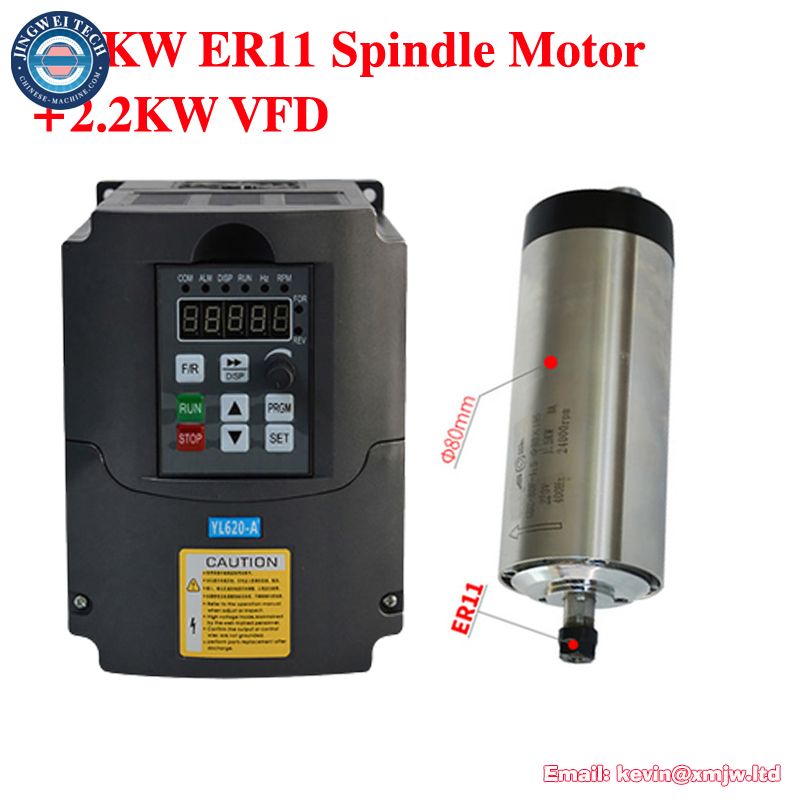

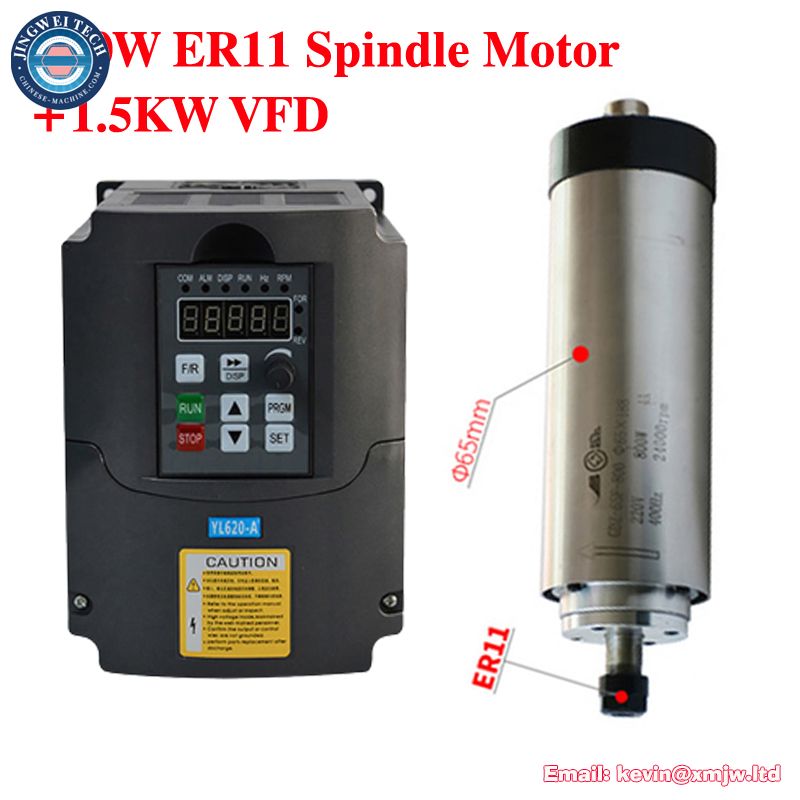

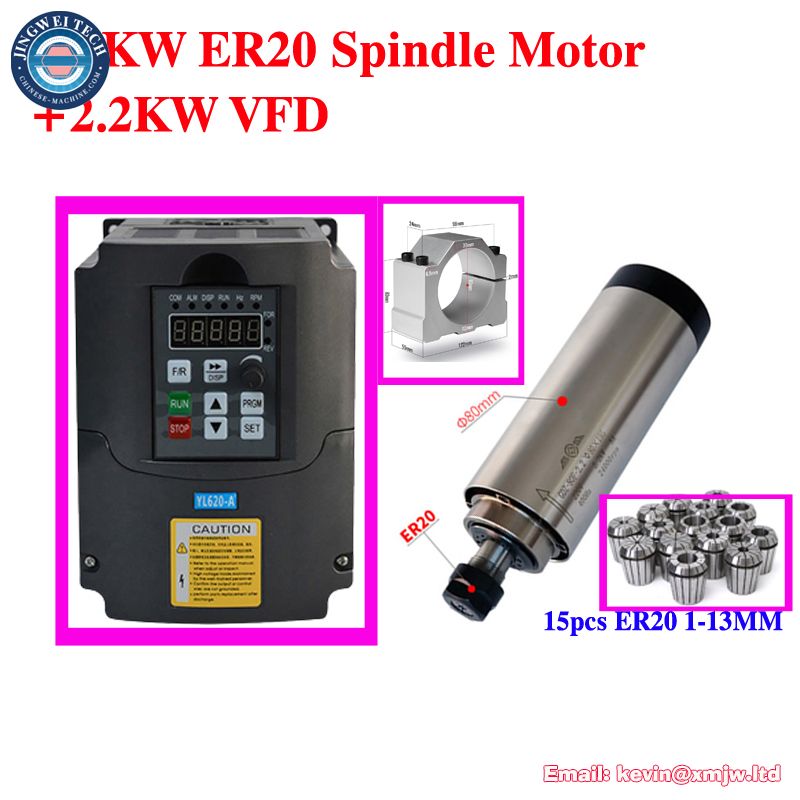

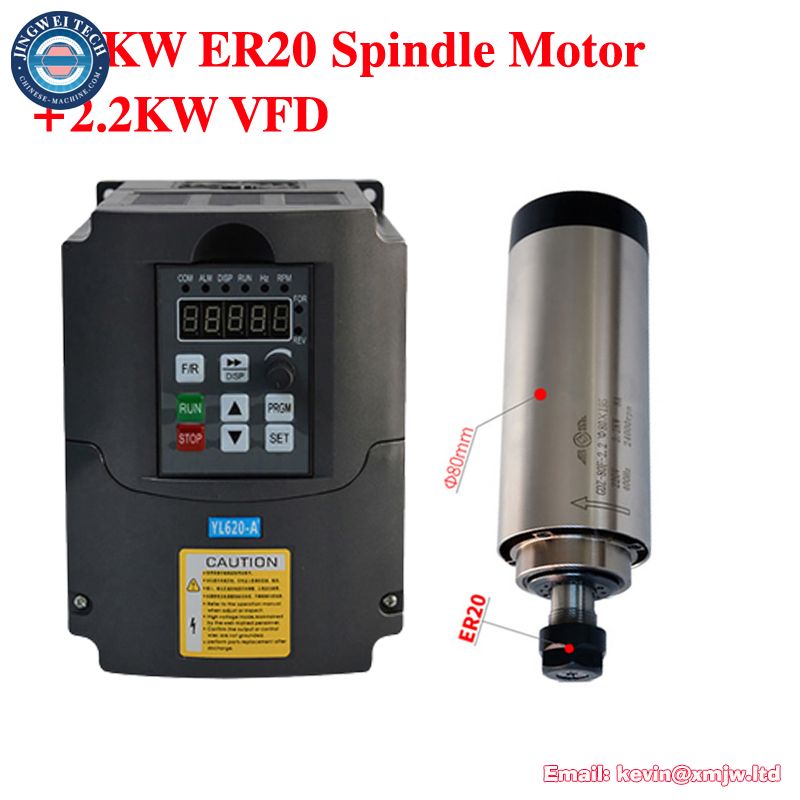

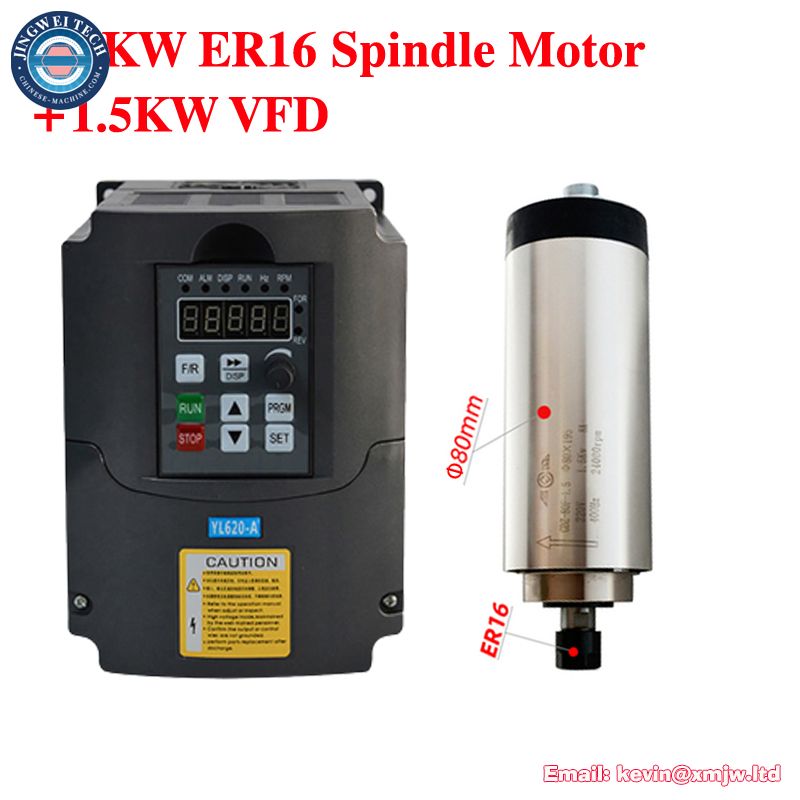

CNC Air Cooled Spindle Kit - 800W/1500W/2200W, 220V VFD, ER11/ER16/ER20

CNC Router Air Cooled Spindle Kit 800W 1500W 2200W 2.2KW 1.5KW Frequency Converter Inverter 220V VFD ER11 ER16 ER20 Collet Chuck

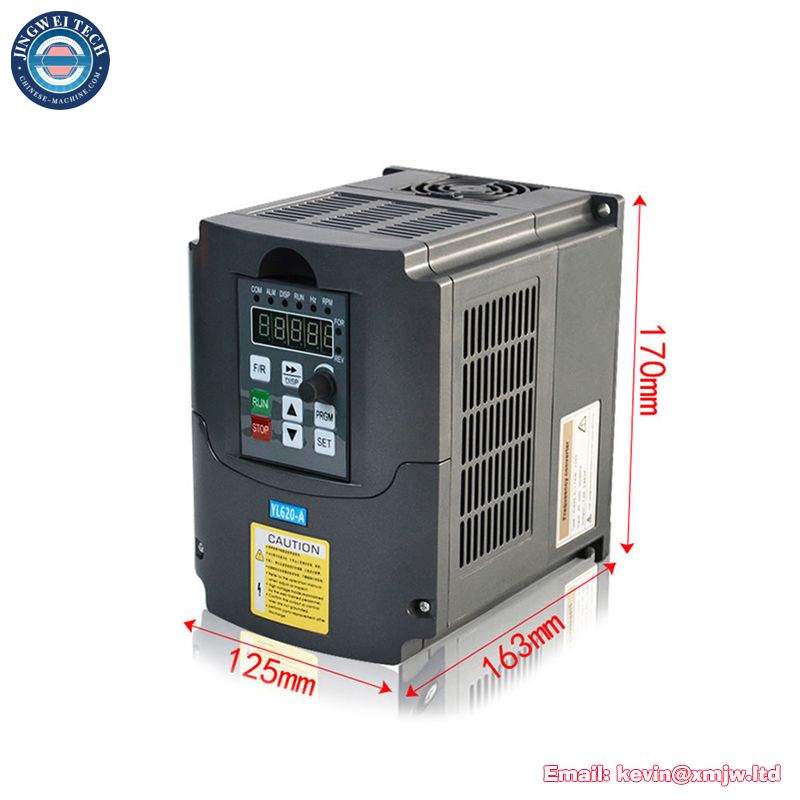

Variable Frequency Driver

Advantages

1. Strong anti-interference ability

2. High performance vector control

3. Low frequency torque, the output is more stable

4. Torque power makes the inverter faster, stable and high precision

5. Automatic torque compensation to meet various processing needs

6.This inverter is a universal inverter.

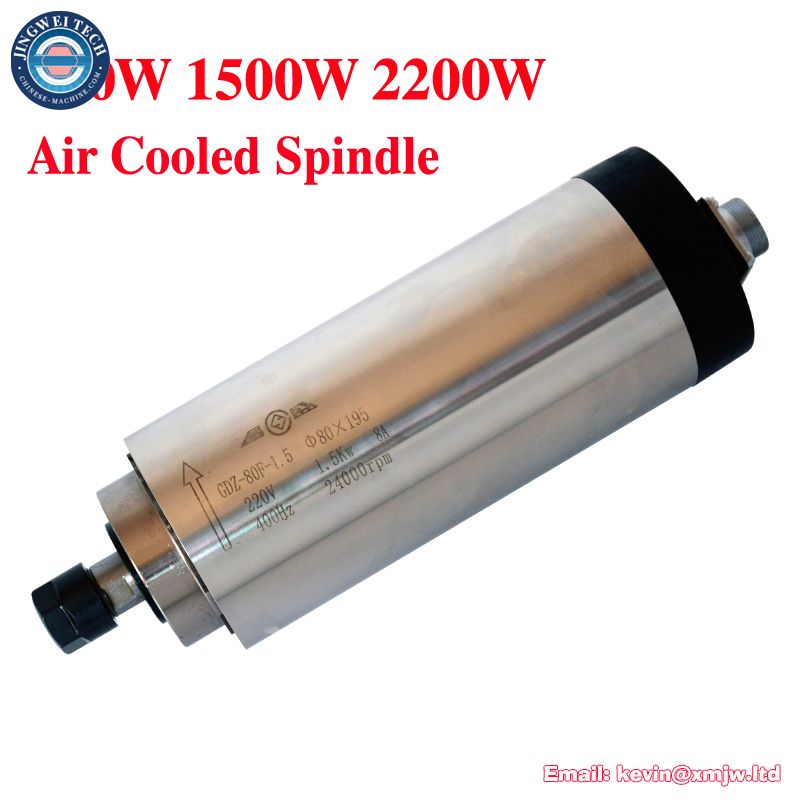

Spindle Motor

Product parameters

1. Spindle Motor Power: 800W / 1.5KW / 2.2KW

2. Voltage: 220V

3.Current: 4A / 8A

4. Frequency: 400Hz

5. Diameter: 65mm / 80mm

6. Speed :0-24000 rpm

7. Clip knife diameter: ER11 / ER16 / ER20

8. Cooling: Air cooling

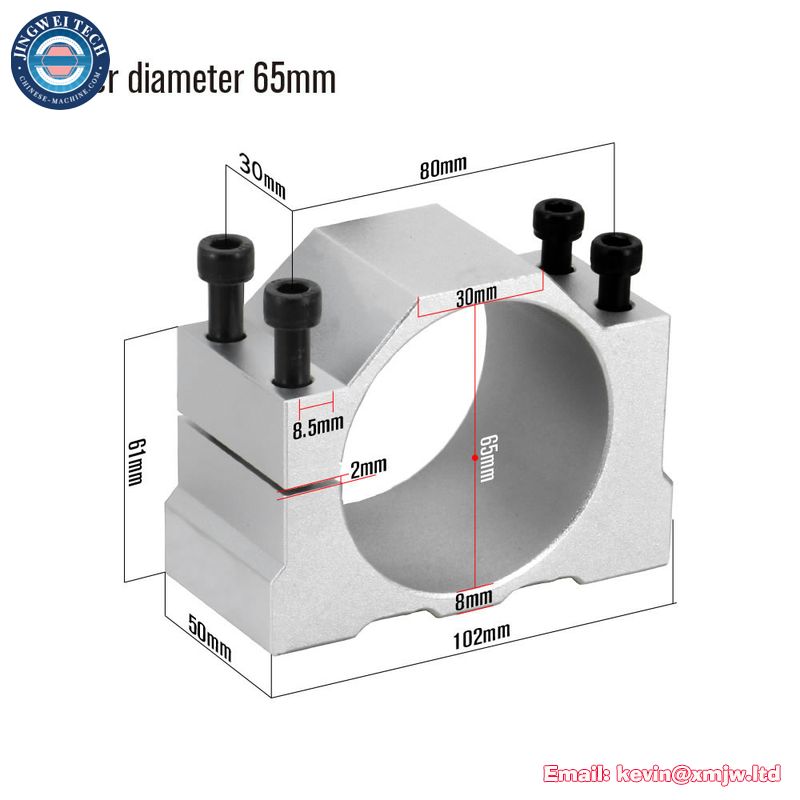

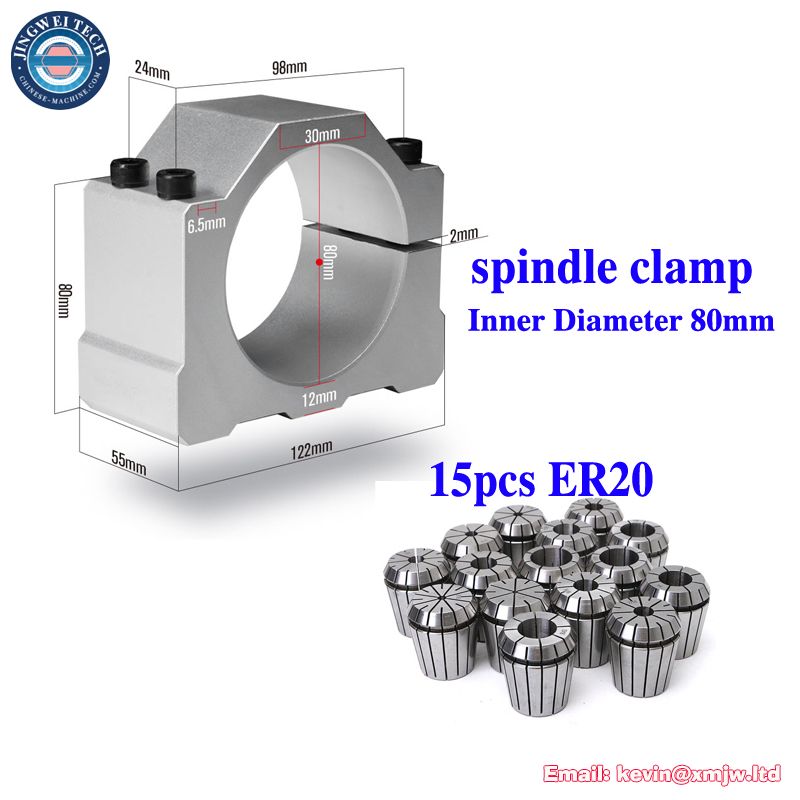

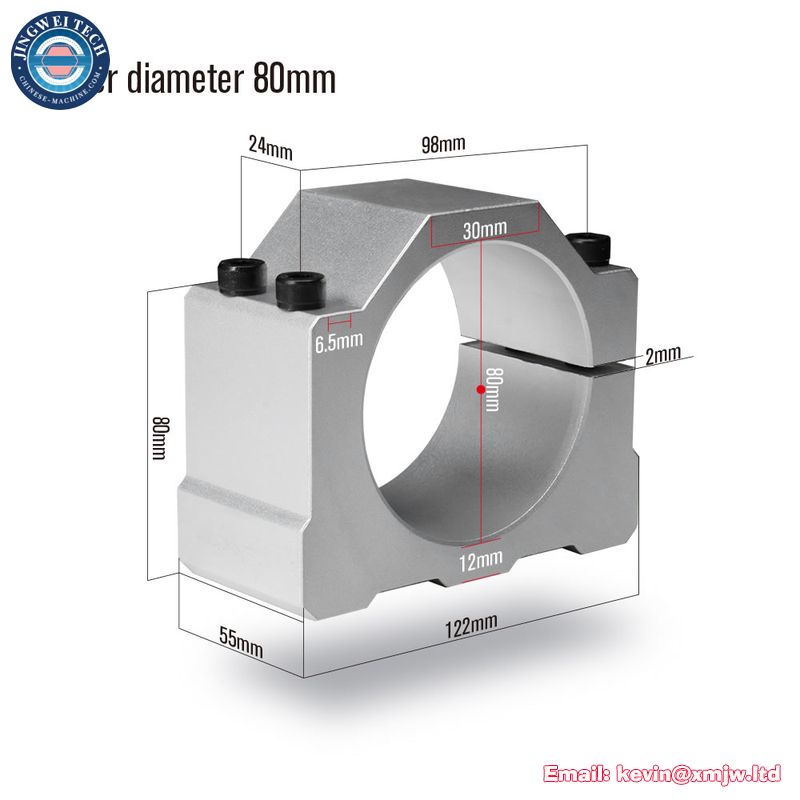

Aluminium alloy Spindle Clamp

It is made of aluminum alloy, and the surface is oxidized. The edge of the motor base is very thick. The appearance is exquisite, the picture is taken in kind, a little flaw is normal, and does not affect normal use

ER Spring Collet Chuck

Model: ER11

Material: 40lr

Applicable machine tool: Machining center/CNC machine tool

Hardness: 40

Accuracy: 0.015mm

Taper: Standard

Wholesale: Wholesale

Clamping range: 1-7

Specification

1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,1/8,1/4, ER11 metric 13-piece set, ER11 metric 15-piece

Item No.: ER16

Whether standard parts: standard parts

Model: ER16

Material: 40lr

Applicable machine tool: Machining center/CNC machine tool

Hardness: about 40°

Accuracy: 0.005

Taper: Standard

Wholesale: Wholesale

Clamping range: 1-10

Specifications:

1,2, 2.5,3,3.5,4, 4.5,5,6,7,8,9,10,1/8,1/4, ER16 metric, ER16 metric 15-piece set

Model: ER20

Material: 40lr

Applicable machine tools: machining centers, drilling machines, milling machines, etc.

Hardness: about 40°

Accuracy: within 0.015MM

Taper: Standard

Whether wholesale: wholesale

Clamping range: 1-16

Specifications: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 3.175(1/8), 6.35(1/4)MM, ER20 metric 15 pieces set

Packing list

As you choose.
