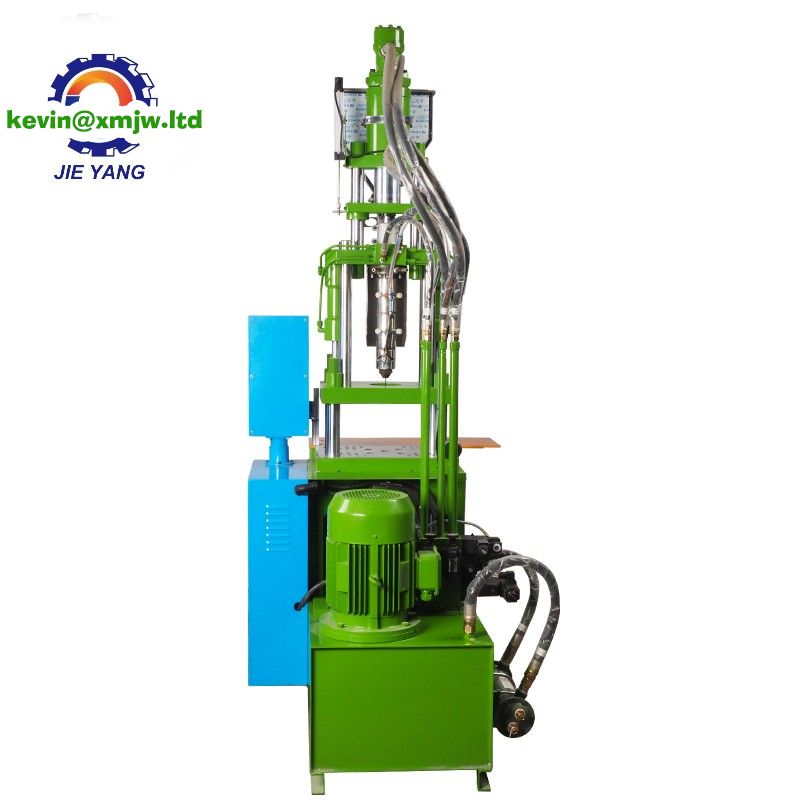

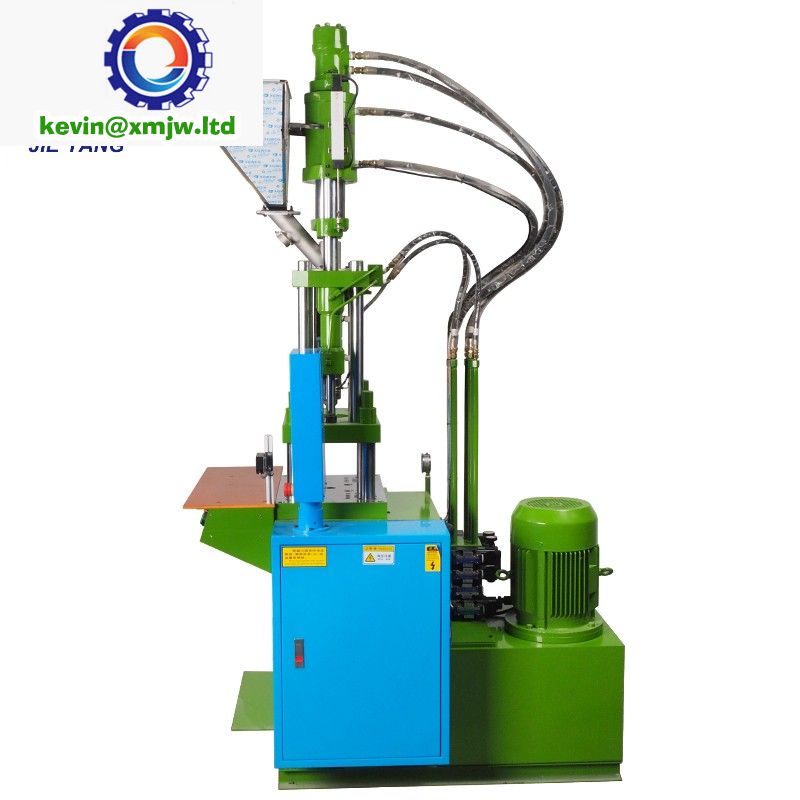

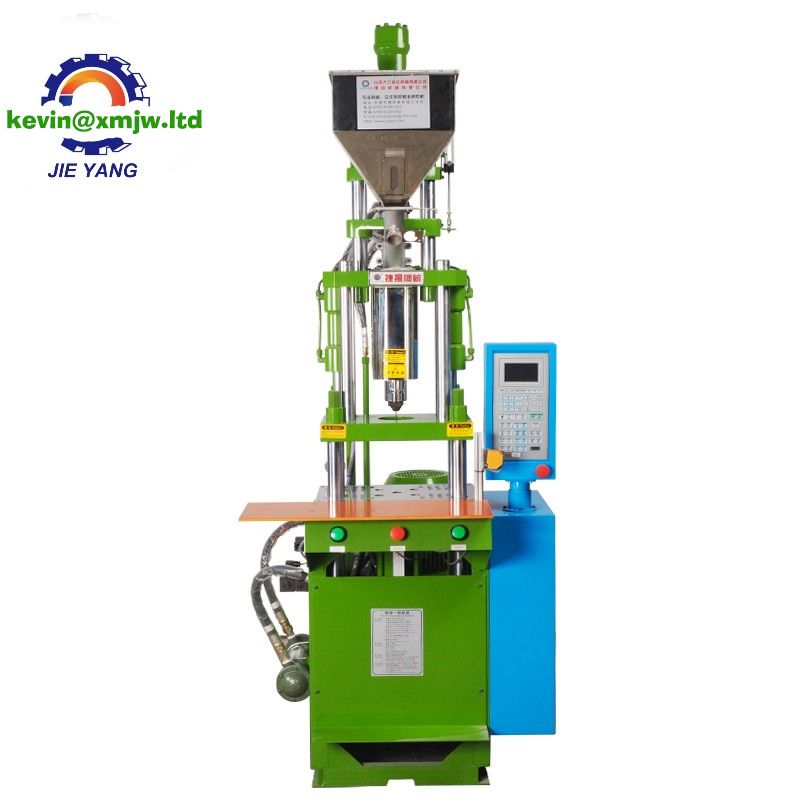

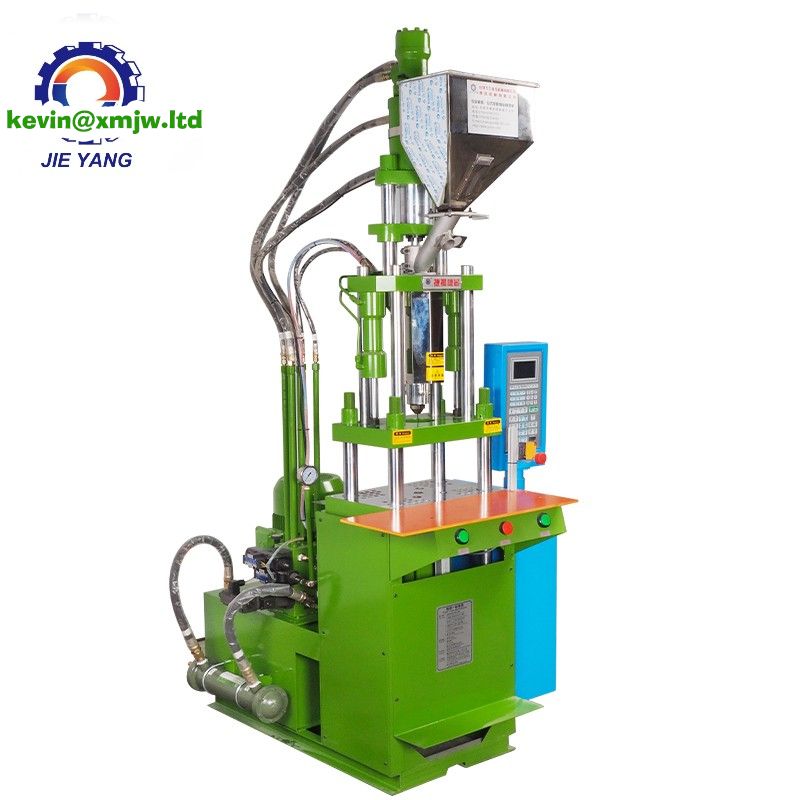

CAT 5 6 Patch Cord Injection Molding Machine: Easy-Operate Vertical
- Straight screw ejected assembly.
- Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
- Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
- Low-pressure closed die assembly can protect the safety of die.
- Adopting LCD display.
- Electric Power
- 4 HP
- Power (kW)
- 2.2 kW
- Oil Tank Capacity
- 76 L
- Injection speed
- 110 mm/s
- Screw Speed (rpm)
- 0 - 190 rpm
- Injection Weight (g)
- 67.5 g
Reply within 24 hours · 12-month warranty
Product Overview
JY-200ST
1.Straight screw ejected assembly.
2.Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3.Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the safety of die.
5.Adopting LCD display.
2.Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3.Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4.Low-pressure closed die assembly can protect the safety of die.
5.Adopting LCD display.
Machine computer

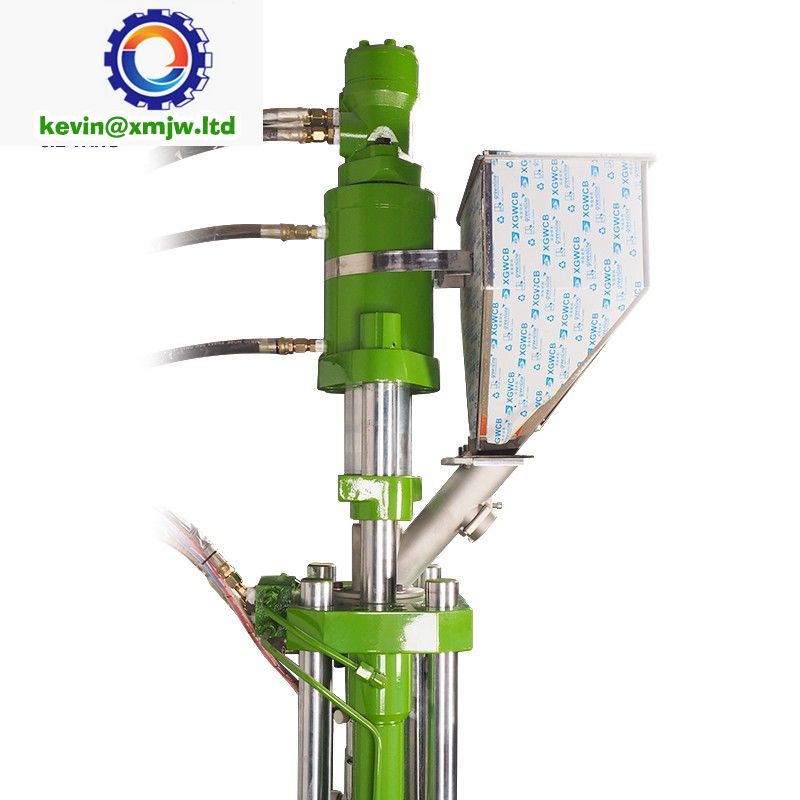

Screw
Our computer languages can be programmed into Chinese, English, Japanese, Korean, Vietnamese, Russian, Spanish, Turkish, Italian
and Arabic and so on. This will make it easier for customers to use the machine as if the phone were to activate the Settings for the first time.
and Arabic and so on. This will make it easier for customers to use the machine as if the phone were to activate the Settings for the first time.
In addition, our machine can store 660 sets of injection molding parameters, so that there is no need to adjust parameters frequently when changing the mold.
Product Application
Suitable for all kinds of plugs, cables, stationary, toys, household goods, Automobile industry, medical industry, electronics industry, plastic industry and other injection molding series to meet the needs of customers.
Successful Project
| (L*W) Platen size | 440*280 |
|---|---|
| Applicable Industries | Hotels;Garment Shops;Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Food & Beverage Factory;Farms;Restaurant;Home Use;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company |
| Brand Name | JIEYANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw |
| Distance between Tie Bars | 315*165 |
| Ejector Force(kN) | 12.7 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 25 mm |
| Electric Power | 4 HP |
| Injection Rate (g/s) | 67.7 g/s |
| Injection speed | 110 mm/s |
| Injection Stroke | 116 mm |
| Injection Weight (g) | 67.5 g |
| Key Selling Points | Competitive Price |
| Machine Dimension(L*W) | 1.28*0.85 m |
| Machine Type | Hydraulic |
| Machinery Test Report | Provided |
| Max. Injection Pressure | 99.7 Mpa |
| Mold Height(mm) | 60 - 160 mm |
| NO.of Temperature Control | 3 |
| Oil Tank Capacity | 76 L |
| Open Stroke(mm) | 185 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid |
| Power (kW) | 2.2 kW |
| Product name | Injection Molding Machine |
| Screw diameter (mm) | 28 mm |
| Screw Speed (rpm) | 0 - 190 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| System Pressure | 13.7 Moa |
| Theoretical Shot Volume(cm³) | 71.4 cm³ |
| Type | Tube Shoulder Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 800 kg |
