2.The height is only 3.2 meters, saving space
3. Fit for large inserts plastic product molding.
engineering Plastics Bakelite parts making machine double mold vertical injection molding machine
Price in reward points: 56000
- Brand: JIE YANG
- Product Code: CN230813706157
- Availability: 500
Product Overview
JY-1000SWT-DM 100T clamping force
This double slides injection machine is that it can work with two lower molds to improve production efficiency. The same tonnage model has higher production capacity than the standard model and is cheaper than the rotary model
FEATURES AT A GLANCE
1.Sliding mold for easier removal 4.Slide table, let the mold install and unload more conveniently, increase production efficiency effectively.

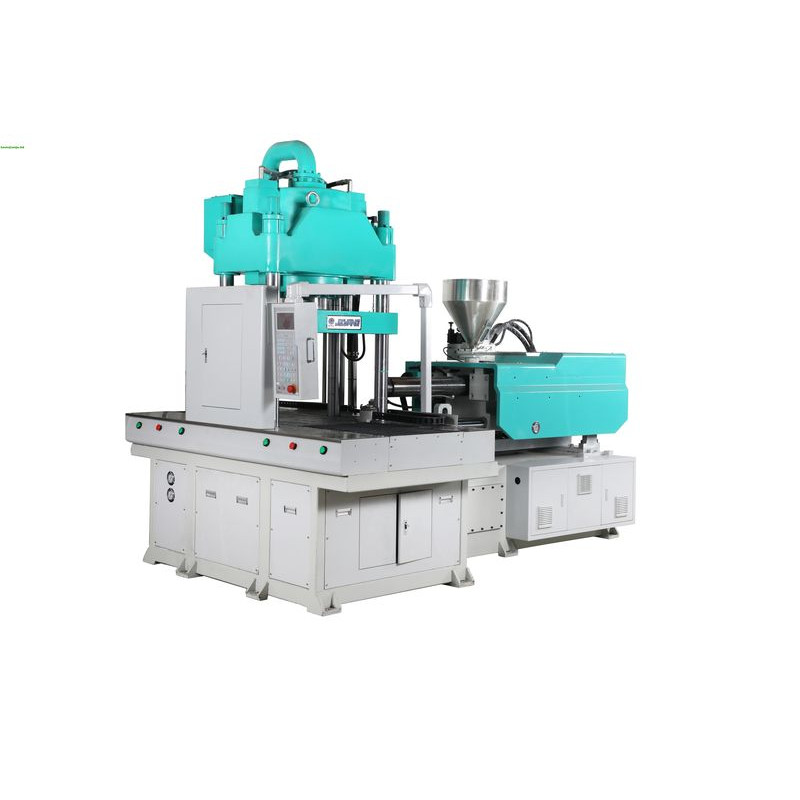

Right side

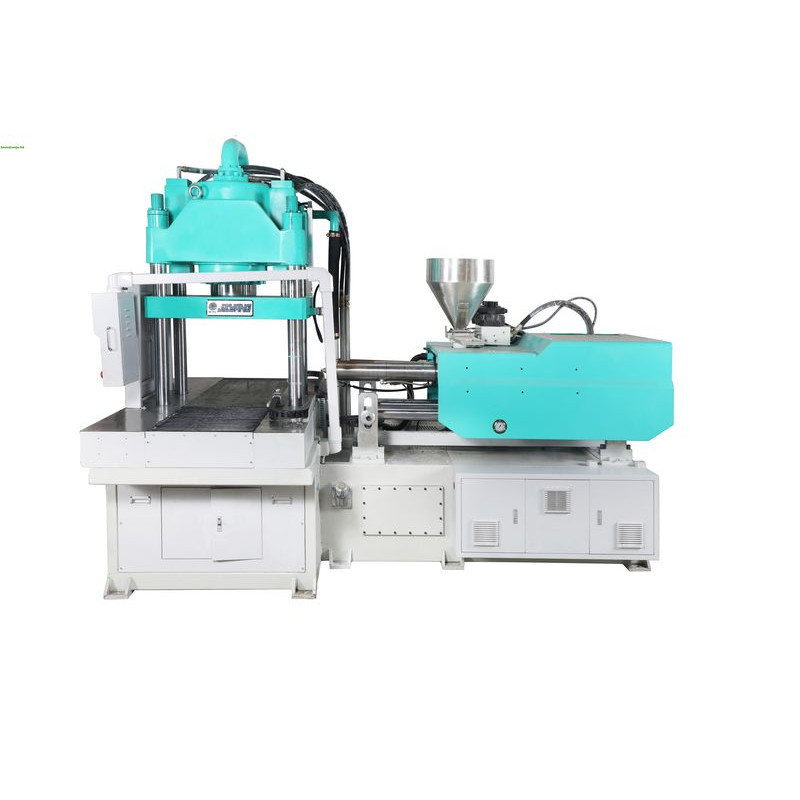

Front

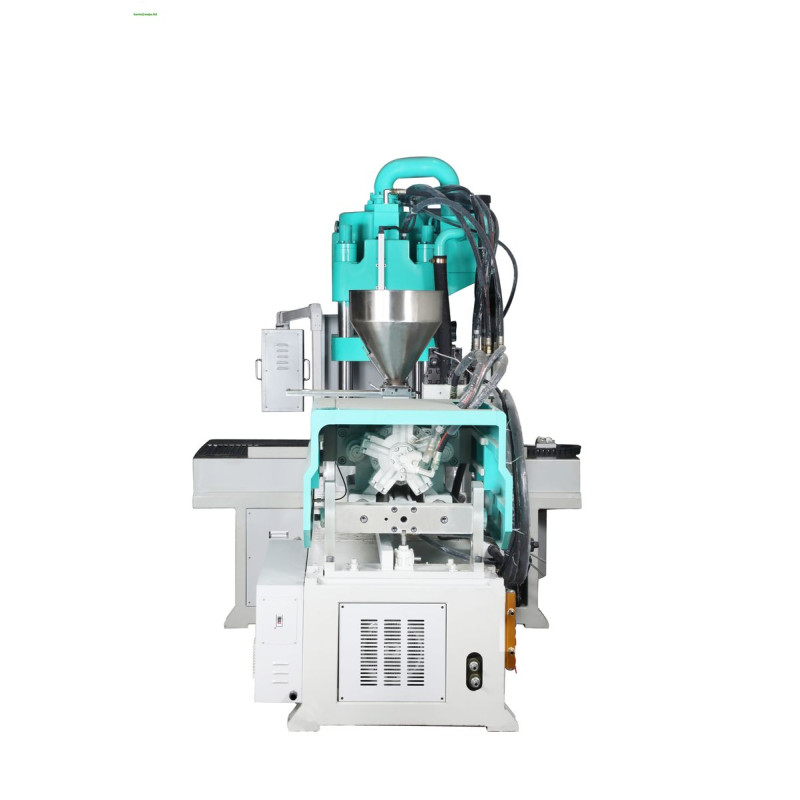

back side
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Screw Diameter | 50mm | ||
2 | Distance Between Tie Bere | 650*480mm | ||
3 | clamping force | 100Ton | ||
4 | Ejector Force force | 6 Ton | ||
5 | Injector stoke | 125mm | ||
6 | Power | 20kw | ||
7 | Machine weight | 6.6Ton | ||
8 | Machine Dimensions(LxWxH | 2.7x1.3x3m |
PRODUCT CONFIGURATION
Electrical Parts
Automobile, motorcycle and bicycle parts

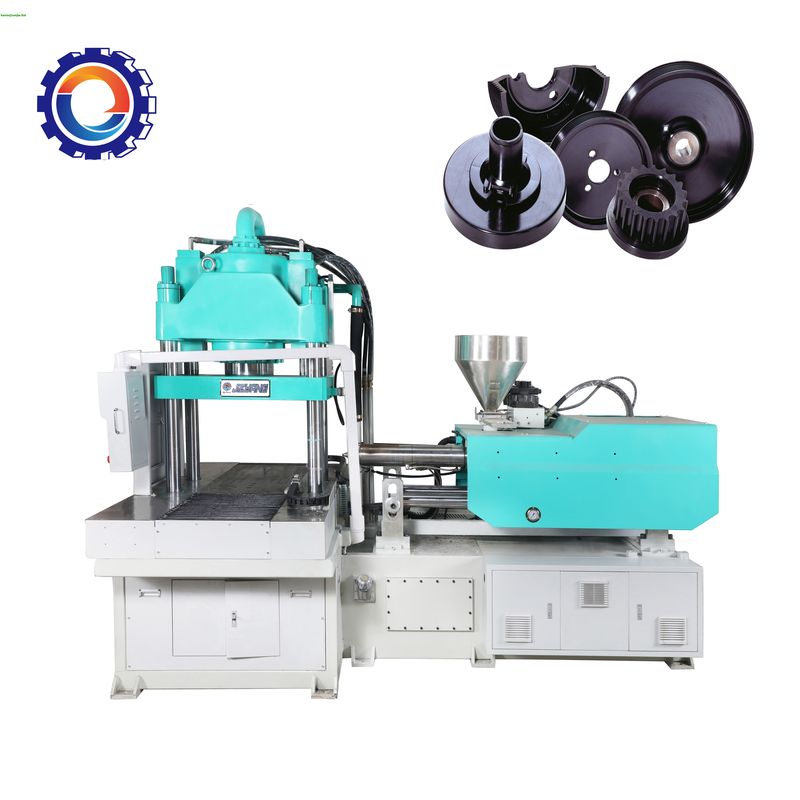

Bakelite piston
| After-sales Service Provided | Engineers available to service machinery overseas |
| Applicable Industries | Building Material Shops;Manufacturing Plant;Construction works;Energy & Mining;Food & Beverage Shops |
| Brand Name | JIE YANG |
| Condition | New |
| Core Components | Motor |
| Distance Between Tie Bere | 650*480mm |
| Ejector Force | 6Tons |
| Ejector Force(kN) | 600 kN |
| Ejector Number | 1 |
| Ejector Stoke | 125mm |
| Ejector Stroke(mm) | 125 mm |
| Injection Rate (g/s) | 211 g/s |
| Injection Weight (g) | 373 g |
| Key Selling Points | High Productivity |
| Machine Dimensions(LxWxH) | 2.7x1.3x3m |
| Machine Type | Electric;plastic injection machine |
| Machine weight | 6.0Tons |
| Machinery Test Report | Provided |
| Max.Open daylight | 550/660mm |
| Min.Mold Height | 250/350mm |
| Mold Height(mm) | 250 - 350 mm |
| Open Stroke(mm) | 300 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid;Bakelite |
| Power (kW) | 20 kW |
| Screw diameter | 50mm |
| Screw diameter (mm) | 50 mm |
| Screw Speed (rpm) | 0 - 200 rpm |
| Showroom Location | Viet Nam |
| Slide Plate Size | 920*730mm |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 376 cm³ |
| Type | Tube Head Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 6000 kg |
