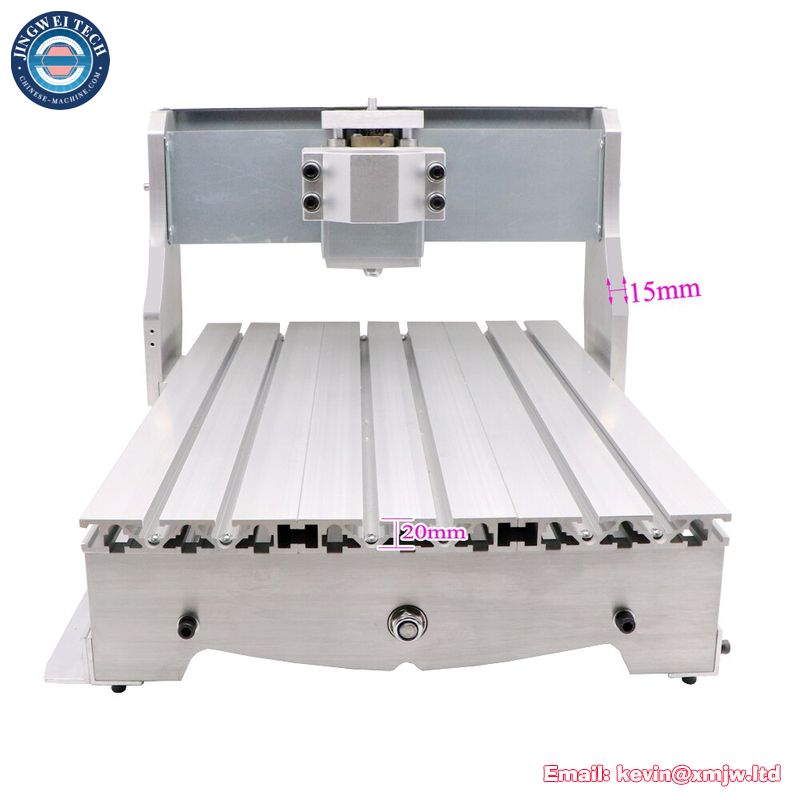

6040 CNC Wood Router Aluminum Frame - Rotary Axis 57 Motor Kit
- The governor of the spindle motor outputs DC48V (OK has been set at the factory, and 0-110vdc can be set as required).
- The three-axis wiring is a standard 4-core aviation plug, and the spindle motor wiring is a standard 2-core aviation plug.
- One free power supply line and one parallel port line respectively, which can be used when the hand is powered on
- Control software: Mach2, Mach3, kcaM, etc
- Model
- CNC Router Frame 6040 kit
- Model Number
- CNC Router Frame 6040 kit
- Certification
- CE
- Origin
- Mainland China
- CNC or Not
- CNC
- Condition
- New
Reply within 24 hours · 12-month warranty

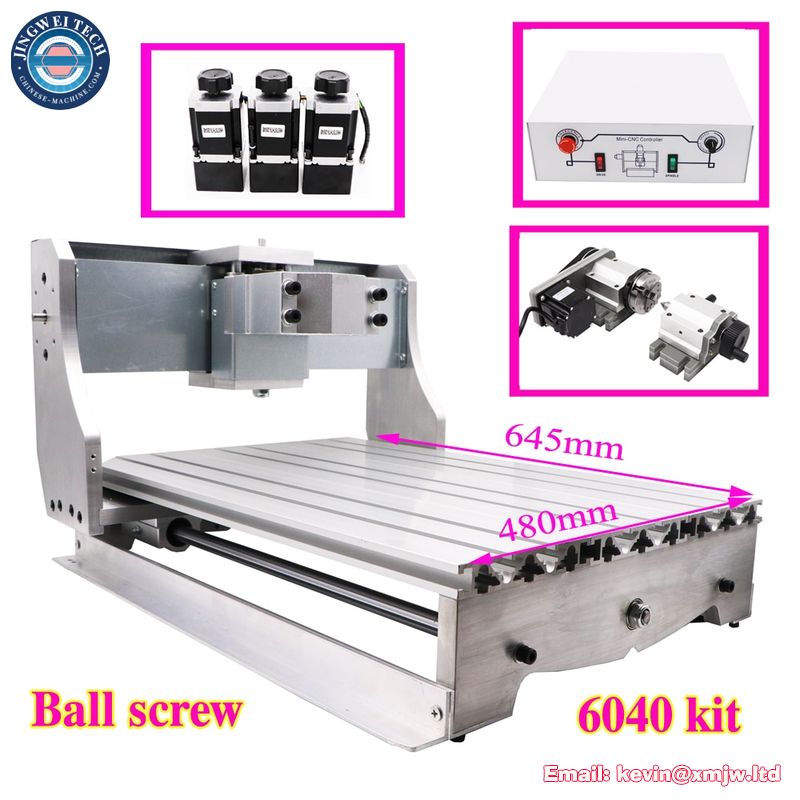

6040 CNC Wood Router Aluminum Frame Rotary Axis 57 Step Motor Completo Kit for Cutting PCB PVC Milling Laser Machines
Introduction

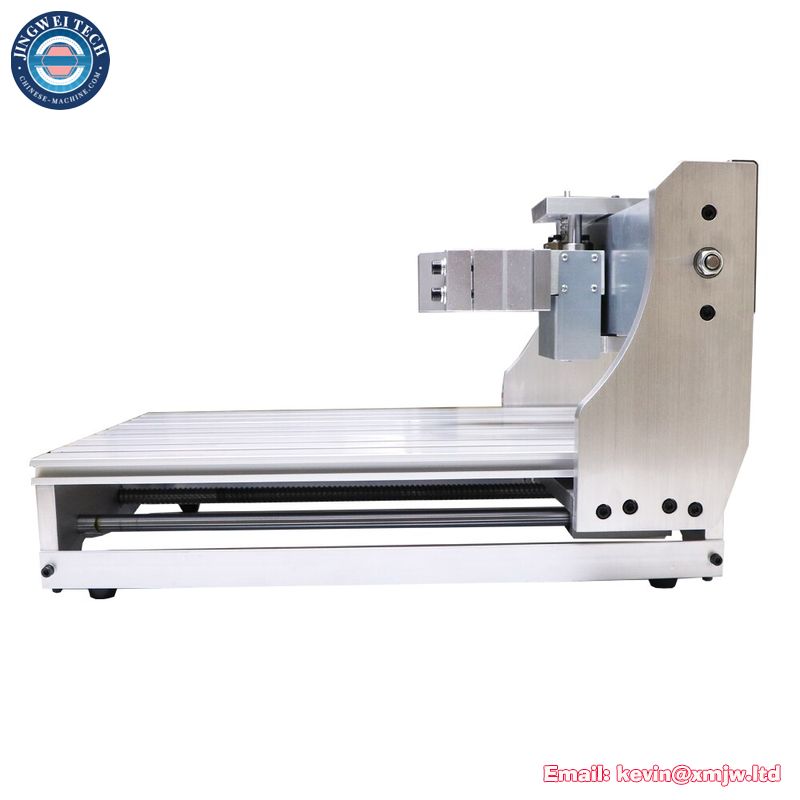

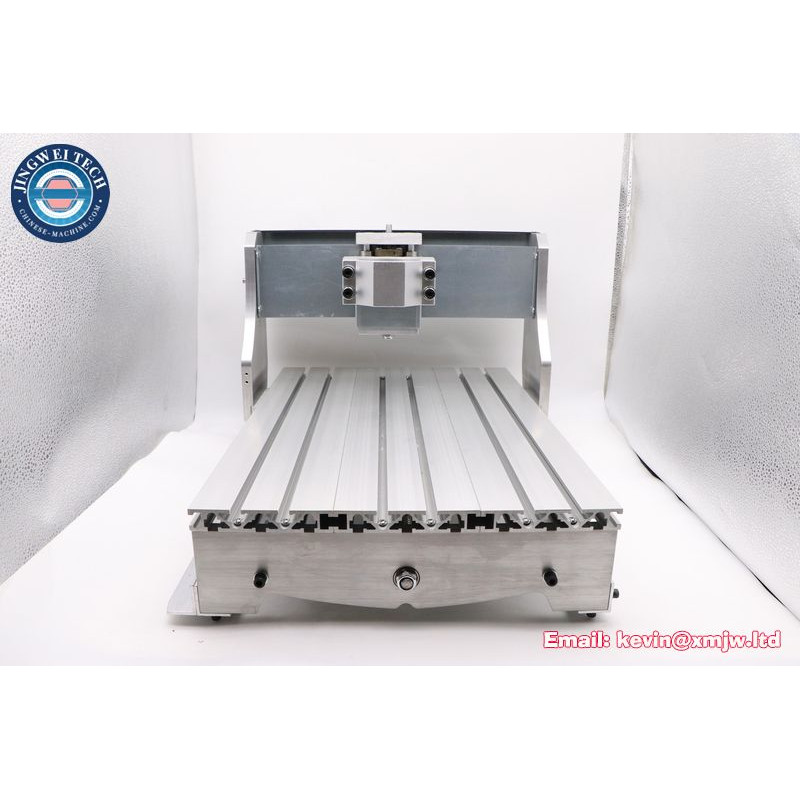

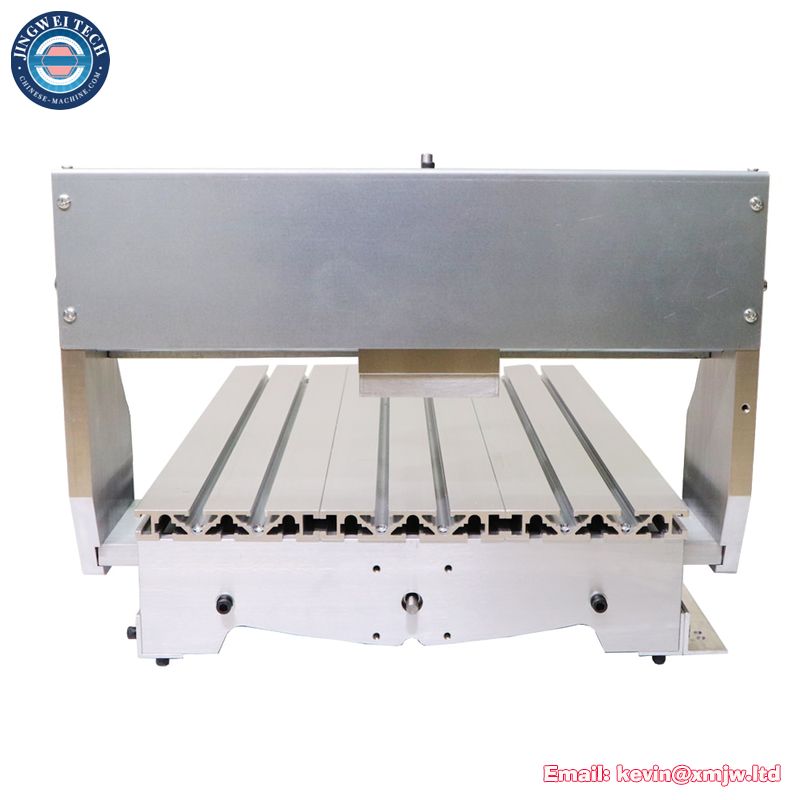

The CNC router frame need self-assembled for DIY amateur;
The cnc router is designedfor large areaengraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
| MODEL | CNC 6040 lathe frame | |||
| Attribute | 3axis | 3axis + motor | 4axis | 4axis + motor |
| Axis | 3axis | 3axis | 4axis | 3axis |
| Stepper motor base | No | YES | No | yes |
| Coupling | No | YES | No | Yes |
| Stepper Motor | No | YES 57mm | No | Yes 57mm |

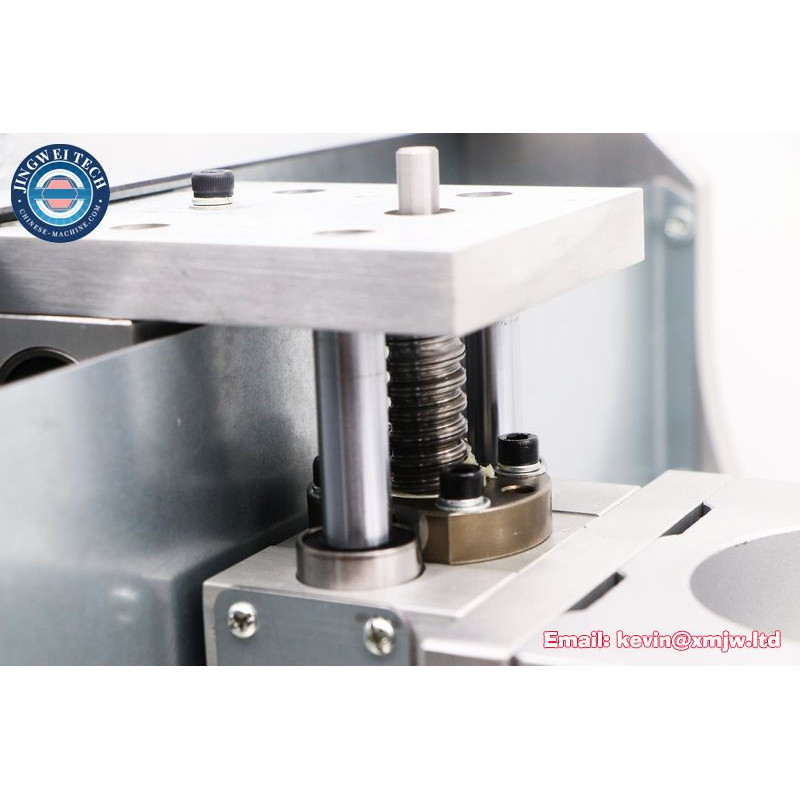

| Type of screw | 1605 Ball screw | 1605 Ball screw | 1605 Ball screw | 1605 Ball screw |
| Weigh | 34 | 36 | 38 | 40 |
| Machine Dimensions | 860X690X550mm | |||
| Rack material | 6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) | |||
| Engraving area | 600X400mm | |||
| Z-Axis Stroke | 80mm, Engraving depth depends on the length of the tool edge | |||
| Acceptable material thickness | ≤80mm | |||
| Rail type | Chromeplate shaft + Linear Bearings, Surface hardening 61HRC | |||
| Diameter of Spindle motor | 65mm( 52mm optional) | |||
| Stepper motor size | 57mm | |||
| Repeat positioning Accuracy | ≤0.03mm |

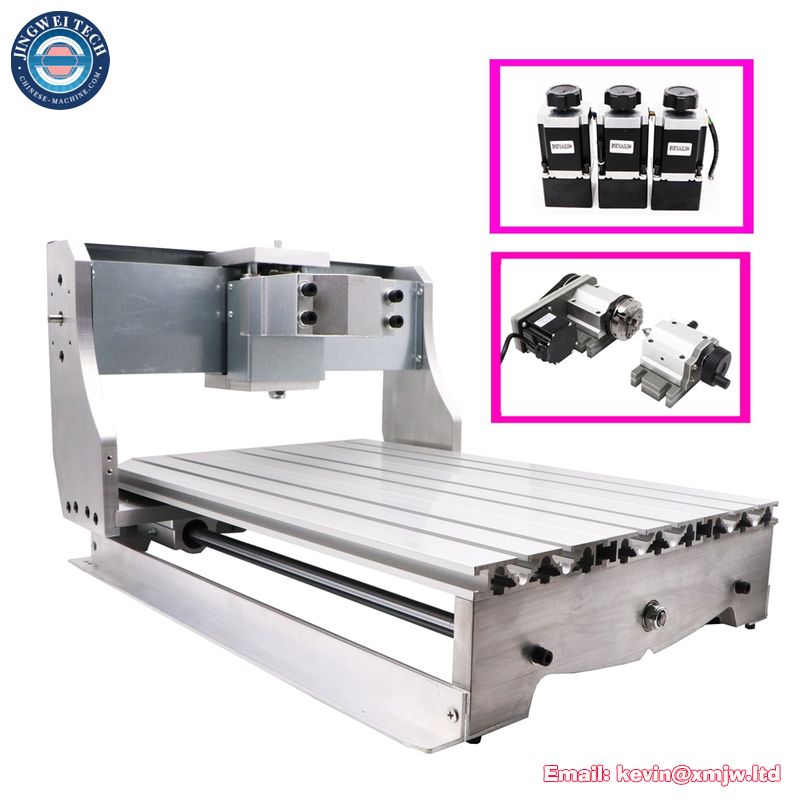

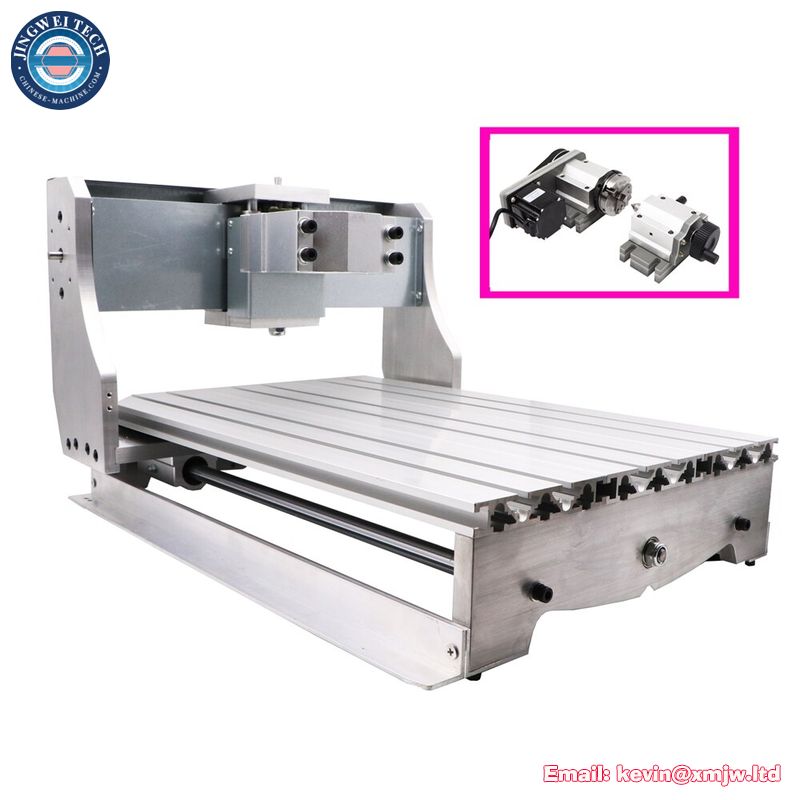

The fourth axis: including the Rotary axis and the tailstock, with stepping motor and 3 jaw 65mm chuck, and the tailstock is retractable. The extension length of tailstock is 30mm.

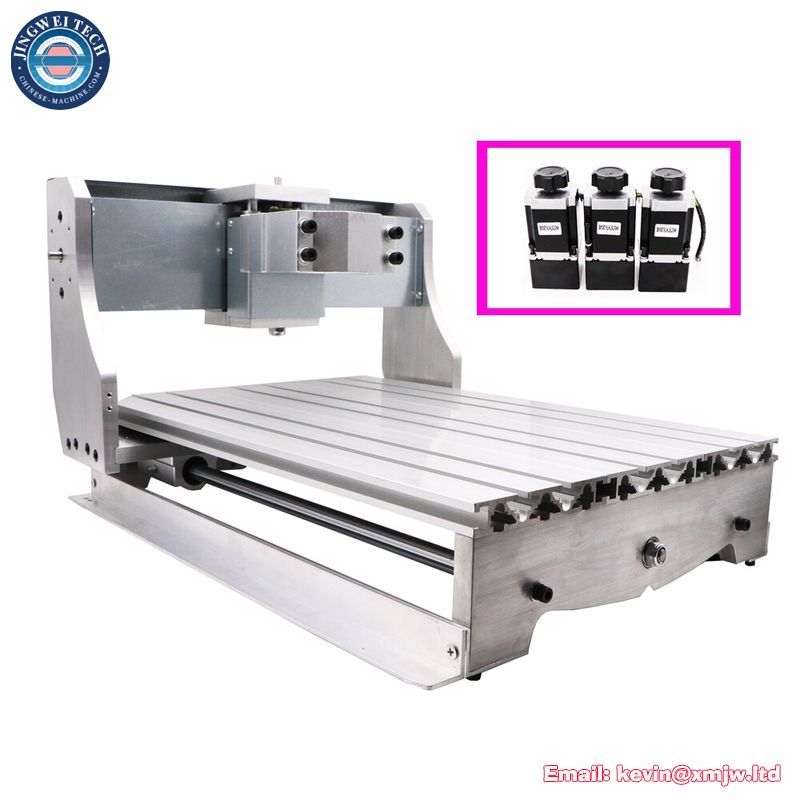

The bottom plate and vertical plate are made of PVC plate. The new 57 step motor has a driving current of 2.4a and a synchronous wheel reduction ratio of 1 to 4.

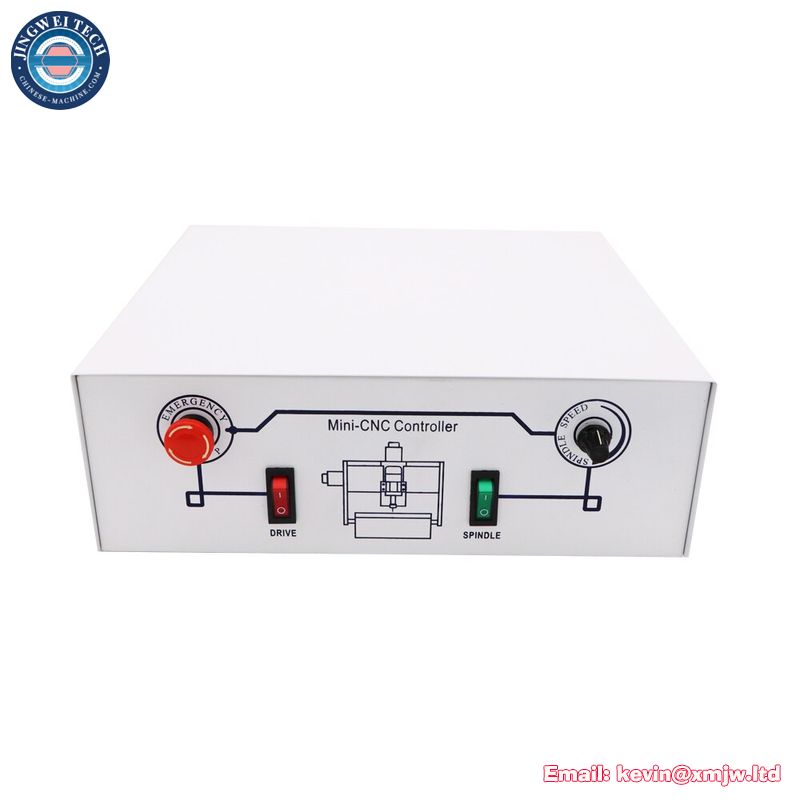

Technical parameters of control box:
1, 3 axis control board, current 3a, 8 subdivision (factory set OK, the control board can expand the fourth axis, the fifth axis).
2. The governor of the spindle motor outputs DC48V (OK has been set at the factory, and 0-110vdc can be set as required).
3. The three-axis wiring is a standard 4-core aviation plug, and the spindle motor wiring is a standard 2-core aviation plug.
4. One free power supply line and one parallel port line respectively, which can be used when the hand is powered on
5. Control software: Mach2, Mach3, kcaM, etc
| Certification | CE |
|---|---|
| CNC or Not | CNC |
| Condition | New |
| Is Smart Device | no |
| Model | CNC Router Frame 6040 kit |
| Model Number | CNC Router Frame 6040 kit |
| Origin | Mainland China |
