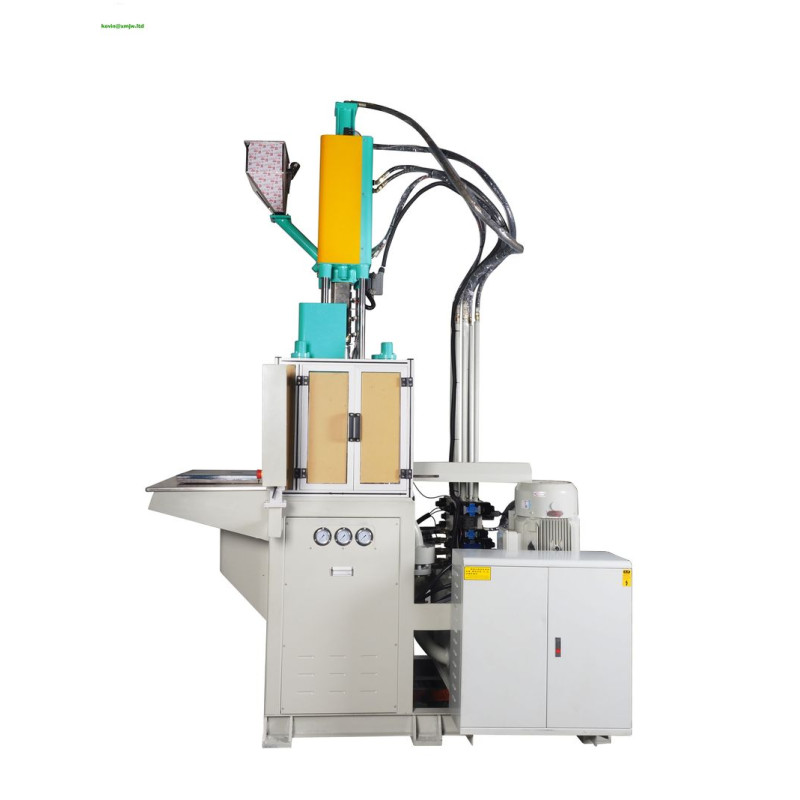

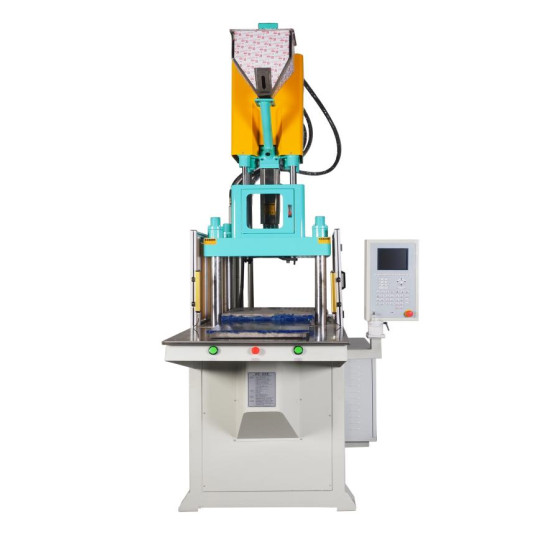

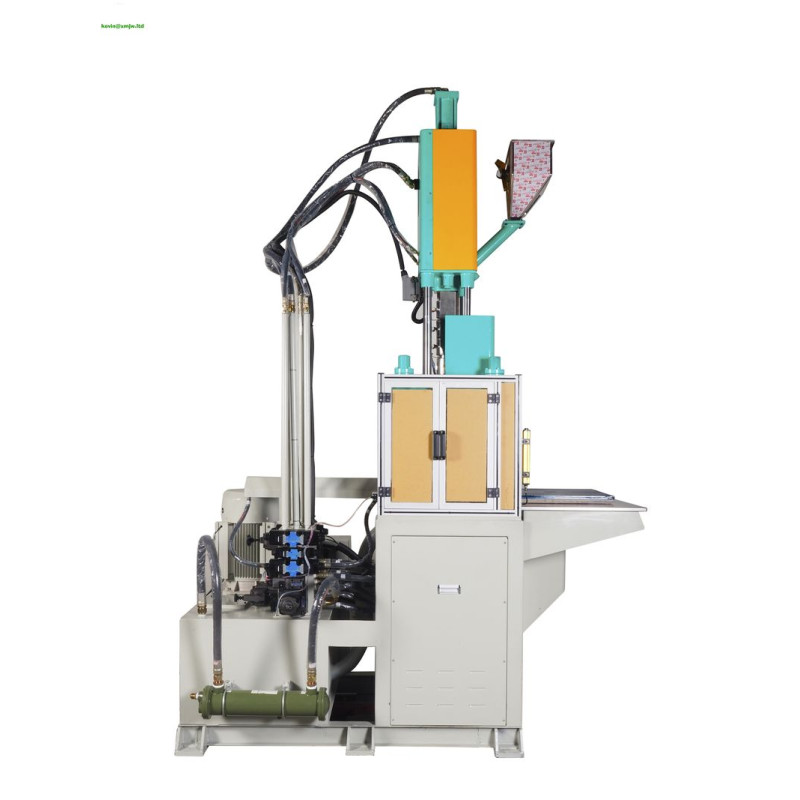

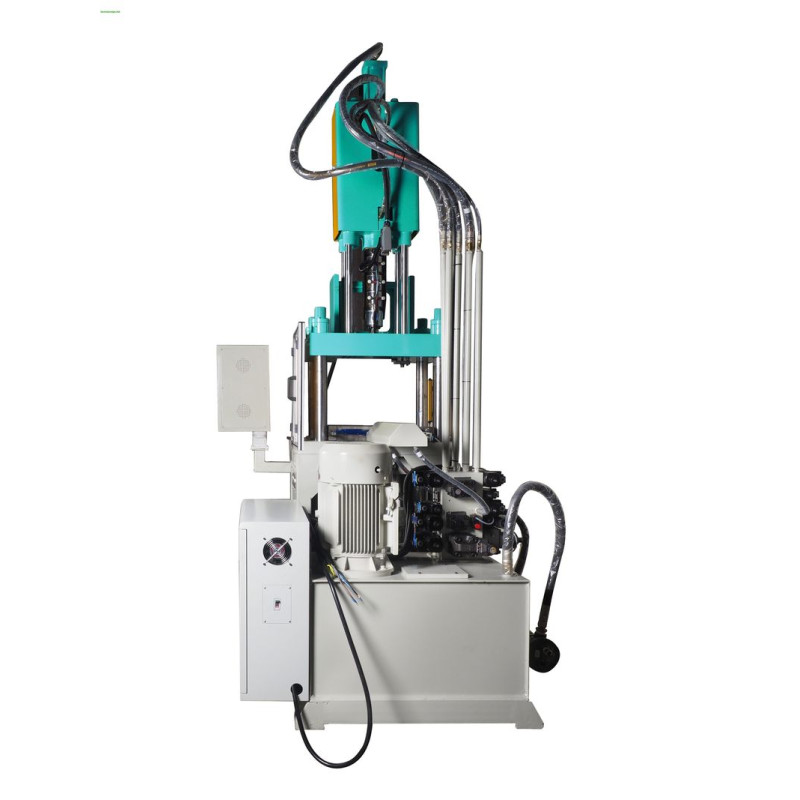

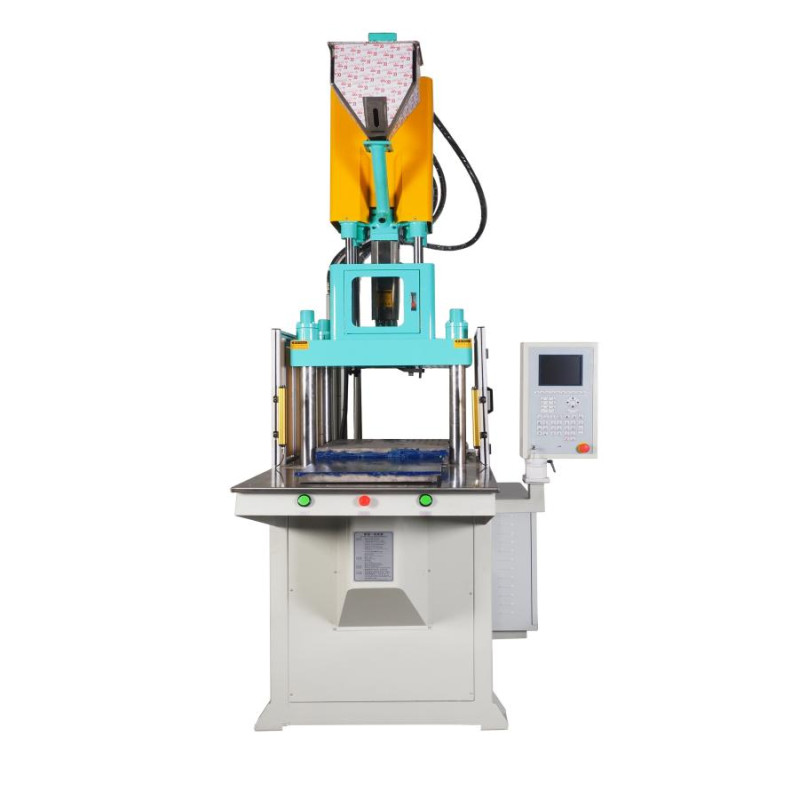

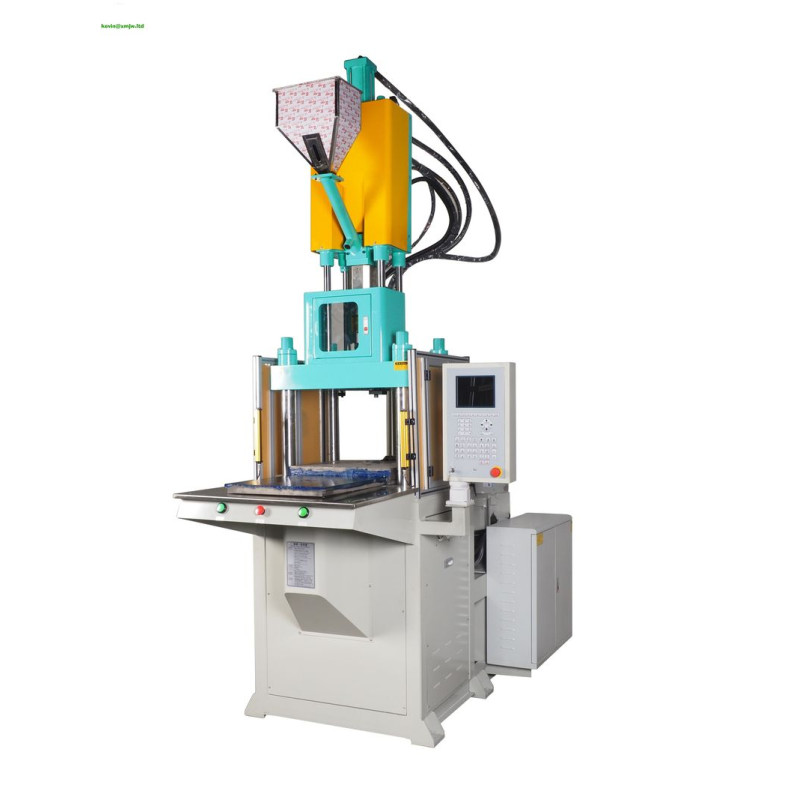

Bottles Cups Tubes Making Machine - Plastic Products Injection Molding
- In ST(standard) machine installs single sliding mold. After operates the mold to complete, the stamping die automatically slips to the operator front, is adv...
- May expand the computer formula and the automation takes out inserts the equipment segment,may achieve the entire automation the design.5.Closed mold the str...
- Product Overview Detail Images PRODUCT SPECIFICATIONS 1.
- The screw rod L/D ratio is big,is suitable for the special engineering plastics.
- Power (kW)
- 11 kW
- Oil Tank Capacity
- 340L
- Injection speed
- 87mm/s
- Screw Speed (rpm)
- 0 - 250 rpm
- Injection Weight (g)
- 213.6 g
- Weight (KG)
- 6000 kg
Reply within 24 hours · 12-month warranty
Product Overview
Detail Images
PRODUCT SPECIFICATIONS
Main Features
1.In ST(standard) machine installs single sliding mold. After operates the mold to complete, the stamping die automatically slips to the operator front, is advantageous for the operation,the security is high also the end product goes against also completes in exterior.2.The multistage temperature control,the multistage projects the pressure with to project the speed, projects the back pressure not to have the section adjustment, suits each kind of precise revertex components taking shape. (Engineering plastics).3.The screw rod L/D ratio is big,is suitable for the special engineering plastics. 4.May expand the computer formula and the automation takes out inserts the equipment segment,may achieve the entire automation the design.5.Closed mold the straight pressure formula under lock mold cylinder design can fast drop gathers the mold and the idling speed lowly press fits the mold, to the mold service life,can be lasting.6.Projects uses the two-cylinder balance -like to project the system, projects steadily is Powerful.7.Electrically controlled may move the gang to bond the demonstration, the convenient gang bonds removes with the service.8. Servo motor series can be selected according to customer needs.9.Screw and clamping force force can be selected to use.
| MODEL | JY-1200ST-D | ||||
| ITEM | UNIT | ||||
| INJECTION UNIT | Screw Barrel Diameter | mm | 40 | 40 | 45 |
| Injection Pressure | kg/cm² | 1837 | 1452 | 1176 | |
| Max. Shot Weight | gram | 213.6 | 270 | 213.6 | |
| Max. Shot Rate | cm³/sec | 109.2 | 138.3 | 107.7 | |
| Screw Barrel Route | mm | 200 | |||
| Screw Barrel Rotary Speed | rpm | 0-250 | 0-200 | ||
| Number of Temperature Control | 4 | ||||
| CLAMPING UNIT | Clamping Force | tons | 120 | ||
| Slide Size | mm | 560*600 | |||
| Distance Between Tie Bere | mm | 760*420 | |||
| Min. Mold Height | mm | 280/380 | |||
| Opening Stroke | mm | 280 | |||
| Max. Opening Mold Distance | mm | 560/660 | |||
| Ejetor Force | tons | 4.6 | |||
| Ejetor Stoke | mm | 100 | |||
| OTHERS | Machine Weight | tons | 6 | ||
| Machine Dimensions(LxWxH) | meter | 2.85*2*3.8/4.6 | |||
| System Pressure | tons | 13.7 | |||
| Oil Tank Capacity | L | 340 | |||
| Electric Power | KW | 15 | |||
| Heater Power | KW | 10.7 | |||
SIMILAR PRODUCTS
Phone cases and toys
| Applicable Industries | Hotels;Building Material Shops;Manufacturing Plant;Restaurant;Home Use;Construction works;Energy & Mining |
|---|---|
| Brand Name | JIEYANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Other;Pressure vessel;Engine;Gearbox;Screw;Other |
| Distance between Tie Bars | 760x420mm |
| Ejector Force(kN) | 45 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 100 mm |
| Injection Rate (g/s) | 170.7 g/s |
| Injection speed | 87mm/s |
| Injection Stroke | 180mm |
| Injection Weight (g) | 213.6 g |
| Key Selling Points | Multifunctional |
| Machine Type | Hydraulic |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product |
| Max Injection Pressure | 115.2Mpa |
| Max Opening | 560/660mm |
| Mold Height(mm) | 280 - 380 mm |
| Nozzle Out From Platens | ≥45mm |
| Number of Temperature Control | 3+1 |
| Oil Tank Capacity | 340L |
| Open Stroke(mm) | 280 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid |
| Power (kW) | 11 kW |
| Product name | JIEYANG |
| Screw diameter (mm) | 50 mm |
| Screw Speed (rpm) | 0 - 250 rpm |
| Showroom Location | Viet Nam |
| Slide Size | 560*600mm |
| Style | VERTICAL |
| System Pressure | 13.7Mpa |
| Theoretical Shot Volume(cm³) | 353 cm³ |
| Type | Tube Shoulder Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 6000 kg |
