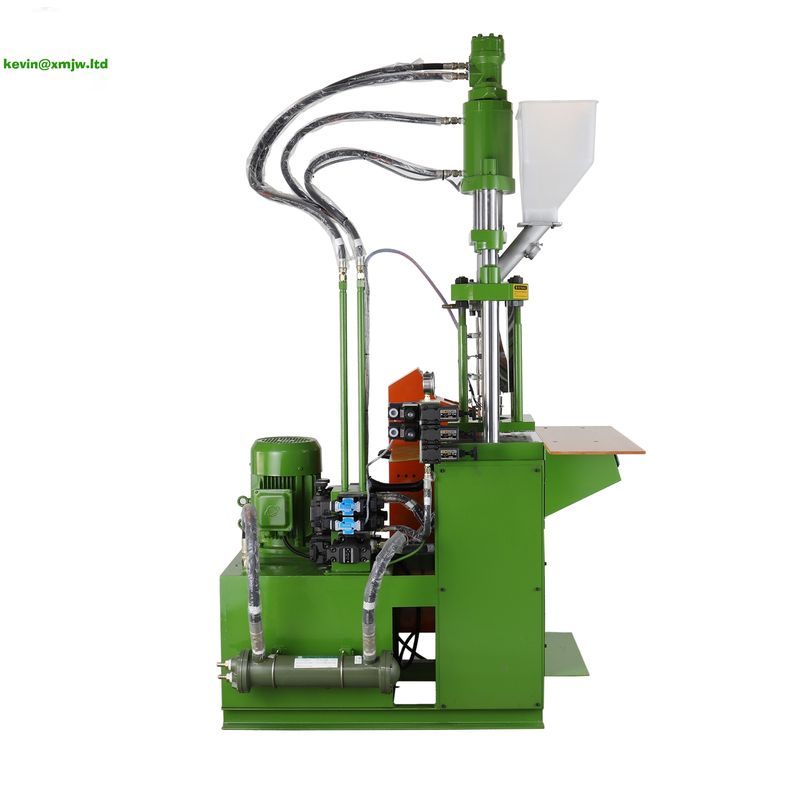

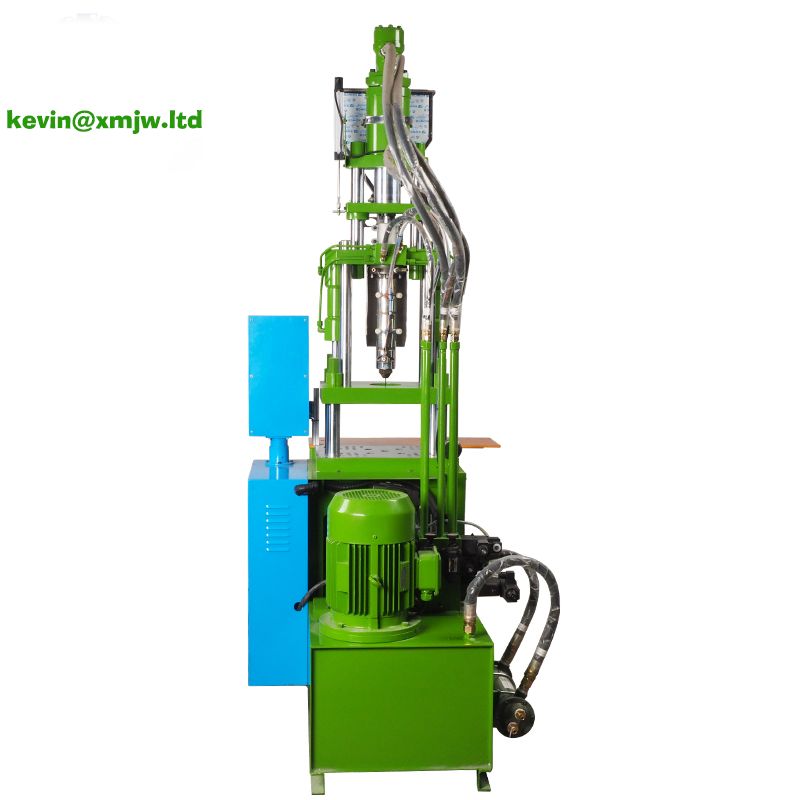

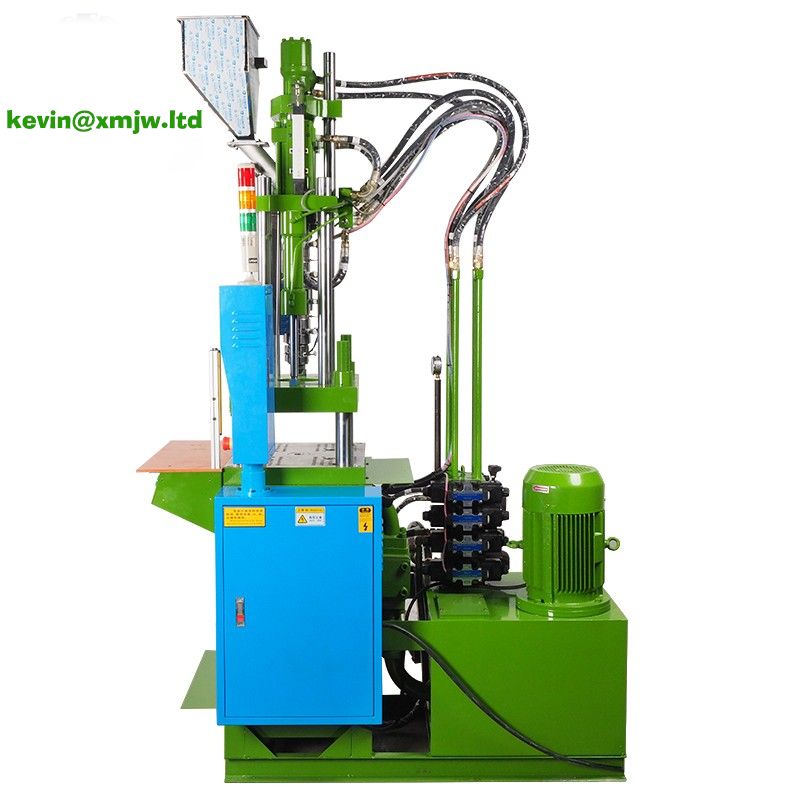

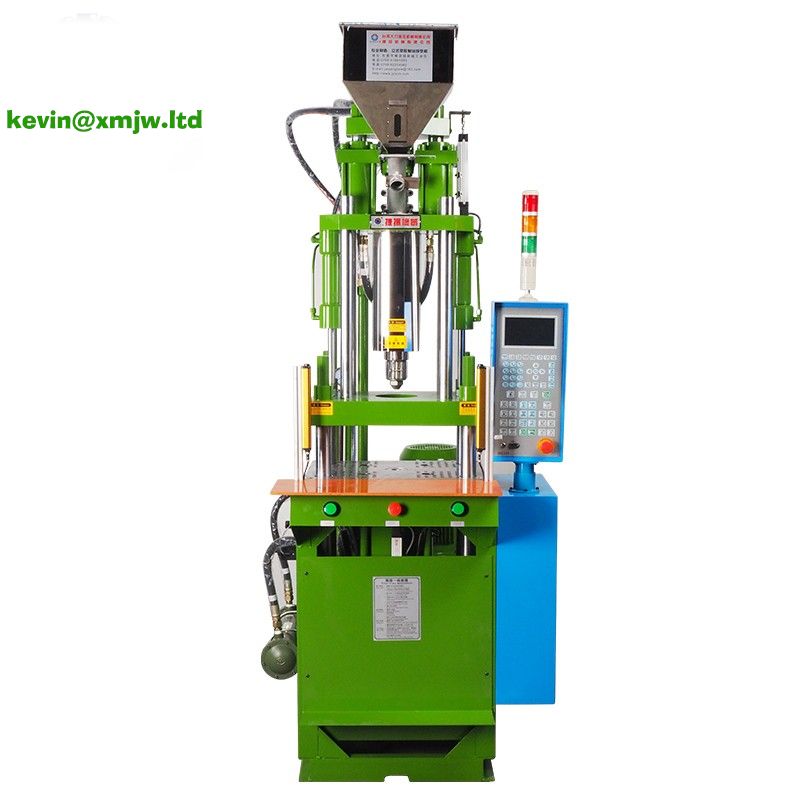

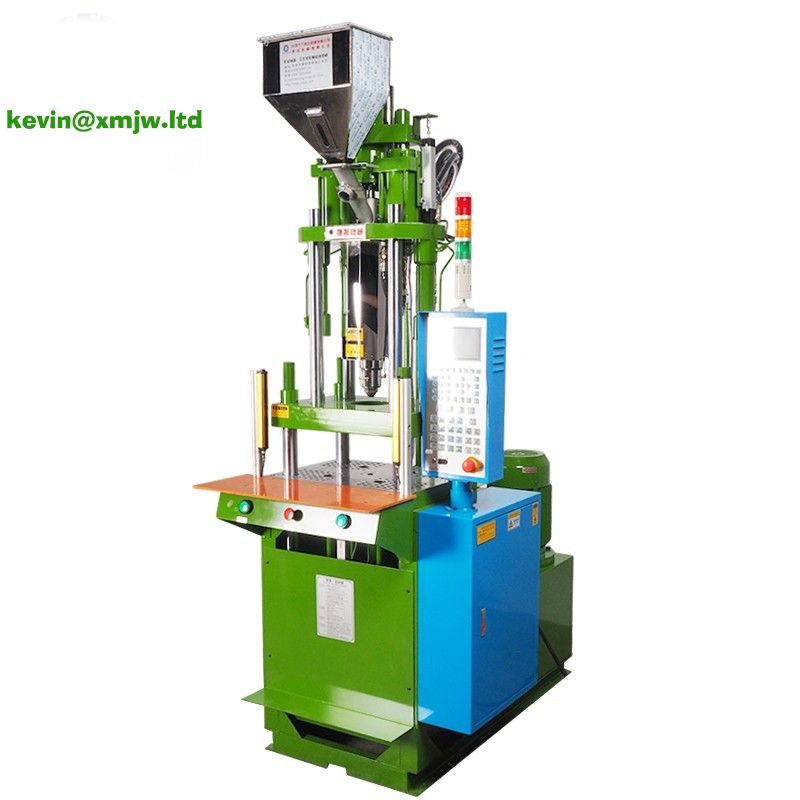

LED Cable Connectors LED Module Making Machine - Plastic Injection Molding
- Product Overview Details Images PRODUCT SPECIFICATIONS 1.
- Product Overview
- Products Application
- LED module light
- Power (kW)
- 8.9 kW
- Oil Tank Capacity
- 120L
- Plasticizing Capacity(g/s)
- 120
- Injection speed
- 75mm/s
- Screw Speed (rpm)
- 0 - 200 rpm
- Injection Weight (g)
- 120 g
Reply within 24 hours · 12-month warranty
Product Overview
Details Images
PRODUCT SPECIFICATIONS
Main Features
1.in-line screw type injection apparatus.2.three-phrase, temperature control,fast, back pressure, screw speed stepless adjustment for a variety of precision plastic parts molding.3.the lower mold fixed on the movable mold, insert items for a good positioning of the resistance, and has finished top of the device.4.the low-pressure mold clamping device protection security.5. the tube can lift, clean and convenient material head, fixed mold easier.6. can be installed with a single mode skateboards, skateboard or alternating dual mode.
MODEL 450ST | Item | UNIT | |||
| INJECTION UNIT | Screw Barrel Diameter | mm | 30 | 32 | 34 |
| Injection Pressure | kg/cm² | 1171 | 996 | 820 | |
| Max. Shot Weight | gram | 74 | 84 | 106 | |
| Screw Barrel Route | mm | 115 | |||
| Max. Shot Rate | cm³/sec | 62.5 | 71 | 95 | |
| Screw Barrel Rotary Speed | rpm | 0-190 | |||
| Nozzle Contact Force | tons | 4.45 | |||
| Nozzle Retraction Nozzle | mm | 190 | |||
| Number of Temperature Control | 3 | ||||
| CLAMPING UNIT | Clamping Force | tons | 45 | ||
| Platen Size | mm | 580*430 | |||
| Distance Between Tie Bere | mm | 410*250 | |||
| Min. Mold Height | mm | 220/70 | |||
| Opening Stroke | mm | 200 | |||
| Max. Opening Mold Distance | mm | 420/270 | |||
| Ejetor Force | tons | 1.76 | |||
| Ejetor Stroke | mm | 35 | |||
| OTHERS | Max. Hydraulic Pressure | kg/cm² | 140 | ||
| Pump Out put | L/min | 37.2 | |||
| Oil Resservoir Capacity | Liter | 130 | |||
| Cooling Water Consumption | L/hr | 600-800 | |||
| Pump Motor Power | kw/hp | 5.5/7.5HP | |||
| Barrel Heating Power | kw | 2.8 | |||
| Total Power | kw | 9 | |||
| Machine Weight | tons | 1.8 | |||
| Machine Dimension(LxWxH) | meter | 1.7*1.2*3 | |||
| Shipping Weight | tons | 1.9 | |||
| Shipping Measurements(L*W*H) | meter | 1.82*1.18*2.45 | |||
Products Application
LED module light
| Applicable Industries | Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Construction works |
|---|---|
| Brand Name | JIEYANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw |
| Distance between Tie Bars | 410x250 mm |
| Ejector Force(kN) | 172 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 35 mm |
| Injection Rate (g/s) | 72 g/s |
| Injection speed | 75mm/s |
| Injection Stroke | 140mm |
| Injection Weight (g) | 120 g |
| Key Selling Points | Long Service Life |
| Machine Type | Hydraulic |
| Machinery Test Report | Provided |
| Max Injection Pressure | 133Mpa |
| Max Opening | 350/450mm |
| Mold Height(mm) | 150 - 250 mm |
| Nozzle Out From Platens | ≥35mm |
| Number of Temperature Control | 3 |
| Oil Tank Capacity | 120L |
| Open Stroke(mm) | 200 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid |
| Plasticizing Capacity(g/s) | 120 |
| Platen Size | 550*390mm |
| Power (kW) | 8.9 kW |
| Product name | JIEYANG |
| Screw diameter (mm) | 34 mm |
| Screw Speed (rpm) | 0 - 200 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| System Pressure | 13.7Mpa |
| Theoretical Shot Volume(cm³) | 127 cm³ |
| Type | Tube Shoulder Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 1600 kg |
