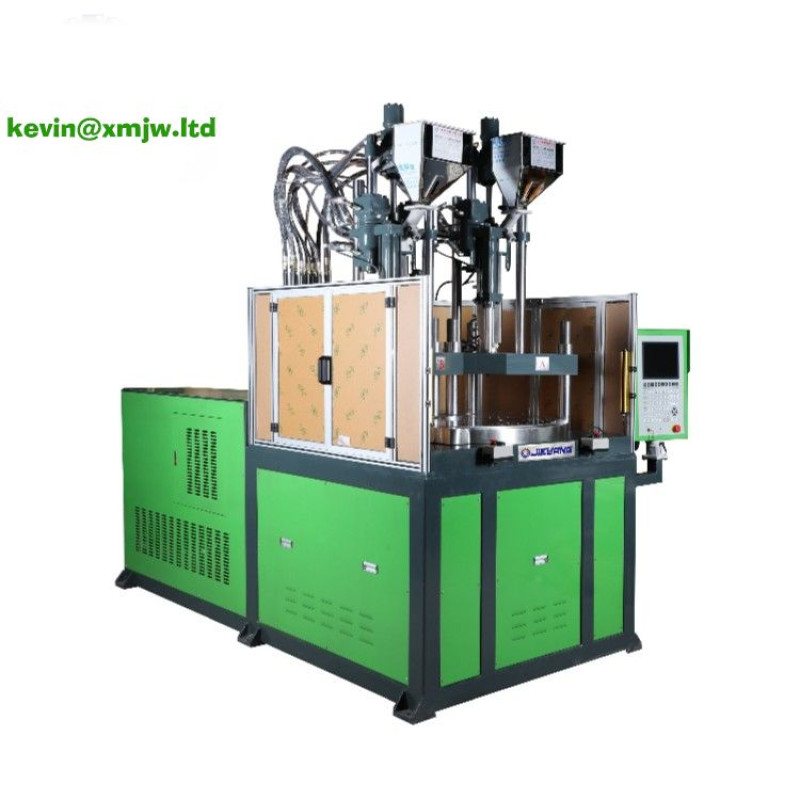

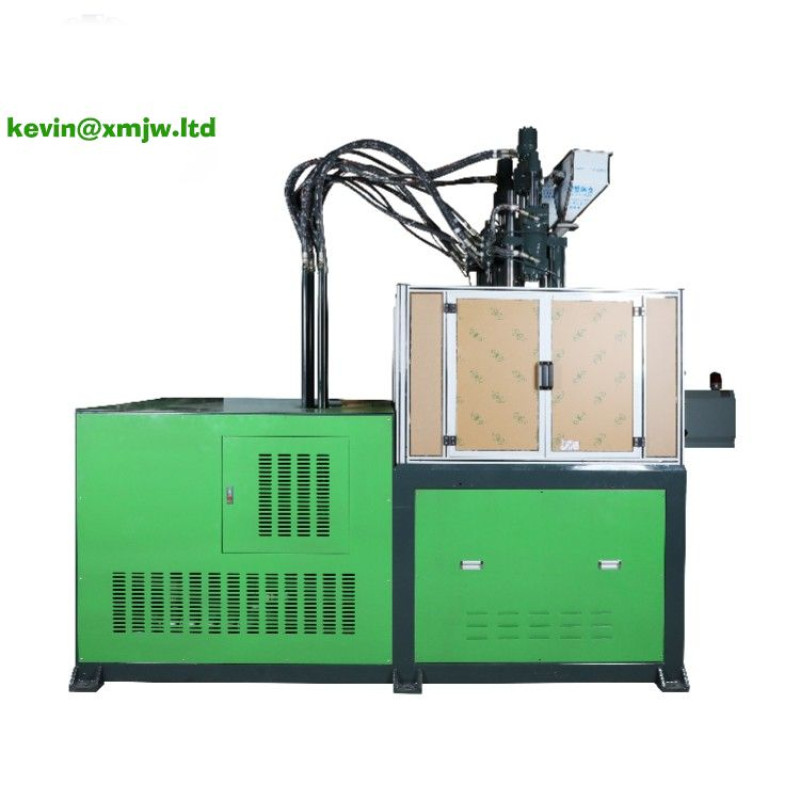

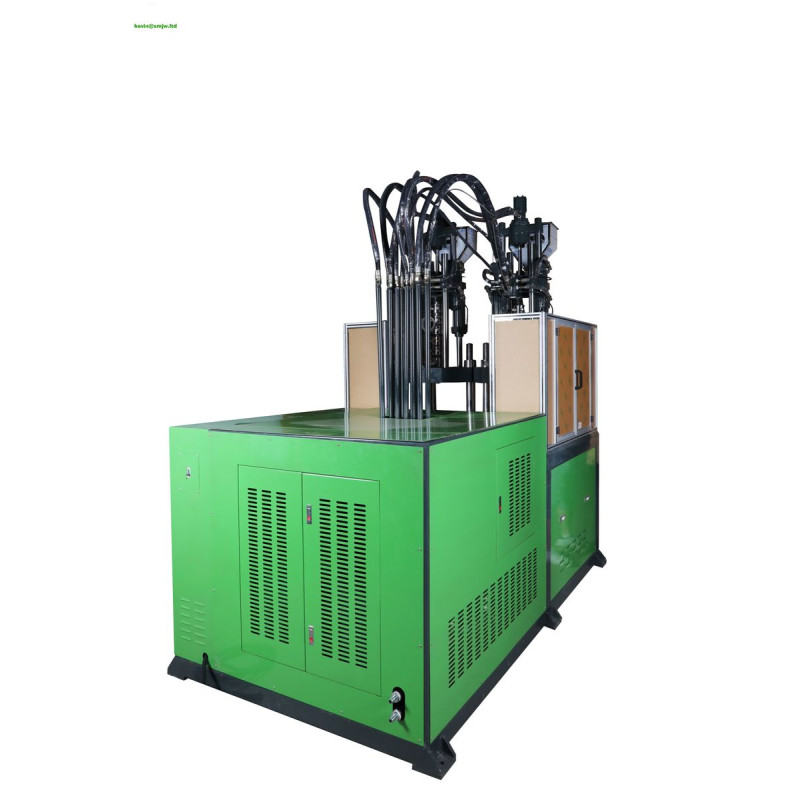

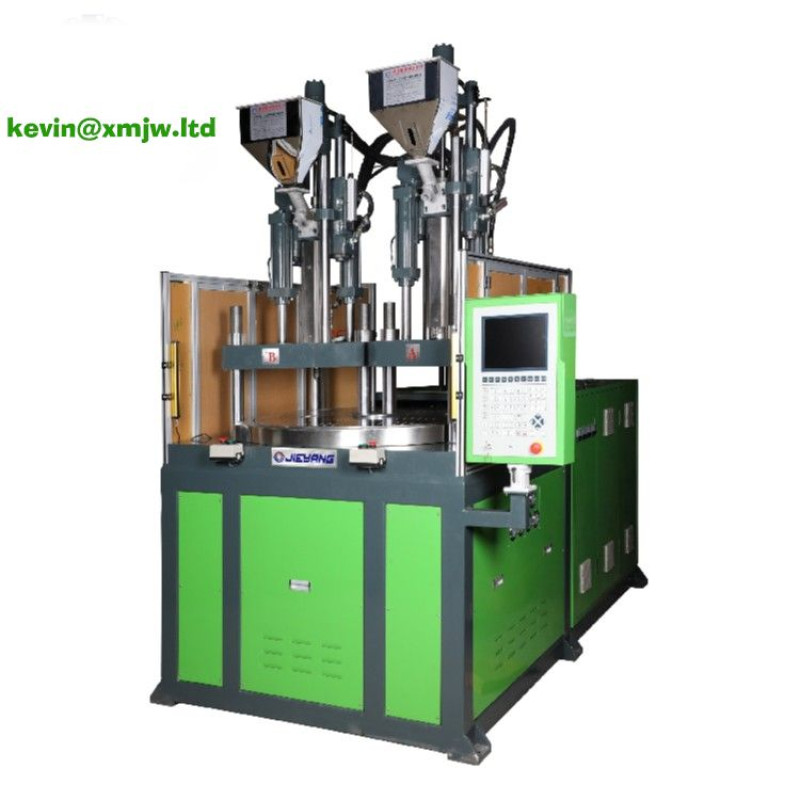

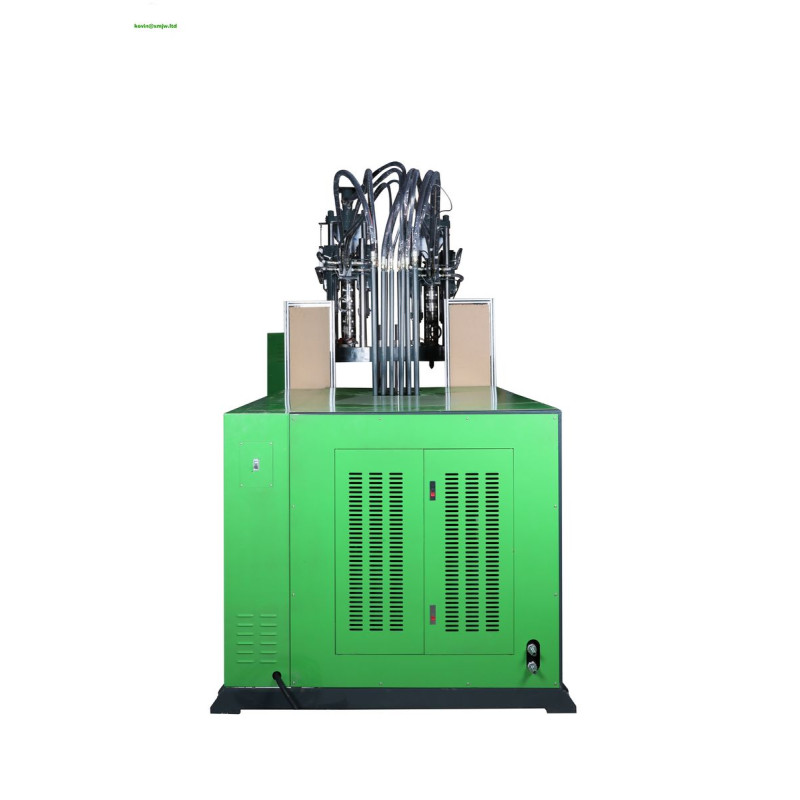

Double Color Keys Making Machine Injection Molding Machine

  • Inquiry Email: sales@cablecutting.net
  • Product Code: CN230813511743
  • Availability: 500



Applicable Industries Hotels;Building Material Shops;Manufacturing Plant;Home Use;Construction works;Energy & Mining
Brand Name JIEYANG
Condition New
Core Components Bearing;Motor;Pump;Gear;PLC;Other;Pressure vessel;Engine;Gearbox;Screw;Other
Ejector Force(kN) 26.5 kN
Ejector Number 1
Ejector Stroke(mm) 100 mm
Injection Rate (g/s) 135.6 g/s
Injection speed 108mm/s
Injection Stroke 160mm
Injection Weight (g) 201 g
Key Selling Points High Productivity
Machine Type Hydraulic
Machinery Test Report Provided
Max Injection Pressure 128.6Mpa
Max Opening 380/480mm
Mold Height(mm) 180 - 280 mm
Nozzle Out From Platens ≥45mm
Number of Temperature Control 3+1
Oil Tank Capacity 280L
Open Stroke(mm) 200 mm
Place of Origin Guangdong;China
Plastic Processed PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid
Plasticizing Capacity(g/s) 201
Power (kW) 11 kW
Product name JIEYANG
Rotary Table Size 980mm
Screw diameter (mm) 40 mm
Screw Speed (rpm) 0 - 200 rpm
Showroom Location Viet Nam
Style VERTICAL
System Pressure 13.7Mpa
Theoretical Shot Volume(cm³) 226 cm³
Type Tube Shoulder Injection
Video outgoing-inspection Provided
Warranty 1 Year
Warranty of core components 1 Year
Weight (KG) 3500 kg
