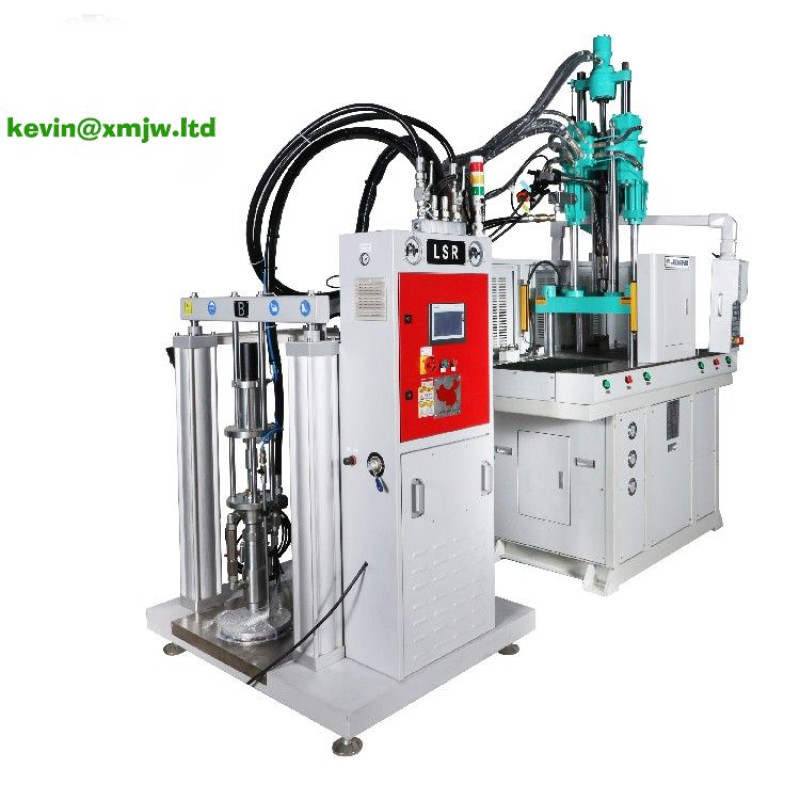

Made Safe Vertical Making Baby Silicone Bottle Nipple Milk Bottles Injection Molding Moulding Machine
Price in reward points: 68000
- Brand: JIEYANG
- Product Code: CN230813557437
- Availability: 500
Product Overview
JY-550ST-DM-LSR

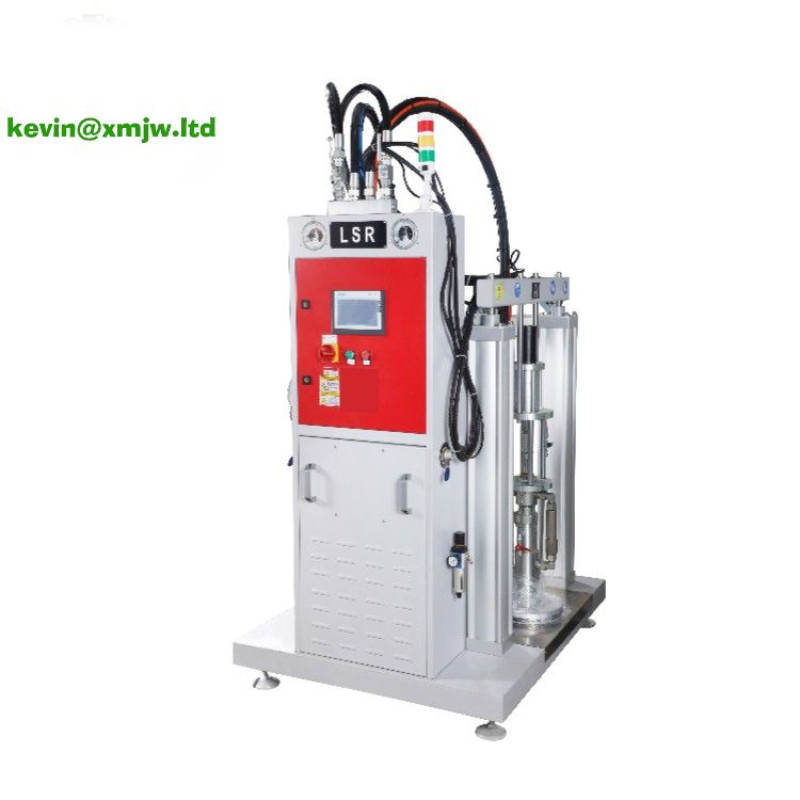

1.Including German " 2KM" (200L) liquid state silica gel feeding main engine.
2.Multi section type precision mold electric temperature control.
3.LSR special oil water cooled closed nozzle.
4.LSR special material pipe group.
5.Thermal cold plate.Insulating glass plate.
7.Disk or double board design (a second lower die), take put a more convenient, more use of hot and solid molding LSR a stop time, letthe operator do another the mould take/put and clean die working, greatly increase the production efficiency.
8.Special charging injection design, the more accurate measurement.
9.Equipped with adjustable vacuum device, prevent the product of bubbles.
9.Equipped with adjustable vacuum device, prevent the product of bubbles.

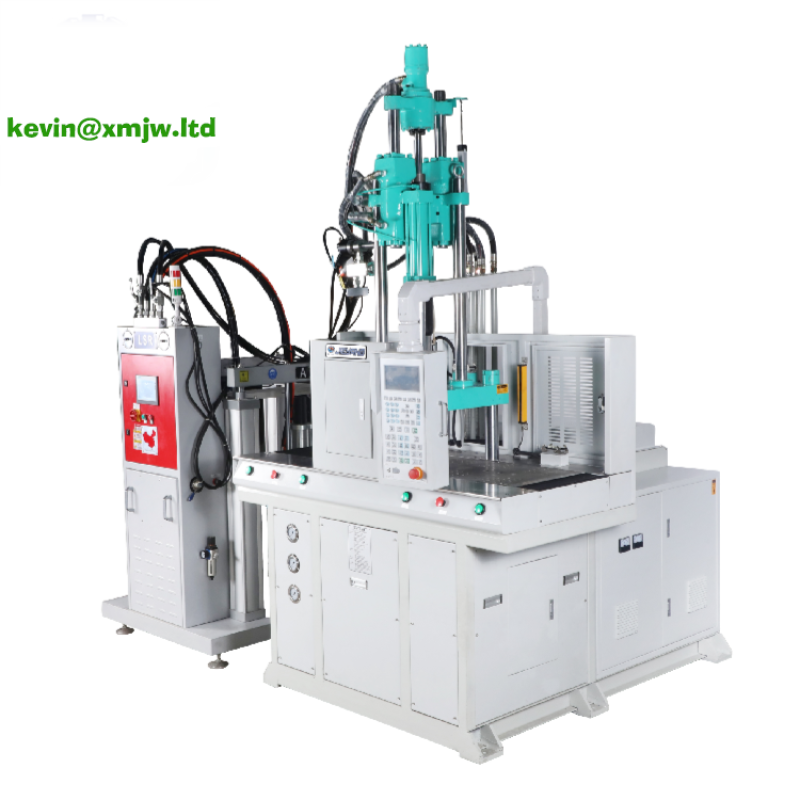

Double slide injection molding machine
Successful Projects
Application
Suitable for all kinds of plugs, cables, stationary, toys, household goods, Automobile industry, medical industry, electronics industry, plastic industry and other injection molding series to meet the needs of customers.
| (L*W) Slide size | 930*450 mm |
| Applicable Industries | Hotels;Garment Shops;Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Food & Beverage Factory;Farms;Restaurant;Home Use;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company |
| Brand Name | JIEYANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw |
| Distance between Tie Bars | 470x280 mm |
| Ejector Force(kN) | 26.5 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 100 mm |
| Heater Power | 5.3 kW |
| Injection Rate (g/s) | 120 g/s |
| Injection speed | 118mm/s |
| Injection Stroke | 140 mm |
| Injection Weight (g) | 170.8 g |
| Key Selling Points | High Safety Level |
| L*W Max. Mould Size | 425*425mm |
| Machine Dimension(L*W*H) | 1.86*1.7*2.6m |
| Machine Type | Hydraulic |
| Machinery Test Report | Provided |
| Max. Injection Pressure | 118.6Mpa |
| Mold Height(mm) | 180 - 240 mm |
| Oil Tank Capacity | 200 L |
| Open Stroke(mm) | 200 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid |
| Power (kW) | 7.5 kW |
| Product name | Plastic Injection Moulding Machine |
| Screw diameter (mm) | 36 mm |
| Screw Speed (rpm) | 0 - 200 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| System Pressure | 13.7 Mpa |
| Theoretical Shot Volume(cm³) | 142.4 cm³ |
| Type | Tube Shoulder Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 2100 kg |
