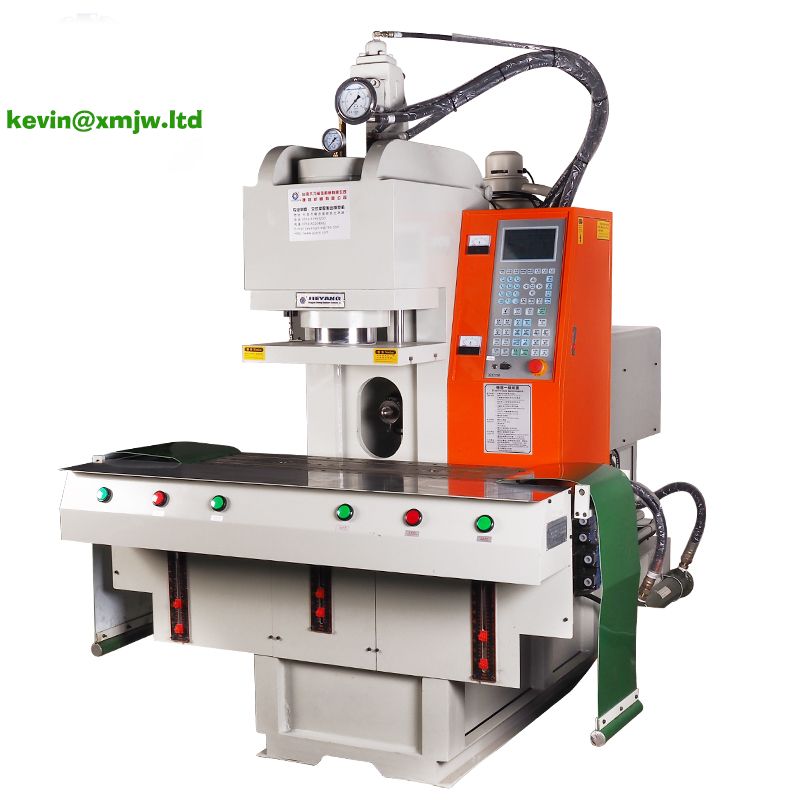

Vertical French Plug Wire Making Machine - Auto Parts C Type Injection
- Heater Power
- 4.35 KW
- Power (kW)
- 7.5 kW
- Oil Tank Capacity
- 160 L
- Injection speed
- 88.3 mm/s
- Screw Speed (rpm)
- 0 - 180 rpm
- Injection Weight (g)
- 285 g
Reply within 24 hours · 12-month warranty
| MODEL | MODEL | JY-550C | JY-550SC | ||||
| UNIT | JY-550C | JY-550C-DM | JY-550C-R2 | ||||
| INJECTION UNIT | Screw Diameter | mm | Φ38 | Φ42 | Φ45 | ||
| Theoretical Injection Volume | cm3 | 215.4 | 263 | 302 | |||
| Injection Weight(PS) | g(oz) | 203.5(7.17) | 248.6(8.77) | 285(10.06） | |||
| Max. Injection Pressure | Mpa(kgf/cm2) | 142.5(1454） | 116.7(1190） | 101.6(1037） | |||
| Injection Rate | cm3/s | 100 | 122.2 | 140.3 | |||
| Injection Speed | mm/s | 83 | |||||
| Injection Stroke | mm | 190 | |||||
| Screw Speed Rotation | r.p.m | 0-180 | |||||
| NO. of Temperature control | 3+1 | ||||||
| Nozzle Stroke | mm | 190 | |||||
| Nozzle Comtact Force | KN(tf) | 14.7(1.5) | |||||
| CLAMPING UNIT | Clamping Force | KN(tf) | 539(55) | ||||
| Clamping Stroke | mm | 200 | |||||
| Min. Mold Thickness | mm | 175 | |||||
| Max. Opening | mm | 375 | |||||
| (L*W)Max. Mould Size | mm | 500*250 | |||||
| (L*W)Max.Platen Size | mm | 635*275 | |||||
| Radio Tsuicenterhigh | 135-185 | ||||||
| From the center to stater radio TsuiMin | 80 | ||||||
| Ejector Distance | mm | 100 | |||||
| Ejector Force | KN(tf) | 14.7(1.5) | |||||
| OTHERS | System Pressure | Mpa(kgf/cm2) | 13.7(140) | ||||
| Oil Tank Capacity | L | 160 | |||||
| Electric Power | KW(HP) | 7.5(10) | |||||
| Heater Power | KW | 4.35 | |||||
| Machine Dimensions | m | 3.1*1.1*2.25 | 3.1*2*2.25 | 3*1.7*2.1 | |||
| Machine Weight | tf | 2.8 | 3.3 | 4.2 | |||
| (L*W) Platen size | 1200*280 mm |
|---|---|
| Applicable Industries | Hotels;Garment Shops;Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Food & Beverage Factory;Farms;Restaurant;Home Use;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company |
| Brand Name | JIEYANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw |
| Ejector Force(kN) | 14.7 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 100 mm |
| Heater Power | 4.35 KW |
| Injection Rate (g/s) | 122.2 g/s |
| Injection speed | 88.3 mm/s |
| Injection Stroke | 190 mm |
| Injection Weight (g) | 285 g |
| Key Selling Points | High Safety Level |
| Machine Dimension(L*W*H) | 3.1*2*2.25 m |
| Machine Type | Hydraulic |
| Machinery Test Report | Provided |
| Max. Injection Pressure | 116.7 Mpa |
| Mold Height(mm) | 0 - 175 mm |
| NO. of Temperature control | 3+1 |
| Oil Tank Capacity | 160 L |
| Open Stroke(mm) | 200 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid |
| Power (kW) | 7.5 kW |
| Product name | Double Sliding C Type Plastic Injection Moulding Machine |
| Screw diameter (mm) | 42 mm |
| Screw Speed (rpm) | 0 - 180 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| System Pressure | 13.7 Mpa |
| Theoretical Shot Volume(cm³) | 263 cm³ |
| Type | Tube Shoulder Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 3300 kg |
