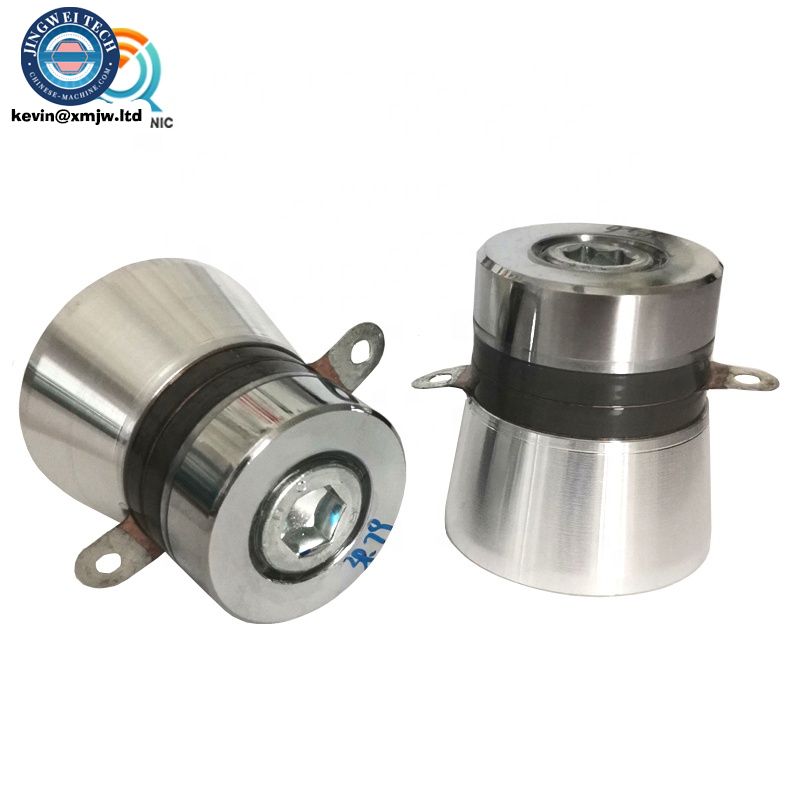

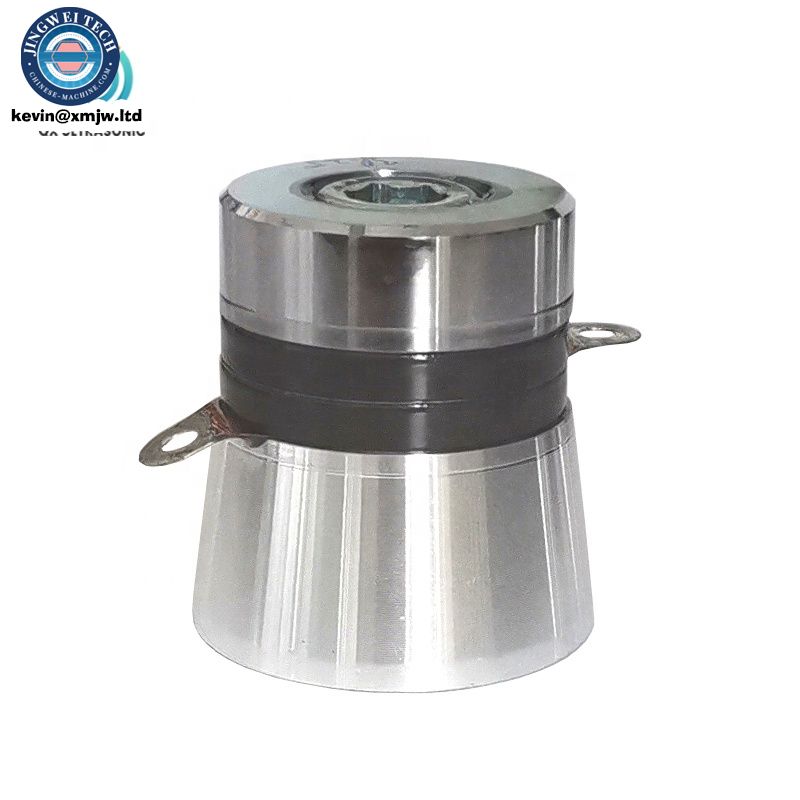

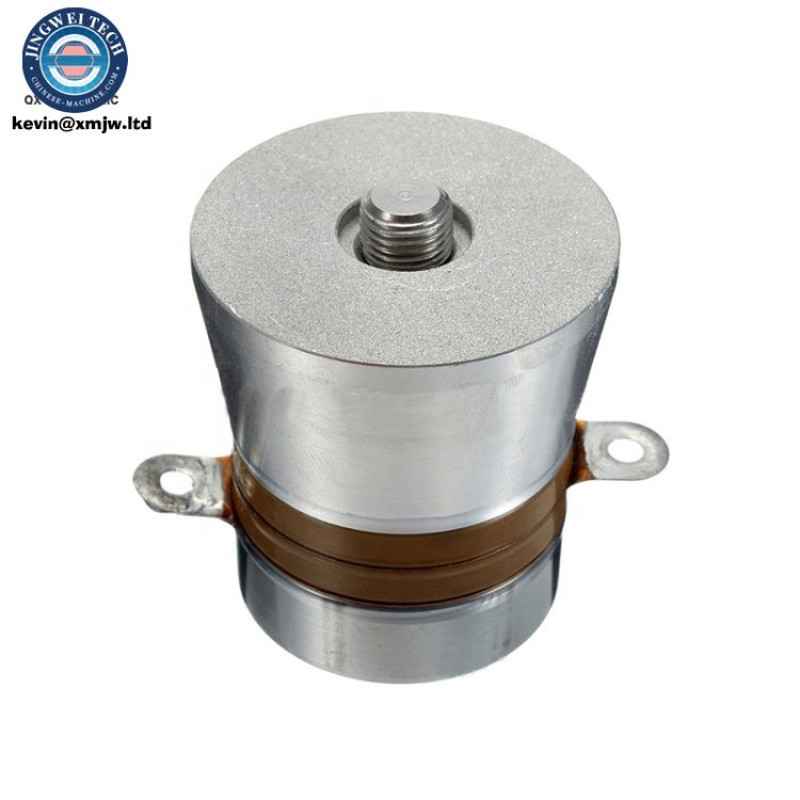

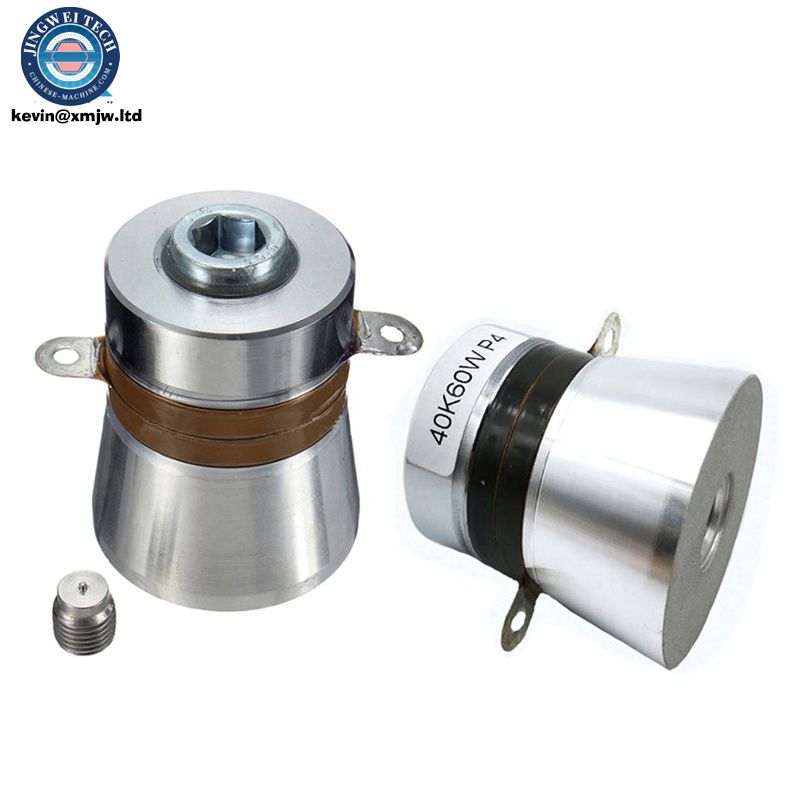

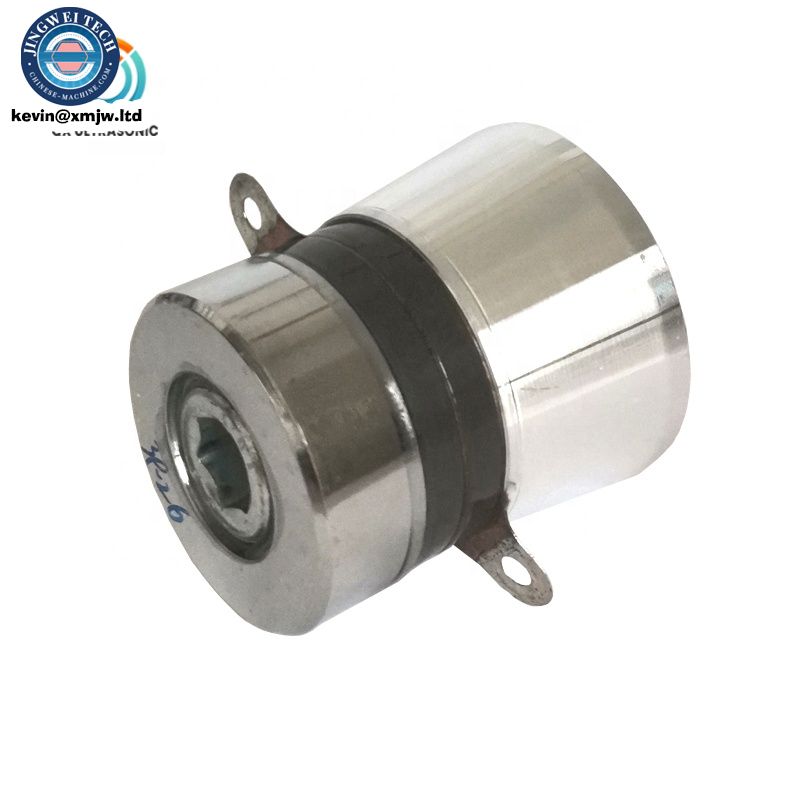

Piezoelectric Transducer 40khz 60w - Ultrasonic Cleaning Vibrator for Cleaner
- Products Description Ultrasonic transducer is to convert electrical energy into sound energy which also is called ultrasonic.
- The characteristics of transducers depend on material selection and manufacturing process.
- The performance and service life of transducers of the same size and shape are very different.
- Main Features: 1: High mechanical Q value.
- High quality piezoelectric ceramic material with good heat resistence.
- Large amplitude,high vibration speed.
- Static Capacity
- 3800pf±10%
- Weight (KG)
- 0.3
- Piezoceramics size
- 38*15*5(pzt4)
- Application
- Cleaning Machine
- Warranty
- 3 months
- Place of Origin
- Beijing;China
Reply within 24 hours · 12-month warranty
Products Description
Ultrasonic transducer is to convert electrical energy into sound energy which also is called ultrasonic.it is composed of outer shell,matching tier,ring piezoelectric ceramic,backing material,outgoing cable and cymbal. The characteristics of transducers depend on material selection and manufacturing process. The performance and service life of transducers of the same size and shape are very different.
Main Features:
1: High mechanical Q value.
2: High transfer efficiency.
3: High quality piezoelectric ceramic material with good heat resistence.
4: Large range of working temperature.
5: Lower resonant Impedance.
6: Large amplitude,high vibration speed.
7: Clean and tidy appearance,without corrosion,deformation and scratch.
8: Frequency and static capacitance keep more consistency.
9: High output power.
10: ight with bolt ,be easy to install,reliable .
2: High transfer efficiency.
3: High quality piezoelectric ceramic material with good heat resistence.
4: Large range of working temperature.
5: Lower resonant Impedance.
6: Large amplitude,high vibration speed.
7: Clean and tidy appearance,without corrosion,deformation and scratch.
8: Frequency and static capacitance keep more consistency.
9: High output power.
10: ight with bolt ,be easy to install,reliable .
Application:
•Strong cavitations,powerful and effective, quick detergence.
•Automotive and aerospace industry,mechanical industry,plating industry etc.
•Automotive and aerospace industry,mechanical industry,plating industry etc.
| Applicable Industries | Hotels;Garment Shops;Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Food & Beverage Factory;Farms;Restaurant;Home Use;Retail;Food Shop;Printing Shops;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company |
|---|---|
| Application | Cleaning Machine |
| Brand Name | QXULTRASONIC |
| Condition | New |
| Delivery time | Within 2 Days |
| Frequency | 28KHz +/- 1KHz |
| Length | 67mm |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Material | aluminum |
| Piezoceramics size | 38*15*5(pzt4) |
| Place of Origin | Beijing;China |
| Product name | Langevin type ultrasonic transducer |
| Radiating Diameter | 59mm |
| Showroom Location | United States;Viet Nam;Russia |
| Static Capacity | 3800pf±10% |
| Type | Ultrasonic Transducer |
| Video outgoing-inspection | Provided |
| Warranty | 3 months |
| Weight (KG) | 0.3 |
