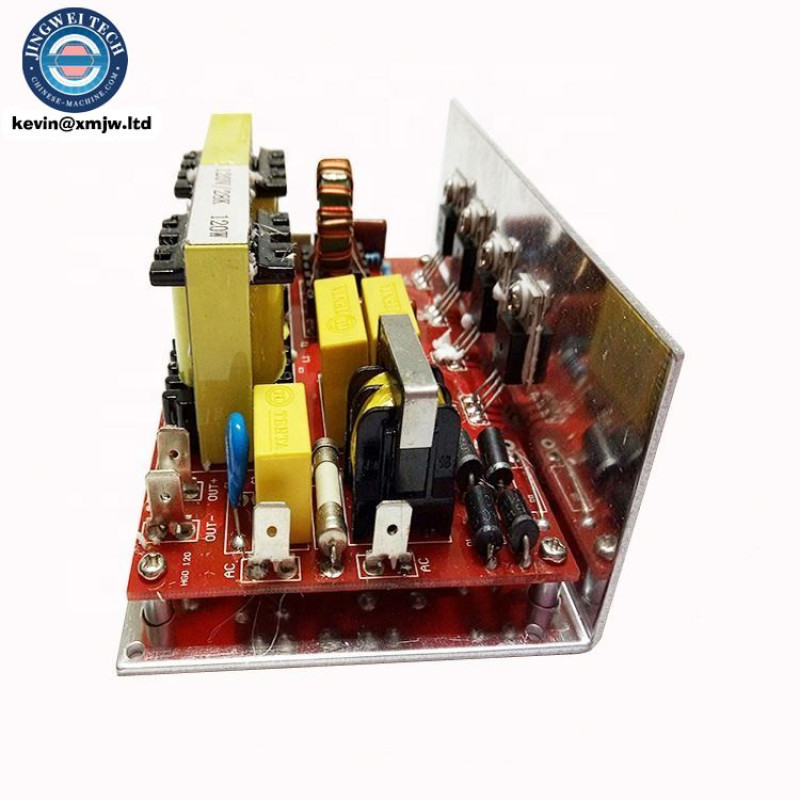

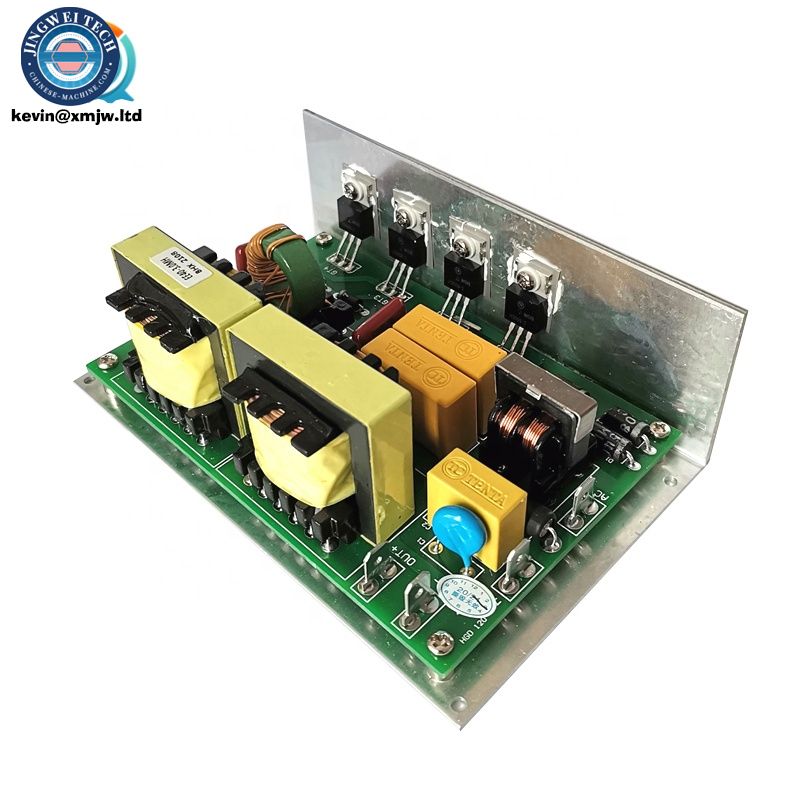

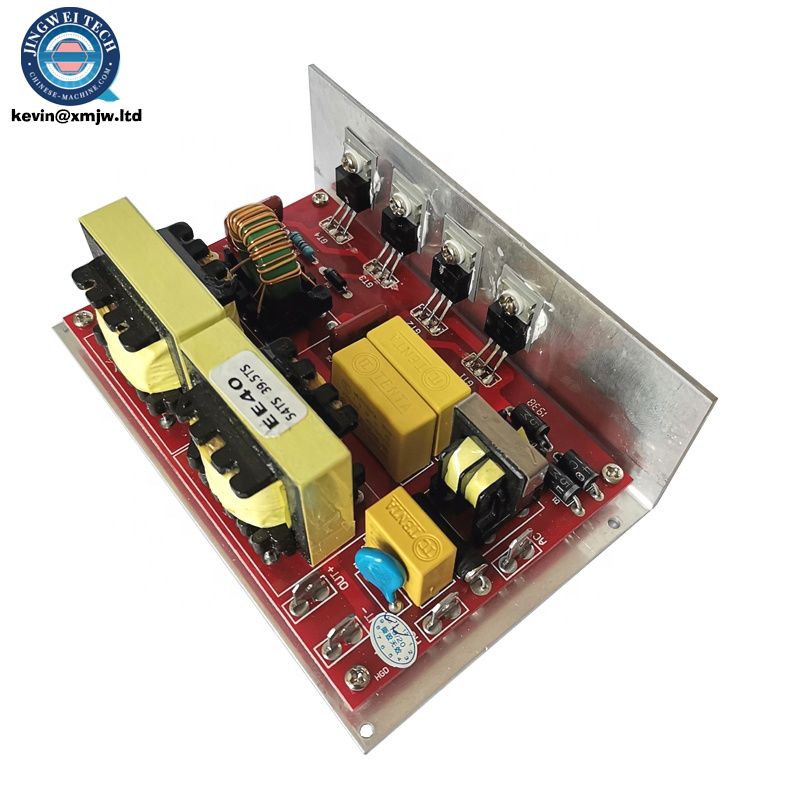

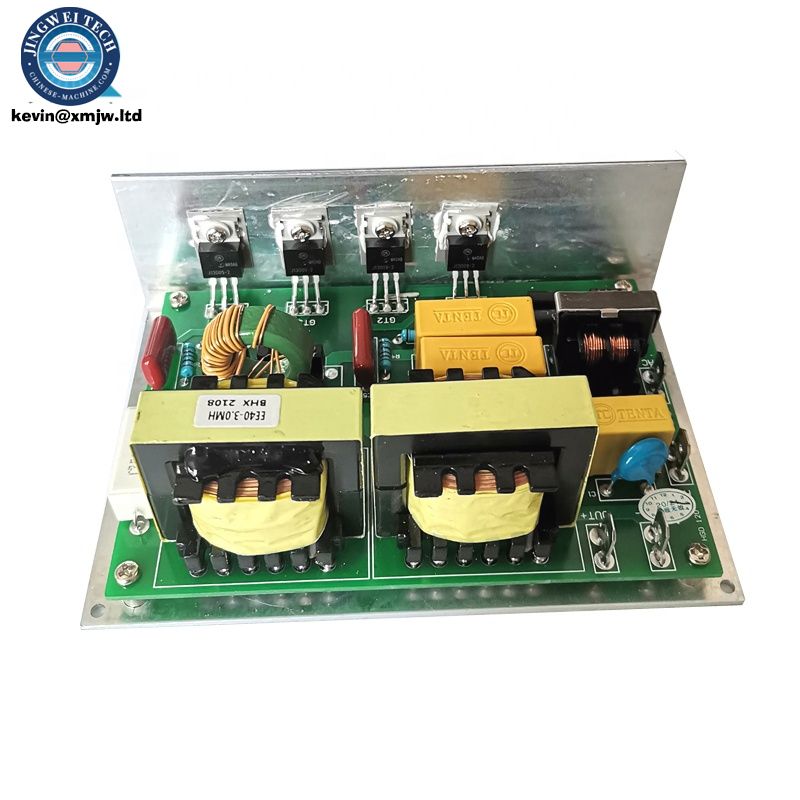

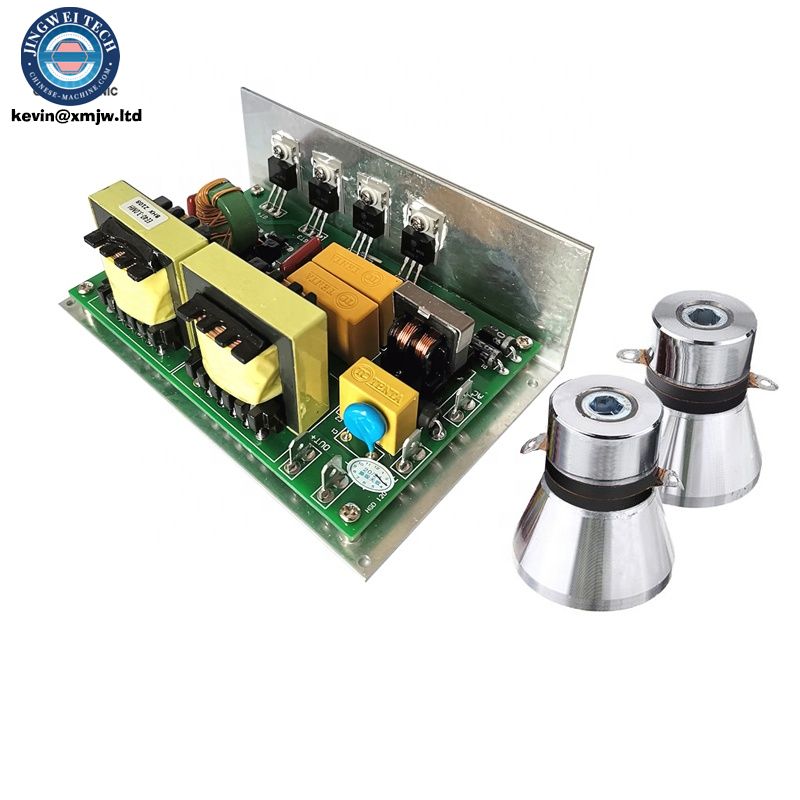

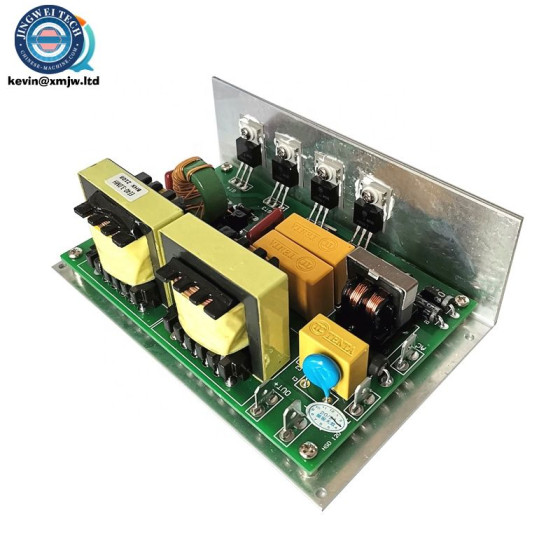

High Power Ultrasonic Sound Generator Kit - Drive Ultrasonic Transducer Circuit
- Ultrasonic Sound Generator Kit Ultrasonic Transducer Circuit
- Applications of Factory Price Industrial Vibration Generator
- Driving ultrasonic transducers
- Driving submersible transducers
- Driving ultrasonic cleaning transducers
- Specification of Factory Price Industrial Vibration Generator
- Voltage
- 110V or 220V
- Weight (KG)
- 0.6
- Warranty
- 3 months
- Place of Origin
- Beijing;China
- Brand Name
- QXULTRASONIC
- Condition
- New
Reply within 24 hours · 12-month warranty
Ultrasonic Sound Generator Kit Ultrasonic Transducer Circuit
Applications of Factory Price Industrial Vibration Generator
- Driving ultrasonic transducers
- Driving submersible transducers
- Driving ultrasonic cleaning transducers
Specification of Factory Price Industrial Vibration Generator
| Type | QCG3F |
| Outer Size(H*W*L) | 14*98*42mm |
| Working Voltage | 220V /110V |
| Working Current | Over-current protect |
| Relative humidity | 40%–90% |
| Working Temperature | 0-40℃ |
| Overheating protect | 65℃ |
| Power | Less than 120W |
| Time Control Range | No |
| Frequency Operate | 28khz,40khz automatic |
Types of Factory Price Industrial Vibration Generator
| Type | Frequency | Power |
| QXCGP150 | 25khz. 28khz. 40khz | 50w |
| QXCGP160 | 25khz. 28khz. 40khz | 60w |
| QXCGP1100 | 25khz. 28khz. 40khz | 100w |
| QXCGP1120 | 25khz.28khz. 40khz | 120w |
Attentions of Factory Price Industrial Vibration Generator
| ♥ Can't power on no-load condition. |
| ♥ Can 't power on without cleaning fluid. |
♥ Ultrasonic transducer has two lugs. Positive one lay in the middle of two ceramics. Native one near lower metal column. Please don 't wire wrong . |
♥ The ceramic transducer should be pasted at the bottom of cleaning machine. Can use specialized glue or use AB-glue to stick. But the effect is a bit poor, or use Epoxy-resin-glue with proportion 10:4. |
♥ The circuit board 's working voltage is 600V. The output voltage to the transducer is 1100V. Please ensure the cleaning machine is grounding safely. Please make sure leakage protect switch is assembled on the power supply. |

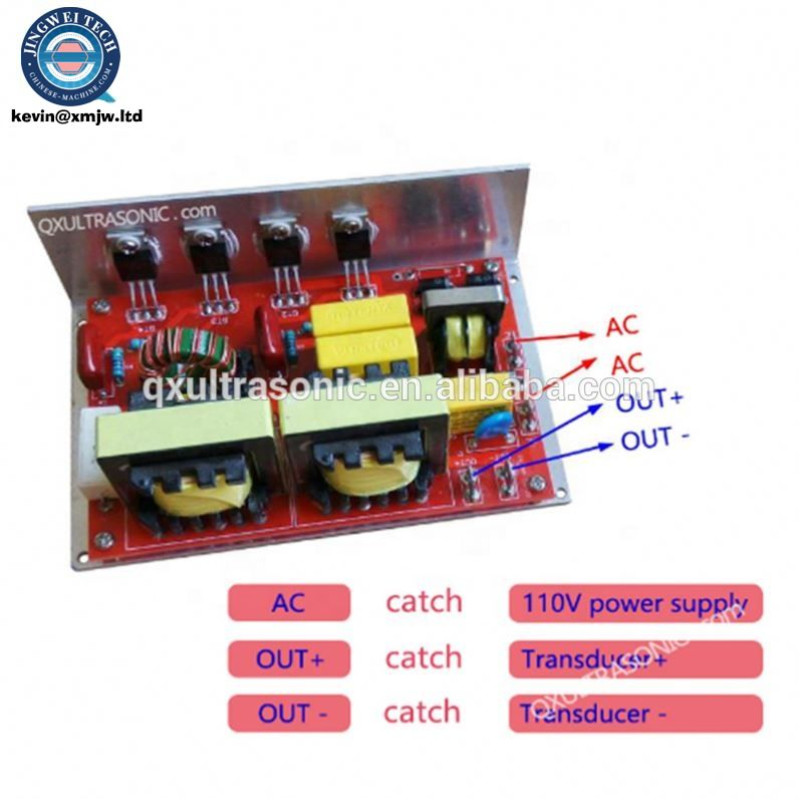

♥AC port stands for 110V fire wire and zero wire. Out+ connect to positive pole of transducer, out- connect to negative pole of transducer. Please make sure the wiring way between out port and transducer is corrective. If there has any question, please feel free to contact us any time. |
Ultrasonic Generator Showing Factory Price Industrial Vibration Generator |
| Attention: We supply the different Voltage as needed. |
Related Products Showing Factory Price Industrial Vibration Generator |
| Low-frequency Type (17-45khz) | ||
| 300W | 600W | 900W |
| 1200W | 1500W | 1800W |
| 2400W | ||
| High-frequency Type (50-200khz) | ||
| 300W | 600W | 900w |
| 1200W | ||
| Multi-frequency Type | ||
| Double-frequency | Three-frequency | |
| PCB Generator Type | ||
| High-power type | Mid-power Type | Low-power Type |
| Digital Type |
| Applicable Industries | Hotels;Garment Shops;Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Food & Beverage Factory;Farms;Restaurant;Home Use;Retail;Food Shop;Printing Shops;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company |
|---|---|
| Brand Name | QXULTRASONIC |
| Condition | New |
| Frequency | 25KHZ/28KHZ/40KHZ |
| Frequency Sweep | yes |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Over-current protect | yes |
| Over-tenperature Protect | yes |
| Over-voltage Protect | yes |
| Place of Origin | Beijing;China |
| Product name | Ultrasonic Drive Transducer PCB Board |
| Showroom Location | Viet Nam;India;Russia |
| Type | ULTRASONIC GENERATOR |
| Video outgoing-inspection | Provided |
| Voltage | 110V or 220V |
| Warranty | 3 months |
| Weight (KG) | 0.6 |
| Working Humidity | 35 ~ 85 % |
| Working Temperature | -10 to 40 Degree |
