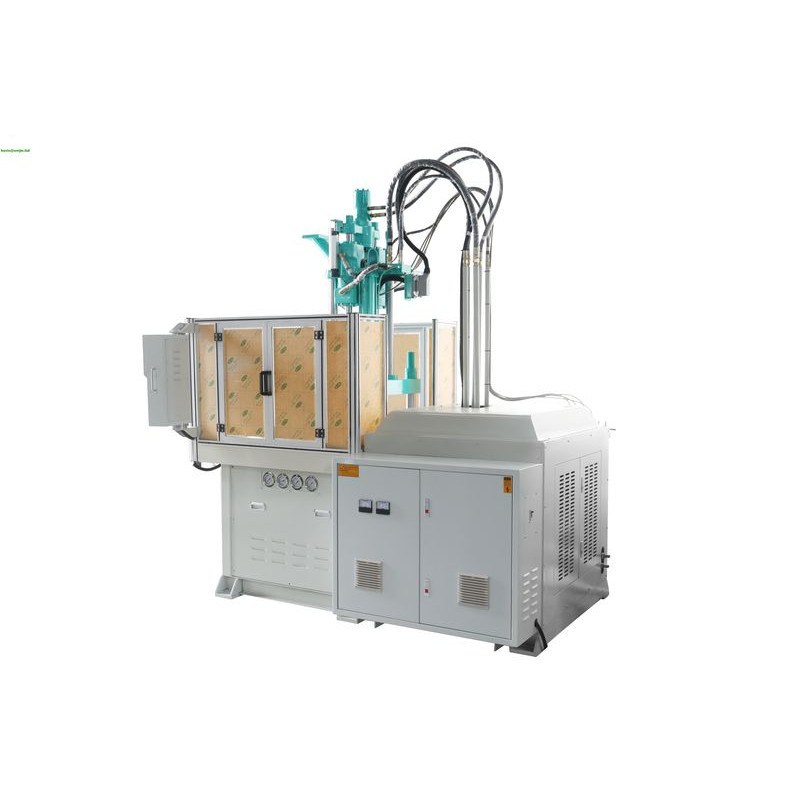

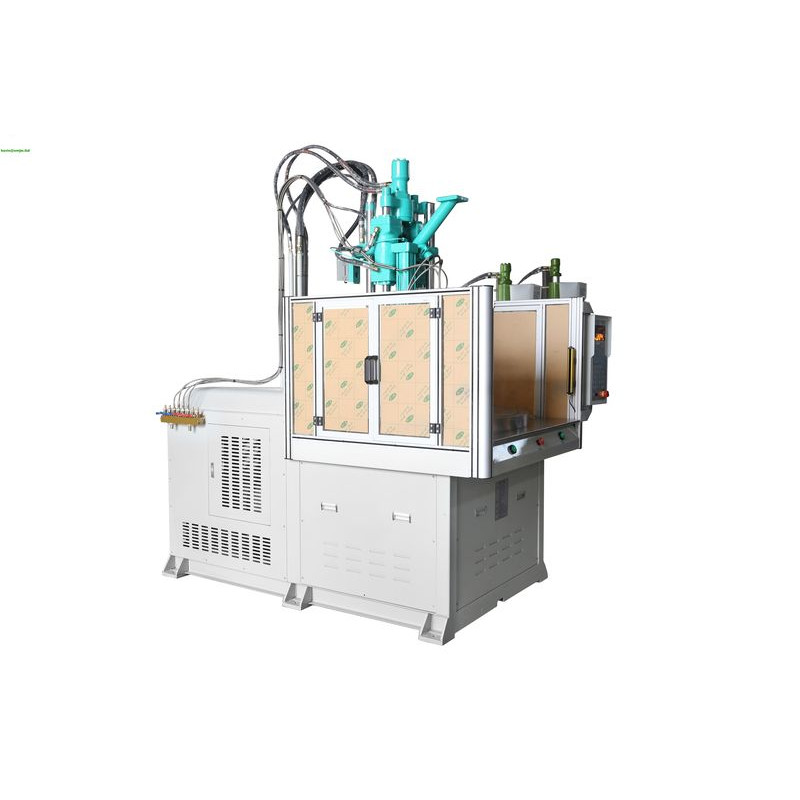

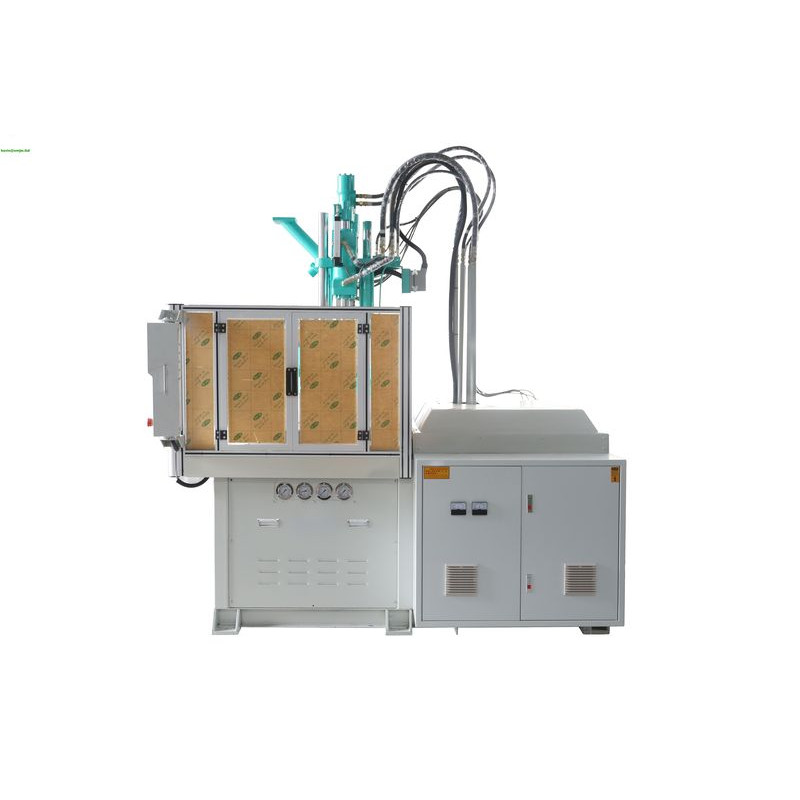

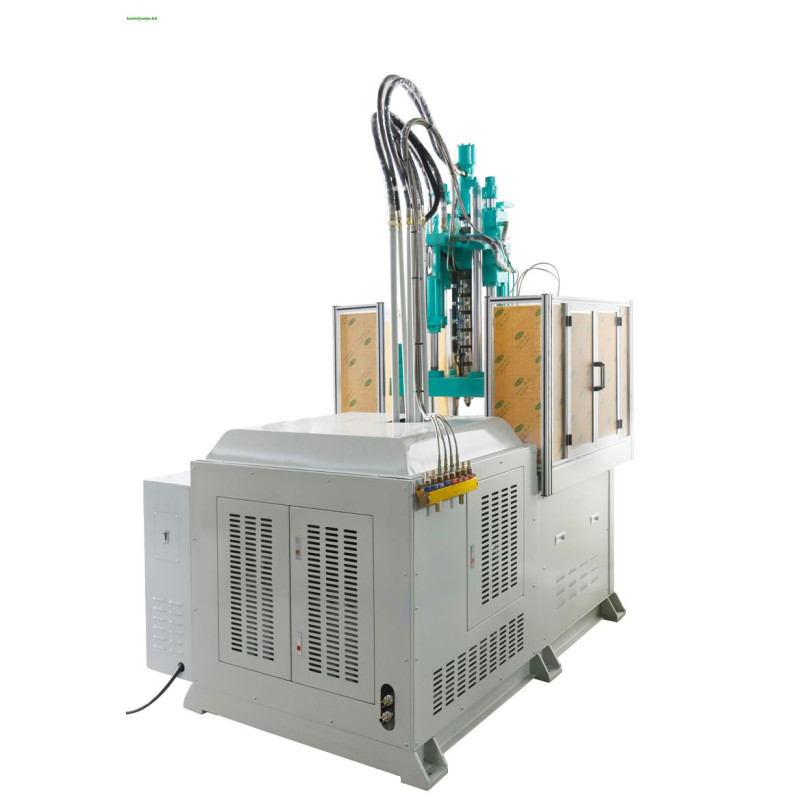

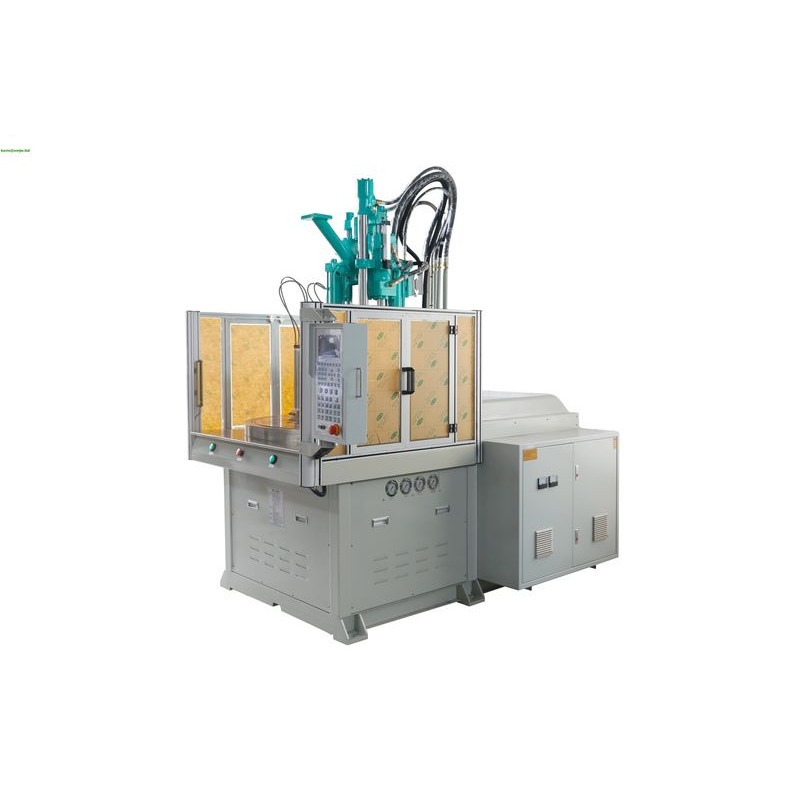

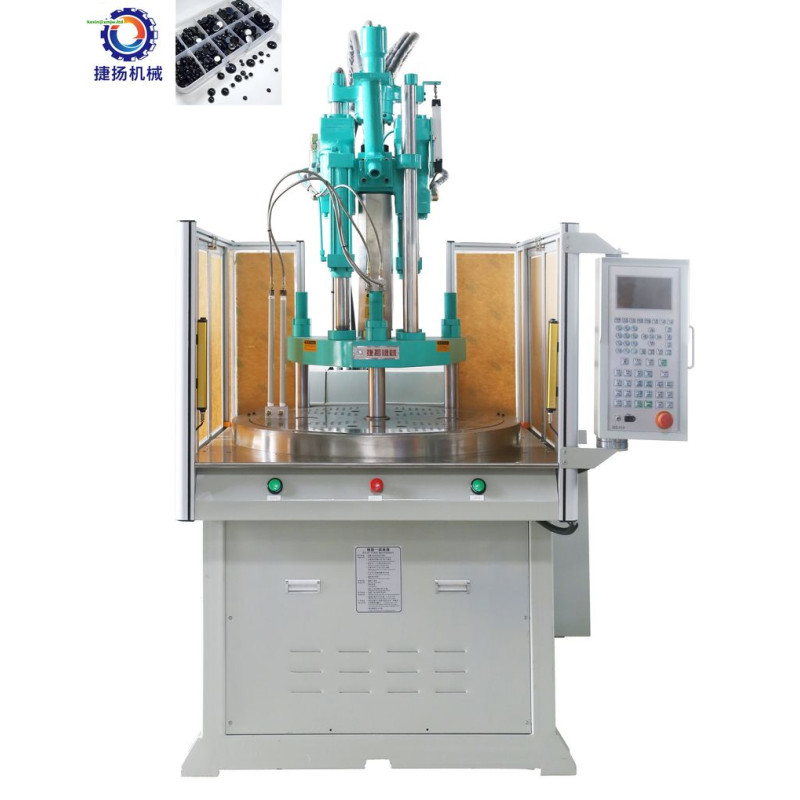

Doll Eyes Making Machine - Doll Accessories Suitcase Luggage Set Injection
- Installs the double pattern in turn slide the JY-ST series, Two stamping dies about skid in a plane, a mold takes shape, a mold does inserts.At the same time...
- Product Overview PRODUCT SPECIFICATIONS Main Feature 1.
- At the same time, the wring action makes the die can produce products with spiral shape.
- Because high working safe features,working efficiency can be advanced in a large range.
- The finished goods are propped up outside for completion.
- Power (kW)
- 18.5 kW
- Oil Tank Capacity
- 410L
- Plasticizing Capacity(g/s)
- 240
- Injection speed
- 87mm/s
- Screw Speed (rpm)
- 0 - 200 rpm
- Injection Weight (g)
- 333.8 g
Reply within 24 hours · 12-month warranty
Product Overview
PRODUCT SPECIFICATIONS
Main Feature
1.Installs the double pattern in turn slide the JY-ST series, Two stamping dies about skid in a plane, a mold takes shape, a mold does inserts.At the same time, the wring action makes the die can produce products with spiral shape. Because high working safe features,working efficiency can be advanced in a large range. The finished goods are propped up outside for completion.(Double-mode independent thimble.)2.Four-column vertical compression mold -locked,vertical injection,Chinese/English controller, screen display, dual ratio pressure, oil flow control. Optimized mechanical structure. Fluent operation and fast speed.3.Sliding, floor use nodular cast iron.The connect point use steel isolation and have lubricate hole. So great reduce the abrasion of slide plate and small transmutation to prolong the using time and increase precision.4.Ejector can match different slide plate to use and can free adjust stroke,stripping force, ejector operate speed and stripping times can preset according to demands.5.Double slide plate use double mold to slide left and right alternatively, one mold molding, one mold operating outside, high operation and increase 30%-50%work efficiency.6.Diversity oil system design(semi-closed,closed, servo or high speed injection)to meetcustomer's demands, expandable programming, connect with automatic embedded and fetchdevice, reach to fully automatic.
| MODEL | JY-1200R2 | ||||
| ITEM | UNIT | ||||
| INJECTION UNIT | Screw Barrel Diameter | mm | 40 | 45 | 50 |
| Injection Pressure | kg/cm² | 1837 | 1452 | 1176 | |
| Max. Shot Weight | gram | 213.6 | 270 | 333.8 | |
| Max. Shot Rate | cm³/sec | 88.5 | 109 | 138 | |
| Screw Barrel Route | mm | 180 | |||
| Screw Barrel Rotary Speed | rpm | 0-250 | |||
| Number of Temperature Control | 4 | ||||
| CLAMPING UNIT | Clamping Force | tons | 120 | ||
| Rotary Table Size | mm | 1180 | |||
| Distance Between Tie Bere | mm | ---- | |||
| Min. Mold Height | mm | 280/380 | |||
| Opening Stroke | mm | 280 | |||
| Max. Opening Mold Distance | mm | 560/660 | |||
| Ejetor Force | tons | 4.6 | |||
| OTHERS | Machine Weight | tons | 6.4 | ||
| Machine Dimension(LxWxH) | meter | 2.7*2.1*3.05/3.8 | |||
| System Pressure | KN | 13.7 | |||
| Oil Tank Capacity | L | 410 | |||
| Electric Power | KW | 18.5 | |||
| Heater Power | KW | 10.7 | |||
SIMILAR PRODUCTS
| Applicable Industries | Hotels;Building Material Shops;Manufacturing Plant;Home Use;Construction works;Energy & Mining |
|---|---|
| Brand Name | JIEYANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Other;Pressure vessel;Engine;Gearbox;Screw;Other |
| Ejector Force(kN) | 45 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 100 mm |
| Injection Rate (g/s) | 138 g/s |
| Injection speed | 87mm/s |
| Injection Stroke | 180mm |
| Injection Weight (g) | 333.8 g |
| Key Selling Points | High Productivity |
| Machine Type | Hydraulic |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product |
| Max Injection Pressure | 115.2Mpa |
| Max Opening | 560/660mm |
| Mold Height(mm) | 280 - 380 mm |
| Nozzle Out From Platens | ≥45mm |
| Number of Temperature Control | 3+1 |
| Oil Tank Capacity | 410L |
| Open Stroke(mm) | 280 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid |
| Plasticizing Capacity(g/s) | 240 |
| Power (kW) | 18.5 kW |
| Product name | JIEYANG |
| Rotary Table Size | 1180mm |
| Screw diameter (mm) | 50 mm |
| Screw Speed (rpm) | 0 - 200 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| System Pressure | 13.7Mpa |
| Theoretical Shot Volume(cm³) | 353 cm³ |
| Type | Tube Shoulder Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 6400 kg |
