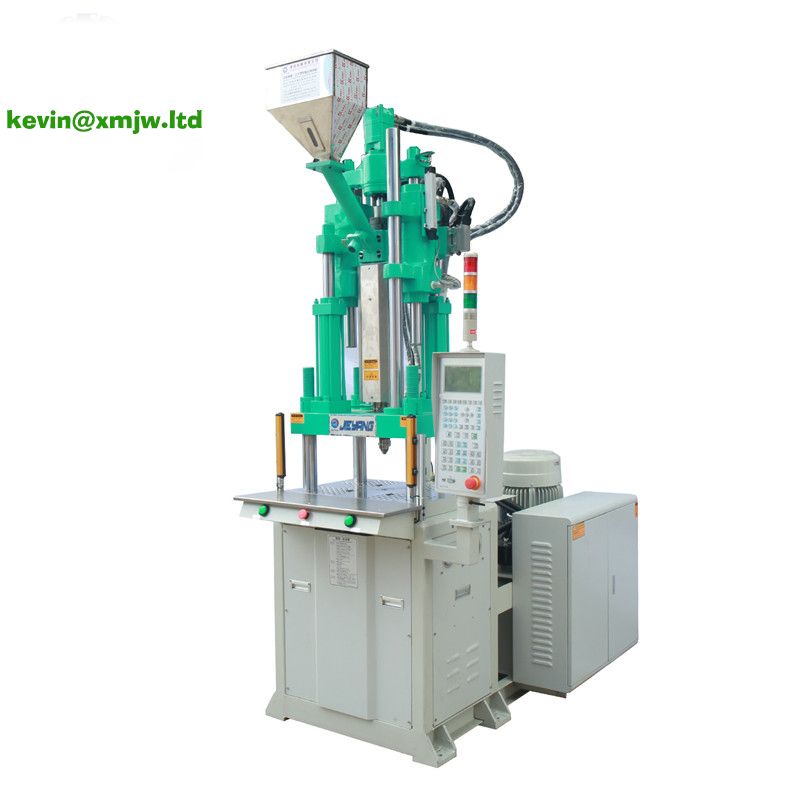

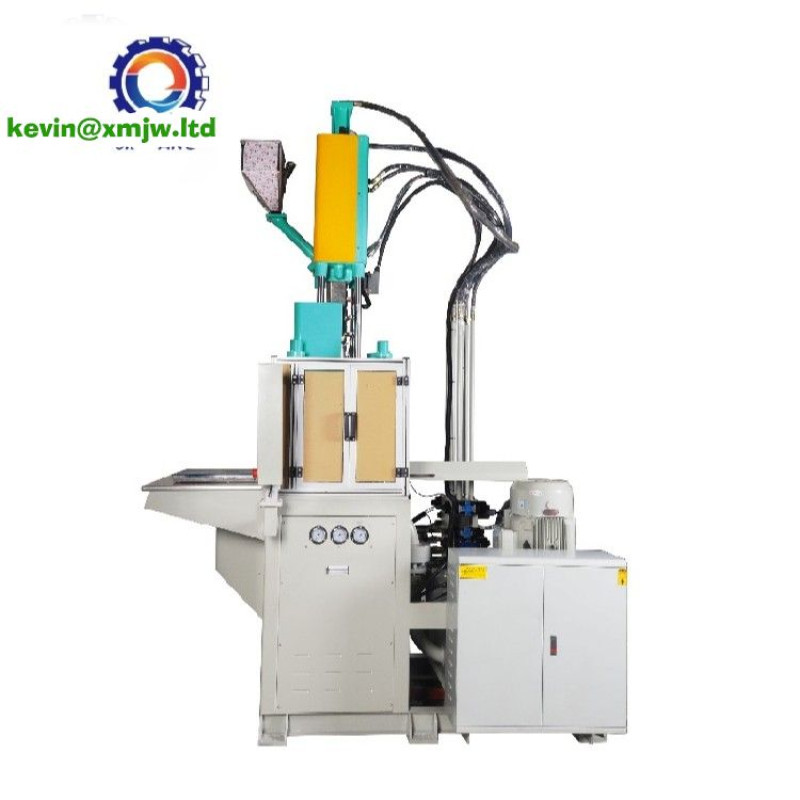

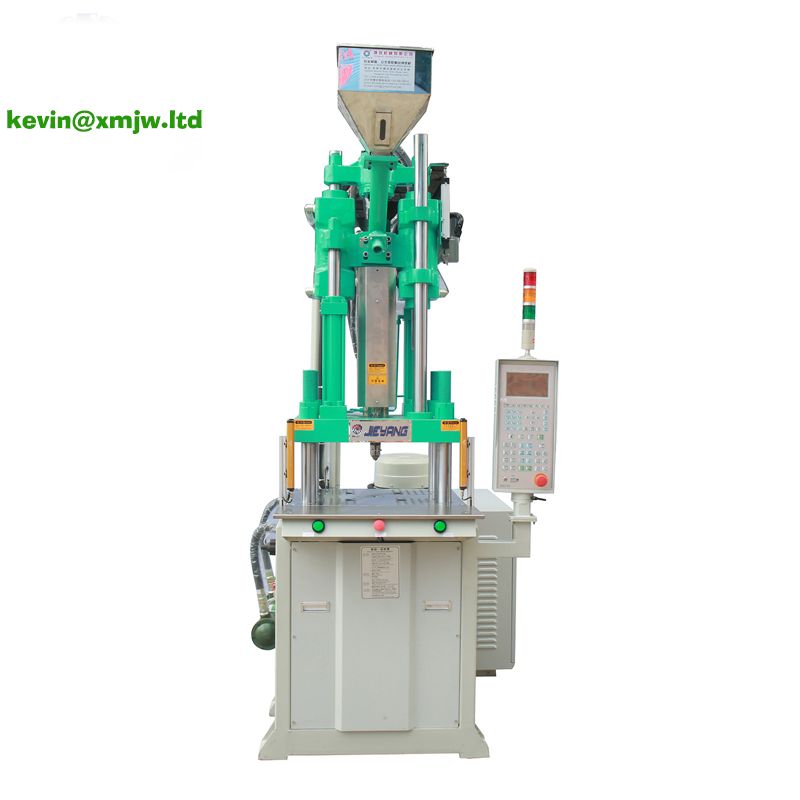

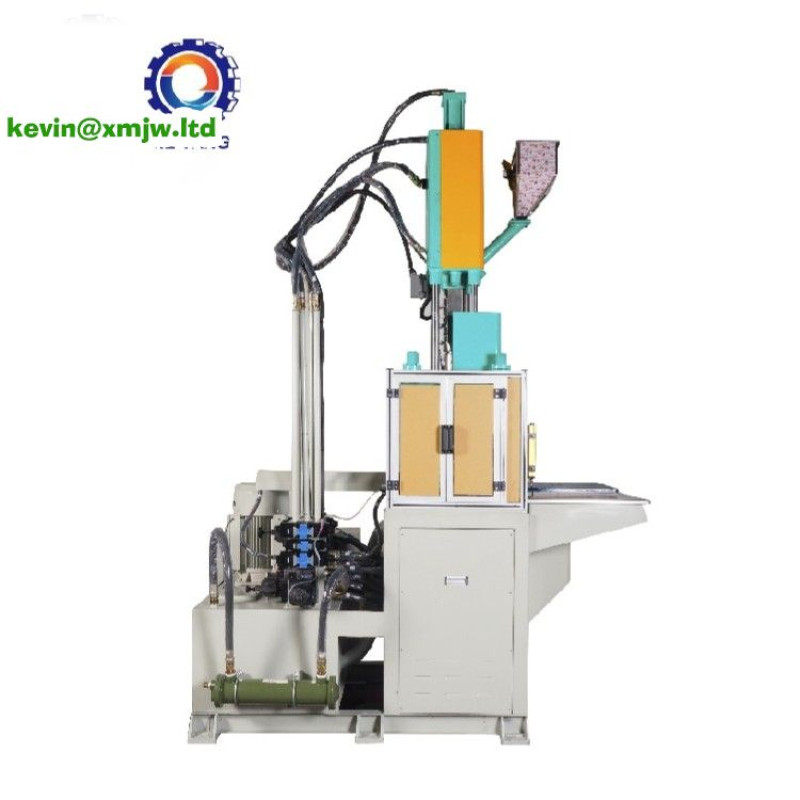

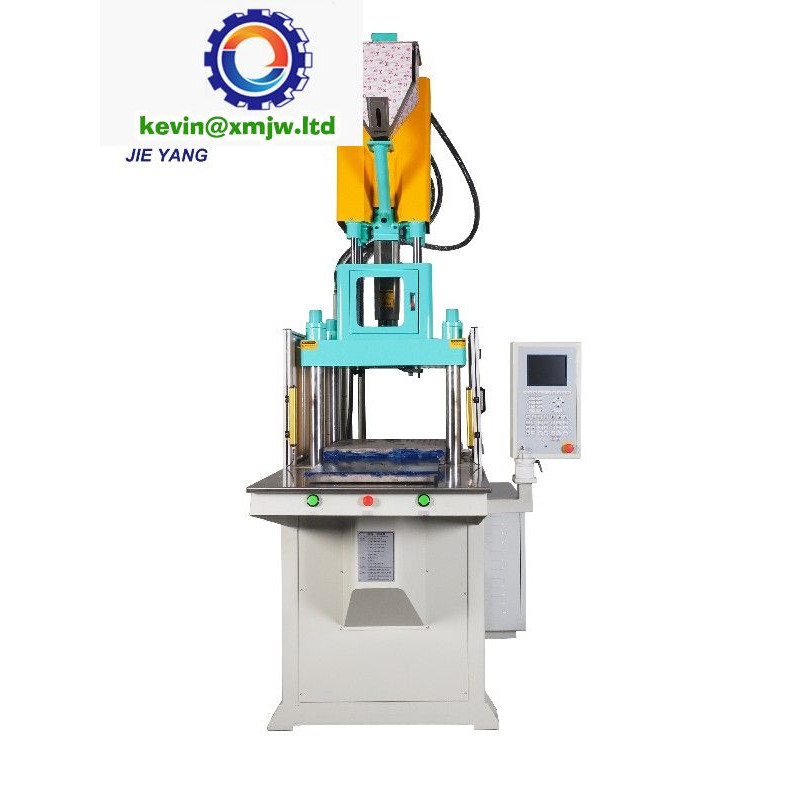

PVC Double Side Key Chain Making Machine Injection Molding Machine

Brand Model CN230813150333 Availability 500
  • Vertical four-column clamping, vertical injection, easy to pick and place inserts and finished products
  • Single slide design, increase production efficiency, easy operation and high safety
  • Four-column single-slide machine (1 upper die, 1 lower die)
Power (kW)
6 kW
Screw Speed (rpm)
0 - 190 rpm
Injection Weight (g)
83.4 g
Machine weight
1.5Tons
Weight (KG)
1550 kg
Machine Dimensions(LxWxH)
2.33*1.4*2.97m

Reply within 24 hours · 12-month warranty

Factory sale small injection molding machine sign board LED lighting injection machine manufacture

Factory sale small injection molding machine sign board LED lighting injection machine manufacture


Specification

ModelUnit JY-350ST-DJY-450ST-D
Screw Barrel Diametermm2628303032 34
Injection Pressurekg/cm223192000 1742174215311356
Max. Shot Weightgram66.372.6 83.498.9112.5 127
Max. Shot Weightcm3/sec5360.5 725360.3 72
Screw Barrel Routemm140200
Screw Barrel Rotary Speedrpm1900-200



Clamping Forcetons3545
Slide Platen Sizemm350*350390*420
Distance Between Tie Beremm525*325635*425
Min. Mold Heightmm80/180120/220
Opening Strokemm200200
Max. Opening Mold Distancemm280/380350/420
Ejetor Forcetons1.51.5
Ejetor Stokemm8585
Max. Hydraulic Pressurekg/cm2140140
Pump OutputL/min4756
Oil Resservoir CapacityLiter80120
Cooling Water ConsumptionL/hr800-10001000-1200
Pump Motor Powerkw/hp4/5.5HP5.5/7.5HP
Barrel Heating Powerkw2.43.4
Total Powerkw69
Machine Weighttons1.551.8
Machine Dimension(LxWxH)meter1.04*1.6*2.971.72*1.1*2.26
Shipping Weighttons5.46.7
Shipping Measurements(LxWxH)meter2.2*1.9*2.72.5*2.1*2.9

The features of JY-STD series injection molding machine are as follows:
1.Vertical four-column clamping, vertical injection, easy to pick and place inserts and finished products
2.Single slide design, increase production efficiency, easy operation and high safety
3.Four-column single-slide machine (1 upper die, 1 lower die)

PVC Double Side Key Chain Making Machine Injection Molding MachinePVC Double Side Key Chain Making Machine Injection Molding MachinePVC Double Side Key Chain Making Machine Injection Molding MachinePVC Double Side Key Chain Making Machine Injection Molding MachinePVC Double Side Key Chain Making Machine Injection Molding MachinePVC Double Side Key Chain Making Machine Injection Molding Machine


 PVC Double Side Key Chain Making Machine Injection Molding Machine

After-sales Service Provided Engineers available to service machinery overseas
Applicable Industries Building Material Shops;Silicone products;medical industry;plastic industry
Brand Name JIE YANG
Condition New
Core Components Motor
Distance Between Tie Bere 370*205mm
Ejector Force 1.5Tons
Ejector Force(kN) 14.7 kN
Ejector Number 1
Ejector Stoke 85mm
Ejector Stroke(mm) 85 mm
Injection Rate (g/s) 72 g/s
Injection Weight (g) 83.4 g
Key Selling Points High Productivity
Machine Dimensions(LxWxH) 2.33*1.4*2.97m
Machine Type plastic injection machine;Vertical silicone injection molding machine
Machine weight 1.5Tons
Machinery Test Report Provided
Max.Open daylight420/27 280/380mm
Min.Mold Height 80/180mm
Mold Height(mm) 80 - 180 mm
Open Stroke(mm) 200 mm
Place of Origin Guangdong;China
Plastic Processed PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid;Bakelite
Power (kW) 6 kW
Screw diameter 30mm
Screw diameter (mm) 30 mm
Screw Speed (rpm) 0 - 190 rpm
Showroom Location Viet Nam
Slide Plate Size 350*350mm
Style VERTICAL
Theoretical Shot Volume(cm³) 88.3 cm³
Type Tube Head Injection
Video outgoing-inspection Provided
Warranty 1 Year
Warranty of core components 1 Year
Weight (KG) 1550 kg
