PVC/ABS Over-molding Machine - Plastic Coating for Aluminum Tube/Metal
- Chinese/English LCD display,can memorize 999 groups of mold data.
- Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts.It greatly improves work effiency and saves labor.
- It is safe because the product and delivery and inserting is not performed in molding station but the same work position.Moreover,automatic device can be use...
- Adopting double（pressure,flux）propotional contro,the machine runs with low noiseand at a high speed,It is equipped with low-voltage protective fucntion.
- Power (kW)
- 11 kW
- Screw Speed (rpm)
- 0 - 200 rpm
- Injection Weight (g)
- 201 g
- Machine weight
- 3.5Tons
- Weight (KG)
- 3500 kg
- Machine Dimension(L*W*H)
- 2.34*1.64*2.56m
Reply within 24 hours · 12-month warranty

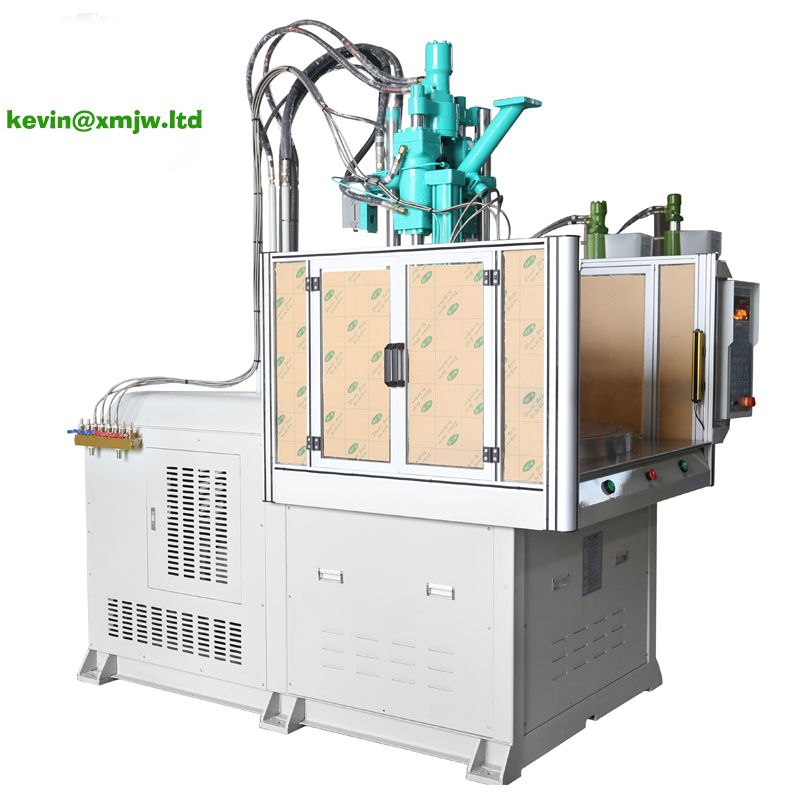

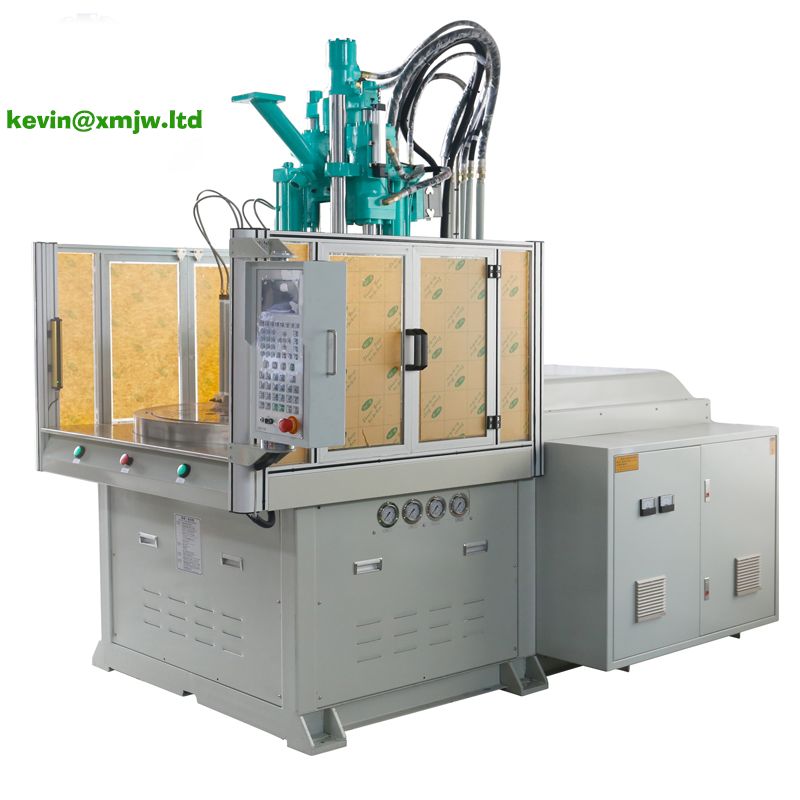

PVC ABS Over-molding Plastic Into Aluminum Tubing Vertical Molding Injection Machine For Coating Aluminum Tube and Metal
Main Features
1)Chinese/English LCD display,can memorize 999 groups of mold data.
3)It is safe because the product and delivery and inserting is not performed in molding station but the same work position.Moreover,automatic device can be used onto the machine.
4)Adopting double（pressure,flux）propotional contro,the machine runs with low noiseand at a high speed,It is equipped with low-voltage protective fucntion.
| Model | JY-250R2 | JY-350R2 | JY-550R2 | JY-850R2 |
| Screw Diameter | 26-28-30mm | 28-32-35mm | 32-36-40mm | 42-45-48mm |
| Max.Shot Weight(PS) | 56-64-74g | 84-101-123g | 121-153-201g | 176-201-227g |
| Clamping Force | 35t | 45t | 55t | 85t |
| Min.Mold Height | 150/100mm | 200/70mm | 180/280mm | 430/230mm |
| Clamping Stroke | 200mm | 200mm | 200mm | 250mm |
| Ejector Force | 1.3t | 1.5t | 1.5t | 2.2t |
| Rotary Table Diameter | 780mm | 880mm | 980mm | 1080mm |
| Oil Resservoir Capacity | 100L | 130L | 150L | 180L |
| Disk station | 2 | 2 | 2 | 2/3 |
| Pump Motor Power | 3.75kw/5hp | 5.5kw/7.5hp | 11kw/15hp | 11kw/15hp |
| Machine Weight | 1.7t | 2.4t | 3.5t | 5.5t |
| Machine Dimensions(L,W,H) | 1.2*1.5*2.25m | 1.45*1.7*2.5m | 2.34*1.64*2.56m | 2.5*1.6*2.5m |
| Shipping Weight | 1.71t | 2.42t | 3.55t | 5.55t |
| Standard Configuration | |||
| Controller | Porcheson/Techmation | ||
| Linear Transducer | Taiwan Deyi | ||
| Air Breaker | TENGEN | ||
| AC Contactor | Taiwan Shih Lin | ||
| Thermal Overload | Taiwan Shih Lin | ||
| Limit Switch | Taiwan FOTEK | ||
| Oil Seal | Japan NOK | ||
| Servo Motor | Inovance | ||
| Pump | Taiwan Yuken or Taiwai Yongling | ||
| Dirrectional valve | Taiwan Yuatsuseiki | ||
| Propotional valve | Taiwan Yuken | ||
| Oil pressure valve | Taiwan Yuatsuseiki | ||
| Magnetic Valve | Taiwan Taihui,24volt | ||
Inserts can be ergonomically encapsulated with our vertical Plastic injection molding machines. You can choose from the most extensive range of machines available in the industry, from the comprehensive spectrum of automated machine concepts to customer-specific special solutions. Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
JY-ST Series
Four Columns Injection Machine
JY-S2 Series
Two Columns Injection Machine
YJ-STD Series
Single Sliding Board Injection Machine
JY-ST-DM Series
Double Sliding Board Injection Machine
JY-R Series
Rotary Table Injection Machine
| Applicable Industries | Manufacturing Plant;Energy & Mining |
|---|---|
| Brand Name | JIE YANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Other;Pressure vessel;Engine;Gearbox;Screw |
| Disk Diameter | 980mm |
| Disk Station | 2pcs |
| Ejection Force | 2.7Tons |
| Ejection Stroke | 100mm |
| Ejector Force(kN) | 13.7 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 100 mm |
| Injection pressure | 1312kg/km3 |
| Injection Rate (g/s) | 135.6 g/s |
| Injection Weight (g) | 201 g |
| Key Selling Points | Multifunctional |
| Machine Dimension(L*W*H) | 2.34*1.64*2.56m |
| Machine Type | Hydraulic |
| Machine weight | 3.5Tons |
| Machinery Test Report | Provided |
| Min. Mold Thickness | 180/280mm |
| Mold Height(mm) | 180 - 280 mm |
| Open Stroke(mm) | 200 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid |
| Power (kW) | 11 kW |
| Product name | Aluminum Tubing Molding Injection Machine For Coating Aluminum Tube |
| Screw diameter | 40mm |
| Screw diameter (mm) | 40 mm |
| Screw Speed (rpm) | 0 - 200 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 226 cm³ |
| Type | Tube Head Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 3500 kg |
