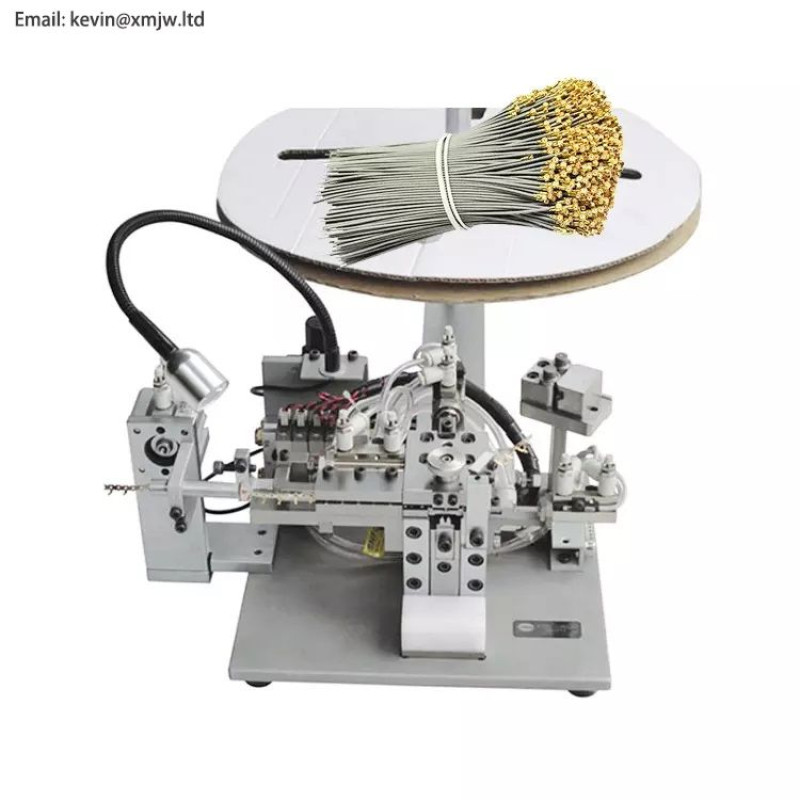

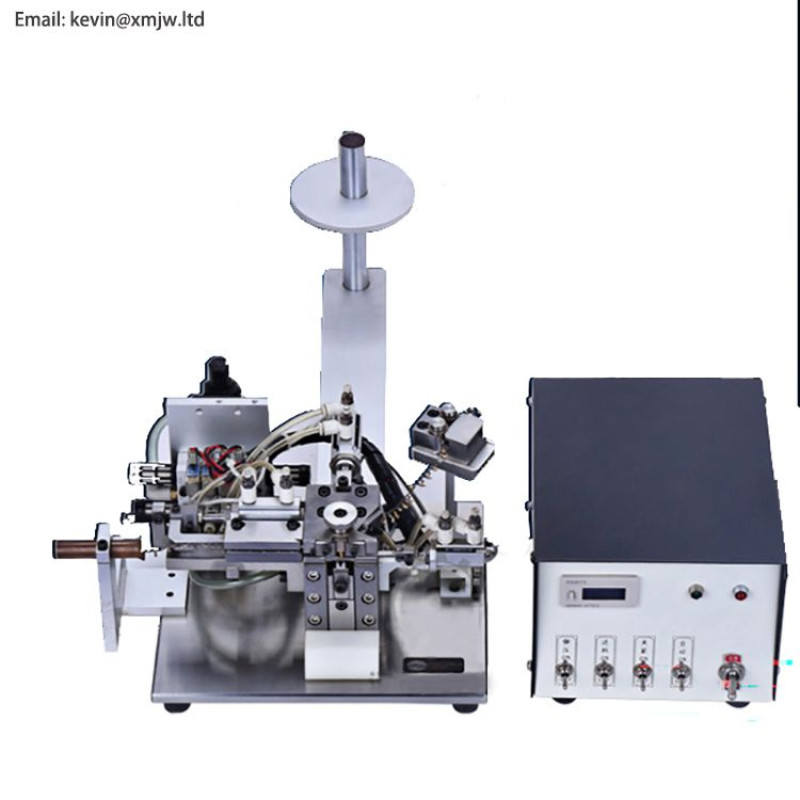

Ipex Terminal Crimping Machine for Coaxial RF Cable Ipex Connector
- Applicable to all kinds of ipex terminals, with different models and corresponding molds.
- This machine is used for riveting and forming of I-PEX series precision connector terminals.
- It is also suitable for forming with other related connector terminals.
- This machine corresponds to the corresponding models according to the different types of terminals, such as: 1.
- At the same time, the machine is small and light, PLC control is easy to operate, and it can be switched between manual/automatic.
- Model Number
- X-CM107
- Power supply
- AC110-220V;50-60Hz
- Wire Range
- 0.81mm;1.13mm;1.32mm;1.37mm;1.78mm
- Weight
- 30kg
- Dimension
- 350mm*260mm*200mm
- Warranty
- 1 Year
Reply within 24 hours · 12-month warranty
Product Description
Feature
Applicable to all kinds of ipex terminals, with different models and corresponding molds.This machine is used for riveting and forming of I-PEX series precision connector terminals. It is also suitable for forming with other related connector terminals.
This machine corresponds to the corresponding models according to the different types of terminals, such as: 1.13mm, 1.37mm, 1.78mm, 0.81mm (1-4 generations). At the same time, the machine is small and light, PLC control is easy to operate, and it can be switched between manual/automatic.
Specification
| MODEL | X-CM107 | |
| Name: | Ipex Crimping Machine, Automatic Coaxial Cable Termination Machine | X-CM108C |
| Dimension | 350mm*260mm*200mm | 110KG |
| Weight | 30kg | 4.0T |
| Efficiency | 1500-1800 PCS/h | |
| Application Terminal | I-PEX connector | |
| Wire range | 0.81mm、1.13mm、1.32mm、1.37mm、1.78mm | 600*400*600mm |
| Power Supply | AC110-220V，50-60Hz | |
| Noise | <70db(A) | |
| Air Pressure | 0.5-0.8mpa | |
| Warranty | 1 year | |
| Brand Name | X cable Tech |
|---|---|
| Crimping force | 400(kgs) |
| Dimension | 350mm*260mm*200mm |
| Function | Crimping Terminal |
| Model Number | X-CM107 |
| Packing | Plywood |
| Place of Origin | Guangdong;China |
| Power supply | AC110-220V;50-60Hz |
| Usage | crimping |
| Warranty | 1 Year |
| Weight | 30kg |
| Wire Range | 0.81mm;1.13mm;1.32mm;1.37mm;1.78mm |
