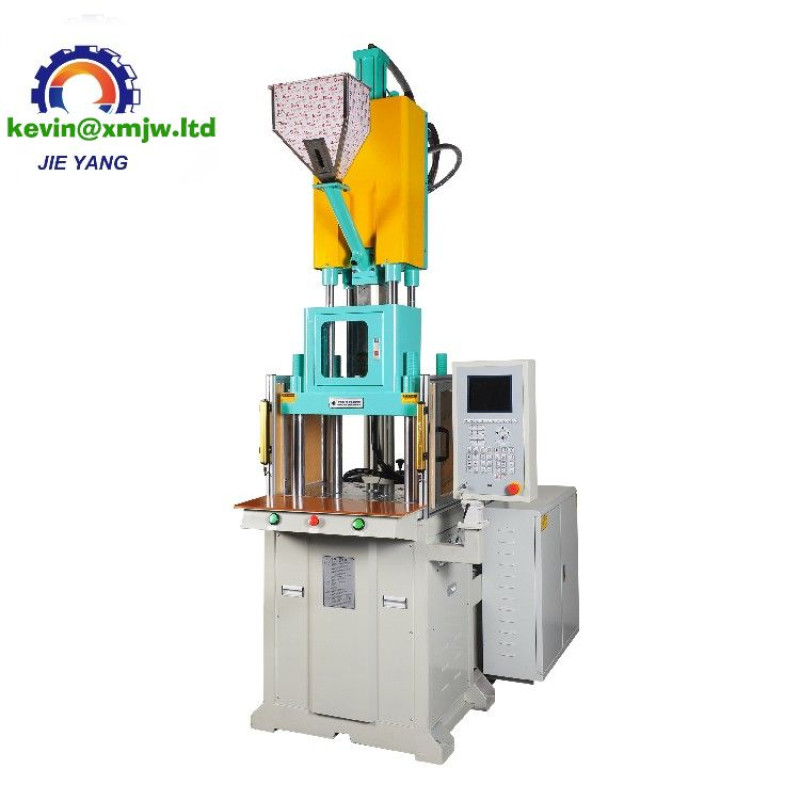

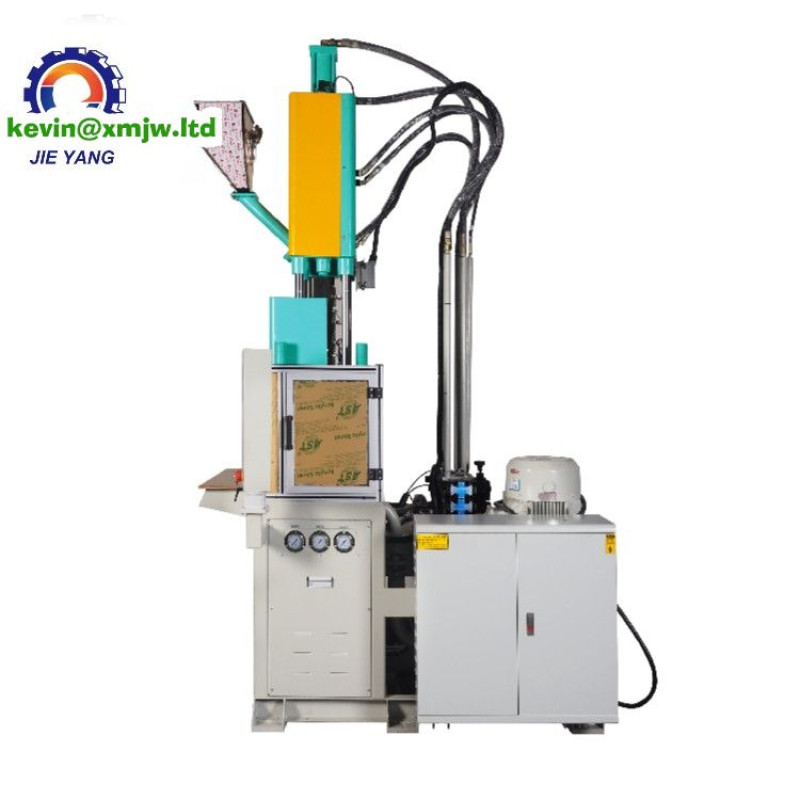

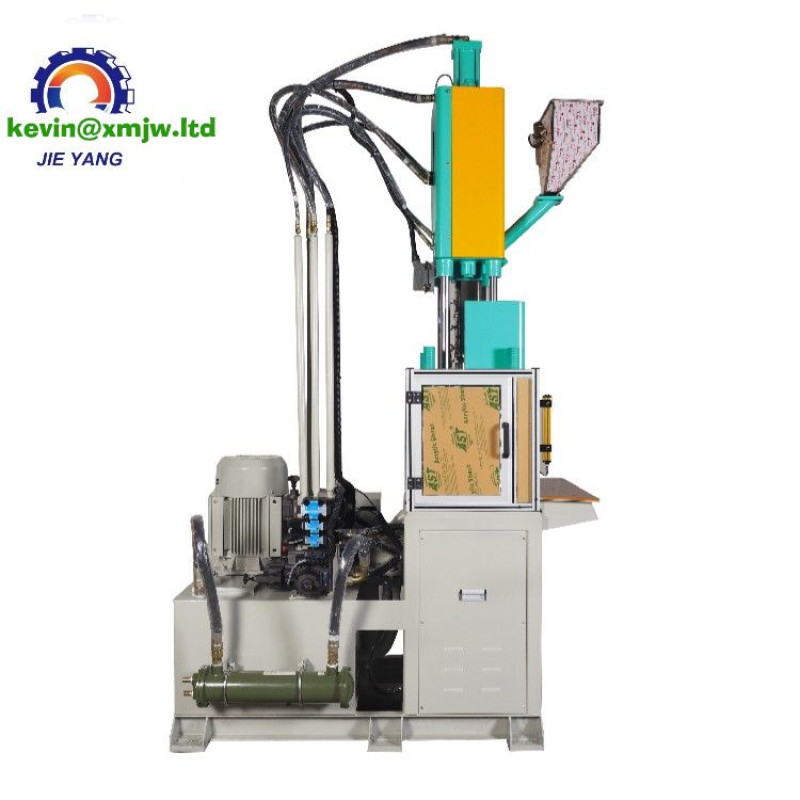

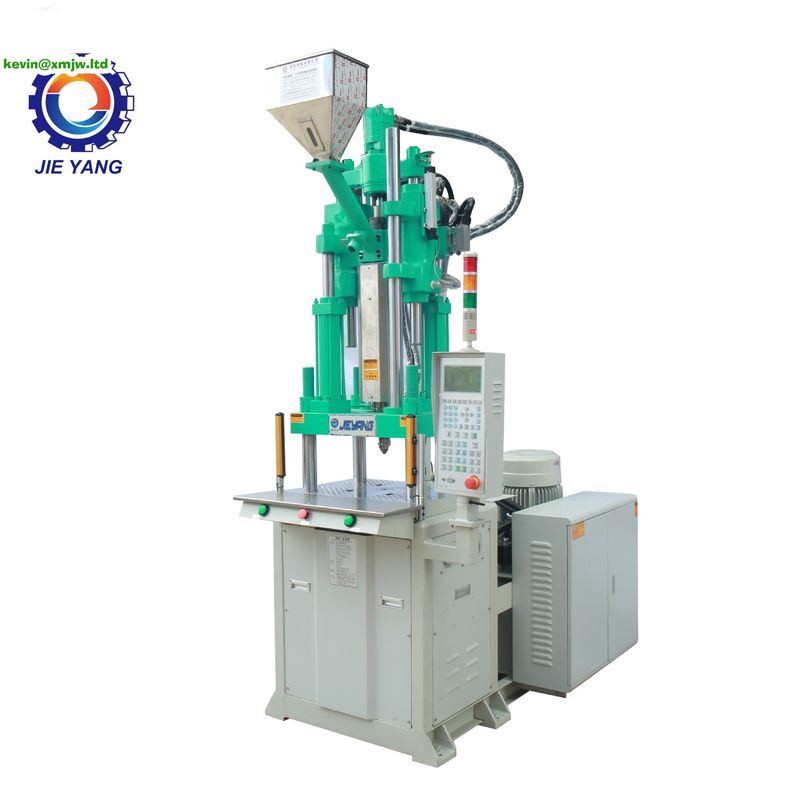

Plastic Chopping Block Injection Molding Machine: Fish, Meat, Veg.
- Automobile industry, medical industry, electronics industry, plastic industry and other injection molding series to meet the needs of customers.
- Product Overview
- 1.in-line screw type injection apparatus.
- 4.the low-pressure mold clamping device protection security.
- 5.the tube can lift, clean and convenient material head, fixed mold easier.
- 6.can be installed with a single mode skateboards, skateboard or alternating dual mode.
- Heater Power
- 10.7 KW
- Power (kW)
- 15 kW
- Oil Tank Capacity
- 350 L
- Injection speed
- 87mm/s
- Screw Speed (rpm)
- 0 - 250 rpm
- Injection Weight (g)
- 333.8 g
Reply within 24 hours · 12-month warranty
Product Overview
JY-1200ST
1.in-line screw type injection apparatus.
2.temperature control, three - stage, fast, back pressure, screw speed stepless adjustment for a variety of precision plastic parts molding.
3.the lower mold fixed on the movable mold, insert items for a good positioning of the resistance, and has finished top of the device.
4.the low-pressure mold clamping device protection security.
5.the tube can lift, clean and convenient material head, fixed mold easier.
6.can be installed with a single mode skateboards, skateboard or alternating dual mode.
2.temperature control, three - stage, fast, back pressure, screw speed stepless adjustment for a variety of precision plastic parts molding.
3.the lower mold fixed on the movable mold, insert items for a good positioning of the resistance, and has finished top of the device.
4.the low-pressure mold clamping device protection security.
5.the tube can lift, clean and convenient material head, fixed mold easier.
6.can be installed with a single mode skateboards, skateboard or alternating dual mode.
PRODUCT SPECIFICATIONS
Machine Detail Description
Successful Projects
Application
Suitable for all kinds of plugs, cables, stationary, toys, household goods, Automobile industry, medical industry, electronics industry, plastic industry and other injection molding series to meet the needs of customers.
| (L*W) Platen size | 980*640 mm |
|---|---|
| Applicable Industries | Hotels;Garment Shops;Building Material Shops;Manufacturing Plant;Machinery Repair Shops;Food & Beverage Factory;Farms;Restaurant;Home Use;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company |
| Brand Name | JIEYANG |
| Condition | New |
| Core Components | Bearing;Motor;Pump;Gear;PLC;Pressure vessel;Engine;Gearbox;Screw |
| Distance between Tie Bars | 760x420 mm |
| Ejector Force(kN) | 45 kN |
| Ejector Number | 1 |
| Ejector Stroke(mm) | 95 mm |
| Heater Power | 10.7 KW |
| Injection Rate (g/s) | 170.7 g/s |
| Injection speed | 87mm/s |
| Injection Stroke | 180 mm |
| Injection Weight (g) | 333.8 g |
| Key Selling Points | Competitive Price |
| Machine Dimension(L*W*H) | 2.1*1.75*4.3 m |
| Machine Type | Hydraulic |
| Machinery Test Report | Provided |
| Marketing Type | New Style Reliable Product 2022 |
| Max. Injection Pressure | 115.2 Mpa |
| Mold Height(mm) | 280 - 380 mm |
| NO. of Temperature control | 3+1 |
| Oil Tank Capacity | 350 L |
| Open Stroke(mm) | 280 mm |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid |
| Power (kW) | 15 kW |
| Product name | Plastic Injection Moulding Machine |
| Screw diameter (mm) | 50 mm |
| Screw Speed (rpm) | 0 - 250 rpm |
| Showroom Location | Viet Nam |
| Style | VERTICAL |
| System Pressure | 13.7 Mpa |
| Theoretical Shot Volume(cm³) | 353 cm³ |
| Type | Tube Shoulder Injection |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 5500 kg |
