Mini small desktop plastic injection molding machine for small size and laboratory pe

  • Inquiry Email: sales@cablecutting.net
  • Product Code: CN230809651634
  • Availability: 500

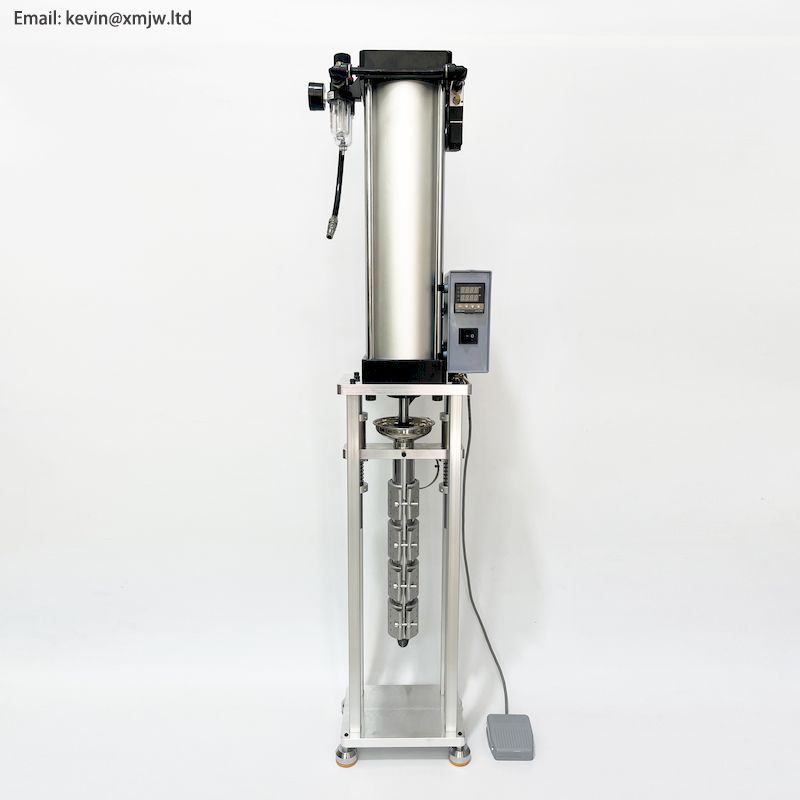

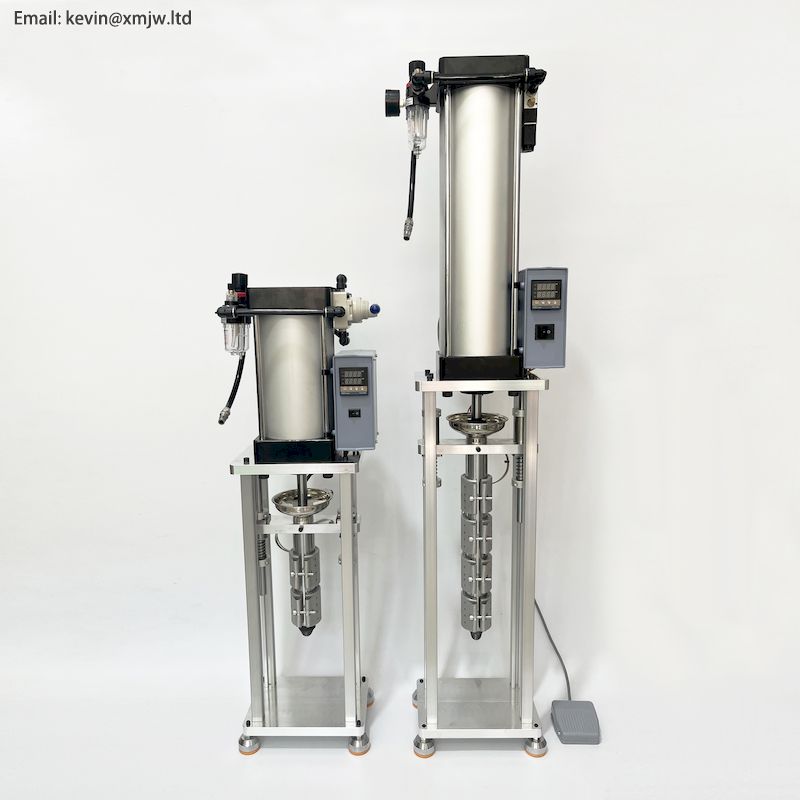

Small desktop injection molding machine

Materials such as conventional plastic particles ABS PP PC AS PE PET PVC can be used.

The injection molding machine uses a simple manual mold to complete injection molding, which can reduce mold cost and production cost.

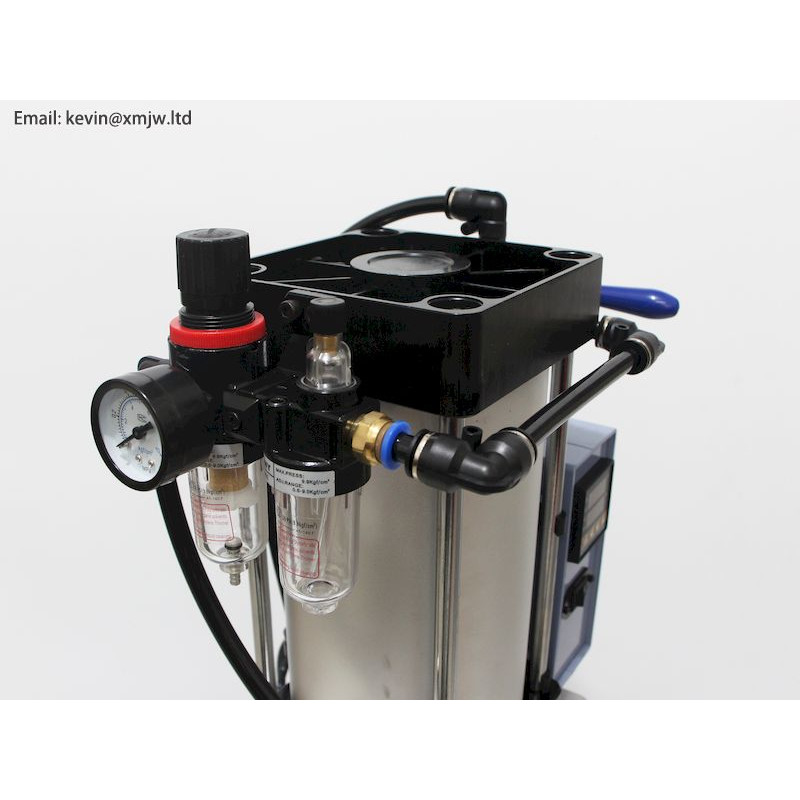

Note: This machine needs to be used in conjunction with an air pump. It is recommended to use an air pump with a power of more than 30L 500W.



Air pressure requirement 0.6mp-0.8mp
Applicable Industries Food & Beverage Factory;Energy & Mining;Food & Beverage Shops
Brand Name XCX
Condition New
Core Components Motor;PLC
Dimension 250*170*1210mm
Ejector Force(kN) 2 kN
Ejector Number 4
Ejector Stroke(mm) 20 mm

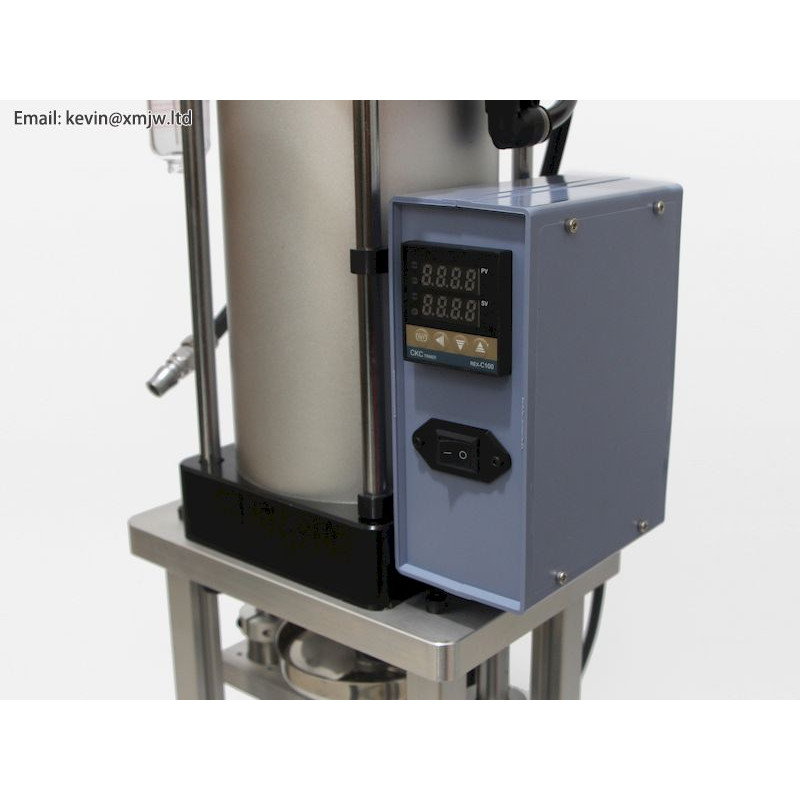

Heating temperature 0-400 degrees
Injection Rate (g/s) 20 g/s
Injection speed 1- 99 seconds
Injection Weight (g) 50 g
Key Selling Points Competitive Price
Machine Type Other
Machinery Test Report Provided
Material Aluminum alloy+steel
Mold size 140*200*135mm
Open Stroke(mm) 20 mm
Place of Origin Guangdong;China
Plastic Processed PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;PA;PE;PE/PP
Power 1kw
Power (kW) 2 kW
Power supply AC220V
Product Model XCX-50
Screw diameter (mm) 8 mm
Showroom Location None
Style VERTICAL
Theoretical Shot Volume(cm³) 60 cm³
Type Injection Blow Molding
Video outgoing-inspection Provided
Warranty 1 Year
Warranty of core components 1 Year
Weight 30kg
Weight (KG) 32 kg
