New Energy Cable Cut and Strip Machine 50 Square Wire Peel Machine

Price in reward points: 5282
  • Brand: unbranded
  • Product Code: CN230809709618
  • Availability: 272
- +

New Energy Cable Cut and Strip Machine 50 Square Wire Peel Machine

1. The latest 32-bit Cortex-M3 core processor of the control system, the running speed is 72M in a single cycle, and the wire length of 100mm can complete more than 70 times of wire cutting and peeling per minute at the fastest;
2. The system integrates a standard RS485 communication interface and is equipped with a Modbus RTU communication protocol, which can easily communicate with touch screens of various brands. The communication data format is 38400, 8, n, 1;
3. The control system is highly integrated, which greatly reduces the failure rate of the system.
4. Equipped with large-capacity memory, which can save 100 groups of parameters at the same time, which is convenient for the operator to operate;
5. The machine conduit is driven by a motor, which eliminates the common problem of the traditional electromagnet-driven long-term working tension attenuation, and the action is faster and more reliable; 6. A variety of optional functional modules are available to achieve the functions of processing cable, sheathing, stripping, coding, printing and other functions;

Product Description

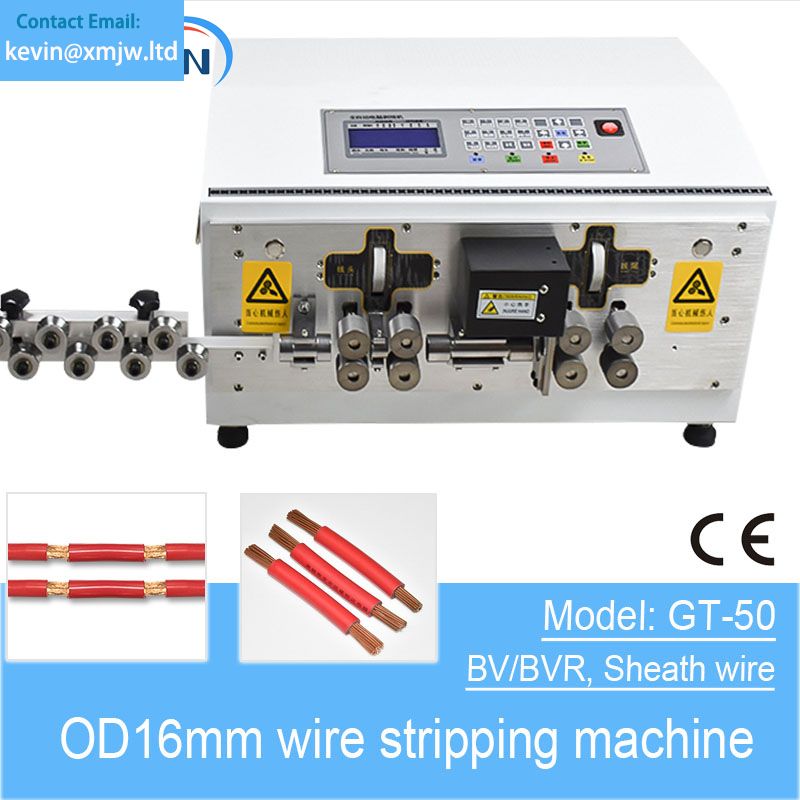

Model GT-50
Power supply AC220V50/60HZ
Function Wire cutting, double-end stripping, middle stripping
Wire range 0.1-50 mm square
Size 58*52*48cm
Cutting length 0.1mm-99999.9mm
weight 55kg
Stripping length head 0.1-20mm, stripping tail 0.1-15mm
Blade material Imported tungsten steel / high speed steel
Middle strip 15 segments
Capacity 2000-3000pcs/h
Stripping accuracy Silent hybrid stepping motor 0.01mm
Remarks Function Automatic in/out, timing start, jog adjustment
Power 120W-700W

Model NumberGT-50
OriginMainland China
