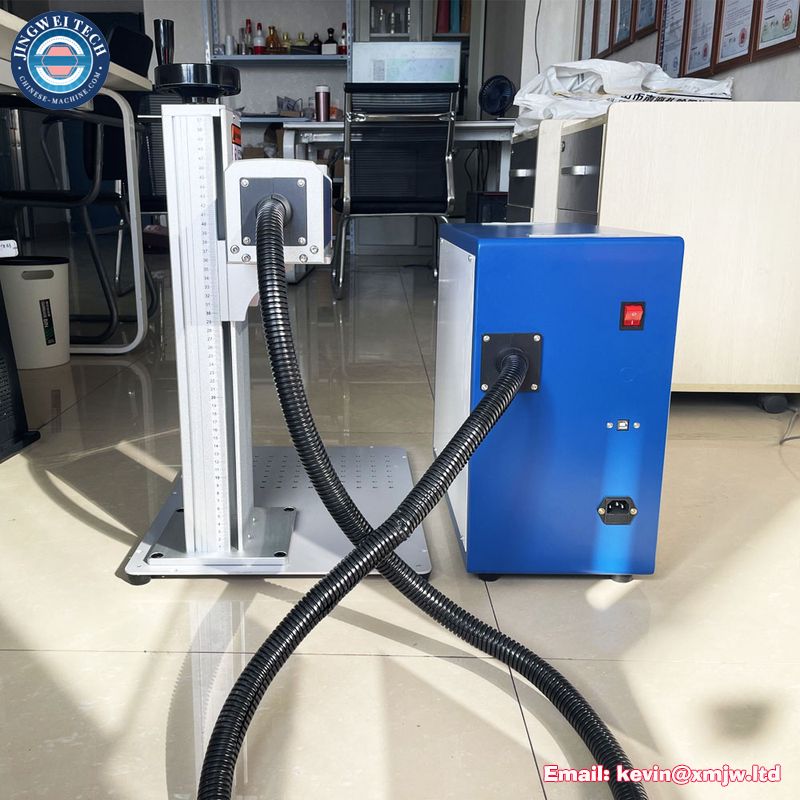

Raycus MAX 20w 30w 50W Split Fiber Laser Marking Engraving Machine for Jewelry PVC Plastic Stainless Steel Ring Metal Cutting

Price in reward points: 2320
  • Brand: OEMG
  • Product Code: CN230811256257
  • Availability: 128160
- +

Raycus MAX 20w 30w 50W Split Fiber Laser Marking Engraving Machine for Jewelry Steel Ring Metal Laser Cutting


Brand

RAYCUS / MAX

Laser power

20W/30W/50W

WorkingArea

110*110mm(Optional 50x50mm/70x70mm/110x110mm/150x150mm/175x175mm/200x200mm/220x220mm/300x300mm)

Cooling Mode

Air Cooling

Laser Wavelength

10.64 um

Frequency of pulse

20-100 KHz

Marking Depth

≤0.3 mm

Marking Speed

≤4000 mm/s RC1001 (if need SG7110R add USD150)
≤7000mm/s,

Marking Lines

1-10 lines

Minimum Line Width

0.01 mm

Minimum Character

0.15 mm

Repeatability Accuracy

±0.002 mm

Resolution Ratio

0.1 mm

Marking Content

Text, pattern, date, bar code, etc

Operation System

Microsoft Windows XP or Windows 2000 WIN 7 WIN8 WIN 10

Control Software

EZCAD ENGLISH Control Software

Graphic Format Supported

BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.

Unit Power

≤0.9 KW

Operation Temperature

5°C-40°C

Relative Moisture

≤ 90%, no fog

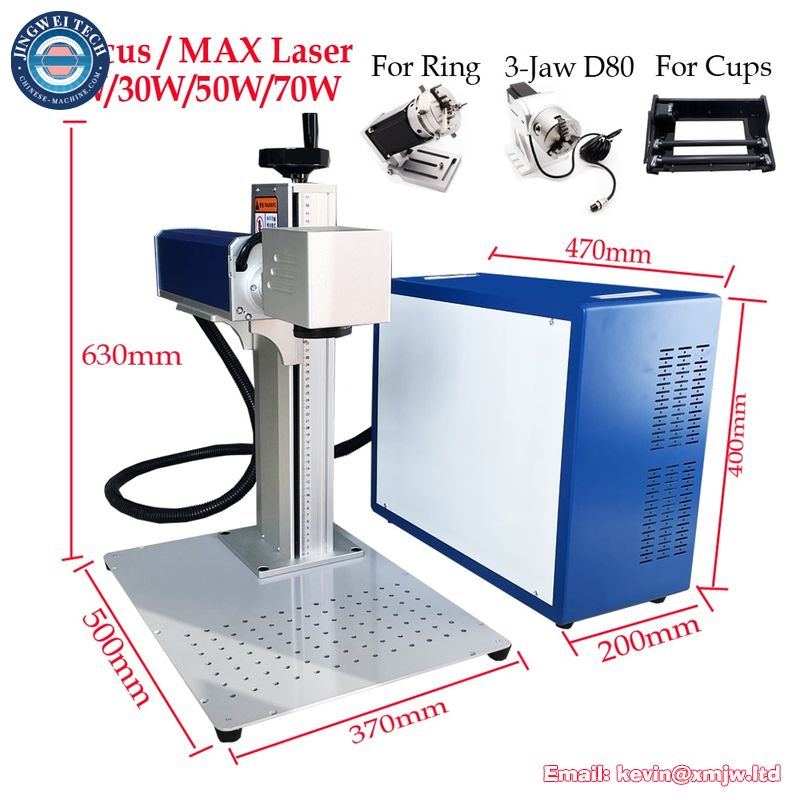

Dimensions(L*W*H)

95 x 78 x 55 cm

Power supply requirements

220 V or 110V

Weight

40KG

Warranty

24 months




How to choose lens

With Same Lens , The Higher Power , The Deeper Engrave .
With Same Power, The Smaller Lens, The Deeper Engrave ,
Bigger Lens Engrave Bigger Area ,
Smaller Lens Engrave Deeper Depth,

if 20w laser choose 200mm*200mm lens , that means your focus distance is very tall ,power come to mark object is cery very weak , so not biggest lens area is best ,but choose suitable lens.

20w choose 70mm*70mm , 110mm*110mm,
30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm
50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm

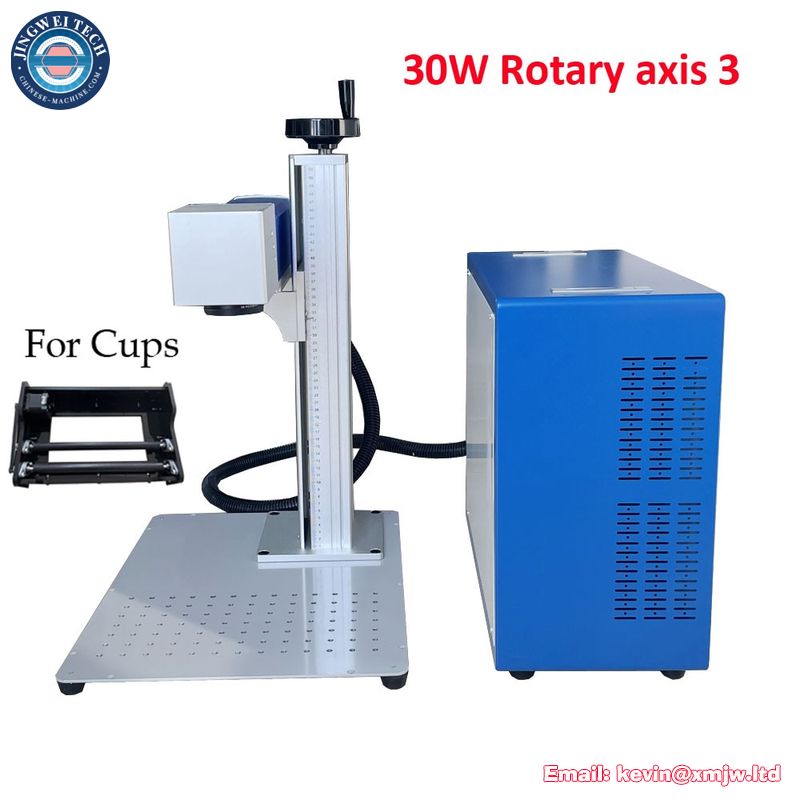

Cups Rotary Axis








Brand NameOEMG
CertificationCE;CE
Control SoftwareEZCAD ENGLISH Control Software
Cooling ModeAir Cooling
Laser Wavelength10.64 um
Marking Speed≤4000 mm/s RC1001
ModelFiber Laser Marking Machine
Model NumberFiber Laser Engraver
OriginMainland China
WorkingArea110*110mm Standard
