Automatic Electrical Terminal Crimping Machine EM-6B2/EM-6B1 - 0.25-16mm²
- It is applicable for pre-insulated terminal crimping from 0.
- It is supplied with seven kinds of accurate and replaceable die sets.
- The crimper has high working efficiency and wide application.
- The crimper is driven by fixed speed motor so that it owns advantages of high efficiency and high quality not only in crimping force but crimping speed.
- It is good for terminal crimping in large or medium quantity.
- Model
- EM-6B2 EM-6B1
- Model Number
- EM-6B2 EM-6B1
- Certification
- CE
- Origin
- Mainland China
- Product name
- Automatic Electrical Terminal Crimping Machine
- Type
- Crimp Terminal
Reply within 24 hours · 12-month warranty
0.25-16mm2 Automatic Electrical Terminal Crimping Machine EM-6B2 EM-6B1 with Exchangeable Die Sets Electric Crimper Tools

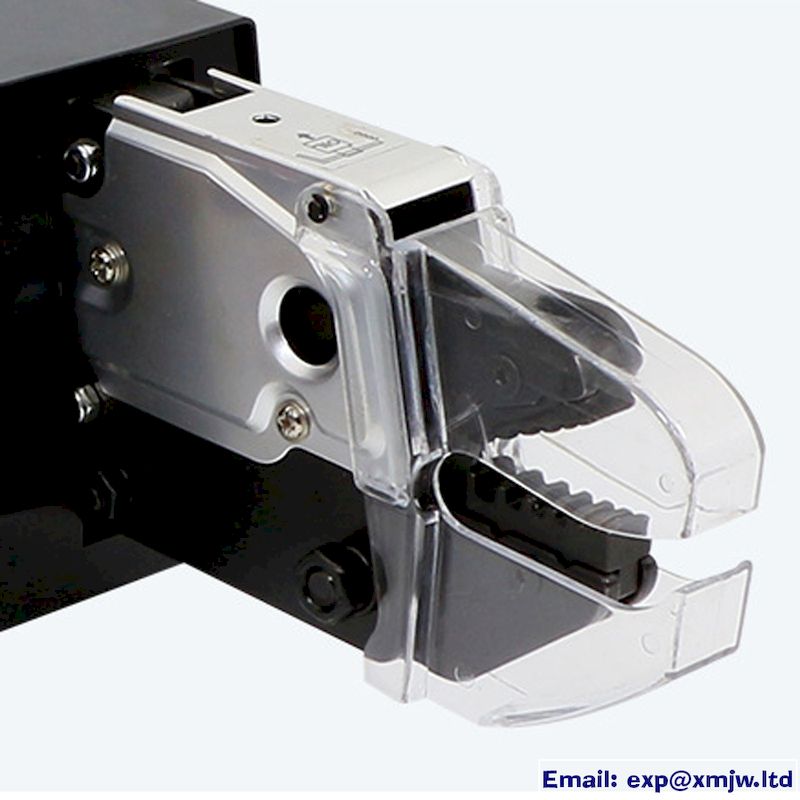

Replaceable Crimping Die Sets/jaws
Features
Type EM-6B1/EM-6B2 is an ideal crimper for connection in cabinet. It is applicable for pre-insulated terminal crimping from 0.25mm2 to 10mm2 and Cu/AI cutting in 7mm. It is supplied with seven kinds of accurate and replaceable die sets. The crimper has high working efficiency and wide application.
The crimper is driven by fixed speed motor so that it owns advantages of high efficiency and high quality not only in crimping force but crimping speed. It is good for terminal crimping in large or medium quantity. If there are a lot of different kinks of terminals to be crimped, this crimper is the best choice.
Specification | ||
Model | EM-6B1 (110V) | EM-6B2 (220V) |
Output | 12.7KN | 12.7KN |
Max Crimping Force | Insulated Terminal 5.5mm2 | Insulated Terminal 5.5mm2 |
Crimping Time | 1.5s(60Hz) | 1.5s(60Hz) |
1.8s(50Hz) | 1.8s(50Hz) | |
Voltage | AC100-125V | AC200-230V |
Power Consumption | 90W | 90W |

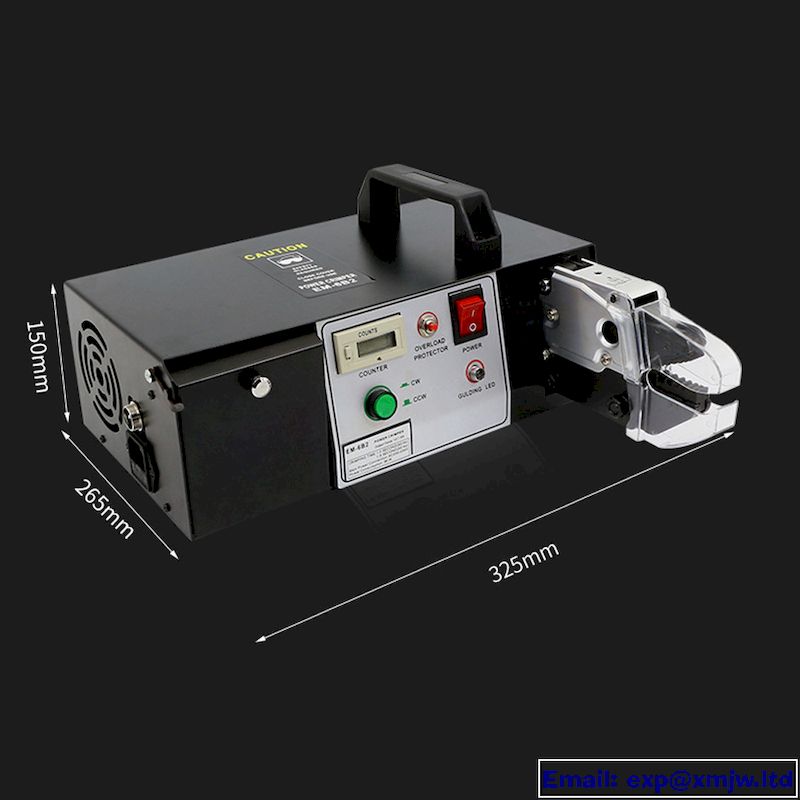

Dimension | 325*265*150mm | 325*265*150mm |
Weight | 12Kg | 12Kg |
| Certification | CE |
|---|---|
| is_customized | Yes |
| Model | EM-6B2 EM-6B1 |
| Model Number | EM-6B2 EM-6B1 |
| Origin | Mainland China |
| Product name | Automatic Electrical Terminal Crimping Machine |
| Type | Crimp Terminal |
