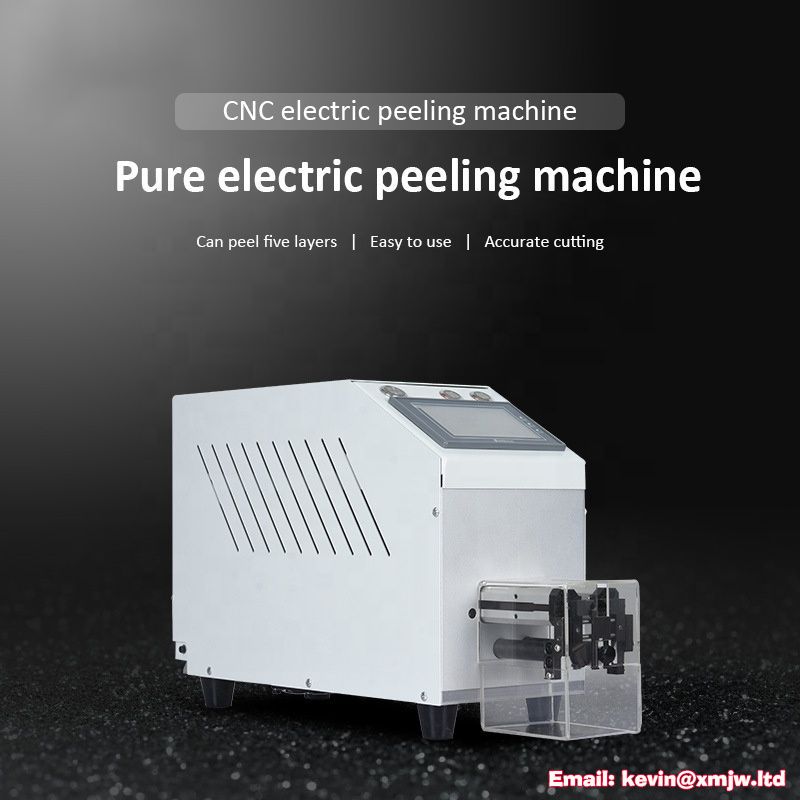

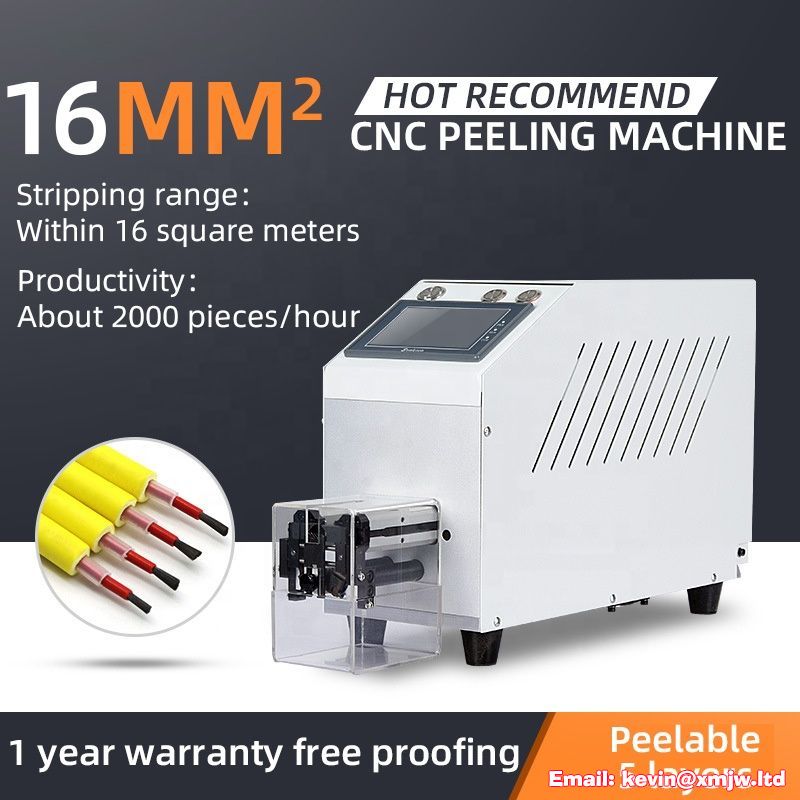

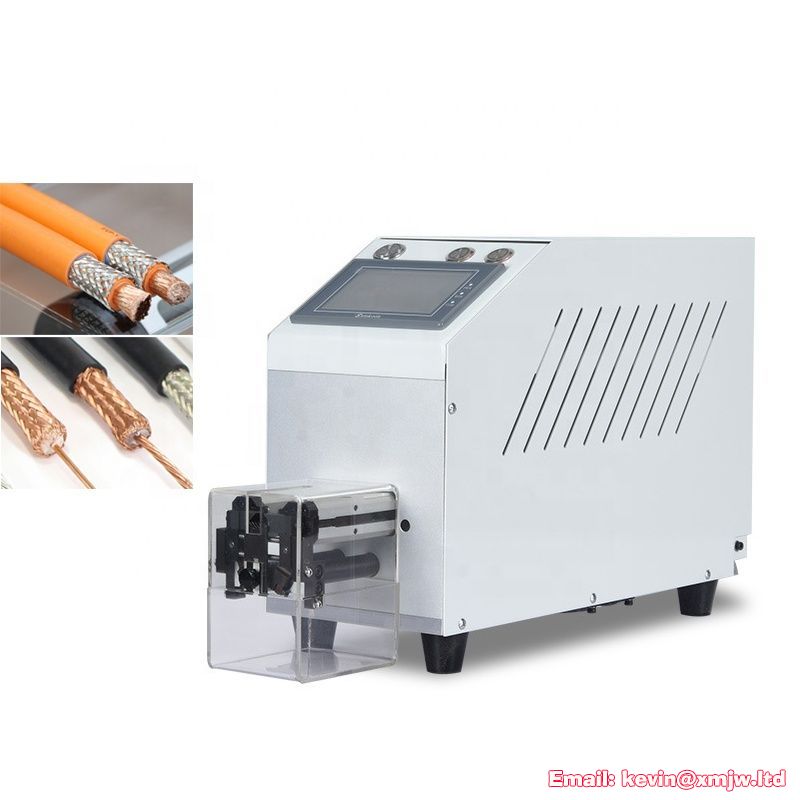

TR-2040D Computerized Coaxial Wire Stripping Machine, Automatic
- Pure electric wire stripping machine, high precision, simple and convenient debugging 2.High accuracy, no need for foot switch

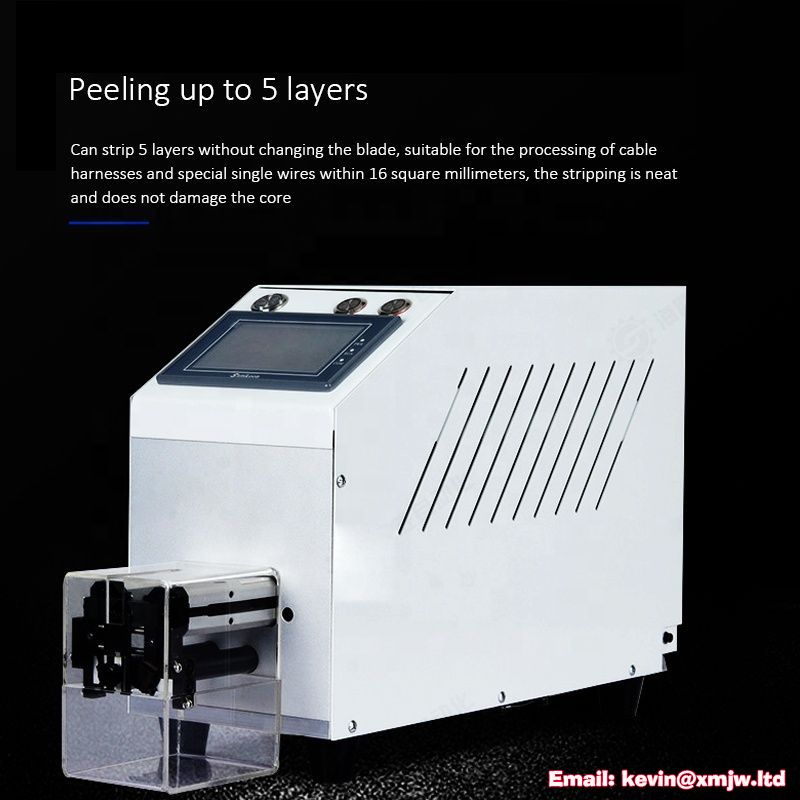

- Multiple processing modes meet different types of wire processing. (half strip, full strip, double-layer strip, etc.) 4.It
- Both the gripper and the knife edge adopt the translation principle to ensure that the center height remains
- Model Number
- TR-2040D
- Power/Voltage
- AC220V 50/60Hz
- Production Capacity
- 1800-2000 Pieces/hour
- Weight
- 20kg
- Application
- Stripping Cable Wiresne can work 24 hours
- Place of Origin
- Guangdong;China
Reply within 24 hours · 12-month warranty
Video Description
Product Description
Fully Automatic Wire Cutting and Stripping Machine Wire Stripping Machine Tool Strip Cutter Cable Tools
3.Multiple processing modes meet different types of wire processing. (half strip, full strip, double-layer strip, etc.) 4.It
adopts a 90-degree V-shaped knife edge design, which has strong versatility and does not need to change the blade when processing
different wires. 5.Both the gripper and the knife edge adopt the translation principle to ensure that the center height remains
the same when processing different wire diameters 6.Up to 30 sets of processing parameters can be stored 7.Processing range:AWG30-AWG4 (0.04-20 square millimeters), stripping length 1mm-40mm
Features:
1.Pure electric wire stripping machine, high precision, simple and convenient debugging 2.High accuracy, no need for foot switch3.Multiple processing modes meet different types of wire processing. (half strip, full strip, double-layer strip, etc.) 4.It
adopts a 90-degree V-shaped knife edge design, which has strong versatility and does not need to change the blade when processing
different wires. 5.Both the gripper and the knife edge adopt the translation principle to ensure that the center height remains
the same when processing different wire diameters 6.Up to 30 sets of processing parameters can be stored 7.Processing range:AWG30-AWG4 (0.04-20 square millimeters), stripping length 1mm-40mm
| Name | Electric Cable Stripping Machine |
| Processing range | AWG30-AWG4(0.04-20 square mm |
| Function | half strip, full strip, double-layer strip, etc |
| Production capacity | 1800-2000 pieces/hour (depending on operating proficiency |
| Stripping length | 1mm-40mm |
| Adiustment accuracy | 0.05mm |
| Working voltage | AC220V50/60Hz |
| Dimensions | 500mm*62mm*300mm |
| Weight | 20 kg |
| Function | Cutting, stripping wire head and tail, middle stripping , etc. |
| Adjustment accuracy | 0.05mm |
|---|---|
| Application | Stripping Cable Wiresne can work 24 hours |
| Brand Name | Turing |
| Function | half strip;full strip;double-layer strip;etc. |
| Model Number | TR-2040D |
| Place of Origin | Guangdong;China |
| Power/Voltage | AC220V 50/60Hz |
| Processing range | AWG30-AWG4 (0.04-20 square mm) |
| Product name | Wire cutting and stripping machine |
| Production Capacity | 1800-2000 Pieces/hour |
| Stripping length | 1mm-40mm |
| Usage | Multifunctional;Multi-functional;stripping |
| Weight | 20kg |
