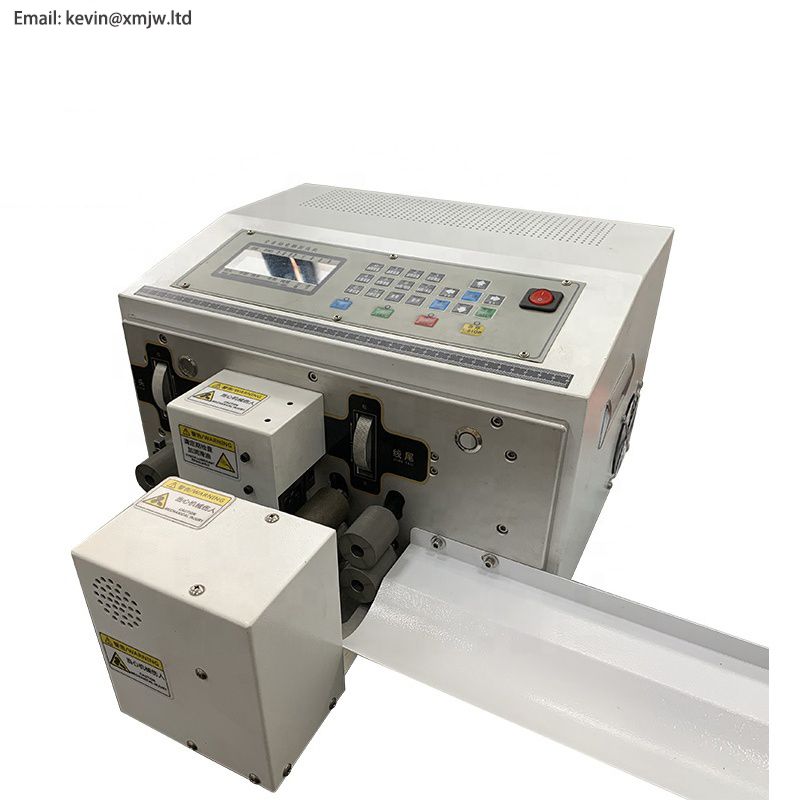

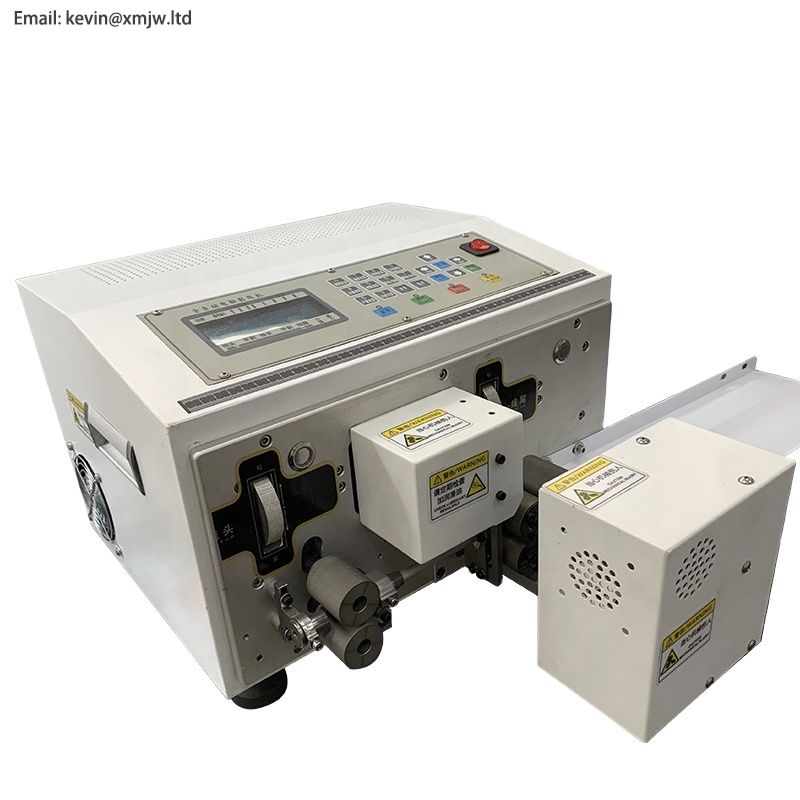

Automatic Stripping & Twisting Cutting Machine - 0.1-2/6mm² Wires
- Full automatic cutting and stripping machine, easy to setting cutting and stripping length in machine.
- It has 100 program memory built-in and timing switch on and off.
- Adopt four/Six/Ten -wheel wire feeding, adjust the force by computer, no damage, no pinch mark, man-machine dialogue.
- Intelligent control system, independent stepper motor drive Pure copper stepper motor, independent intelligent drive, stable performance, exquisite technolog...
- LCD screenSupport Chinese and English switching 5Tungsten steel bladeUsing raw materials imported from Japan,its incision has no burr,durable,wear-resistant.
- Speed
- 3000-8000Pcs/h
- Cutting length
- 1-9999mm
- Weight
- 40KG
- Size
- 420*570*310mm
- Place of Origin
- Guangdong;China
- Brand Name
- XINCHUANGXING
Reply within 24 hours · 12-month warranty
Product Description
Factory hot selling full automatic wire cable cutter stripper twister machine with cheap priceFull automatic cutting and stripping machine, easy to setting cutting and stripping length in machine. Digital setting option, full automatic mod
Our Advantages
1Controlled by mico-computerCan be set at both ends of stripping, middle multi-stage stripping, half stripping, cutting line; automatic line in & out, automatic tool setting, production It has 100 program memory built-in and timing switch on and off.
2Adopt four/Six/Ten -wheel wire feeding, adjust the force by computer, no damage, no pinch mark, man-machine dialogue.
3Intelligent control system, independent stepper motor drive
Pure copper stepper motor, independent intelligent drive, stable performance, exquisite technology, durable.
4LCD screenSupport Chinese and English switching
5Tungsten steel bladeUsing raw materials imported from Japan,its incision has no burr,durable,wear-resistant.
Specification
| item | value |
| Place of Origin | China |
| Guangdong | |
| Brand Name | XINCHUANGXING |
| Model Number | XCX-690 |
| Usage | Multifunctional |
| Appropriate Wire: | Flat sheathed Multi-core Wire,Single Wire ,PVC tube |
| Weight: | 35KG |
| Size: | 420*570*310(MM) |
| Blade material | high-speed steel |
| Cutting length | 1-9999mm |
| stripping length | Outside 0-100mm,Inside 0-20mm |
| Speed: | 2000-5000Pcs/h |
| Cutting tolerance | 0.002*L·MM |
| type of drive | Six-wheel drive |
| Line pressure regulation | manual regulation |
| Appropriate Wire | Flat sheathed Multi-core Wire Single Wire PVC tube |
|---|---|
| Blade materia | high-speed steel |
| Brand Name | XINCHUANGXING |
| Cutting length | 1-9999mm |
| Cutting toleranc | 0.002*L |
| Line pressure regulation | manual regulation |
| Peeling length | head 25mm tail 80mm |
| Place of Origin | Guangdong;China |
| Size | 420*570*310mm |
| Speed | 3000-8000Pcs/h |
| type of drive | Six-wheel drive |
| Usage | Multifunctional |
| Weight | 40KG |
