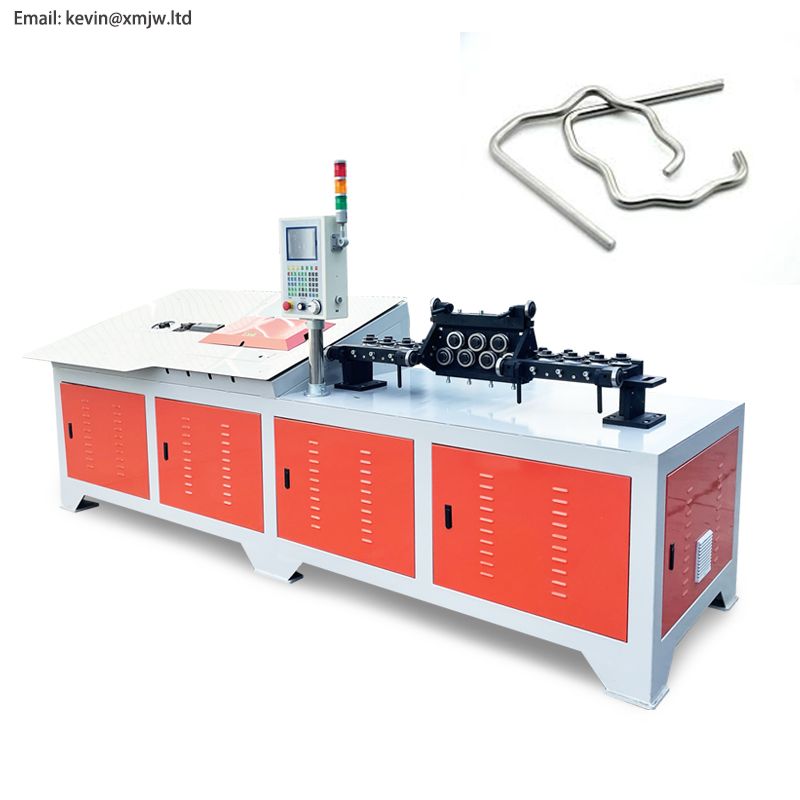

Multi-Functional 2D CNC Wire Forming Machine 5mm-12mm - ZD-2D-5012
- The error of full servo motor is smaller, the bending efficiency is higher, and the error is smaller than that of similar products of hydraulic press.
- CNC operation is simpler and easier to learn than the same type of PLC products. Generally, the simple program can be edited by oneself within half an hour w...
- Because all the servo motors are used, there will be no hydraulic failure, the failure rate is lower, the scrubbing is more convenient, and the pollution cau...
- Display table and cargo shelf
- Furniture and Kitchen
- Mattress, Sofa spring area
- Power
- CNC
- Voltage
- 220V/380V/415V/440V/customized
- Weight (KG)
- 1800
- Certification
- CE
- Warranty
- 1 Year
- Warranty of core components
- 1 Year
Reply within 24 hours · 12-month warranty
Real factory production multi-functional ZD-2D-5012 model 5mm-12mm 2d cnc wire forming machine
2d cnc wire forming machine is to produce kinds of 2D wire forms expertly with high precision and fast speed. Adopts brand servo motor with high precision reducer and screen display with top controller.
Advantages & Feature:
1. The error of full servo motor is smaller, the bending efficiency is higher, and the error is smaller than that of similar products of hydraulic press.
2. CNC operation is simpler and easier to learn than the same type of PLC products. Generally, the simple program can be edited by oneself within half an hour with elementary school education.
3. Because all the servo motors are used, there will be no hydraulic failure, the failure rate is lower, the scrubbing is more convenient, and the pollution caused by oil pollution will not occur.
2d cnc wire forming machine Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
ZD-2D-512 model 2dcnc wire forming machinetechnical parameters:
| Model | ZD-2D-5012 |
| Axis | 3 |
| Wire diameter | 5-12mm iron wire |
| wire-feeding wheel | 3 |
| applicable wire | Round wire,flat bar, square wire (any material) |
| Copy | 10000 datas,300 acts as a group |
| Feeding speed max. | 100(m/min) |
| Wire-feeding axis servo motor | 7.5(kw) |
| Cutting axis servo motor | 3.1kw |
| Angle-bending axis servo motor | 7.5kw |
| Process | liftablein-out die, two-way bending |
| Feeding accuracy | ±0.1mm |
| Max. Bending speed | 800rpm/min,angle±180º |
| Production capacity | 20-25 pieces/min based on different difficuty |
| voltage | 380V50HZ/60HZ 3 Phases |
| weight | 1900kg |
| dimension | 3250×1200×1300mm |
| Machine frame | 80*80mm welded steel pipe (strong and steady) |
| Note: | 0.5mpa air cylinder is requested each servo motor is with a reducer unit |
More detailed show for this model 2d cnc wire forming machine:
| Applicable Industries | Manufacturing Plant;Retail;Construction works;Other |
|---|---|
| Automation | Automatic |
| Brand Name | zhongde |
| Certification | CE |
| Condition | New |
| Control system | CNC Control |
| Core Components | Engine;Motor;CNC;machine frame;bending head and cutter |
| Extra Services | Cut To Length |
| Key Selling Points | Multifunctional |
| Machine Type | 2d Wire Bending Machine |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Material / Metal Processed | Stainless steel |
| Number of Axis | 3 axis |
| Operation system | CNC System |
| Packing | standard export wooden case |
| Place of Origin | Hebei;China |
| Power | CNC |
| Product name | 2D cnc Wire forming Machine |
| Raw Material | COIL WIRE |
| Showroom Location | None |
| Type | Multi Functional |
| Video outgoing-inspection | Provided |
| Voltage | 220V/380V/415V/440V/customized |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 1800 |
| Wire diameter | 5mm-12mm |
| Year | latest production |
