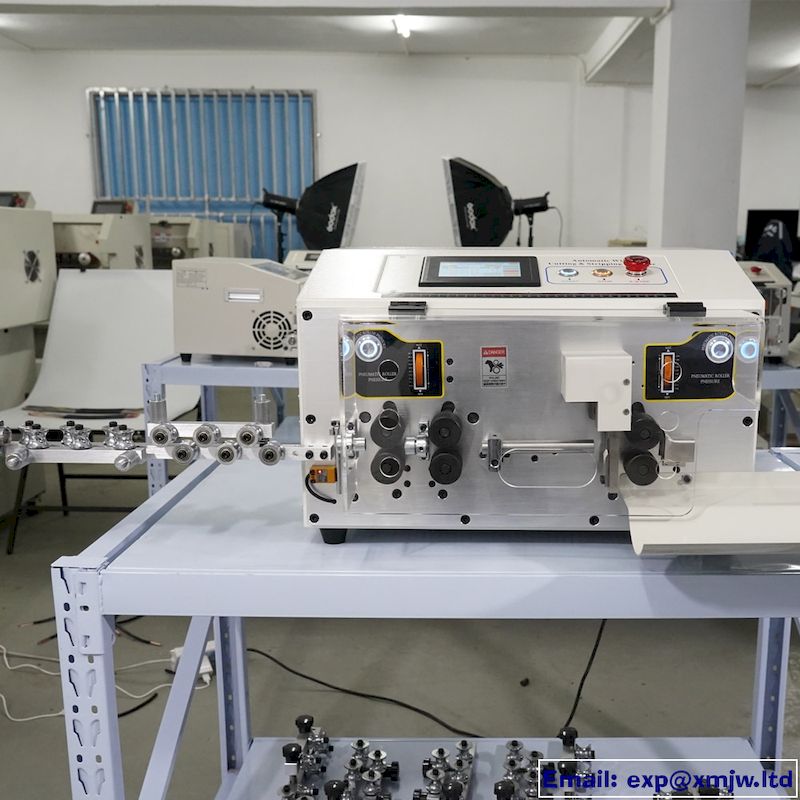

SWT508-HT2 Touch Screen Round Sheath Wire Stripper
- Machine dimension: 450*420*290mm Wire length range：1～10000mm Strip length：Half stripping of front end:0-200;Half stripping of rear end:0-100mm Length accurac...
- Fiberglass wire Blade material: hard tungsten steel Transport speed: (L=200MM piece/hour） 2000-3000 pieces Driving mode: four-wheel drive (silent hybrid step...
- Stripping speed: The cutting speed and wire feeding speed can be adjusted respectively.
- With Forward and reverse straightener)( Protective cover is optional) Weight：32KG Electrical connection: 110V/220V 50HZ/60HZ Power：450W Operation interface: 4.
- English switching touch screen display Machine dimension: 450*420*290mm Wire length range：1～9999mm Strip length：Front end:0-150;rear end:0-100mm Length accur...
- Model
- Automatic Stripping Peeling Cutting Machine
- Model Number
- Automatic Stripping Peeling Cutting Machine
- Certification
- CE;FCC;RoHS
- Application
- Computer
- Origin
- Mainland China
- Type
- Male to Female
Reply within 24 hours · 12-month warranty
SWT508-HT2 Touch Screen Computer Round Sheath Wire Cable Cutter Stripper 10mm2 12mm2 Automatic Stripping Peeling Cutting Machine
P.S: The protect cover is not included. if you need. please contact seller.

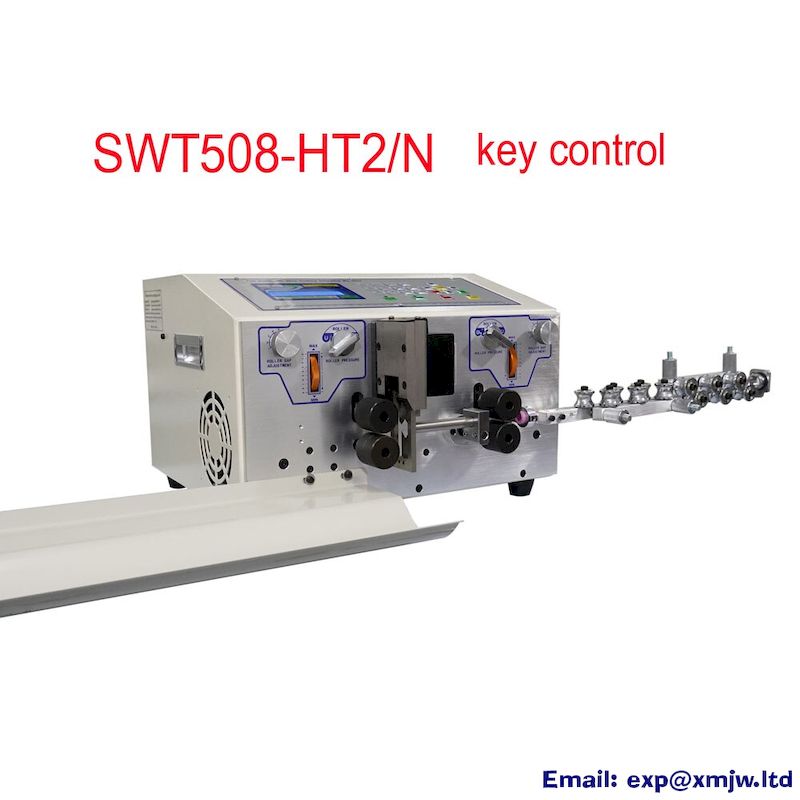

Model：SWT508-HT2/N（Round sheath wire stripper）
(With forward and reverse straightener)
Weight：31KG Power：450W
Electrical connection: 110V/220V 50HZ/60HZ
Operation interface: English/Chinese (LCD display)
Machine dimension: 450*420*290mm
Wire length range：1～10000mm
Strip length：Half stripping of front end:0-200;Half stripping of rear end:0-100mm
Length accuracy： ± (0.002xL)mm
Wire cross section: Maximum outer diameter: 10mm (Round sheath wire)
Max conduit inside diameter:￠11mm
Wire material:PVC,Teflon,Braided,Fiberglass wire
Blade material: hard tungsten steel
Transport speed: (L=200MM piece/hour） 2000-3000 pieces
Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
Stripping speed: The cutting speed and wire feeding speed can be adjusted respectively.
(0 is the slowest, 9 is the fastest)

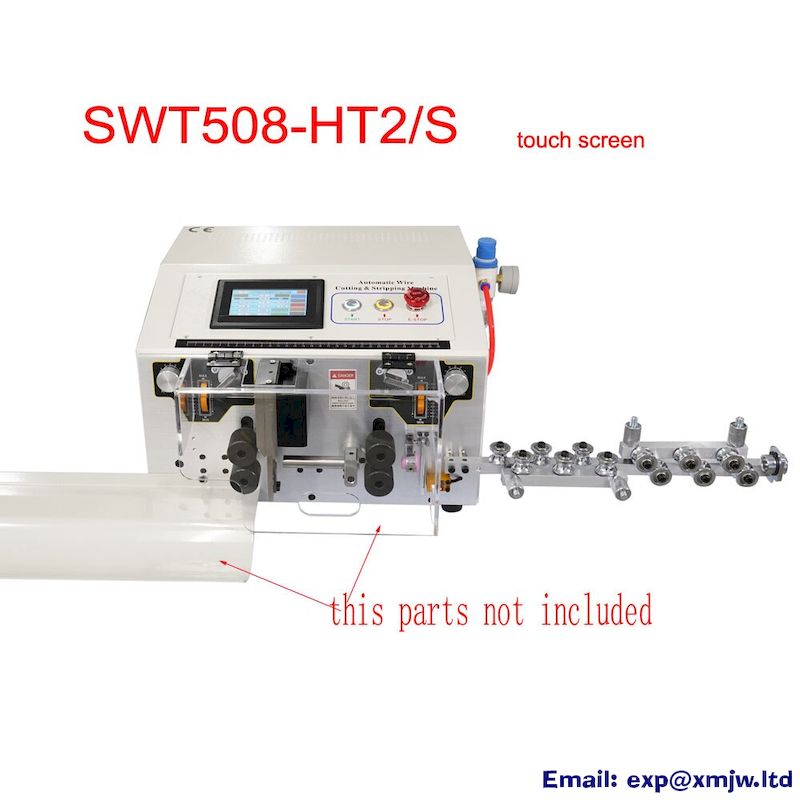

Model：SWT508-HT2/S（Round sheath wire stripper with touch screen）
(With disconnection device)(With Forward and reverse straightener)( Protective cover is optional)
Weight：32KG
Electrical connection: 110V/220V 50HZ/60HZ
Power：450W

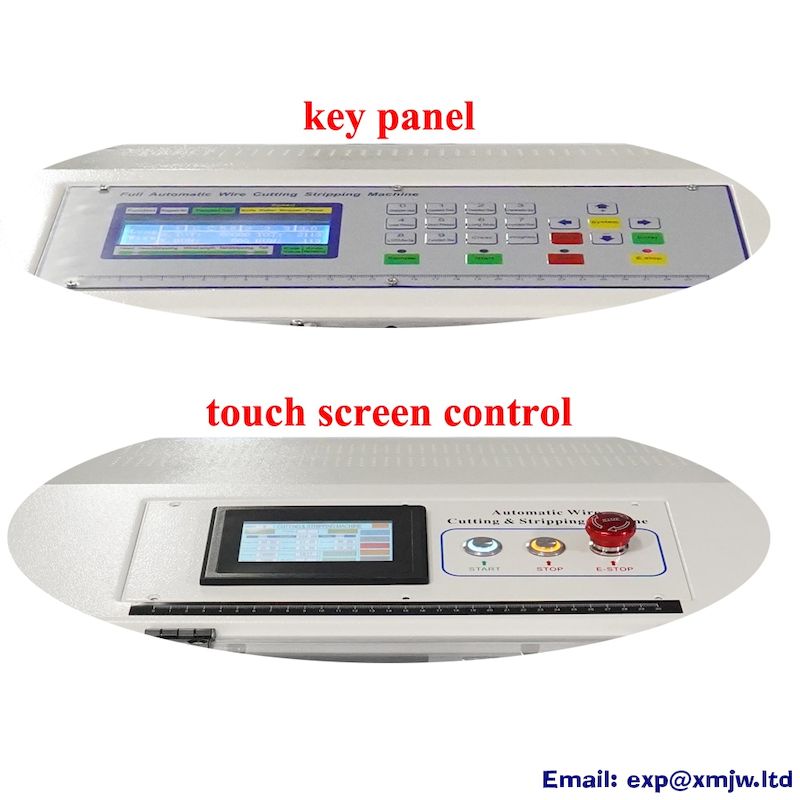

Operation interface: 4.3 inch Chinese and English switching touch screen display
Machine dimension: 450*420*290mm
Wire length range：1～9999mm
Strip length：Front end:0-150;rear end:0-100mm
Length accuracy： ± (0.002xL)mm
Wire cross section: Maximum outer diameter: 10mm (Round sheath wire)
Max conduit inside diameter:￠11mm
Wire material:PVC,Teflon,Braided,Fiberglass wire
Blade material: hard tungsten steel
Transport speed: (L=200MM piece/hour） 2000-3000 pieces
Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)

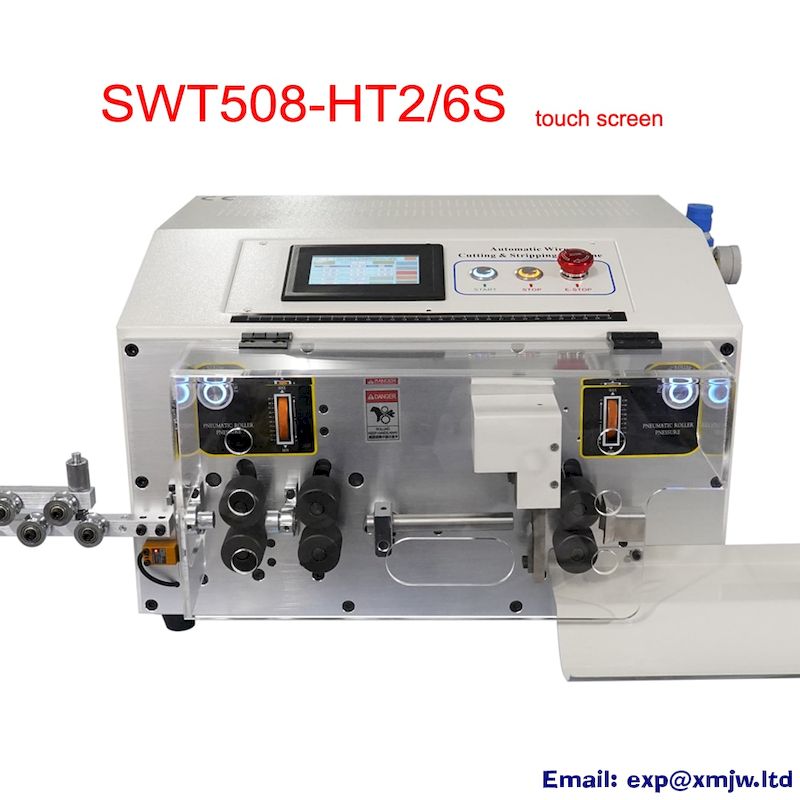

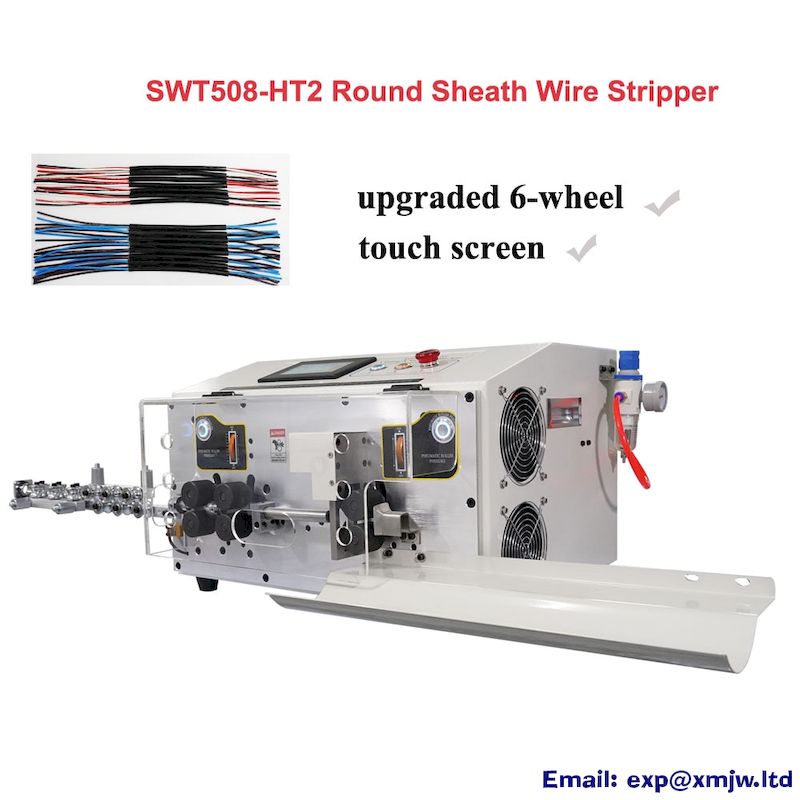

Model：SWT508-HT2/6S（HT2 upgraded 6-wheel round sheath wire stripper with touch screen）
(With disconnection device)(With Forward and reverse straightener)( Protective cover is optional)Weight：43KG Power：550W
Electrical connection: 110V/220V 50HZ/60HZ
Operation interface: 4.3 inch Chinese and English switching touch screen display
Machine dimension: 470*515*345mm
Wire length range：1～9999mm
Length accuracy： ± (0.002xL)mm
Wire cross section: Maximum outer diameter: 12mm (Round sheath wire)
Max conduit inside diameter:￠13mm Blade material: High-speed steel
Strip length：Full stripping of front end:0-200;Full stripping of rear end:0-100mm
Wire material:PVC,Teflon,Braided,Fiberglass wire
Transport speed: (L=200MM piece/hour） 2000-3000 pieces
Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
| Application | Computer |
|---|---|
| Certification | CE;FCC;RoHS |
| is_customized | Yes |
| Model | Automatic Stripping Peeling Cutting Machine |
| Model Number | Automatic Stripping Peeling Cutting Machine |
| Origin | Mainland China |
| Type | Male to Female |
