Automatic Wire Stripping & Bending Machine SWT508-ZW25

SWT508-ZW25 0.1-25mm2 Automatic Wire Stripping Bending Machine Computer AWG17 to AWG5 6mm2 16mm2 25mm2 Angle PVC Cable Bender

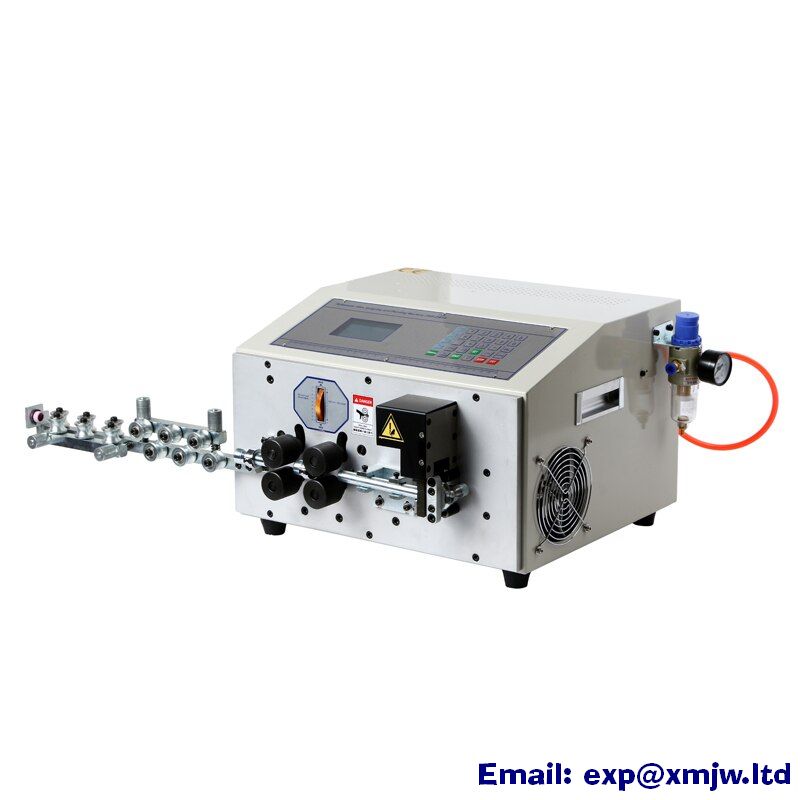

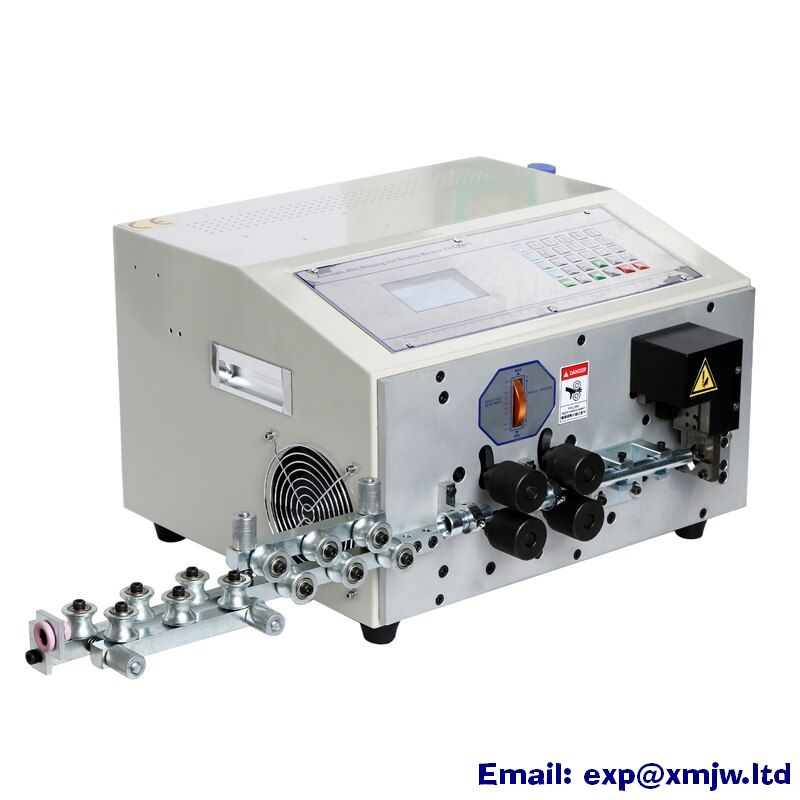

Model：SWT508-ZW16 (16 mm² four wheel drive bending machine)

(With forward and reverse straightener)

Weight：35KG

Electrical connection: 110V/220V 50HZ/60HZ

Power：500W

Operation interface: English/Chinese (LCD display)

Machine dimension: 450*420*290mm

Strip length：Front end:0.1-20;rear end:0.1-20mm

Length accuracy： ± (0.002xL)mm

Wire cross section: 1～16mm²

Max conduit inside diameter:￠11mm

Wire material:PVC,Teflon,Braided,Fiberglass wire

Blade material: High-speed steel

Bending speed: (L=100MM piece/hour） 2000-300 pieces

Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)

Bending shape: U-shaped, Z-shaped, clockwise and counterclockwise bending, adjustable bending angle of 30 degrees, 45 degrees, 60 degrees and 90 degrees

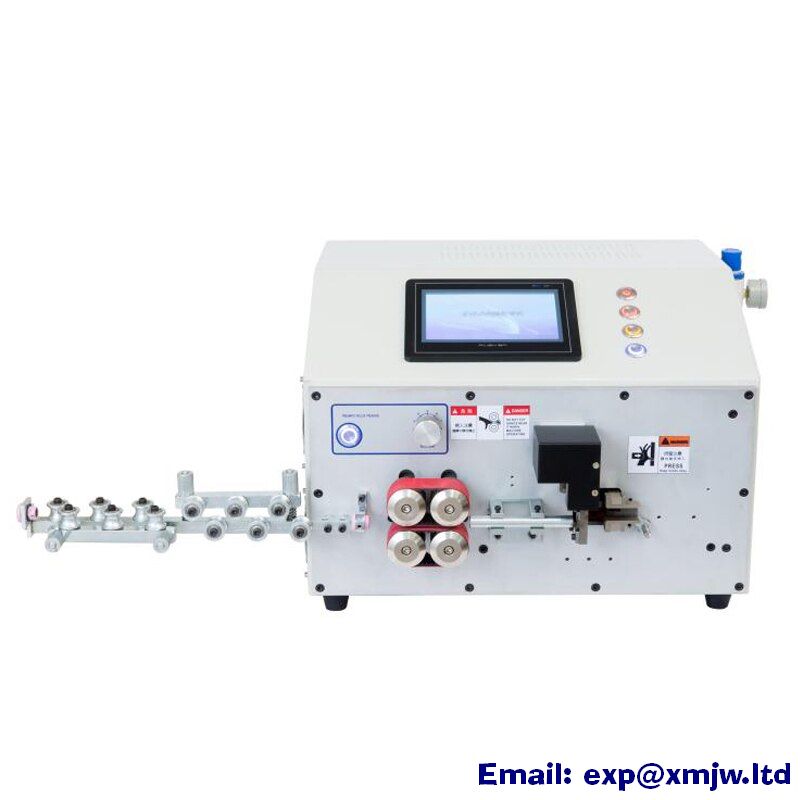

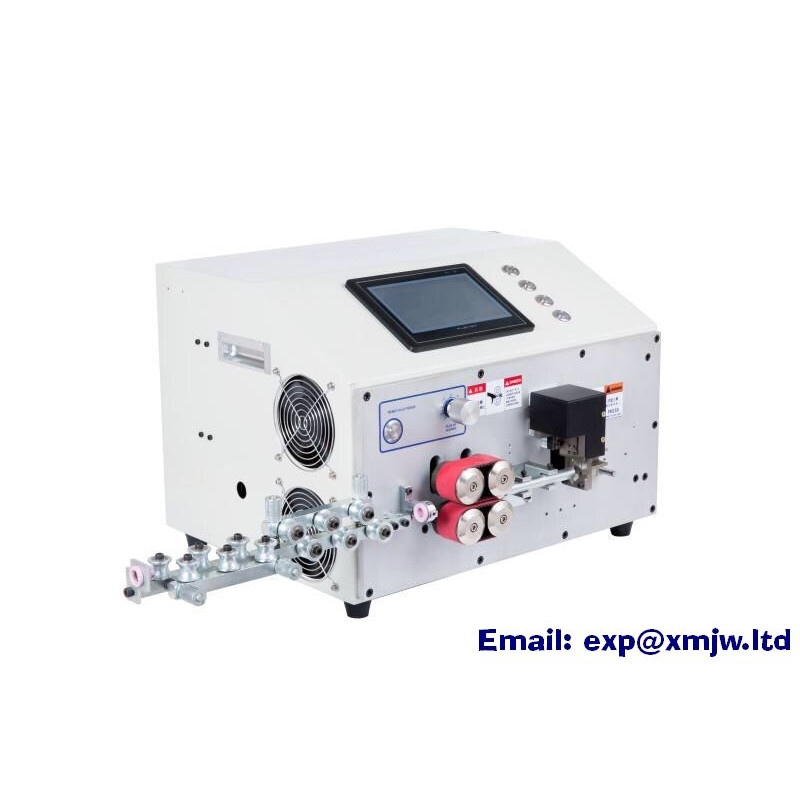

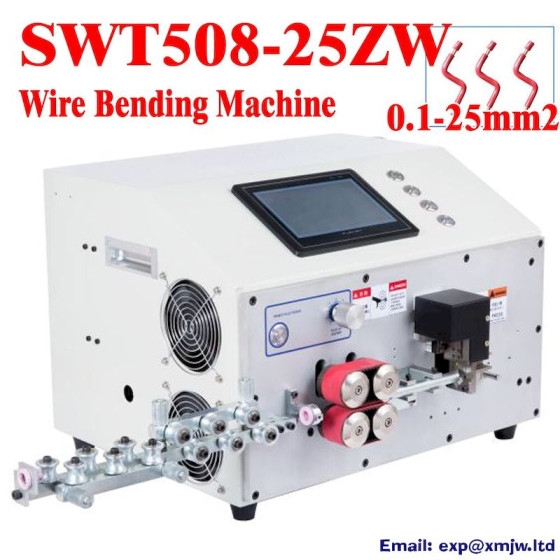

Model：SWT508-ZW25 (25 mm² Two-end peeling and bending machine)

(With forward and reverse straightener)

Weight：45KG

Machine dimension: 470*515*380mm

Power：650W

Electrical connection: 110V/220V 50HZ/60HZ

Operation interface: English/Chinese ( 7-inch touch screen)

Air pressure: 0.4-0.6Mpa

Wire cross section: 0.1～25mm²

Max conduit inside diameter:￠11mm

Peeling accuracy: ±0.2mm

Strip length：Front end:0-30; rear end:0-20mm

Bending shape: U-shaped, Z-shaped, clockwise and counterclockwise bending, adjustable bending angle of 30 degrees, 45 degrees, 60 degrees, 90 degrees~180 degrees

Blade material: High-speed steel
