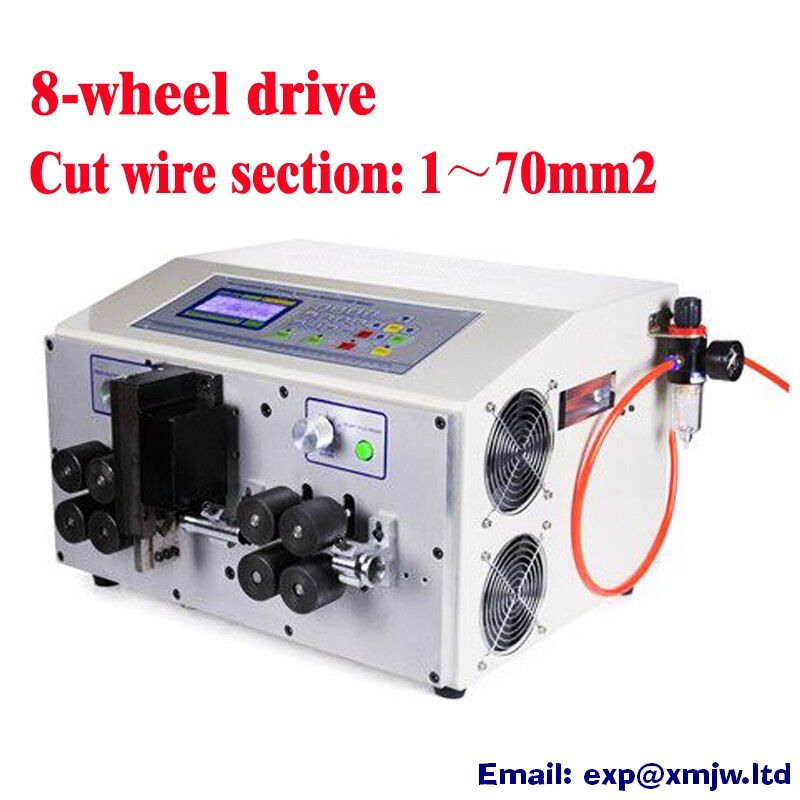

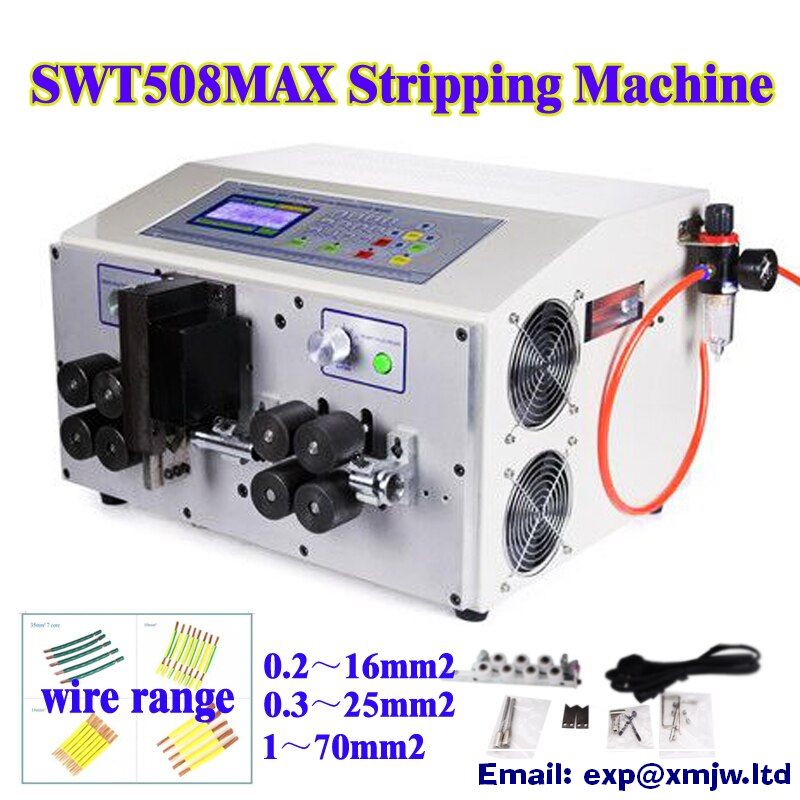

SWT508MAX Full Automatic 70mm² Wire Stripper
- Crystal Protect case is not included, if need plus extra $50)
- Wire Section Cutter with 8 Wheels Kit (RE:1.

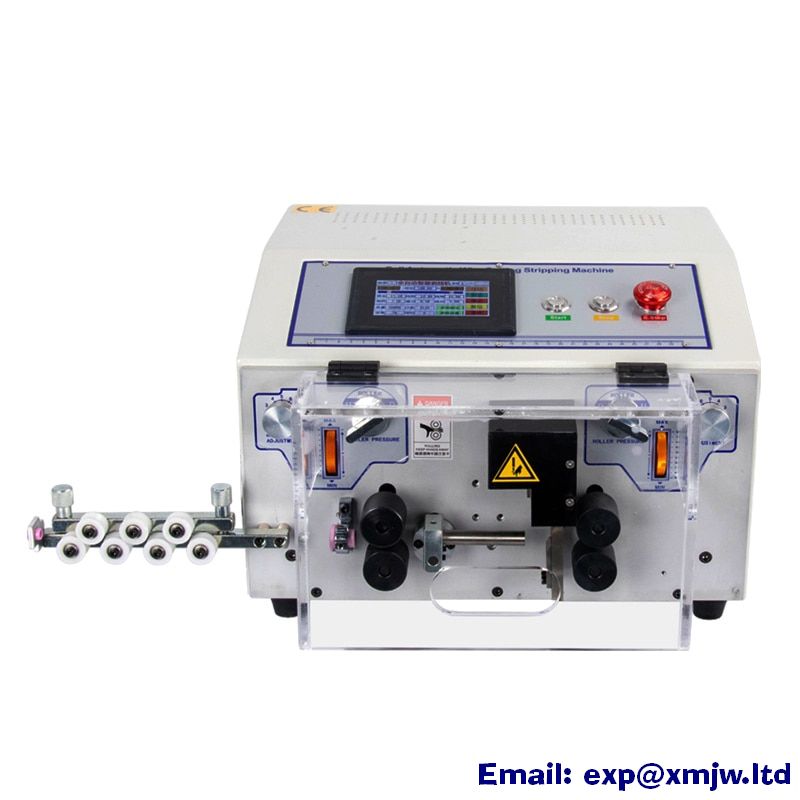

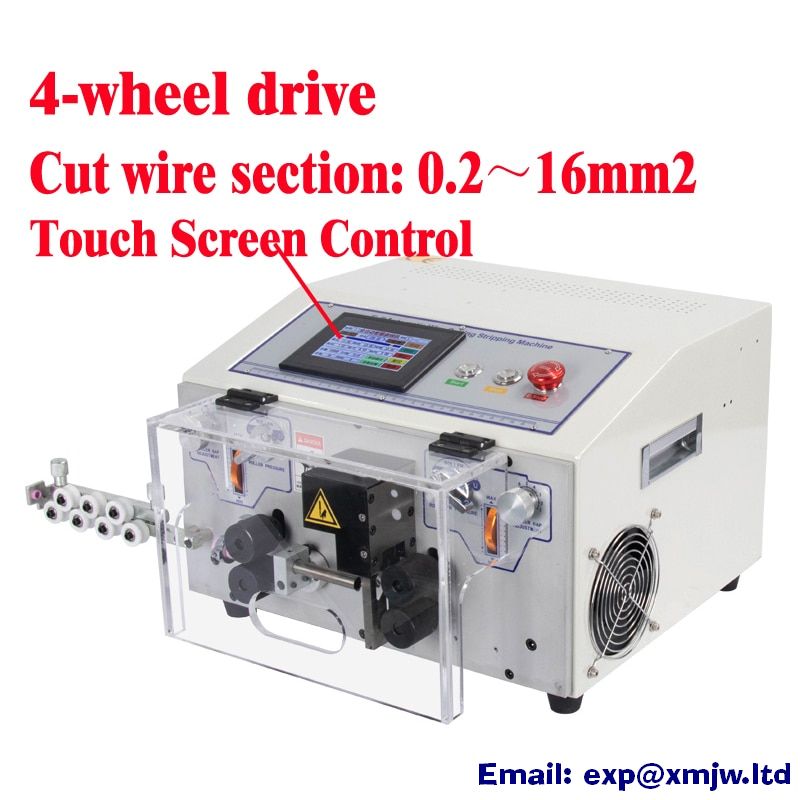

- SWT-508MAX1-4S is with touch screen control.
- Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
- Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing.
- Model
- SWT508MAX Full Automatic Wire Stripper
- Model Number
- SWT508MAX Full Automatic Wire Stripper
- Certification
- CE;FCC;RoHS
- Application
- Computer
- Origin
- Mainland China
- Type
- Male to Female
Reply within 24 hours · 12-month warranty
DDP Service (free tax shipping) to Russia / EU / USA/ Australia by train or sea, choose EMS

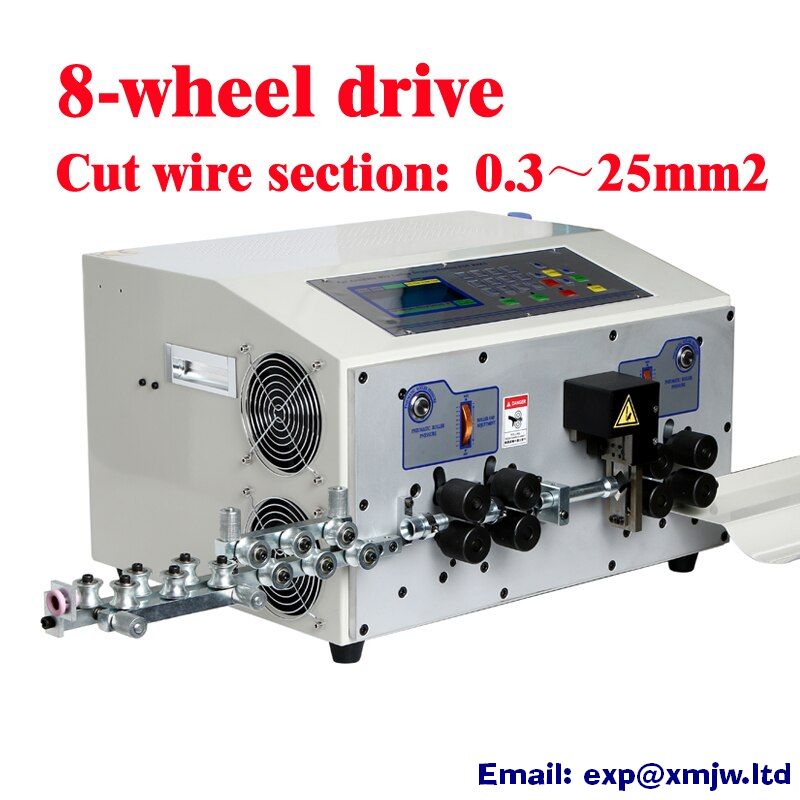

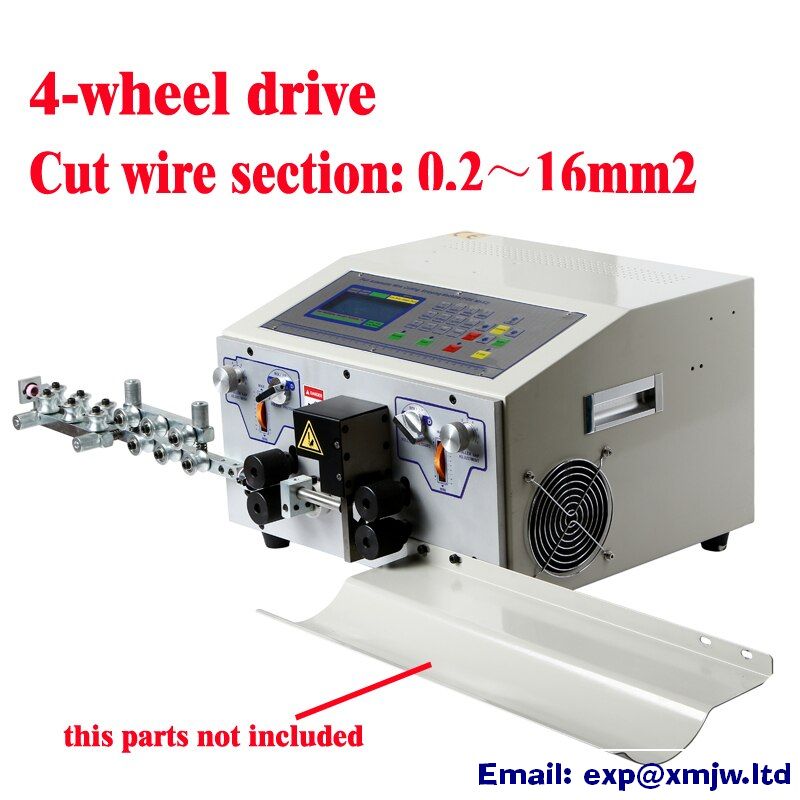

| Model | SWT508MAX1-4/4S wheels | SWT508MAX-8 wheels | SWT508MAX2-8 wheels |
| BV7 core/16 square | BV7 core 25 square | BV7-19 core 50-70 square | |
| 4-wheel drive | 8-wheel drive | 8-wheel drive | |
| Voltage | AC220/ 50HZ | AC220/ 50HZ | AC220/ 50HZ |
| Power | 500W | 800W | 1000W |
| Show | English/Chinese LCD | English/Chinese LCD | English/Chinese LCD |
| Cut length | 1mm～60000mm | 1mm～100000mm | 1～100000mm |
| Wire stripe length | wire head 0-50, | wire head 0-100, | wire head 0-150, |
| wire tail 0-50 | wire tail 0-100 | wire tail 0-150 | |
| Cut tolerance | (0.002xL)mm | (0.0001xL)mm | ± (0.0001xL) |
| Middle stripe | 13 places strips | 16 places strips | 16 places strips |
| Cut wire section | 0.2～16mm2 | 0.3～25mm2 | 1～70mm2 |
| Max diameter | ￠13 | ￠13 | ￠18 |
| Suitable for | PVC, teflon, glass wire, steel wire | PVC, teflon, glass wire, steel wire | PVC, teflon, glass wire, steel wire |
| Blade stuff | Imported steel | Imported steel | Imported steel |
| Speed(L=100MM/Hour) | 16square：2000-3000 | 4000-5000 | 5000-6000 |
| 25 square：3000-4000 | |||
| Drive | 4 wheels drive | 8 wheels drive | 8 wheels independent drive |
Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing.
Optimal stripped wire PVC, teflon, glass wire, etc.
Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc.
| Application | Computer |
|---|---|
| Certification | CE;FCC;RoHS |
| is_customized | Yes |
| Model | SWT508MAX Full Automatic Wire Stripper |
| Model Number | SWT508MAX Full Automatic Wire Stripper |
| Origin | Mainland China |
| Type | Male to Female |
