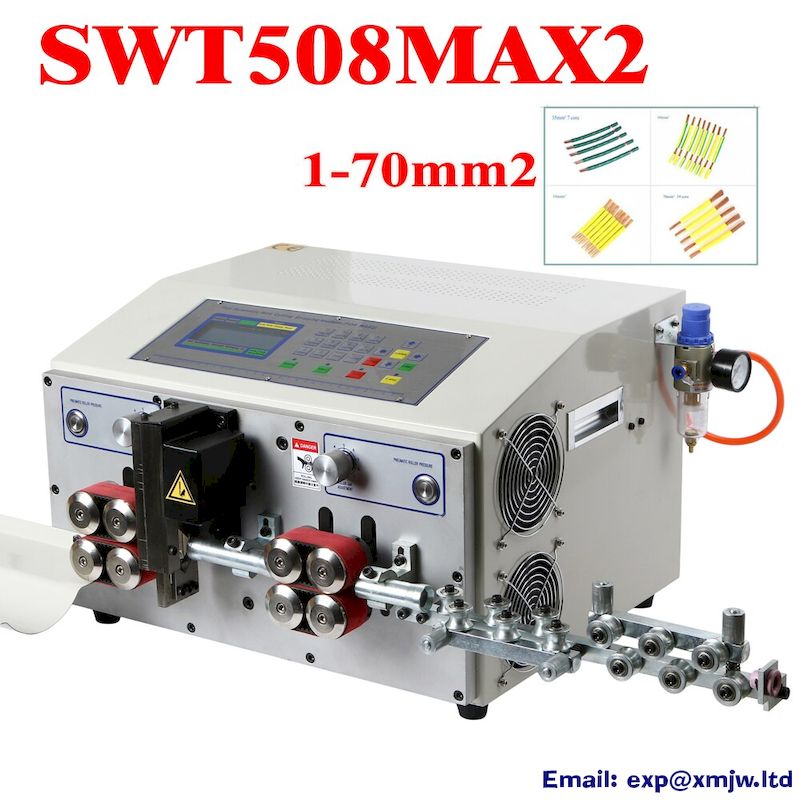

SWT508MAX2 70mm² Automatic Wire Peeling Machine
- Cutting length: 1-100000 mm
- Cutting tolerance: (0.0001 by L) mm
- Cut off the error: can be modified
- Stripping length:Front end 0-150mm. Rear end 0-150 mm
- Middle strip cut: 16 place strip
- Cutting wire core section:1-70mm2
- Model
- 70mm2 SWT508MAX2 Automatic Wire Stripping Peeling Cutting Machine
- Model Number
- SWT508MAX2 wire stripping machine
- Certification
- CE;FCC;RoHS
- Application
- Computer
- Origin
- Mainland China
- Type
- Male to Female
Reply within 24 hours · 12-month warranty
DDP Service (free tax shipping) to Russia / EU / USA/ Australia by train or sea, choose EMS
Parameter
1. Model:SWT508-MAX2
2. Voltage: AC 220V/110V 50/60 Hz
3. Power: 1000W
4. Cutting length: 1-100000 mm
5. Cutting tolerance: (0.0001 by L) mm
6. Cut off the error: can be modified
7. Stripping length:Front end 0-150mm. Rear end 0-150 mm
8. Middle strip cut: 16 place strip
9. Cutting wire core section:1-70mm2
10.Max diameter:￠18
11. Display: English / Chinese language
12. Optimal stripped wire: PVC/teflon/silica gel line /. Glass fiber cables. etc
13. The blade material: high speed steel
14. Peel linear velocity (a/hour) : 5000-6000 PCS/h

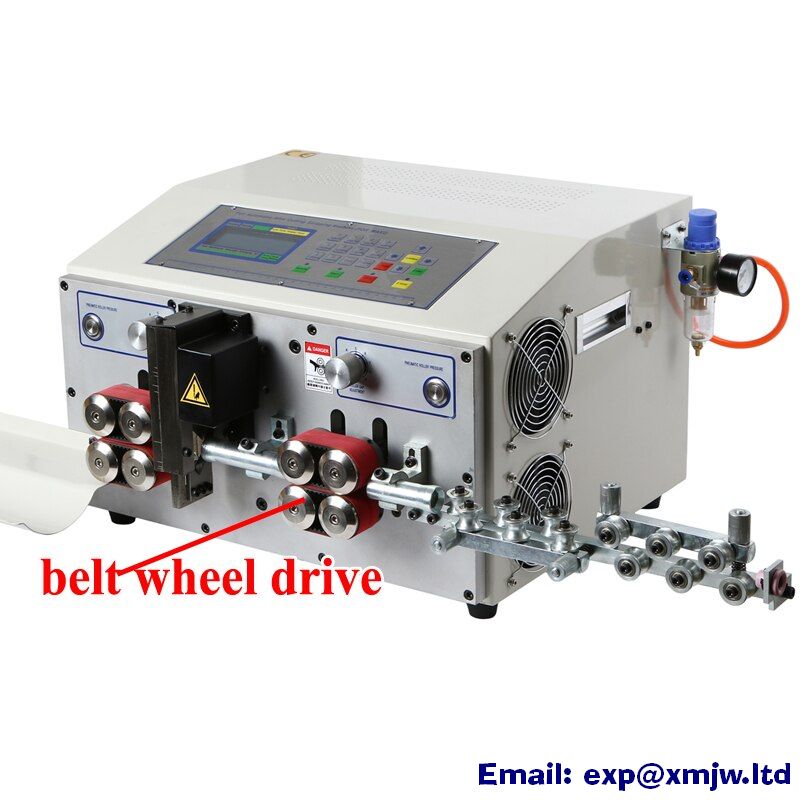

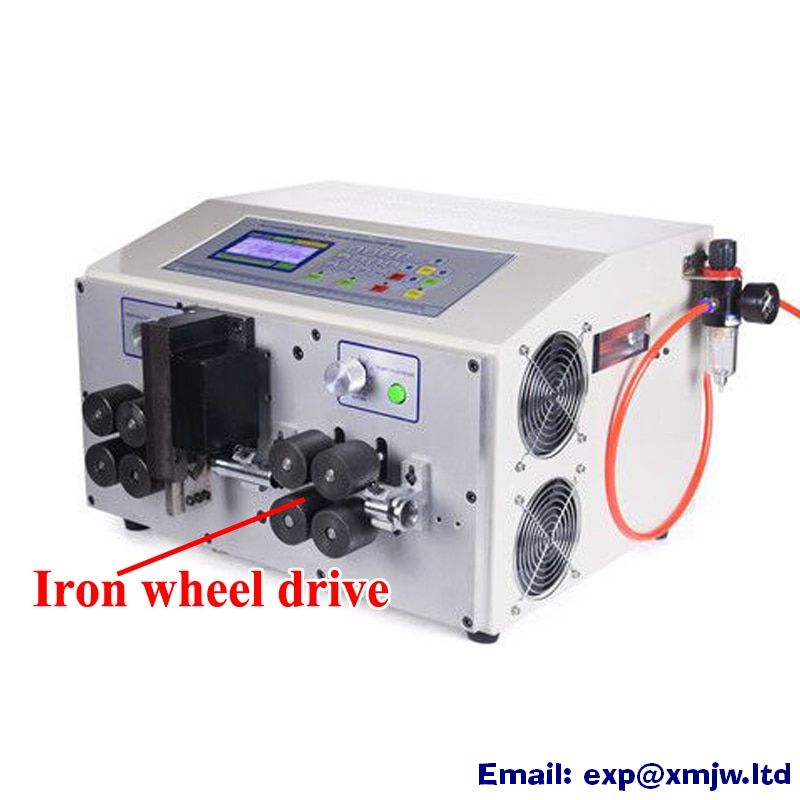

15. Driving way:independent 8 wheels drive / 8 belt wheels drive
| Application | Computer |
|---|---|
| Certification | CE;FCC;RoHS |
| is_customized | Yes |
| Model | 70mm2 SWT508MAX2 Automatic Wire Stripping Peeling Cutting Machine |
| Model Number | SWT508MAX2 wire stripping machine |
| Origin | Mainland China |
| Type | Male to Female |
