SWT508SD-S Touch Screen Automatic Cable Stripper
- Automatic Wire Stripping Peeling Cutting Machine SWT508SD 220V 110V Cable Cutter Stripper 1.
- L) mm 6,Cut off the error: can be modified 7,Stripping length:Front end 0-35mm,Rear end 0-15 mm 8,Middle strip cut: 11 places strip 9,Cutting wire core secti...
- Max cut diameter: ￠6 11,Optimal stripped wire: PVC/teflon/silica gel line /.
- Model
- SWT508SD/S 0.1-4.5MM2 wire stripping machine
- Model Number
- SWT508SD/S 0.1-4.5MM2 wire stripping machine
- Cutting length
- 1-9999 mm
- Certification
- CE;FCC;RoHS
- Application
- Computer
- Origin
- Mainland China
Reply within 24 hours · 12-month warranty
SWT508SD-S Touch Screen 0.1-4.5mm2 Automatic Wire Stripping Peeling Cutting Machine SWT508SD 220V 110V Cable Cutter Stripper

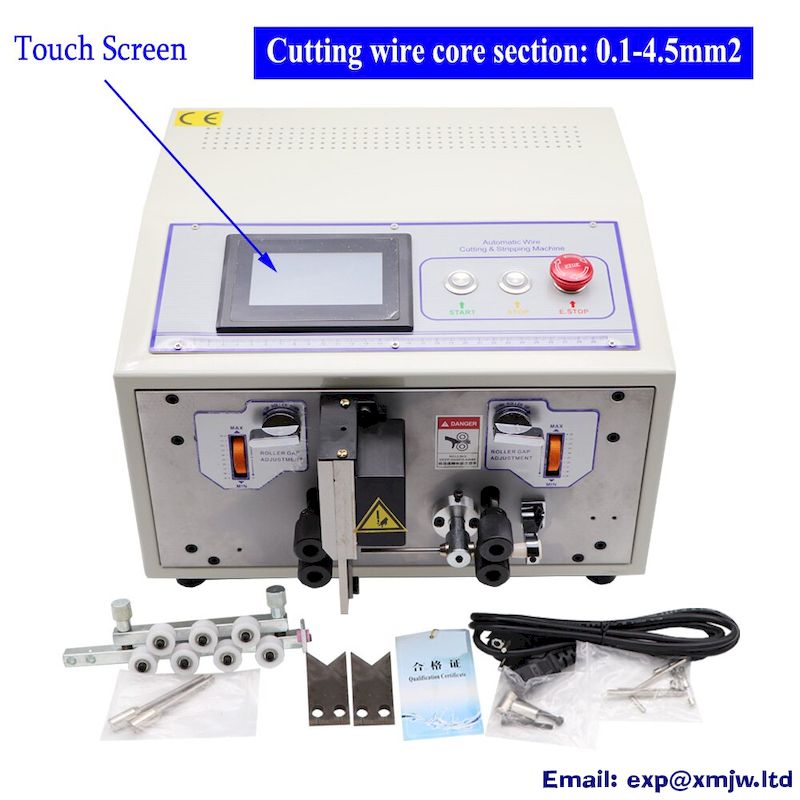

1.1,Model: SWT508-SD-S -- Touch Screen
2,Power: AC 220V/110V 50/60 Hz
3, POWER:200W
4,Cutting length: 1-9999 mm
5,Cutting tolerance: (0.2+/- 0.002 by L) mm
6,Cut off the error: can be modified
7,Stripping length:Front end 0-35mm,Rear end 0-15 mm
8,Middle strip cut: 11 places strip
9,Cutting wire core section:0.1-4.5mm2
10,Max cut diameter: ￠6
11,Optimal stripped wire: PVC/teflon/silica gel line /. Glass fiber cables, etc
12,The blade material: hard tungsten steel (import BaiGang optional)
13,Peel linear velocity (a/hour) : L = 100 mm, 3000-8000 PCS/h (high yield)
14,Driving way: 4 wheels drive
15,Envelop dimensions: 537*507*410
16,weight:31KG
17,Showing the way: Chinese and English LCD interface
18, 12 months warranty
19, Noise level <70dB(A)
0
| Application | Computer |
|---|---|
| Certification | CE;FCC;RoHS |
| Cutting length | 1-9999 mm |
| Cutting tolerance | (0.2+/- 0.002 by L) mm |
| Cutting wire core section | 0.1-4.5MM2 |
| Driving way: | 4 wheels drive |
| is_customized | Yes |
| Middle strip cut | 11 places strip |
| Model | SWT508SD/S 0.1-4.5MM2 wire stripping machine |
| Model Number | SWT508SD/S 0.1-4.5MM2 wire stripping machine |
| Optimal stripped wire | PVC/teflon/silica gel line /. Glass fiber cables;etc |
| Origin | Mainland China |
| Showing the way | Chinese and English LCD interface |
| Stripping length | Front end 0-35mm;Rear end 0-15 mm |
| Type | Male to Female |
