Automatic Wire Stripping Machine - SWT508SDB
- Cut off the error: can be modified 7,Stripping length:Front end 0-35mm,Rear end 0-15 mm 8,Middle strip cut: 11 places strip 9,Cutting wire core section:Singl...
- Max cut diameter: ￠6 11,Optimal stripped wire: PVC/teflon/silica gel line /.
- Model
- SWT508SDB2-S
- Model Number
- SWT508SDB2-S
- Cutting length
- 1-9999 mm
- Weight
- 30kg
- Certification
- CE;FCC
- Application
- Computer
Reply within 24 hours · 12-month warranty
Touch Screen LCD Controller SWT508 Automatic Wire Stripping Peeling Cutting Machine 0.1-4.5mm Cable Cutter Stripper 220V 110V
1.Model: SWT508-SDB2/S ---- Touch Screen
2,Power: AC 220V/110V 50/60 Hz
3, POWER:200W
4,Cutting length: 1-9999 mm
5,Cutting tolerance: (0.2+/- 0.002 by L) mm
6,Cut off the error: can be modified
7,Stripping length:Front end 0-35mm,Rear end 0-15 mm
8,Middle strip cut: 11 places strip
9,Cutting wire core section:Single wire 0.1-4.5mm2; double wires 0.1-2.5mm2
10,Max cut diameter: ￠6
11,Optimal stripped wire: PVC/teflon/silica gel line /. Glass fiber cables, etc
12,The blade material: hard tungsten steel (import BaiGang optional)
13,Peel linear velocity (a/hour) : L = 100 mm, 5000-10000 PCS/h (high yield)
14,Driving way: 4 wheels drive
15,Envelop dimensions: 537*507*410
16,weight:30KG

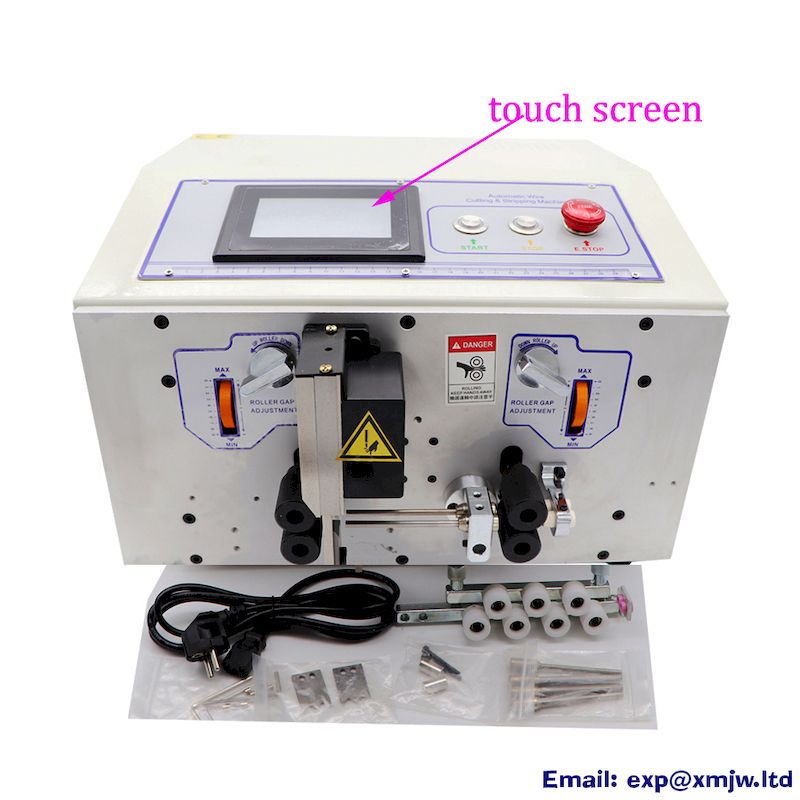

17,Showing the way: Chinese and English LCD interface
18, 12 months warranty
19, Noise level <70dB(A)
| Application | Computer |
|---|---|
| Certification | CE;FCC |
| Cutting length | 1-9999 mm |
| Cutting wire core section | Single wire 0.1-4.5mm2; double wires 0.1-2.5mm2 |
| Driving way | 4 wheels drive |
| is_customized | Yes |
| Model | SWT508SDB2-S |
| Model Number | SWT508SDB2-S |
| Origin | Mainland China |
| Showing the way | Chinese and English LCD interface |
| Type | Male to Female |
| Weight | 30kg |
