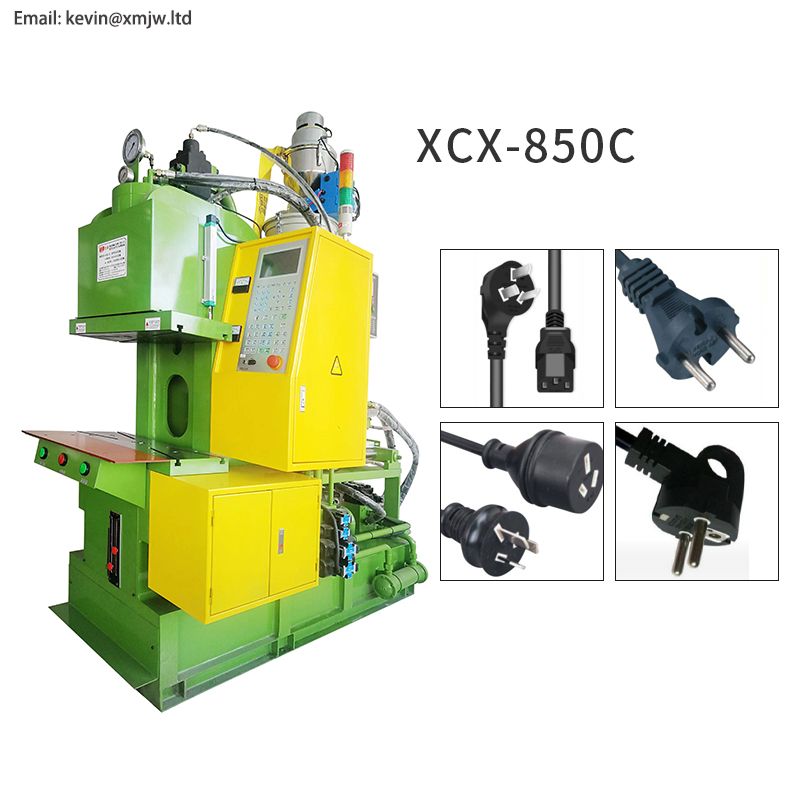

Vertical Clamp Horizontal Injection Molding Machine - AC DC Plugs
- C-type body ,operating without pillars obstruct, fast.
- Details Images The temperature control of the second (third) stage, the firing rate, the pressure, and the screw speed are infinitely adjustable, precise and...
- Single and double slides can be installed, which is more convenient to operate and higher safety.
- Regarding our spot, the stock is sufficient.
- Power (kW)
- 12.7 kW
- Screw Speed (rpm)
- 0 - 230 rpm
- Injection Weight (g)
- 75 g
- Max shot weight (PS)
- 250/315
- Single gross weight
- 5600KG
- Weight (KG)
- 5600 kg
Reply within 24 hours · 12-month warranty
Product Description
FEATURES

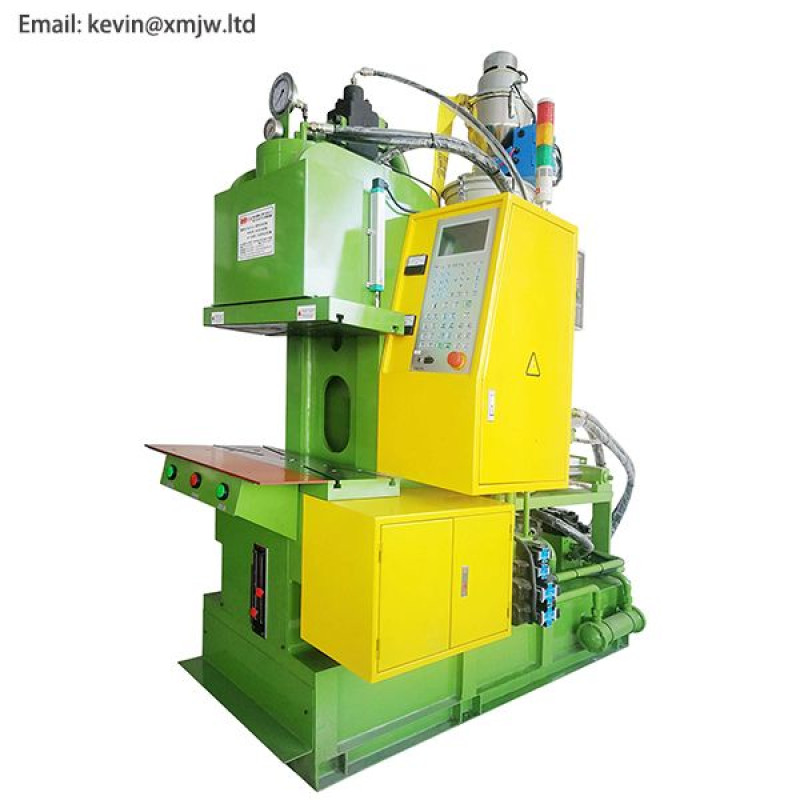

1 vertical clamping ,horizontal injection ,the body compact,powerful injection for larger insert molding.
2C-type body ,operating without pillars obstruct, fast.
3 the injection unit level can be adjusted up or down.
4 the optional installation of skateboarding ding,disc, improve work efficiency.
Sample Display
Details Images
The temperature control of the second (third) stage, the firing rate, the pressure, and the screw speed are infinitely adjustable, precise and stable.
Fast mold clamping, reducing pressure and mold clamping, and protecting the safety of mold lifeSingle and double slides can be installed, which is more convenient to operate and higher safety.
Regarding our spot, the stock is sufficient. Fast delivery
| Applicable Industries | Building Material Shops;Manufacturing Plant;Energy & Mining;Other |
|---|---|
| Brand Name | XCX |
| Condition | New |
| Core Components | Motor;PLC |
| Ejector Force(kN) | 8500 kN |
| Ejector Stroke(mm) | 350 mm |
| Injection pressure | 1600-1520/cm2 |
| Injection Rate (g/s) | 230 g/s |
| Injection Weight (g) | 75 g |
| Key Selling Points | Multifunctional |
| Machine Type | Electric |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Max shot weight (PS) | 250/315 |
| Open Stroke(mm) | 175 mm |
| Opening stroke | 225 |
| Place of Origin | Guangdong;China |
| Plastic Processed | PP;PC;ABS;PET;PVC;PPR;PE;PE/PP |
| Power (kW) | 12.7 kW |
| Screw diameter | 42-50 |
| Screw diameter (mm) | 50 mm |
| Screw Speed (rpm) | 0 - 230 rpm |
| Showroom Location | India |
| Single gross weight | 5600KG |
| Single package size | 3.3*1.3*2.7 |
| Style | VERTICAL |
| Theoretical Shot Volume(cm³) | 140 cm³ |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
| Warranty of core components | 1 Year |
| Weight (KG) | 5600 kg |
