Double Layer Round Sheath Wire Stripping Machine
- Layer Peeling Tool 560W Outer diameter of processed circular sheath: 2-10 mm Weight：45KG Power：560W Electrical connection: 110V/220V 50HZ/60HZ Operation inte...
- Round sheath wire) Number of wire cores that can be processed: 2 cores, 3 cores, 4 cores, 5cores Max conduit inside diameter:￠13mm Length accuracy： ± 0.
- Blade material: high-speed steel Transport speed: (L=200MM piece/hour） 2500-3500 pieces Driving mode: eight-wheel drive (silent hybrid stepper motor, 0.
- Model
- 2-10MM Wire Stripping Cutting Machine
- Model Number
- 2-10MM Wire Stripping Cutting Machine
- Power
- 560W
- Machine dimension
- 490*515*345mm
- Certification
- CE;FCC;RoHS
- Application
- Computer
Reply within 24 hours · 12-month warranty

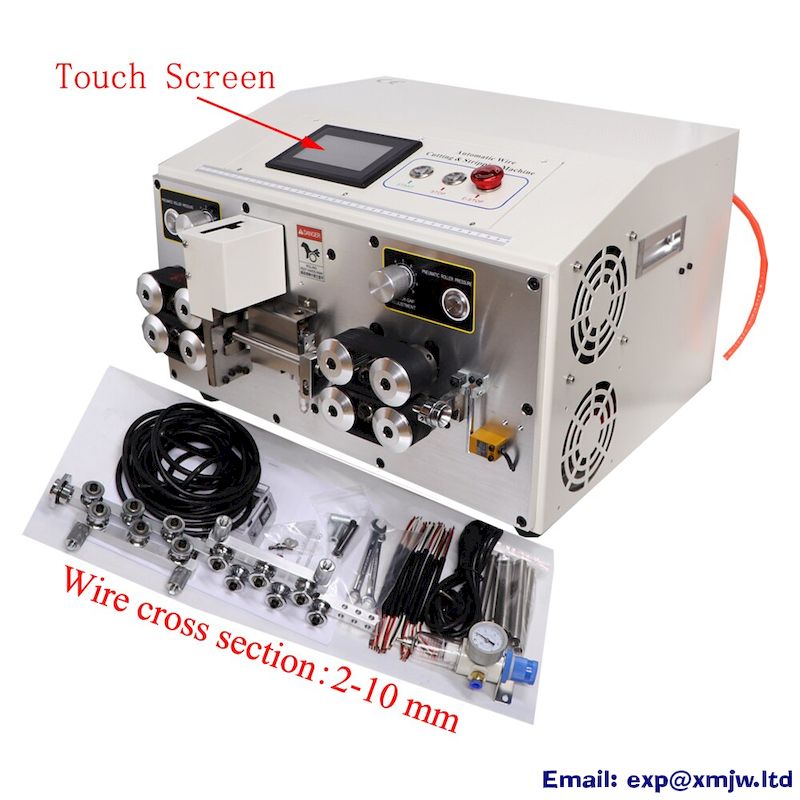

Outer Diameter 2-10MM Wire Stripping Cutting Machine with Blade Round Sheath Inner And Outer Double Layer Peeling Tool 560W
Outer diameter of processed circular sheath: 2-10 mm
Weight：45KG Power：560W
Electrical connection: 110V/220V 50HZ/60HZ
Operation interface: 4.3 inch Chinese and English switching touch screen display
Machine dimension: 490*515*345mm
Wire cross section: ￠2-10mm (Round sheath wire)
Number of wire cores that can be processed: 2 cores, 3 cores, 4 cores, 5cores
Max conduit inside diameter:￠13mm
Length accuracy： ± 0.2mm Air pressure: 0.8Mpa
Wire length range：Max 9999mm
Outer wire strip length：Front end:1-200; rear end:1-100mm
Blade material: high-speed steel
Transport speed: (L=200MM piece/hour） 2500-3500 pieces
Driving mode: eight-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
| Application | Computer |
|---|---|
| Blade material | High-speed steel |
| Certification | CE;FCC;RoHS |
| Driving mode | eight-wheel drive |
| Electrical connection | 110V/220V 50HZ/60HZ |
| is_customized | Yes |
| Machine dimension | 490*515*345mm |
| Model | 2-10MM Wire Stripping Cutting Machine |
| Model Number | 2-10MM Wire Stripping Cutting Machine |
| Operation interface | 4.3 inch Chinese and English switching touch screen display |
| Origin | Mainland China |
| Outer wire strip length | Front end:1-200; rear end:1-100mm |
| Power | 560W |
| Type | Male to Female |
| Wire cross section | 2-10mm (Round sheath wire) |
| Wire material | PVC;Teflon;Braided;Fiberglass wire |
