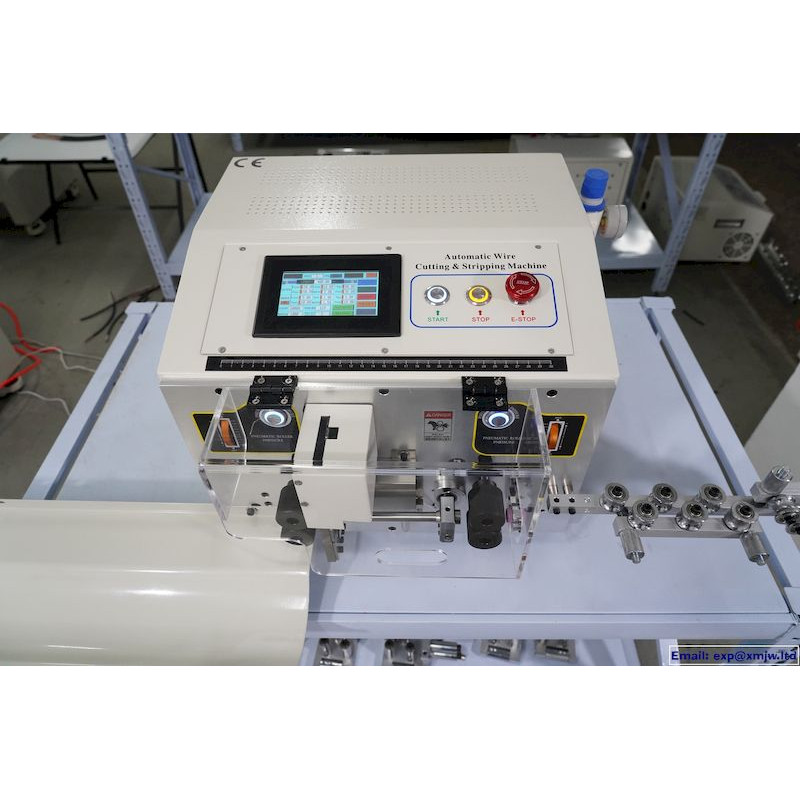

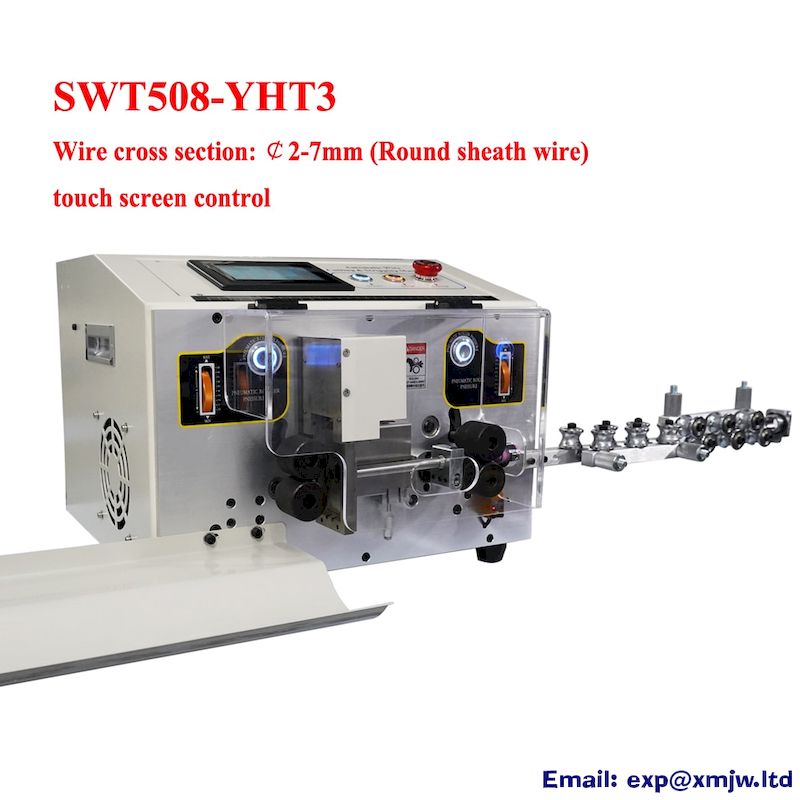

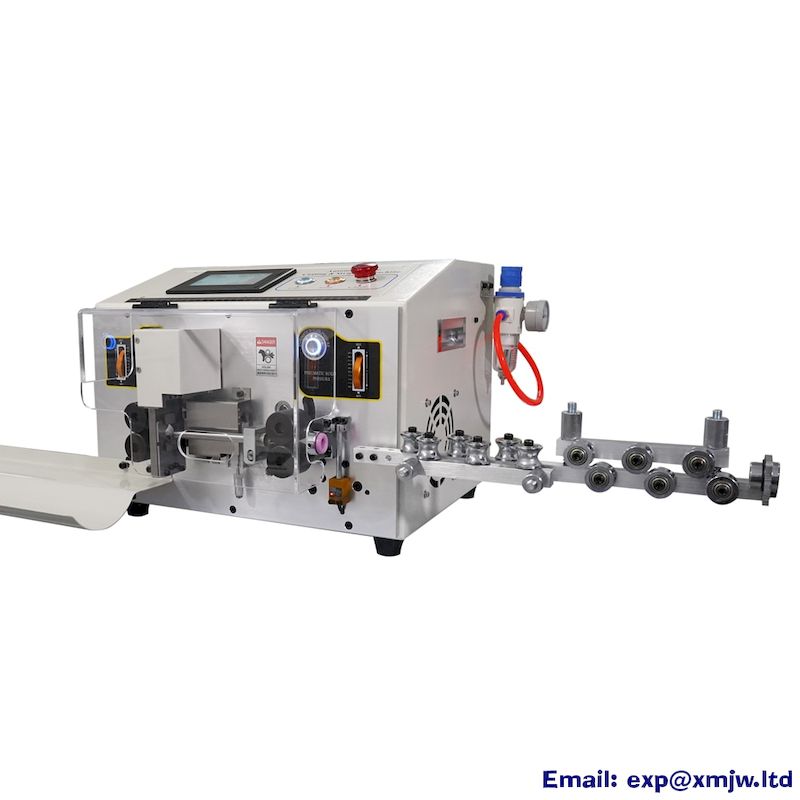

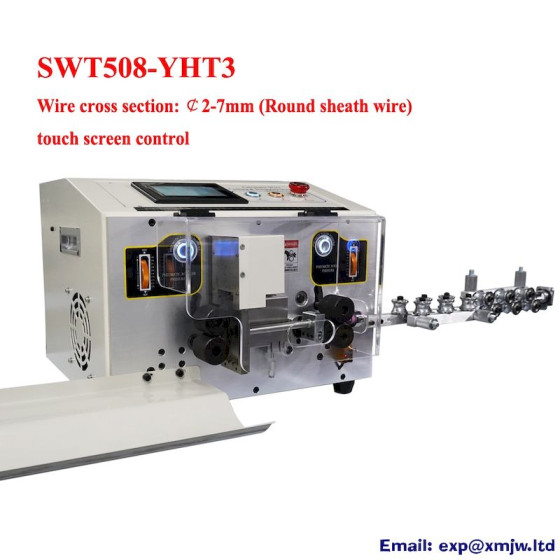

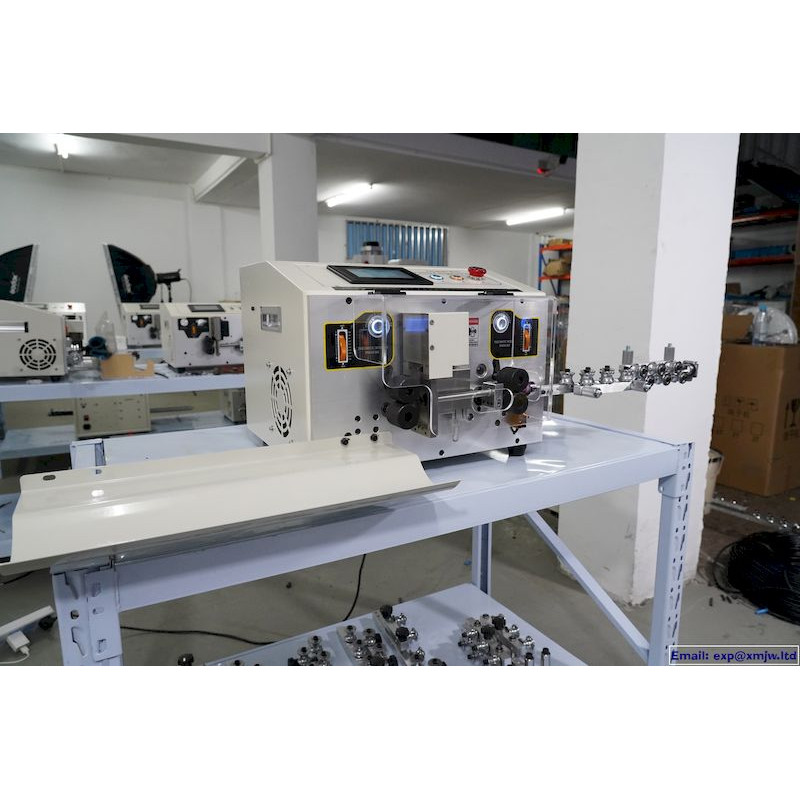

SWT508 YHT3 Double Round Core Cable Stripping Machine
- With Forward and reverse straightener)( Protective cover is optional) Weight：38KG Power：300W Electrical connection: 110V/220V 50HZ/60HZ Operation interface: 4.
- Machine dimension: 450*420*335mm Wire cross section: ￠2-7mm (Round sheath wire) Number of wire cores that can be processed: 2 cores, 3 cores, 4 cores Air pre...
- Blade material: high-speed steel Transport speed: (L=200MM piece/hour） 2000-3000 pieces Driving mode: four-wheel drive (silent hybrid stepper motor, 0.
- Model
- SWT508 YHT3
- Model Number
- SWT508 YHT3
- Power
- 300W
- Machine dimension
- 450*420*335mm
- Certification
- CE;FCC;RoHS
- Application
- Computer
Reply within 24 hours · 12-month warranty
Wire Range 2-7mm SWT508 YHT3 Wire Peeling Stripping Cutting Machine Double Round 2/3/4 Cores Cable Sheath Stripper Cutter Tool

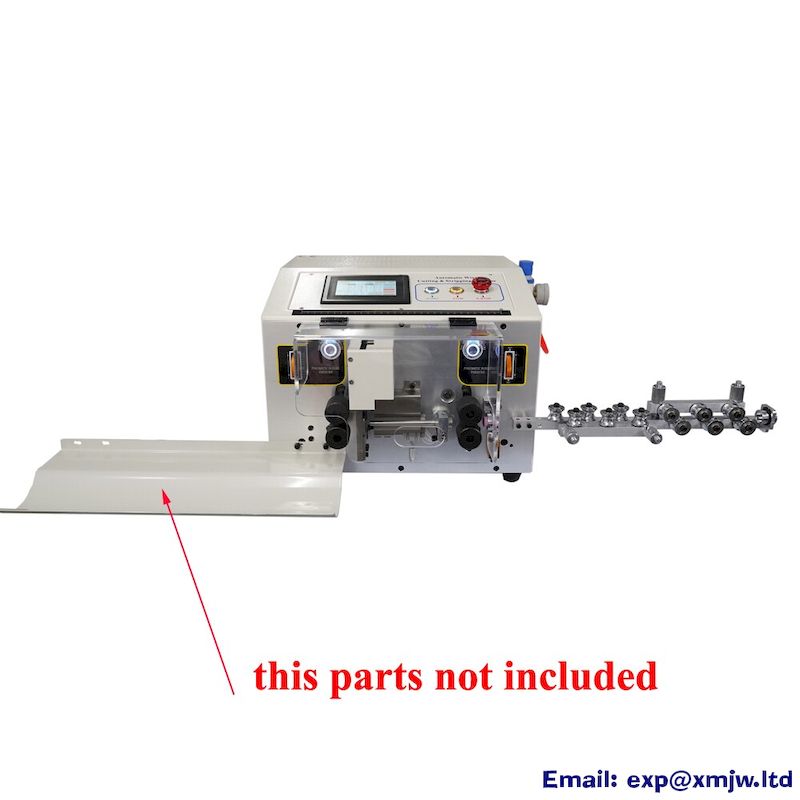

P.S: The wire collecting board and protect cover is not include. if you need add. please contact seller.
Model：SWT508-YHT3（High speed round sheath inner and outer double layer peeling machine）
(With disconnection device)(With Forward and reverse straightener)( Protective cover is optional)
Weight：38KG Power：300W
Electrical connection: 110V/220V 50HZ/60HZ
Operation interface: 4.3 inch Chinese and English switching touch screen display
Machine dimension: 450*420*335mm
Wire cross section: ￠2-7mm (Round sheath wire)
Number of wire cores that can be processed: 2 cores, 3 cores, 4 cores
Air pressure: 0.8Mpa Length accuracy： ± 0.2mm
Max conduit inside diameter:￠9mm
Wire length range：Max 9999mm
Outer wire strip length：Front end:1-150; rear end:1-150mm
Blade material: high-speed steel
Transport speed: (L=200MM piece/hour） 2000-3000 pieces
Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
| Application | Computer |
|---|---|
| Blade material | High-speed steel |
| Certification | CE;FCC;RoHS |
| Driving mode | four-wheel drive (silent hybrid stepper motor;0.1mm forward per step) |
| is_customized | Yes |
| Machine dimension | 450*420*335mm |
| Max conduit inside diameter | 9mm |
| Model | SWT508 YHT3 |
| Model Number | SWT508 YHT3 |
| Operation interface | English/Chinese (LCD display) |
| Origin | Mainland China |
| Outer wire strip length | Front end:1-150; rear end:1-150mm |
| Power | 300W |
| Type | Male to Female |
| Wire cross section | 2-7mm (Round sheath wire) |
| Wire length range | 0.1-9999mm |
| Wire material | PVC;Teflon;Braided;Fiberglass wire |
