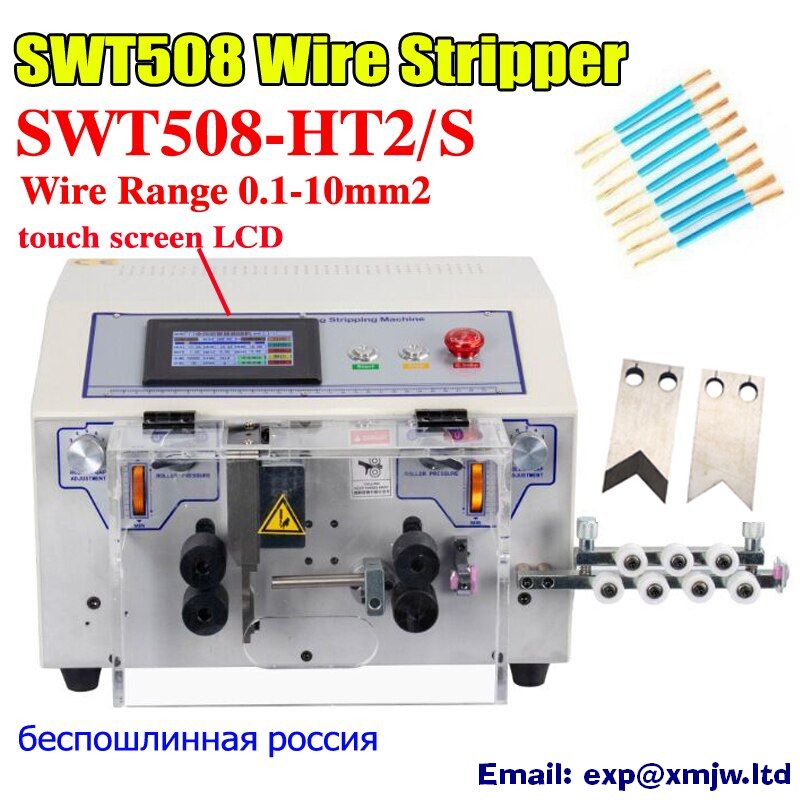

SWT508-HT2/S Touch Screen 10mm² Wire Stripper Cutter
- SWT508-HT2/S Touch Screen Computer Automatic Cable Stripping Peeling Cutting Machine SWT508-HT2-S is with touch screen control.
- Applications: Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wi...
- Optimal stripped wire PVC, teflon, glass wire, etc.
- Model
- 0.1-10mm2 Automatic Stripping Peeling Cutting Machine
- Model Number
- 0.1-10mm2 Automatic Stripping Peeling Cutting Machine
- Certification
- CE;FCC;RoHS
- Application
- Computer
- Origin
- Mainland China
- Type
- Male to Female
Reply within 24 hours · 12-month warranty
Wire Stripper Cutter 0.1-10mm2 SWT508-HT2/S Touch Screen Computer Automatic Cable Stripping Peeling Cutting Machine
P.S: The wire collecting board and protect cover is not include. if you need add. please contact seller.
SWT508-HT2-S is with touch screen control.
Applications:
Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.
| The model | SWT508-HT2/HT2S |
| Power | AC 220V/110V50/60 Hz |
| POWER | 450W |
| Cutting length | 1-100,000 mm |
| Cutting tolerance | (0.1+/- 0.001 by L) mm |
| Cut off the error | can be modified |
| Stripping length | Front end 0-200mm,Rear end 0-150 mm |
| Middle strip cut | 13 place strip |
| Cutting wire core section | 0.1-10mm2 was the (AWG7 #-AWG28 #) |
| Max cut diameter | ￠13 |
| Optimal stripped wire | PVC/teflon/silica gel line /. Glass fiber cables, etc |
| The blade material | hard tungsten steel (import BaiGang optional) |
| Peel linear velocity (a/hour) | L = 100 mm, 3000-6000 PCS/h (high yield) |
| Driving way | 4 wheels drive |
| Showing the way | Chinese and English LCD interface |
| Warranty | 12 months |
| Noise level | <70dB(A) |
| Application | Computer |
|---|---|
| Certification | CE;FCC;RoHS |
| is_customized | Yes |
| Model | 0.1-10mm2 Automatic Stripping Peeling Cutting Machine |
| Model Number | 0.1-10mm2 Automatic Stripping Peeling Cutting Machine |
| Origin | Mainland China |
| Type | Male to Female |
