Handheld Nylon Cable Tie Machine Zip Tie Gun - X-WM06A Pistol Car Type
- The disordered bulk cable ties flow into random vibration plate, cable ties piped through to tips.
- Pull the trigger, automatic feeding, tape, tightening, cutting, polishing wastes and all other actions;3.
- A year can save wage costs over 20 million;4.
- Waste collected automatically in a waste box via a dedicated recovery system (optional);5.
- Hand held tip lightweight ,compact design grip, easy to hold, long-term use will not feel tired;6.
- Tying the intensity or tension can be adjusted by the knob;7.
- Model Number
- X-WM07A
- Power supply
- AC220V/110V 50/60HZ
- Tying speed
- 0.5s/pc
- Weight
- 130kg
- Dimension
- 650 * 650 * 720 mm
- Place of Origin
- Guangdong;China
Reply within 24 hours · 12-month warranty
Product Description

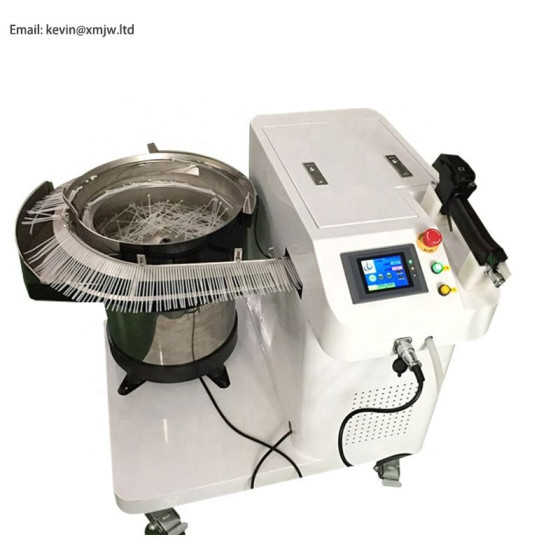

Features:1.The disordered bulk cable ties flow into random vibration plate, cable ties piped through to tips.2.Pull the trigger, automatic feeding, tape, tightening, cutting, polishing wastes and all other actions;3.0.7 seconds to complete all actions including feeding, tape, tightening, cutting, polishing wastes, also including auxiliary time, the whole cycle a total of about 1.3 seconds.A machine can replace 7-8 workers. A year can save wage costs over 20 million;4.Waste collected automatically in a waste box via a dedicated recovery system (optional);5.Hand held tip lightweight ,compact design grip, easy to hold, long-term use will not feel tired;6.Tying the intensity or tension can be adjusted by the knob;7.Host body own PLC control system, touch screen Chinese /English display, simple operation;8.In automatic production line can be conjunction with robot to achieve fully automatic cable tie,Also it can be fixed to the table using as the desktop cable tie machine.
Specification
| Model | X-WM06A |
| Type | Handheld tie gun |
| Cable tie length | 80/100/120/150 mm (can be customized) |
| Tension force | >20N |
| Tying Bundle Diameter | 1mm - 30 mm |
| Rest length after cutting | 1-3MM |
| Tying speed | 0.5 s/pc |
| Compressed air connection | 0.55 - 0.65 MPa |
| Power supply | 110, 220 V (50 - 60 Hz) |
| Dimension | 650 * 650 * 720 mm |
| Weight | 130 kg |
| Brand Name | X cable Tech |
|---|---|
| Cable tie length | 80/100/120/150 mm (can be customized) |
| Compressed air connection | 0.55 - 0.65 MPa |
| Dimension | 650 * 650 * 720 mm |
| Function | Cable Tying |
| Model Number | X-WM07A |
| Place of Origin | Guangdong;China |
| Power supply | AC220V/110V 50/60HZ |
| Rest length after cutting | 1-3mm |
| Tying Bundle Diameter | 1mm - 30 mm |
| Tying speed | 0.5s/pc |
| Type | Handheld tie gun |
| Usage | Binding |
| Weight | 130kg |
