0.3-25mm² Cable Stripping Machine - Auto Wire Strip, Wide Range
- Peeling at both ends, full peeling, half peeling, multiple stripping and cutting in the middle
- The two wheels are driven at the same time, the gear is cut off, the knife cut is neat, and the stripping quality is stable
- Low loss, no damage to core lin,e durable and abrasion resistant.
- Using 7 round straightener, the wire more precision, improve work quality and efficiency.
- New economical high speed design, core processor running, fast speed and stable performance
- Model Number
- SW-MAX25
- Certification
- CE
- Application
- electronic
- Origin
- Mainland China
Reply within 24 hours · 12-month warranty

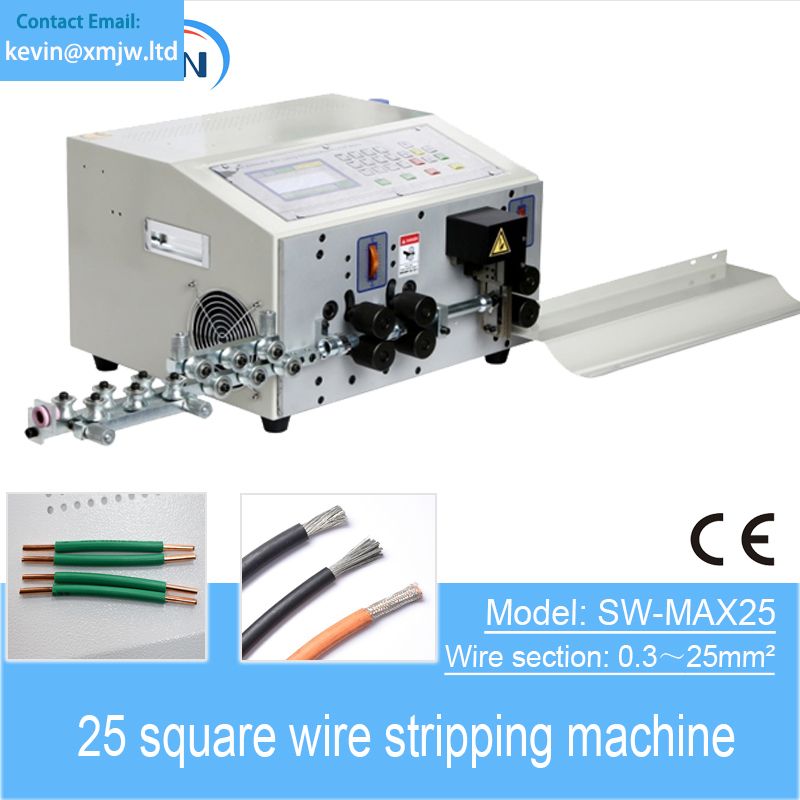

25 Square Cable Stripping Machine Auto Wire Strip Machine
This machine is mainly suitable for processing wires in such industries as electronic products, electric appliances, toys and auto and motorcycle parts, etc. With a microcomputer controlled very clean designed mechanism, it cuts and strips wire automatically. The direct and easy-to-use interface allows inexperienced users to operate it easily. Various cutting style and programmable length and distance can suit any wire assemble needed. Rapid and automatic cutting allow high boost the productivity.
* Peeling at both ends, full peeling, half peeling, multiple stripping and cutting in the middle
* The two wheels are driven at the same time, the gear is cut off, the knife cut is neat, and the stripping quality is stable
* Low loss, no damage to core lin,e durable and abrasion resistant.
* Using 7 round straightener, the wire more precision, improve work quality and efficiency.
* New economical high speed design, core processor running, fast speed and stable performance
Product Description
| Model | SW-MAX25 |
|---|---|
| Power supply | AC220V50/60HZ |
| Function | Wire cutting, double-end stripping, middle stripping |
| Wire range | 0.1-25mm2 |
| Size | 54*53*41cm |
| Cutting length | 0.1mm-99999.9mm |
| weight | 39kg |
| Stripping length | head 0.1-50mm, stripping tail 0.1-50mm |
| Blade material | Imported tungsten steel / high speed steel |
| Middle strip | 13 segments |
| Capacity | 4000-5000pcs/h |
| Display method | LCD English display |
| Remarks | Function Automatic in/out, timing start, jog adjustment |
| Power | 800W |
| Application | electronic |
|---|---|
| Certification | CE |
| is_customized | Yes |
| Model Number | SW-MAX25 |
| Origin | Mainland China |
