Cable Equipment Auto Cut Stripping Machine - Single/Multi Core Sheathed
- Sheath wire Single core Multi Core Cut Stripping ;
- All kinds of wire can be customized ;
- It's widely used in the electronics industry, the city ahs, electrical appliances,motor, lamps, toys, auto parts and other various products of wire processing.
- Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.
- Automatic cutting, stripping, semi-stripping,multi-segment stripping function once completed,can instantly transform wire specifications and dimensions,it’s ...
- Optimal stripped wire PVC/Wires/cables etc.
- Model Number
- HS-BX04
- Speed Adjust
- 1-9
- Stripping Multicore Wire Range
- 2x0.5mm2 - 3x1mm2
- Wire Range
- 1mm2-10mm2
- Cutting length
- 1-99999mm
- Wire Guide Size I.D
- 4mm;6mm;8mm;10mm
Reply within 24 hours · 12-month warranty
Cable Manufacturing Equipment

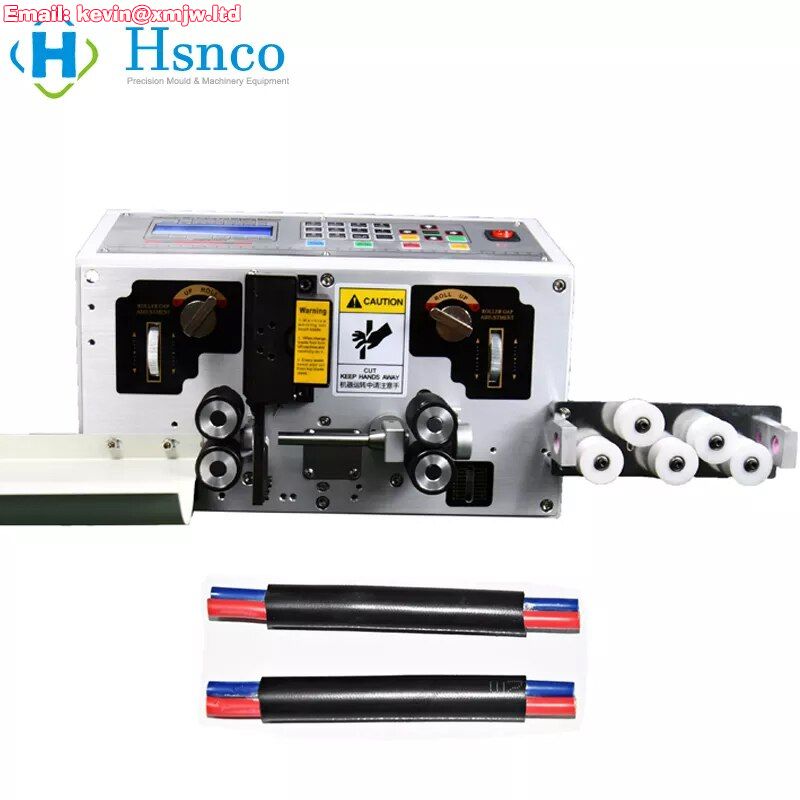

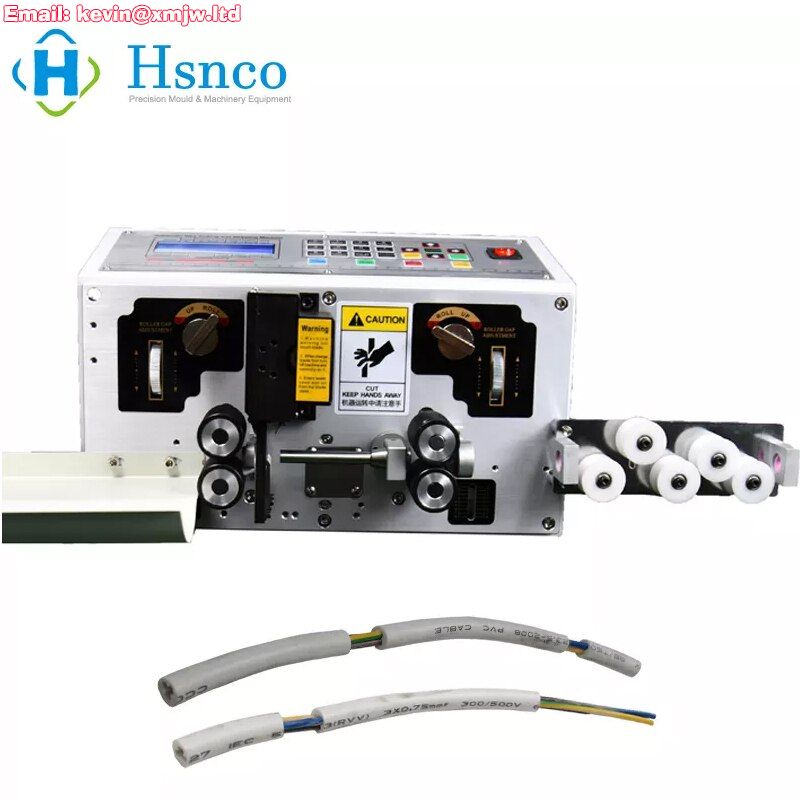

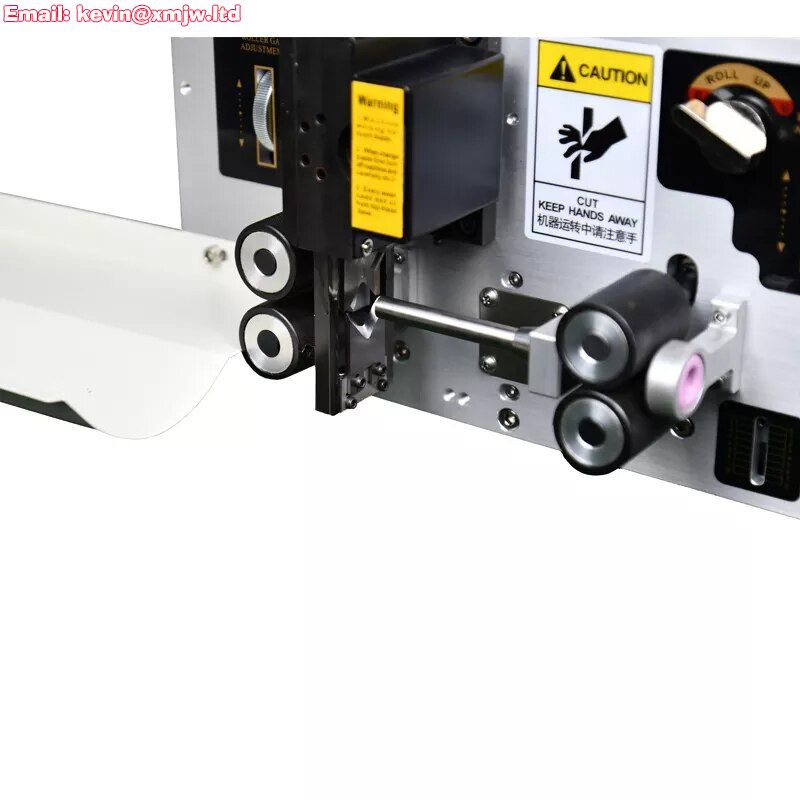

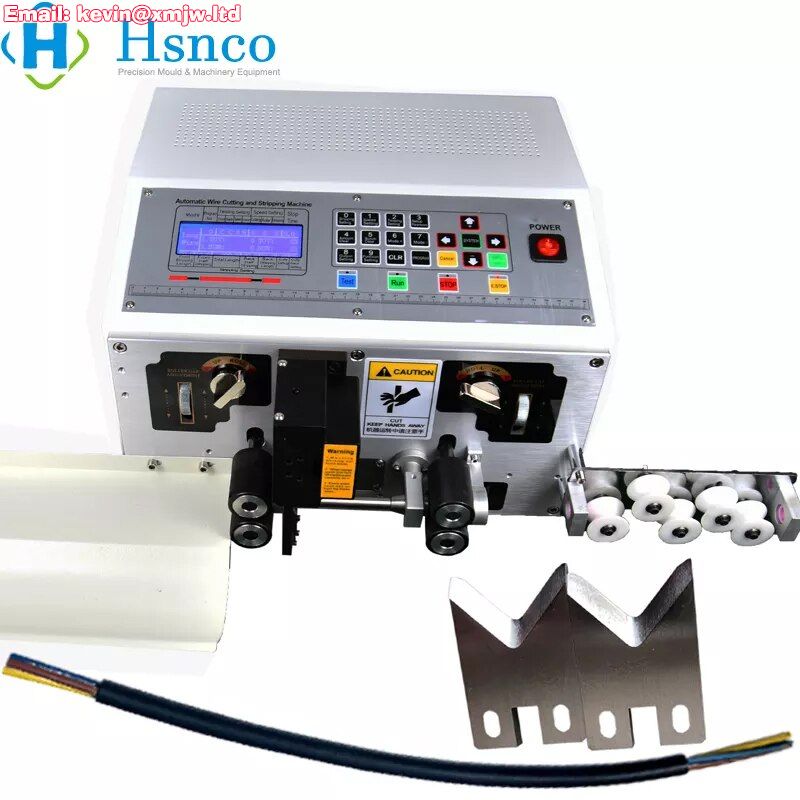

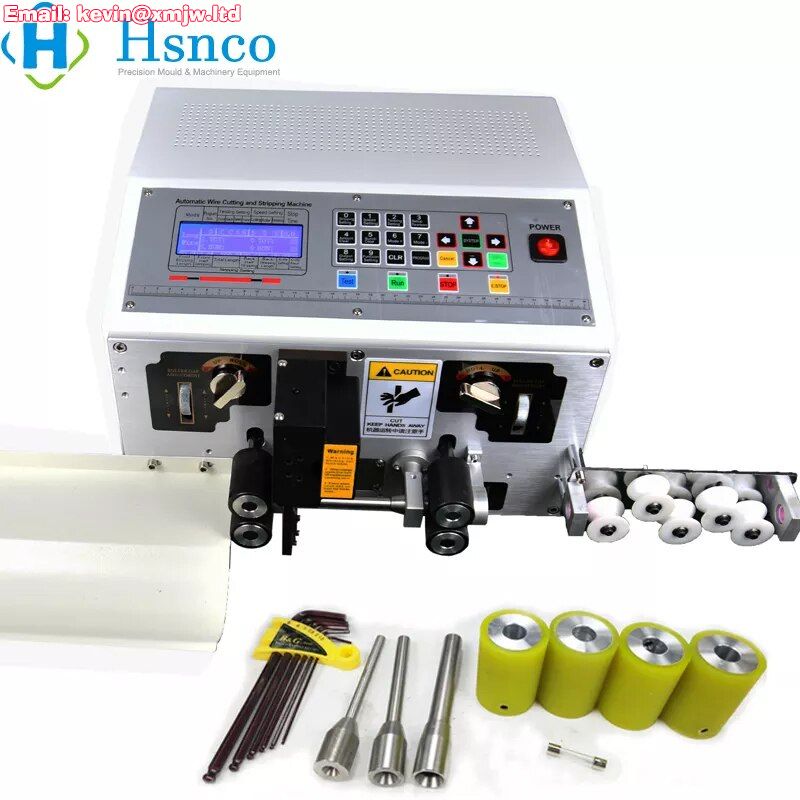

Automatic Single core Multi Core Cut Stripping Machine
Strippers inner sheathed wire for sale
Wire Stripping Machine Specification :
Model No. : HS-BX04 ;
Wire Range : 1mm² - 10mm² (AWG17 -AWG7) , 2x0.5mm² - 3x1mm² Max cable OD 7mm ;
Cutting Length : 1 - 99999mm ;
Stripping Length : Front 1 - 150mm , End 1-80mm ;
Wire Guide Size I.D : 4mm, 6mm, 8mm, 10mm ;
Stripping Drive Mode : 4 wheel drive ;
Wire Material : PVC ;
Blade : High Speed Steel ;
Speed Adjust : 1-9 ;
Tolerance : +-0.2% * Length
Automatic Single Core Multi Core Cut Stripping Machine
1. Power Plug European Plug, USA Plug.....
4. It's widely used in the electronics industry, the city ahs, electrical appliances,motor, lamps, toys, auto parts and other various products of wire processing.
5. Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.
6. Automatic cutting, stripping, semi-stripping,multi-segment stripping function once completed,can instantly transform wire specifications and dimensions,it’s very economic.

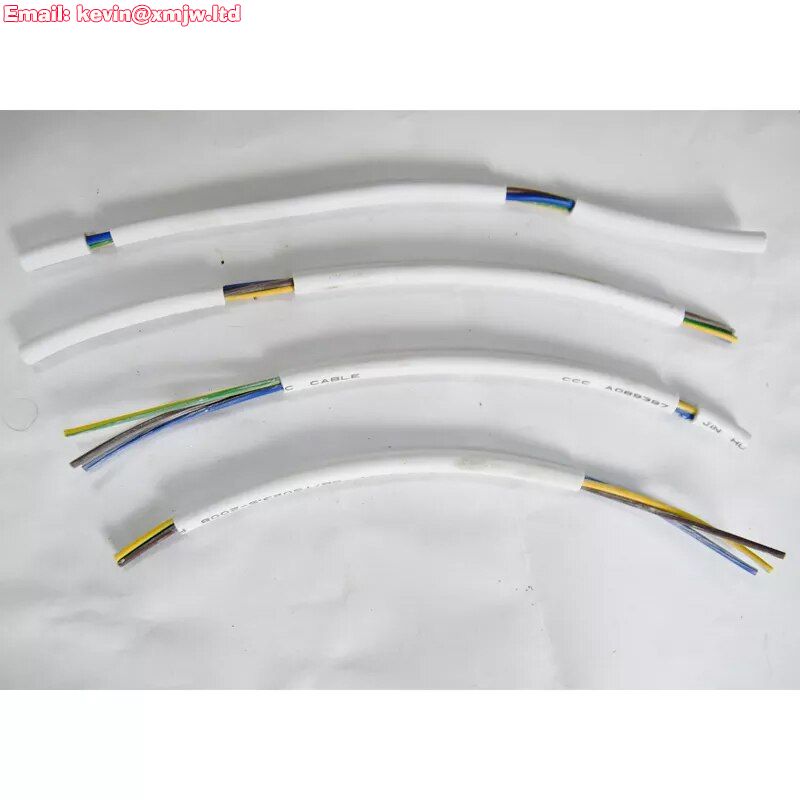

7. Optimal stripped wire PVC/Wires/cables etc.
Related Prodection
Packing
| Application | electronic |
|---|---|
| Blade material | High Speed Steel |
| Certification | CE |
| Cutting length | 1-99999mm |
| is_customized | Yes |
| Model Number | HS-BX04 |
| Origin | Mainland China |
| Speed Adjust | 1-9 |
| Stripping drive mode | 4 Wheel Drive |
| Stripping length | Front 1-150mm End 1-80mm |
| Stripping Multicore Wire Range | 2x0.5mm2 - 3x1mm2 |
| Stripping Wire Diameter | Max OD 7mm |
| Stripping Wire Szie | AWG17 - AWG7 |
| Type | Male to Male |
| Wire Guide Size I.D | 4mm;6mm;8mm;10mm |
| Wire material | PVC |
| Wire Range | 1mm2-10mm2 |
