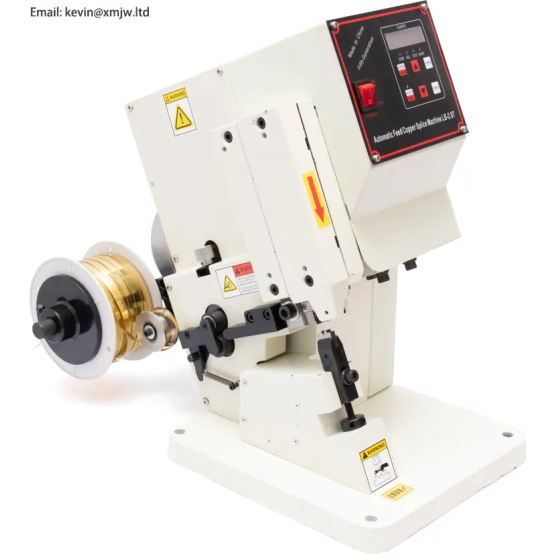

Super Mute Copper Band Wire Splicing Machine - X-CM108-2T Copperband Crimper
- Splicing wire with neon lamp, LED with wire, slide switch with wire(instead of soldering.
- Connection of high temperature heating elements ,sensitive components(eg: magnetic reed switch,constant temperature fuse.
- This machine is designed for the wire that needs riveting, pressing the riveting and connecting the wire to replace the traditional welding method.
- Using special continuous copper strip terminal, the material is cut, formed, pressed once, quickly and without waste, saving cost.
- The copper belt is treated by special grain, and the endurance is very strong after riveting.
- Model Number
- X-CM108-2T
- Power
- 550W
- Voltage
- 110V/220V
- Weight
- 55kg
- Dimension
- 520*320*520mm
- Warranty
- 1 Year
Reply within 24 hours · 12-month warranty
Product Description
Feature
Splicing wire with neon lamp, LED with wire, slide switch with wire(instead of soldering.).Connection of high temperature heating elements ,sensitive components(eg: magnetic reed switch,constant temperature fuse.) and transformer tapping.
1: This machine is designed for the wire that needs riveting, pressing the riveting and connecting the wire to replace the
traditional welding method.
2: Using special continuous copper strip terminal, the material is cut, formed, pressed once, quickly and without waste, saving cost.
3: The copper belt is treated by special grain, and the endurance is very strong after riveting.
4: Scope of application: the connection between the xenon lamp and the resistor, the connection between the slide switch and the wire, the connection between the high temperature heating elements, and the connection between the thermosensitive elements.
traditional welding method.
2: Using special continuous copper strip terminal, the material is cut, formed, pressed once, quickly and without waste, saving cost.
3: The copper belt is treated by special grain, and the endurance is very strong after riveting.
4: Scope of application: the connection between the xenon lamp and the resistor, the connection between the slide switch and the wire, the connection between the high temperature heating elements, and the connection between the thermosensitive elements.
Specification
| Product name | Super mute copper belt strip and crimp machine/wire splicing machine | |
| Model | X-CM108-2T | X-CM108-4t |
| Weight | 55KG | 110KG |
| Pressing capicity | 2.0T | 4.0T |
| Crimping stroke | 30mm | |
| Work efficiency | 2000 times/hour | |
| Dimension | 520*320*520mm | 600*400*600mm |
| Applicable copper strip | 1.0mm,1.5mm,2.0mm,4.0mm,6.0mm | |
| Brand Name | X cable Tech |
|---|---|
| copper width | 2mm 4mm 6mm |
| Crimping force | 2.0T |
| Dimension | 520*320*520mm |
| Function | Crimping Terminal |
| Model Number | X-CM108-2T |
| Packing | Plywood |
| Place of Origin | Guangdong;China |
| Power | 550W |
| Splice tolerances | ±0.1 |
| Usage | crimping |
| Voltage | 110V/220V |
| Warranty | 1 Year |
| Weight | 55kg |
