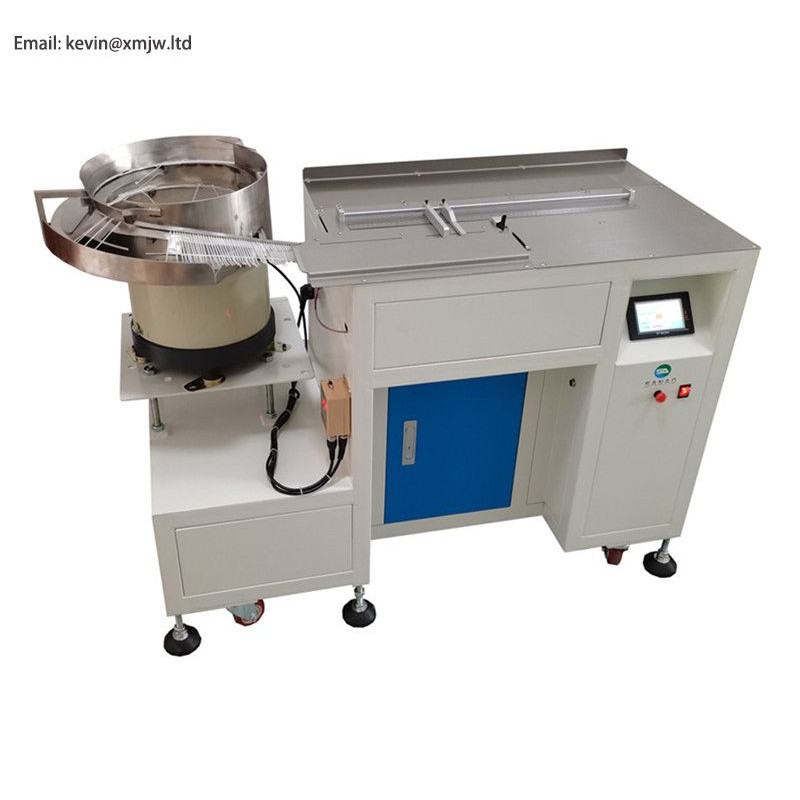

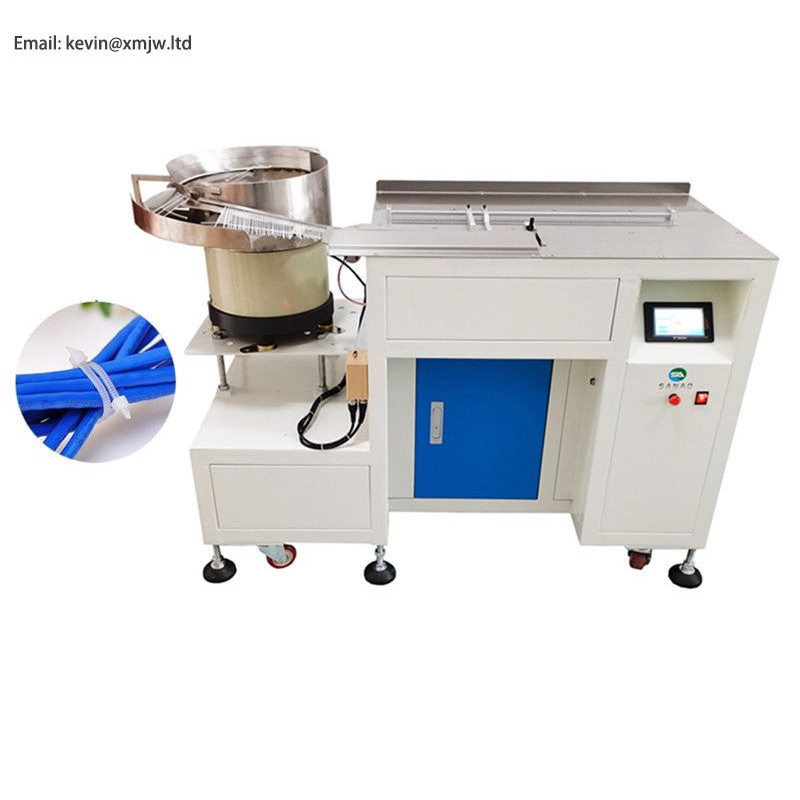

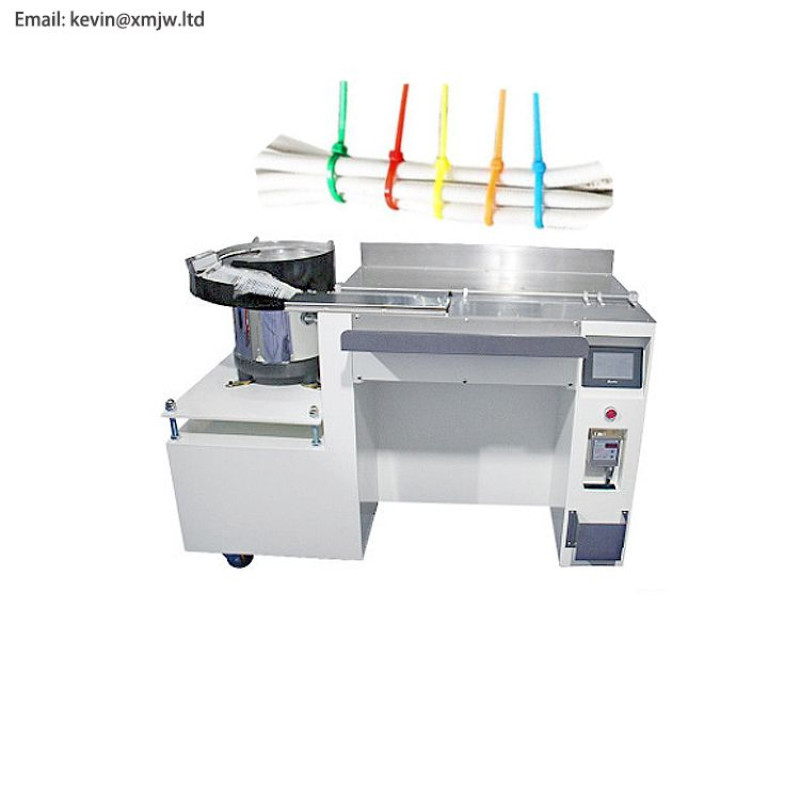

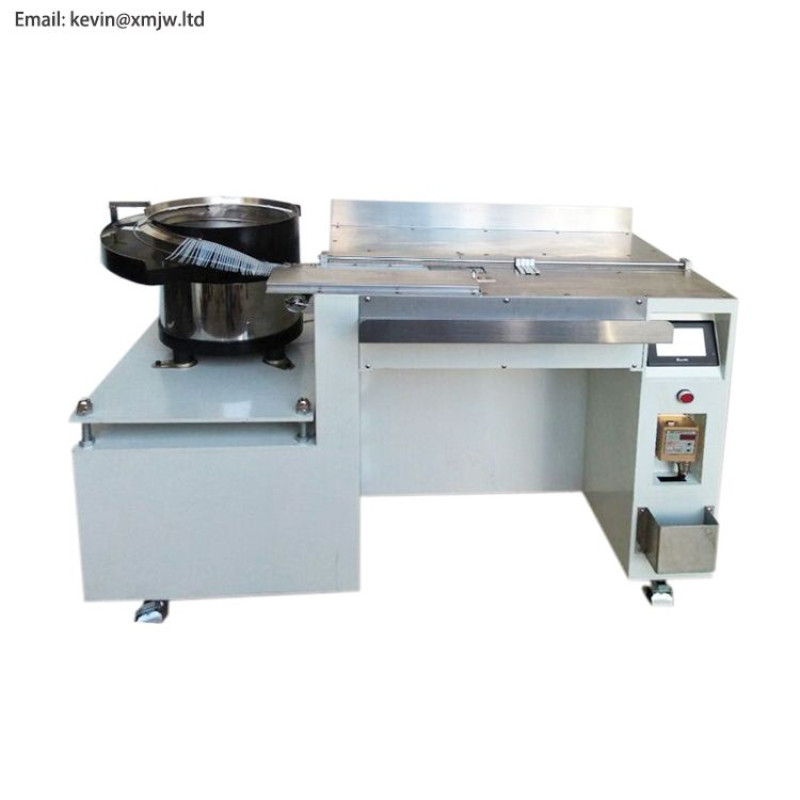

Desktop Automatic Nylon Zip Cable Tie Self-locking Cutting Machine - X-WM06B
- Model Number
- X-WM06B
- Power supply
- AC220V/110V 50/60HZ
- Tying speed
- 0.5s/pc
- Weight
- 130kg
- Dimension
- 650 * 650 * 720 mm
- Place of Origin
- Guangdong;China
Reply within 24 hours · 12-month warranty
Product Description
Features:1、automatic PLC touch screen control circuit, the operation is simple and convenient, good working stability 2、bulk nylon bar to achieve automatic feeding, replacing the tedious process of manual discharge; 3、automatic wear lock tie, automatically cut the ribbon, about 1500 / hour (depending on the product to capacity), saves time and labor, improve several times the work efficiency.4、 with elastic touch screen digital adjustment, the bar to stay with the end of the digital adjustment, no air.Automatic Nylon Zip Cable Tie Self-locking and Cutting MachineLoose nylon zip tieAutomatic feeding, self-locking, and cuttingApply to all regular and special zip tiesTying tension is adjustable by turning a knobCutting length is programmable via 7" HMIHidden feeding unit, safe operationContinuous taping function for standard product
Specification
| Model | X-WM06B |
| Voltage | 220V/50-60HZ |
| Nylon cable tie length | 80/100/120/ 150 mm (can be customized) |
| Bundle Diameter | 1-30MM |
| Rest length after cutting | 1-3MM |
| Tension Force | ≥20N |
| Tolerance | ≤0.01 |
| Working speed | 1.3pcs/S |
| Dimension | L1230*W550*H800(mm) |
| Weight | 150kg |
| Brand Name | X cable Tech |
|---|---|
| Cable tie length | 80/100/120/150 mm (can be customized) |
| Compressed air connection | 0.55 - 0.65 MPa |
| Dimension | 650 * 650 * 720 mm |
| Function | Cable Tying |
| Model Number | X-WM06B |
| Place of Origin | Guangdong;China |
| Power supply | AC220V/110V 50/60HZ |
| Rest length after cutting | 1-3mm |
| Tying Bundle Diameter | 1mm - 30 mm |
| Tying speed | 0.5s/pc |
| Type | Handheld tie gun |
| Usage | Binding |
| Weight | 130kg |
